GSA # GS-07F-9239S

Drop-Arm Turnstiles for

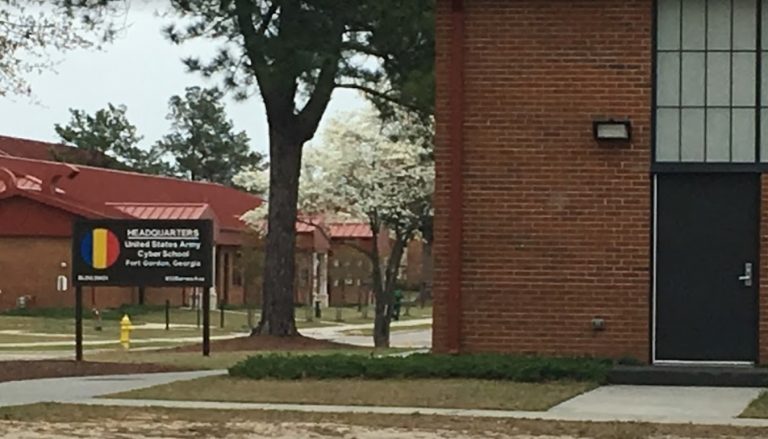

Fort Gordon Cyber Instruction Facility -
Fort Gordon, GA

www.TURNSTILES.us is a professional organization dealing with the physical and electronic securing of building entrances with Turnstiles, Mantraps, EntraPASS Access Control Hardware, and Software since 1989. We are a U.S. Federal Government Contract Holder (GS 07F 9239S) and are registered with the U.S. Federal Government System for Award Management (#181428611).

TURNSTILES.us is honored to provide our Turnstiles and Gates for this project. Please find the selected equipment information listed below. We appreciate the opportunity to present our solutions to secure the Fort Gordon Cyber Instruction Facility in Georgia.

Background: The U.S. Army Corps of Engineers has studies, projects, and programs that will be initiated in Fiscal Year 2022 with the $22.81 billion in supplemental funding provided in two recently enacted laws — the Infrastructure Investment and Jobs Act (IIJA); and the 2022 Disaster Relief Supplemental Appropriations Act (DRSAA).

Read more on the USACE Website >

Turnstile and Gate Solutions

EQUIPMENT

Outlaw Optical Drop Arm Turnstiles and Glass Swing Gates

Area 1 – Two Optical Lanes, One Glass Swing Gate
Area 2 – Three Optical Lanes, One Glass Swing Gate
Area 3 – Five Optical Lanes, One Glass Swing Gate
Area 4 – Six Optical Lanes

Made in the USA with locally sourced materials
GSA Approved and HUBZone Certified Equipment

SERVICE

(2) Factory Installers
(6) Days of Field Labor
(2) Days of Travel



SCOPE OF WORK

Outlaw Industries/ TURNSTILES.us Scope of work at the Fort Gordon Cyber Security Facility

  • Manufacturer will ship equipment from Calhan, CO using a dedicated truck.
  • Contractor will supply a forklift or pallet jack to offload and store the equipment until Installers arrive.
  • Contractor will supply a forklift or pallet jack to move the equipment to the install site when the installers arrive onsite.
  • The Installers are factory technicians and have OSHA 30 Certificates and will clear all Federal background checks.
  •  We will need at least two-weeks Prior Notice to schedule an installation. The job site must be ready with concrete cured and level, conduit and electrical supplied to junction box as shown in shop drawings, and room to work.
  • We will install turnstiles and gate in approximately 6 Days onsite. If coordination with an electrician or other service provider is necessary, the Contractor will arrange for them to be onsite at the time of installation.
  • We will need communication and cooperation with the electrician to supply Conduit and 120 VAC to the master of each lane.
  • We will complete the wiring of the turnstile-to-turnstile communication and show electrician where to land the AC wiring to the turnstiles.
  • Electrician is responsible for conduit and 120VAC install up to turnstiles as well as conduit for access control.
  • Provided there is power at that time of the installation, we will test and show Contractor functionality of the product and instruct a liaison in the maintenance and programming capabilities of the turnstiles.
  • Contractor signs our documents and at that time warranty on the product begins.
  • We will dispose of our pallets, trash, and debris in a dumpster provided by Contractor and leave our work area cleaner than when we arrived.

Drop-Arm Optical Turnstiles

Outlaw Drop-Arm Turnstiles

*Click Image for More Documentation*

Featuring a sleek architectural design, our drop-arm turnstiles provide unsurpassed beauty and performance.  These units use sensors to monitor building entrances, dropping the barrier arms down into the cabinet upon authorized passage.

  • Waist-High Drop-Arm Turnstile with Optical Sensors
  • For Interior Use
  • Throughput of up to 20-30 people per minute
  • Lower section optical sensors prevent crawling
  • Multiple alarms provide an audible tone, as well as a solid-state output
  • Standard or ADA compliant passage width
  • Standard Casing: #4 brushed 304 Stainless Steel
  • Made with pride in the USA

Motorized Swing Gates

Outlaw Motorized Swing Gates

*Click Image for More Documentation*

The OL-MSG Motorized Swing Gate is designed for managing pedestrian flows at entrance points of industrial facilities, banks, administrative buildings, retail outlets, railway terminals, airports, etc. It is recommended to meet the highest requirements for design and comfort.

  • Waist-High Swing Gate
  • One Way or Bi-Directional Swing Modes
  • Programmable for entry and/or exit
  • Cylindrical Steel Pedestal and Glass Wing
  • Motorized for no-touch, fully controlled rotation
  • ADA Compliant Passage Width
  • Standard Casing: #4 brushed 304 Stainless Steel
  • Made with pride in the USA



Data Sheet

Equipment Dimensional Detail

AutoCAD Equipment Location Details

5/5

TURNSTILES.us Advantage

We are a One Stop Shop

  • Over 33 Years of Installation Experience
  • Pride in Craftsmanship
  • We provide Turn-Key Service with Value-Added Engineering
  • We provide Access Control Elements integrated with the Turnstiles
  • U.S. Federal Government GSA Contract # GS-07F-9239S
  • SBA Small Business HubZone Certification # 64753

We appreciate the opportunity to work with you on this project.
