Security Entrance Solutions
Submitted to:
Sundt
Gilbert, Arizona
Submitted by:
www.TURNSTILES.us, Inc.
March 2023 – Present
The team at TURNSTILES.us is honored to provide our Turnstile and Vehicle Security Entrance Systems to Sundt. Please find the selected equipment information listed below. We appreciate the opportunity to secure your facility.

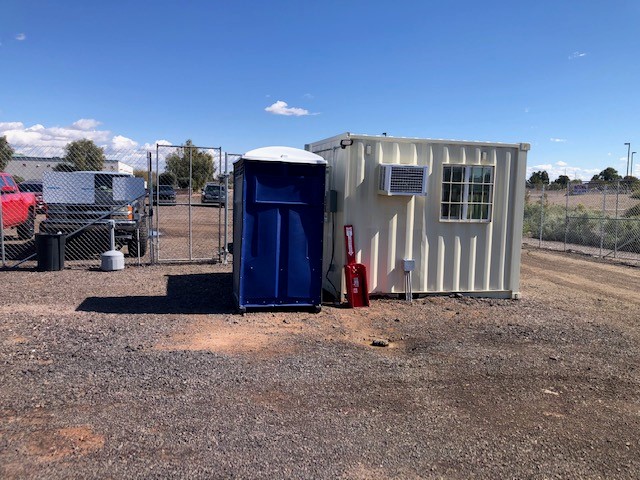

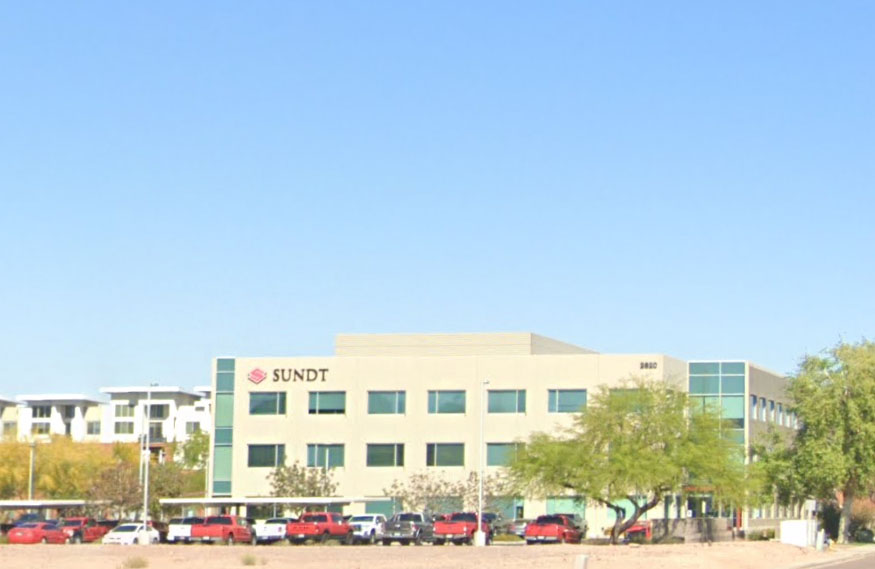

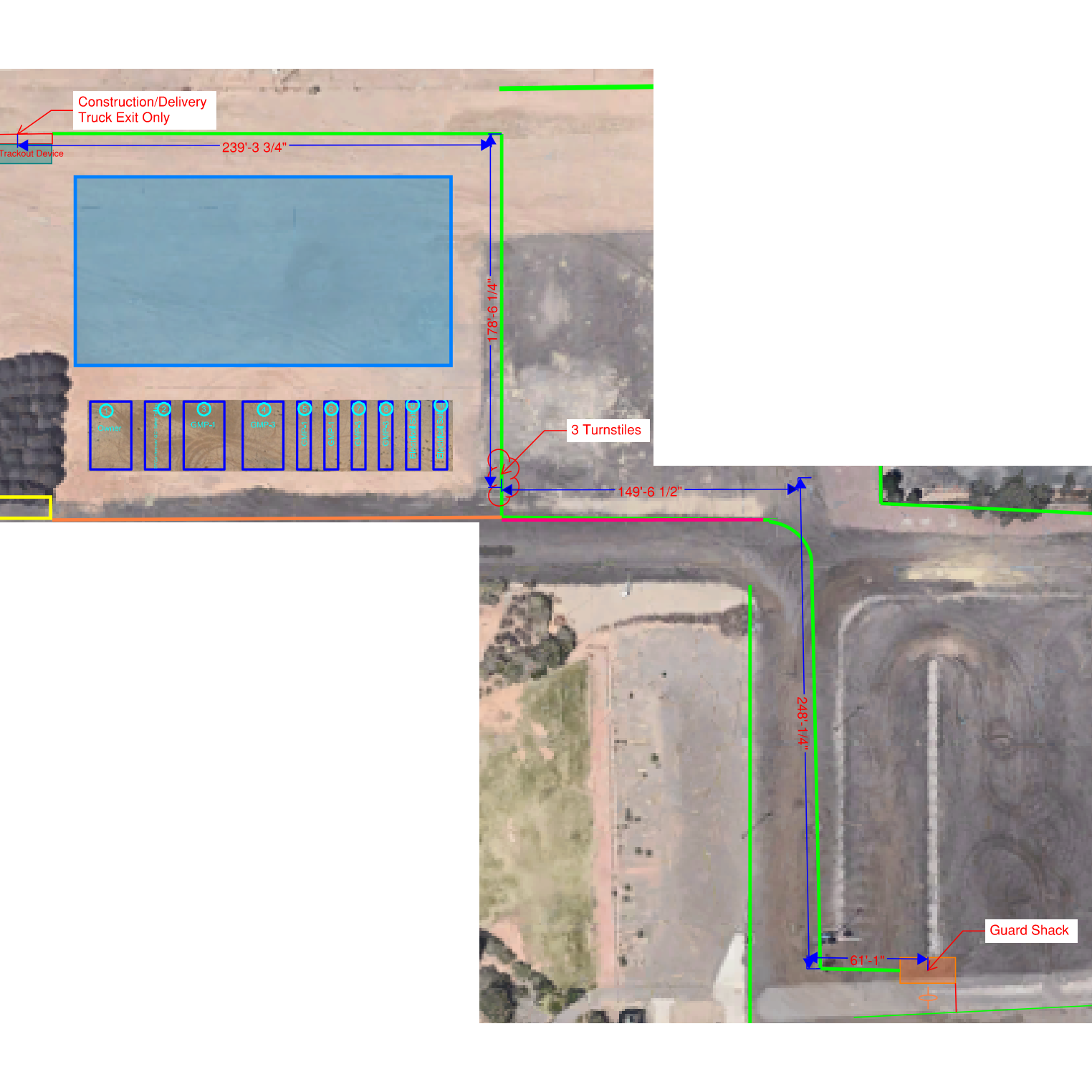

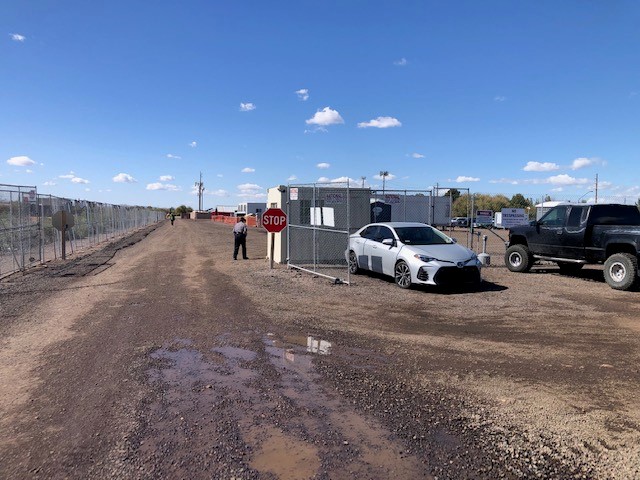

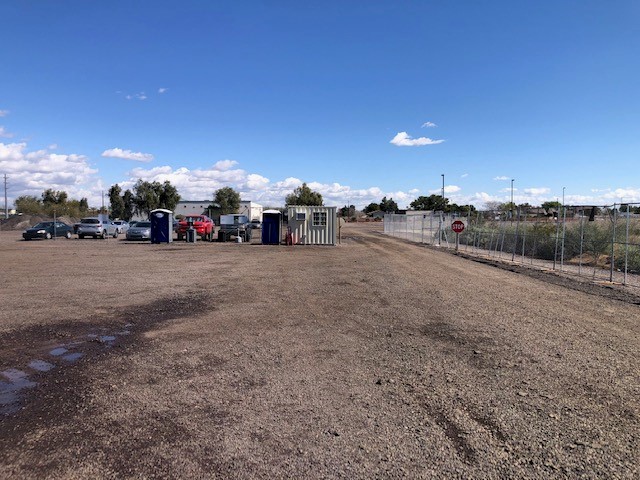

Location Photos

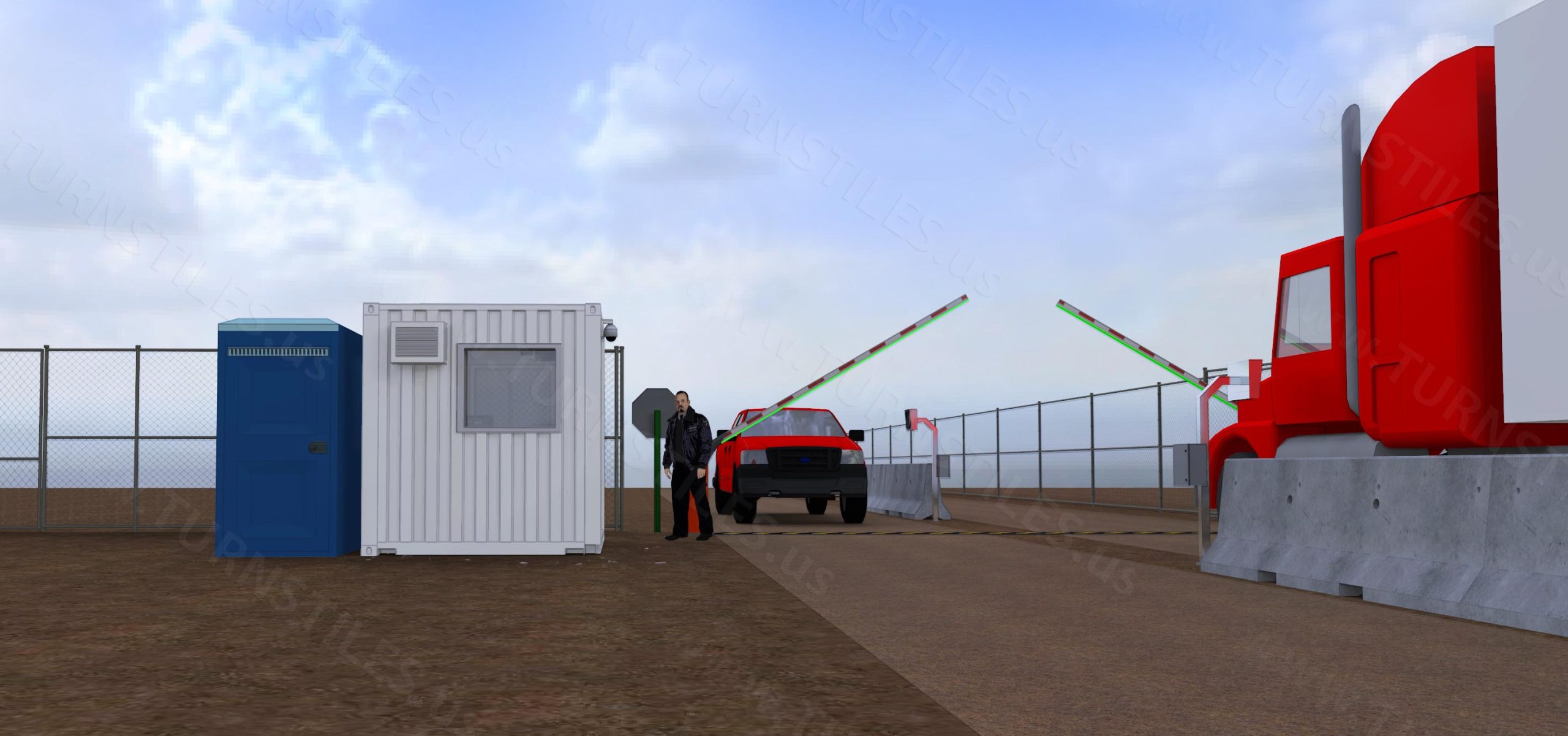

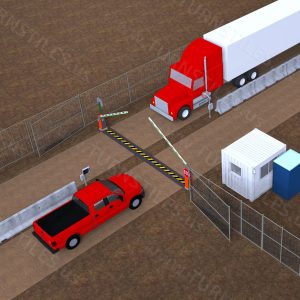

Concept Images
Security Entrance Solutions for Sundt

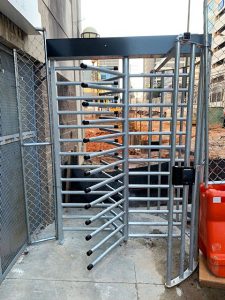

Skanska-Grady EntraPASS Turnstiles
Photo ID Badging
Magnetic Vehicle/Auto Gates

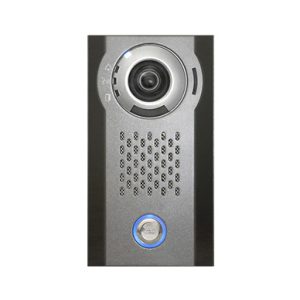

Aiphone Video Intercom
EQUIPMENT
(1) EntraPASS Global Software (Skanska)
(3) HS430 Single Galvanized Turnstiles (Skanska)
(3) 6500 Electronic Control Heads
(6) Card Reader Mounting Plates
(3) Sets of Black End Caps
(6) Indicator Lights
* Head End
(1) EntraPASS Global Edition Server Workstation
(1) Relicense Global Software
(1) USB 485 Interface
(1) IX Video and Audio Master Station
(1) IX Video Mobile App
(1) 24″ Monitor Full HD
(1) 8 Channel 4K NVR
(1) POE Switch
(1) Tech Support For Cameras 1 Full year Online
(2) UPS with power conditioning
(1) Wiring Package
* Badging System
(1) Fargo DTC1250 Photo ID Printer
(1) Printer Cover
(1) Webcam with Stand
(1) USB for Printer
(2) Fargo DTC Color Print Ribbons (250 Prints)
(1) HID Prox II – Photo ID Cards (500)
(1) Badge Clips (500)
* Guard Shack Location – AutoGate Entry / Exit

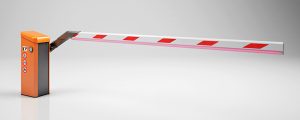

(2) Parking Pro Vehicle Barrier with 15′ VarioBoom
(2) LED Strips for 15′ Boom (Red when Closed Green when Open)
(4) 3′ x 61′ Sawcut inductive Sawcut Loop
(2) PE-Beam, installed on barrier gate
(2) Card Reader Pedestals
(2) Sonotube and Concrete
(2) HID-5375 – Long Range ( 18″ ) Card Reader
(2) IX Video and Audio Door Station
(2) 14″ Tall x 18″ Wide Polycarbonate Box (additional optional)
(1) KT-2 Door Controller
(1) Battery Backup and Power Supply for Door Controller
(2) RBSN – Relay and Snap Track
(2) CCTV Outdoor Rated Camera
(2) Camera Mount
(1) POE Switch
(1) Wiring, 18/4 Plenum Stranded Shielded cable
Turnstile Entry/Exit
*To be installed beneath canopy by others*
* Turnstiles – Entry/Exit
(8) HID-5375 – Long Range ( 18″ ) Card Reader
(8) 13″ Tall x 13″ Wide Polycarbonate Mounting Plates
(1) IX Video and Audio Door Station
(1) 8″ Tall x 6″ Wide Polycarbonate Video Intercom Box
(2) Posts for Gate Access Controls and Intercom
(2) KT-400 Door Controller
(2) Battery Backup and Power Supply for Door Controller
(8) RBSN – Relay and Snap Track
(2) CCTV Outdoor Rated Camera
(2) Camera Mounts
(1) POE Switch
(1) ADA Gate POG
(2) Anti-Reach Barriers POG
(6) Design LED Lighting for Gates in Silver
SERVICES
AutoCAD Equipment Detail and Dimensions
3D Concept Illustrations
Point-to-Point Schematic
Initial Database Creation
1 Year of Remote Desktop Assistance
* By Owner
Installation
Electric Pulled to Equipment
Permits
In-Ground Conduits, Sonotubes and Concrete

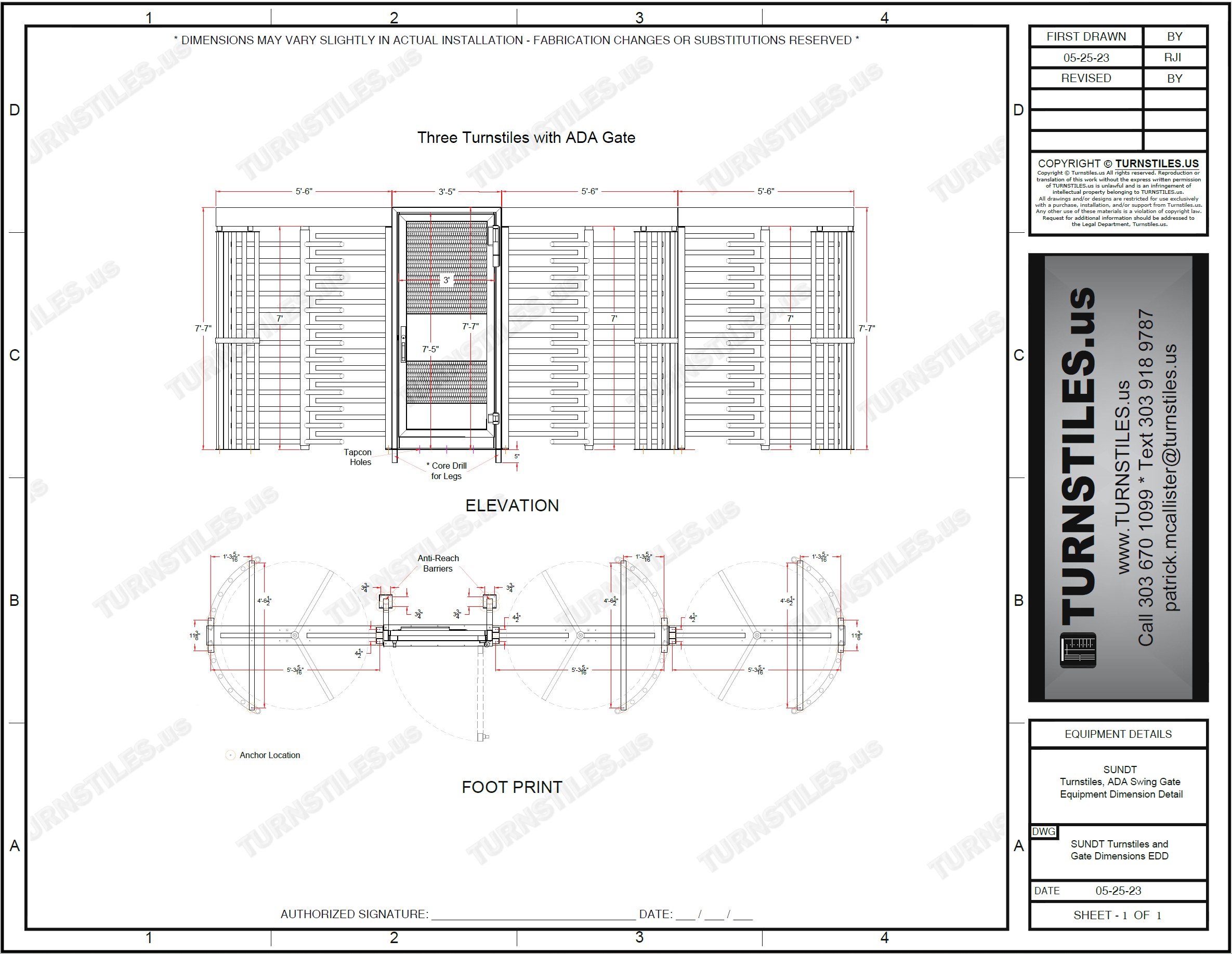

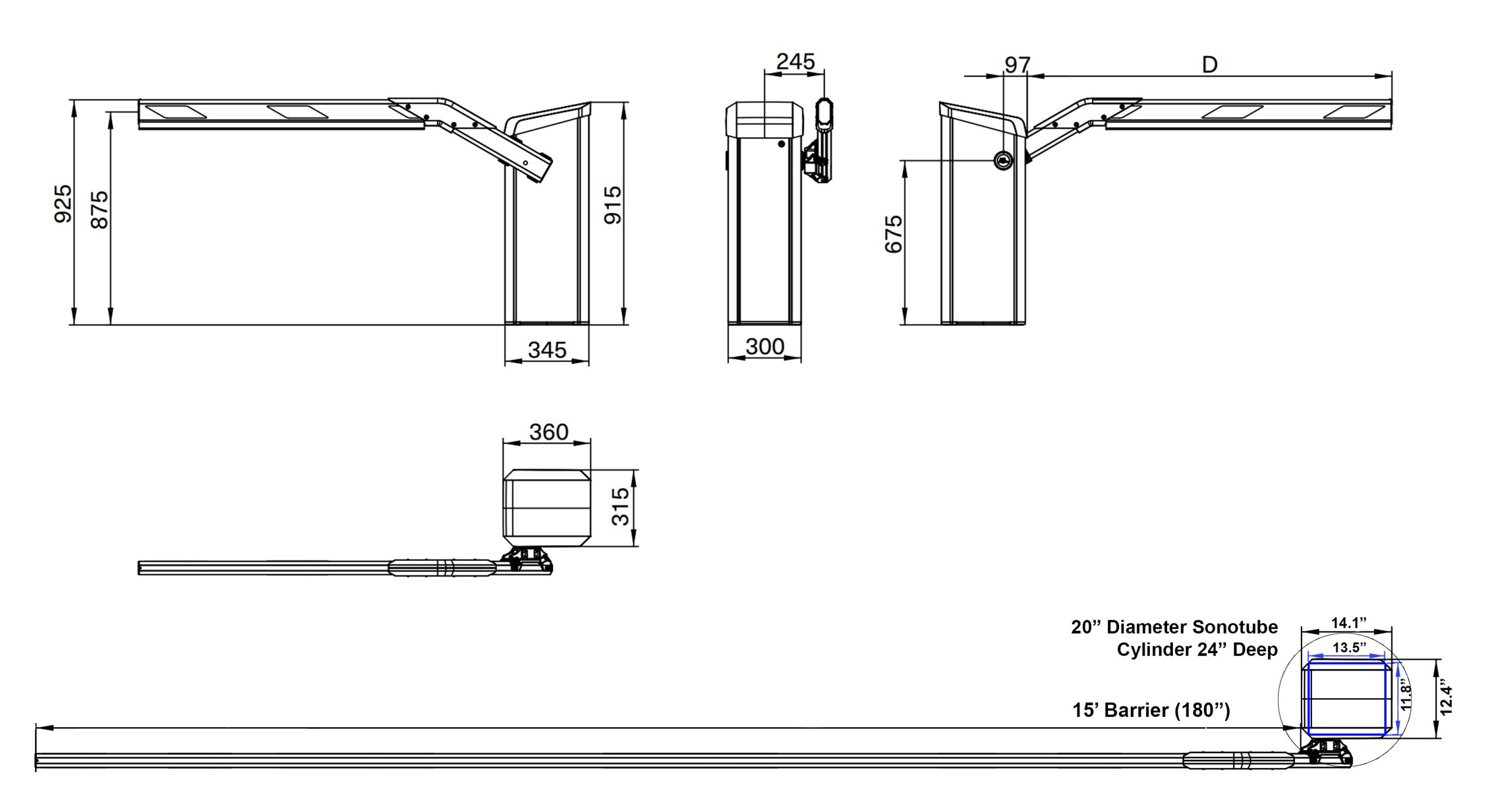

Equipment Dimensional Details
The concrete pad size should be at least 6″ deep and 12″ surrounding the equipment on all sides.
If space allows, more than one foot is recommended before and after the equipment to form a paved ‘landing’ area to stand.
Featured Equipment Links and Images

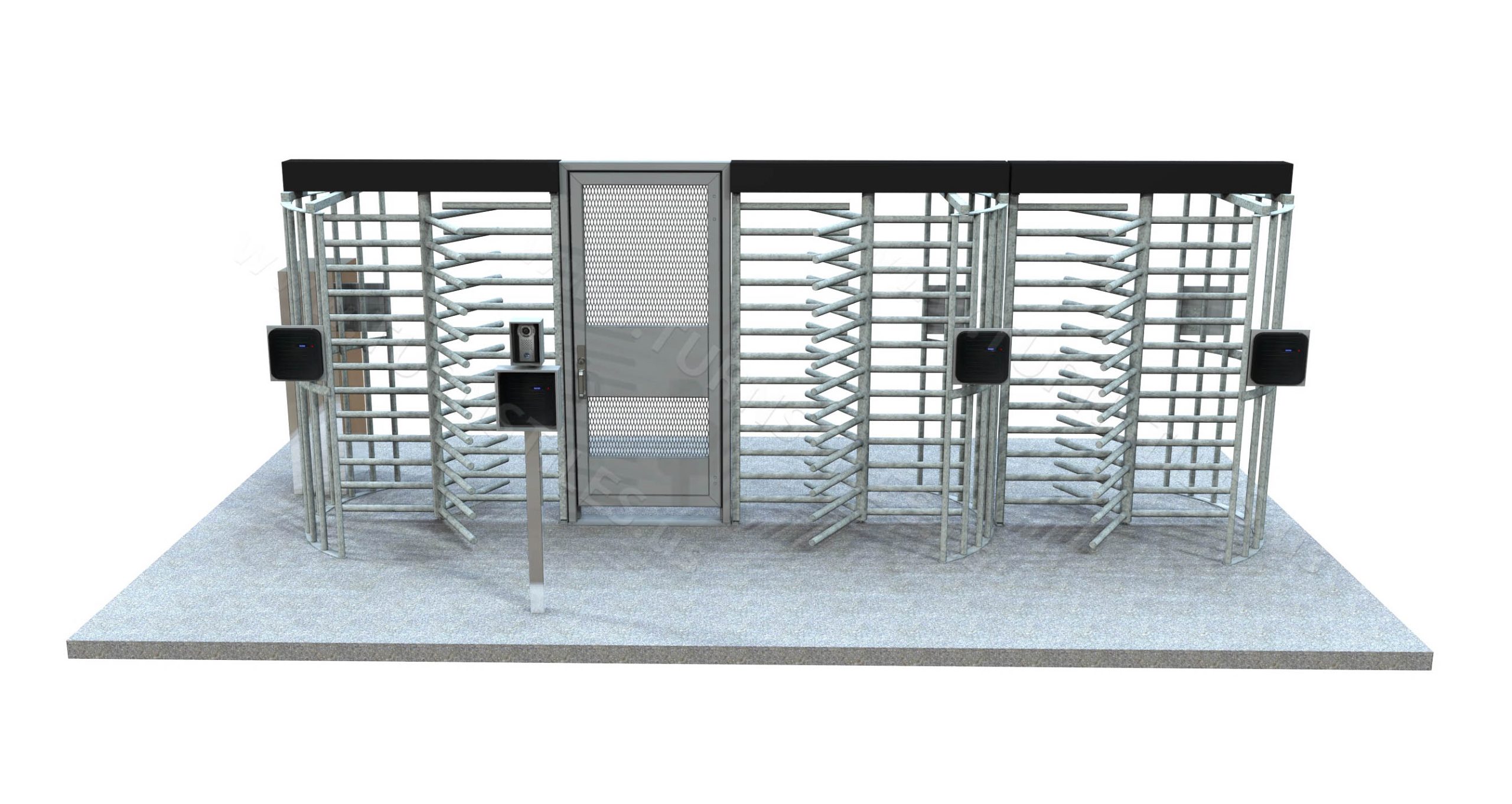

HS430 Single Turnstiles
Galvanized

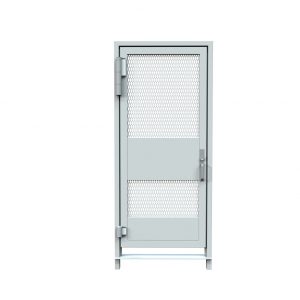

AG36-ADA Gate
Powder Coated over Galvanized
Anti-Reach Barriers
Galvanized
Custom Electrical Enclosure
With Cooling Fans

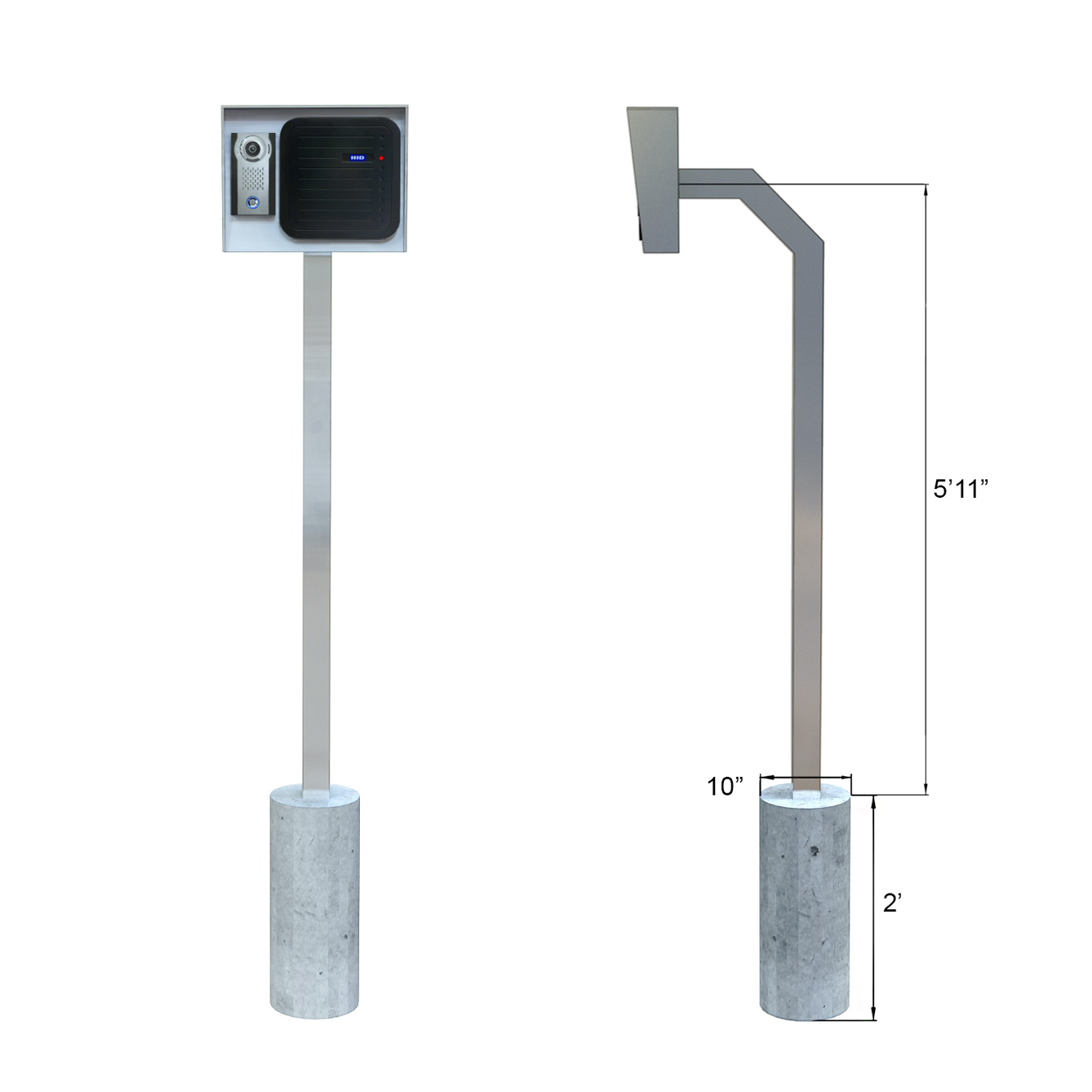

Custom Access Terminal Style1
Truck Height / Intercom, Card Reader
KT-2 Controller
With Battery Backup and PS
KT-400 Controller
With Battery Backup and PS
Previous Renditions
(Removed From Plans)
* AutoGate – Exit Only
(1) Parking Pro Vehicle Barrier with 15′ Boom
(1) Red/Green LED Strips for 15′ Boom
(2) 3′ x 6′ Inductive Sawcut Loops
(1) Photo Beam, installed on barrier gate
(1) HID-5375 – Long Range (18″) Card Reader
(1) 14″ Tall x 14″ Wide Polycarbonate Box
(1) IX Video and Audio Door Station
(1) KT-2 Door Controller
(1) Battery Backup and Power Supply for Door Controller
(1) RBSN – Relay and Snap Track
(1) CCTV Outdoor Rated Camera
(1) Camera Mount
(1) CCTV Camera Pole
(1) Sonotube and Concrete
(1) POE Switch
(1) Wiring, 18/4 Plenum Stranded Shielded cable
TURNSTILES.us Advantage
We are a One Stop Shop
- We provide Turn-Key Service with Value-Added Engineering
- We provide Access Control Elements integrated with the Turnstiles
- 32 Years of Experience
- Pride in Craftsmanship
