Description

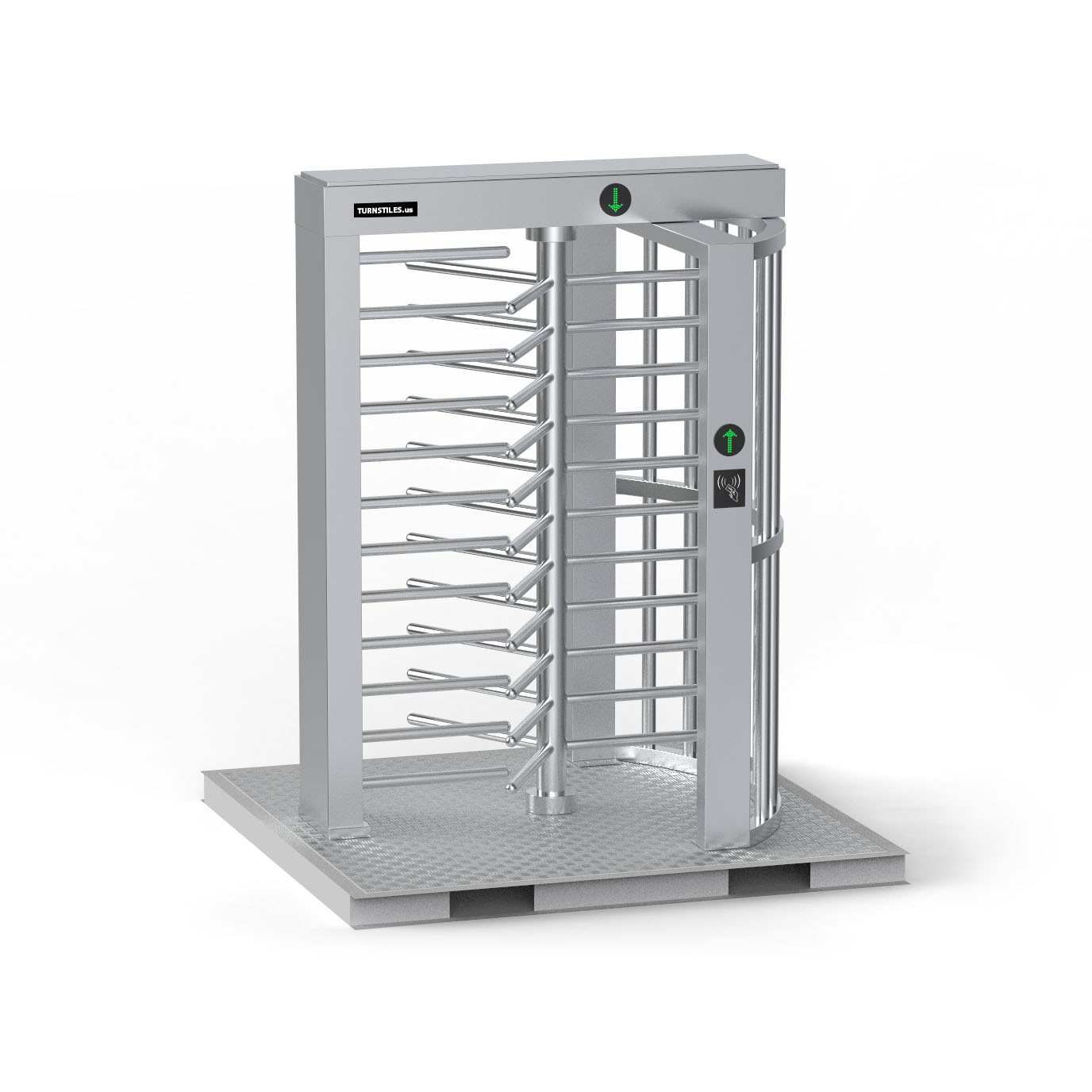

The 304 Series 304STB Full-Height Single Turnstile on Portable Base provides an entry access control solution that can be relocated when needed. Also available with a full-height swing gate on a base, with or without ramps for ADA compliance. These units are great for use at construction sites, high-attendance events, or to control access to locations temporarily. It has space to embed readers and we can help you integrate with Access Control hardware and Software. Ask a TURNSTILES.us team member about RFID, fingerprint, display, counter, push-button, coin insert, barcode/QR readers, and other devices.
Data Sheet – 304STB Single Turnstile on Base
- Single turnstile
- Bi-directional passage control
- 30″ Passage Width
- Suitable for indoor and outdoor use
- Finished and brushed stainless steel
- Waterproof, anti-corrosive, and rigid
- LED red/green indicator lights
- Space to embed access control reader
FEATURES
- Full Height Industrial Single Turnstile
- 2-Way Electric, Steel, 3-Arm, 30″ Passage
- Long-life performance, high operation dependability, and fast response
- The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running.
- Single directional or Bi-directional is selectable
- Automatic reset function: turnstile arm will lock automatically within 5s (can be programmed) if passenger delays to enter
- Single-file passage
- When power is off, arms will disengage and move freely, complying with fire safety requirements
- LED indicator lights on both the top and side (red × means no entry; green → means entry)
- The header contains cable neatly inside the case
- Beauty ring cover on top and bottom
- Override key function for manual locking in one or both directions
- Easy to maintain
- Readers and Door Controller Panels optional
- Ensure entrance compliance

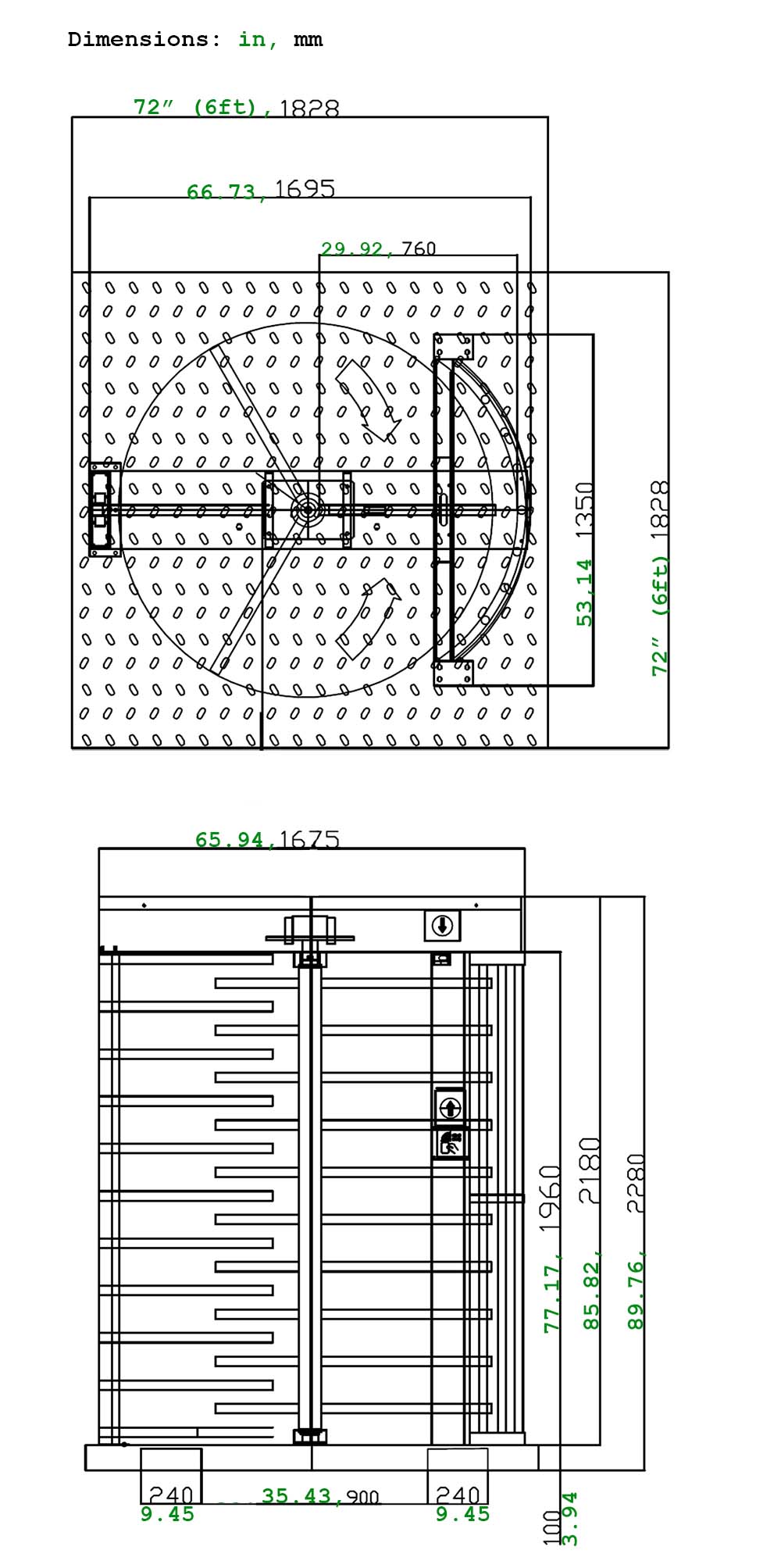

DRAWING & DIMENSIONS
SPECIFICATIONS
| Line | www.TURNSTILES.us 304 Series |
|---|---|
| Model No. | 304STB |
| Framework Material | 304 Full Stainless Steel |
| Base | Yes, 2 forklift pockets front to back |
| Access Reader | Sold separately |
| Passage Width | 760mm / 30in |
| Arm Support | 120° rotors with 3 sections |
| Passing Direction | Single directional or Bi-directional programming |
| MCBF | 5 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -15 °C – 60 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 30-35 people per minute |
| LED Indicator | Yes |
| Emergency | The arm rotates freely during power failure |
| Communication | Dry contact |
INSTALLATION
Contact TURNSTILES.us for a delivery quote and freight information. Shipped worldwide and in bulk quantities.
Full-Service Installation is available at your location! See our Portfolio of work
