304STGB Full-Height Single Turnstile and Gate on Portable Base

Please Login for Pricing

This full-height turnstile with a forklift base is designed to provide an entry access control solution that can be relocated easily whenever needed. See more details below and contact a friendly team member at TURNSTILES.us for purchase information.


Login or Sign Up Request A Quote

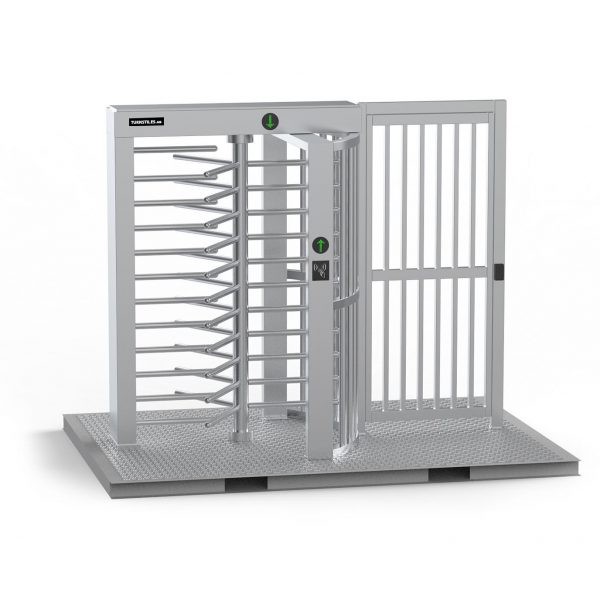

The 304 Series 304STGB Full-Height Single Turnstile and Gate on Portable Base provides a full entry access control solution that can be relocated when needed.  Also available with a full-height swing gate on a base, with or without ramps for ADA compliance. These units are great for use at construction sites, high-attendance events, or to control access to locations temporarily. It has space to embed readers and we can help you integrate with Access Control hardware and Software. Ask a TURNSTILES.us team member about RFID, fingerprint, display, counter, push-button, coin insert, barcode/QR readers, and other devices. Also, see the 304STB Single Turnstile on Base. Align units nest to each other to expand your security array.

Data Sheet – 304STGB Single Turnstile and Gate on Base


  • 30″ Passage Width Turnstile
  • 35″ Passage width ADA Gate (Ramps sold separately)
  • Single turnstile, Bi-directional passage control
  • Suitable for indoor and outdoor use
  • Finished and brushed stainless steel
  • Waterproof, anti-corrosive, and rigid
  • LED red/green indicator lights
  • Space to embed access control reader



  • Full Height Industrial Single Turnstile and Gate
  • 6ft x 9ft Steel Base Plate with forklift pockets
  • 2-Way Electric, Steel, 3-Arm, 30″ Passage
  • Long-life performance, high operation dependability, and fast response
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running.
  • Single directional or Bi-directional is selectable
  • Automatic reset function: turnstile arm will lock automatically within 5s (can be programmed) if passenger delays to enter
  • Single-file passage
  • When power is off, arms will disengage and move freely, complying with fire safety requirements
  • LED indicator lights on both the top and side (red × means no entry; green → means entry)
  • The header contains cable neatly inside the case
  • Beauty ring cover on top and bottom
  • Override key function for manual locking in one or both directions
  • Easy to maintain
  • Readers and Door Controller Panels optional
  • Ensure entrance compliance






Line www.TURNSTILES.us 304 Series
Model No. 304STGB
Framework Material 304 Full Stainless Steel
Base Yes, 2 forklift pockets front to back
Access Reader Sold separately
Passage Width 760mm / 30in turnstile
Arm Support 120° rotors with 3 sections
Passing Direction Single directional or Bi-directional programming
MCBF 5 million
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 40W
Operation Temperature -15 °C – 60 °C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor
Flow Rate 30-35 people per minute
LED Indicator Yes
Emergency The arm rotates freely during power failure
Communication Dry contact


Contact TURNSTILES.us for a delivery quote and freight information. Shipped worldwide and in bulk quantities.
Full-Service Installation is available at your location! See our Portfolio of work


Additional information

Weight 1200 lbs

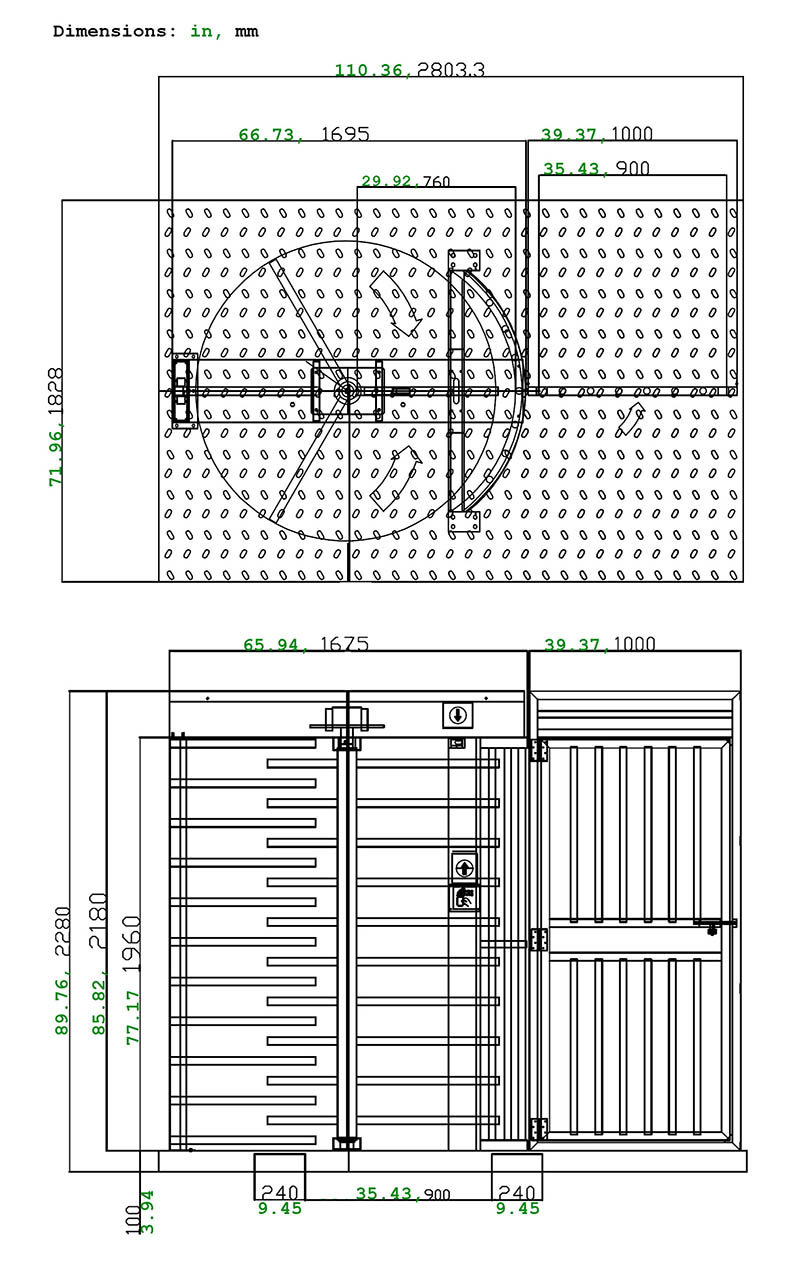

Dimensions 72 × 110 × 91 in
