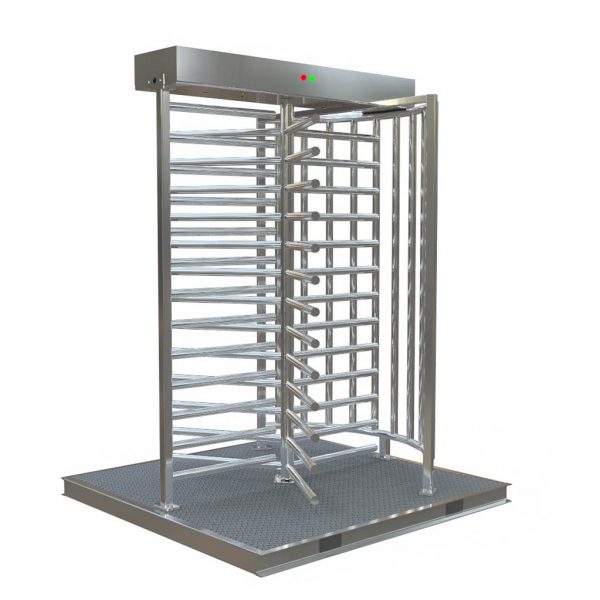

AG-30-T-B Single Turnstile with Portable Base

Please Login for Pricing

Clear
Login or Sign Up

Description

The AG-30-T-B combines the AG-30-T Single Turnstile with an AG-BASE Steel Forklift Platform for portability (no canopy). This unit has all of the essential components included and is great for construction sites that need to track employees and want to move their secure access points when done working. Many custom options are available, including solar power, counters, card readers, and an electronically controlled access system. Manufactured in the USA.

Data Sheet – AG Series Full Height Single Turnstiles

Architectural Spec – AG-30-T Single Turnstile

Wiring Schematic – AG Series Turnstiles

AutoCAD Detail – AG30-T Single Full Height Turnstile on Base

FEATURES

  • Full Height Single Turnstile
  • 30″ Passage Width
  • Electric Two-Way Controls
  • Card reader mounting plates included
  • Black heel guards included
  • Bi-Directional key override included
  • Can be configured for 110v or 220v
  • Heavy-Duty Steel Base Plate
  • Portable by forklift
  • Durable materials and finish
  • Convenient, reliable, and secure
  • Made in the U.S.A.



DIMENSIONS

  • Overall 8′ Tall x 6′ Wide x 6′ Deep
  • 1200 lbs Shipping weight per unit (single/std base)
  • Ships Assembled on the Base



Standard Steel Base Plate 6×6′





ADDITIONAL OPTIONS

  • Upgrade to an extra-wide base plate (6ft x 8ft for more stepping room)
  • Add an ADA Gate (6ft x 10ft base plate holds single turnstile and one gate)
  • Add Folding Ramps for Entry and Exit
  • Solar power, wireless connectivity
  • Resettable Counter – For tracking access events
  • Battery Backup – Up to 8-hours of power per battery installed inside the header
  • Cold Weather Package – Insulated header and enclosure heater
  • LED Accent Light – White accent light lamps mounted on the cage
  • Indicator Lights – Light that switches from red to green with access granted
  • Directional Lights – Light array with green arrow and red X
  • Heel Guards – Foam padding on turnstile arms for user safety
  • Hinged Lid – Hinged box with lock allows turnstile header to be opened to access controls
  • Cage Canopy – Steel half-circle that covers the top cage area
  • Choice of Finish
  • Matching ADA Door
  • Custom Passage Width
  • Integrate with EntraPASS Access Control
  • More options available upon request



TURNSTILE FINISH

  • 304 Stainless Steel
  • Galvanized Steel
  • Powder Coated (Standard Black – Let us know your color preference)
  • Powder Coated over Galvanized

PHOTOS

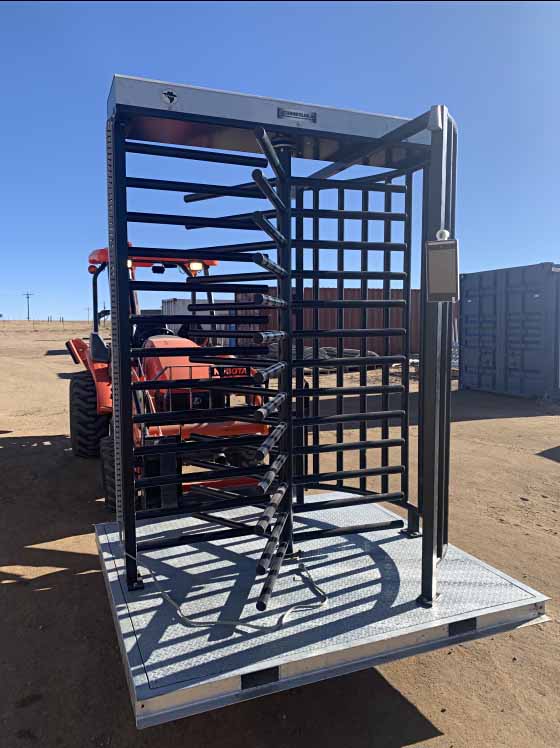

Above: (2) Single Turnstiles on Portable Forklift Bases next to an EntraBOX Portable Building



Contact TURNSTILES.us for delivery and freight information. Safely crated and Ships Assembled!
See our Turnstile Installation Portfolio







Additional information

Weight 1200 lbs
Dimensions 6 × 6 × 96 in
