The CatRax dGate SW turnstile entrance device is designed and engineered to the smallest details to bring innovation, quality and design to the access control market. The product is the result of the intense analysis of global architectural and design trends associated with thorough mechanical, electrical, and electronic engineering. This innovative line offers comfort, sophistication and reliability. This elegant product makes customization easy and facilitates the integration of almost any type of card reader and controller. The dGate is designed for a world that is always in motion.
FEATURES of the CatRax dGate SW
- AISI 304 brushed stainless steel cabinet made with a 0.079 inch (2 mm) plate.
- Swing gate doors in 0.47 inch (12 mm) thick acrylic or polycarbonate.
- Internal side doors with lock and key, facilitate access for maintenance and configuration.
- A dedicated microcomputer controls the acceleration and deceleration of the movement of the doors, optimizing the flow.
- Silent high-performance power engine.
- Feedback provides precise positioning.
- Visual and audible alarm indicators.
- Safety system for doors without voltage when an obstacle is detected.
- Anti-fraud detection with an audible alarm for unauthorized access.
- Direction control that allows bidirectional access.
- Anti-panic function: in case of emergency (without power), the doors remain voltage-free to ensure free flow for all users.
- Ample internal space to integrate access controllers.
- Full range power input (90 to 240 VAC).
- Consumption 25 W (in standby) and 300 W (in operation).
- Top pictogram with high brightness RGB LED with individual brightness control for each color.
- Front pictogram with bicolor LEDs with individual brightness control for each color.
- Passage control performed by 10 infrared sensors.
- Door configuration for openings up to 1.10 m.
ACCESS CONTROL OPTIONS
- Access control card model MCA – TCP / IP.
- Barcode reader with a slot for badge pass.
- Multibeam barcode reader – entry approach.
- 2D code reader (two-dimensional).
- Wiegand / Abatrack proximity reader – HID / Indala / Acura.
- Mifare reader.
- Biometric reader, facial recognition

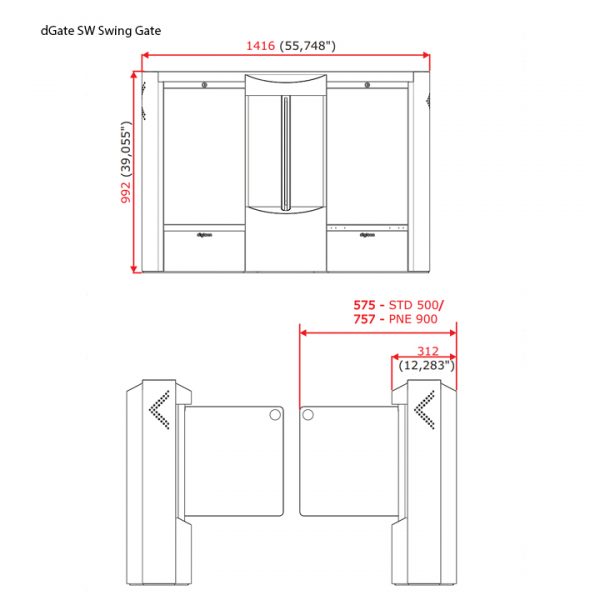

DRAWING & DIMENSIONS
