TUSDS112 Waist High Tripod Turnstile

Please Login for Pricing

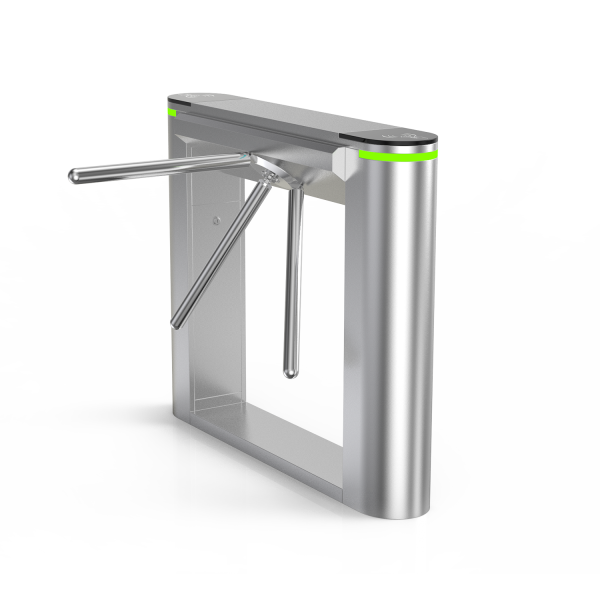

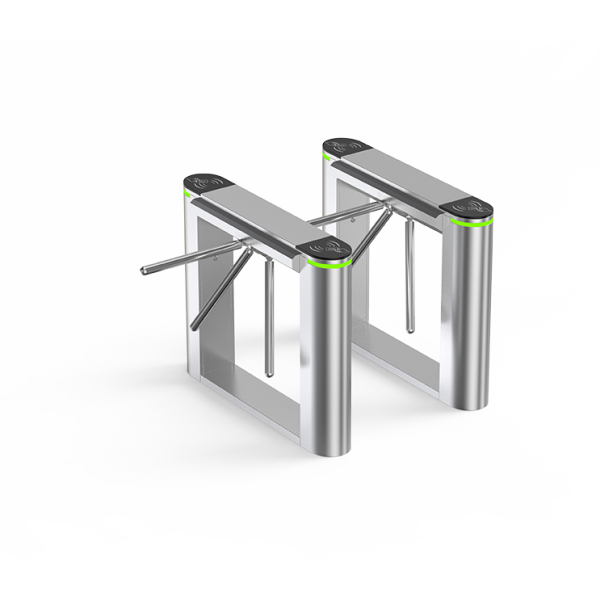

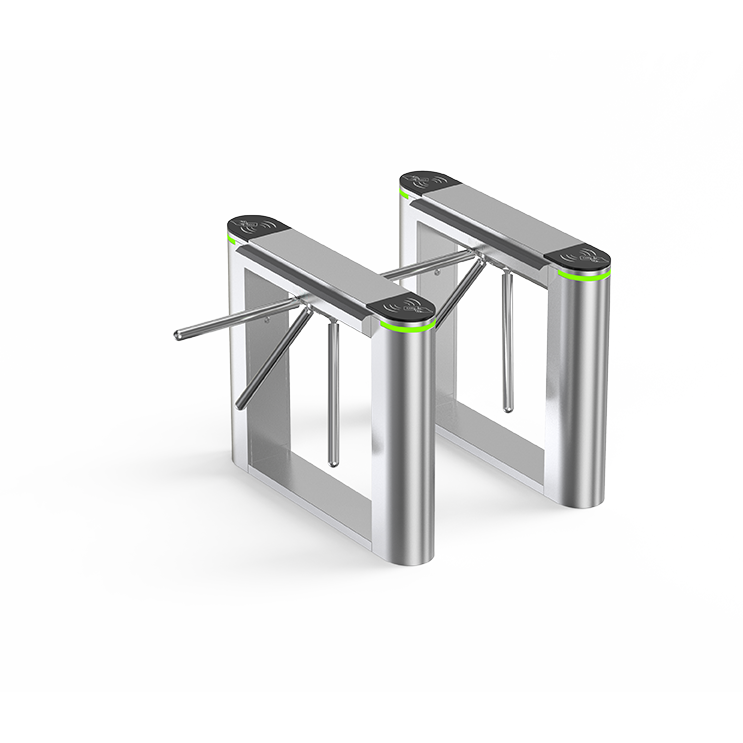

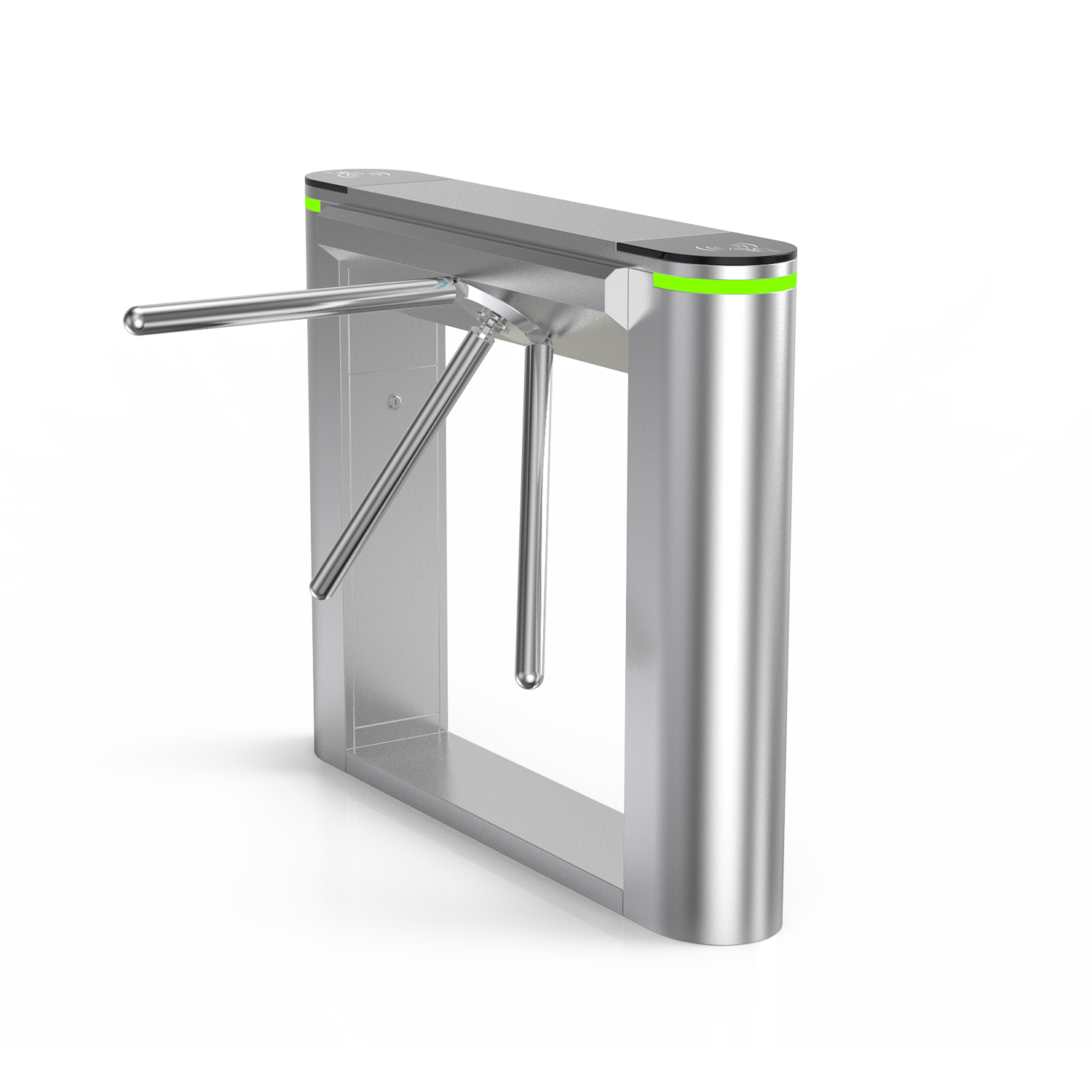

Our waist-high tripod turnstile features a stainless steel bridge-style body with LED indicator lights. It has the ability to integrate with Access Control hardware and Software including RFID, Card, and Biometric Readers. Shipped worldwide and in larger quantities. See more details below and contact a friendly team member at TURNSTILES.us for purchase information.

Login or Sign Up

Description

  • The tripod turnstile TUSDS112 is a security solution to provide elegant access control solutions with a quick throughput rate of 35-40 persons/min.
  • The whole body and arms are made of full brushed stainless steel which is robust, rigid, anti-rust, waterproof, and durable.
  • The top area is totally flat. Access control devices and controllers can easily mount on the top of both sides.
  • Visual LED indication strip at the front and back of the body makes it more dazzling and attractive.
  • Single direction and bi-directional can be selected.



Data Sheet – TUSDS112 Waist-High Tripod Turnstile



FEATURES

  • Long-life performance, high operation dependability, and fast response
  • The whole system runs smoothly, low noise, no mechanical impact
  • Single directional or Bi-directional is selectable
  • Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delays to enter
  • When power is off, arm will automatically drop
  • LED indicator (red × means no entry; green → means entry)
  • Easy to install and maintain

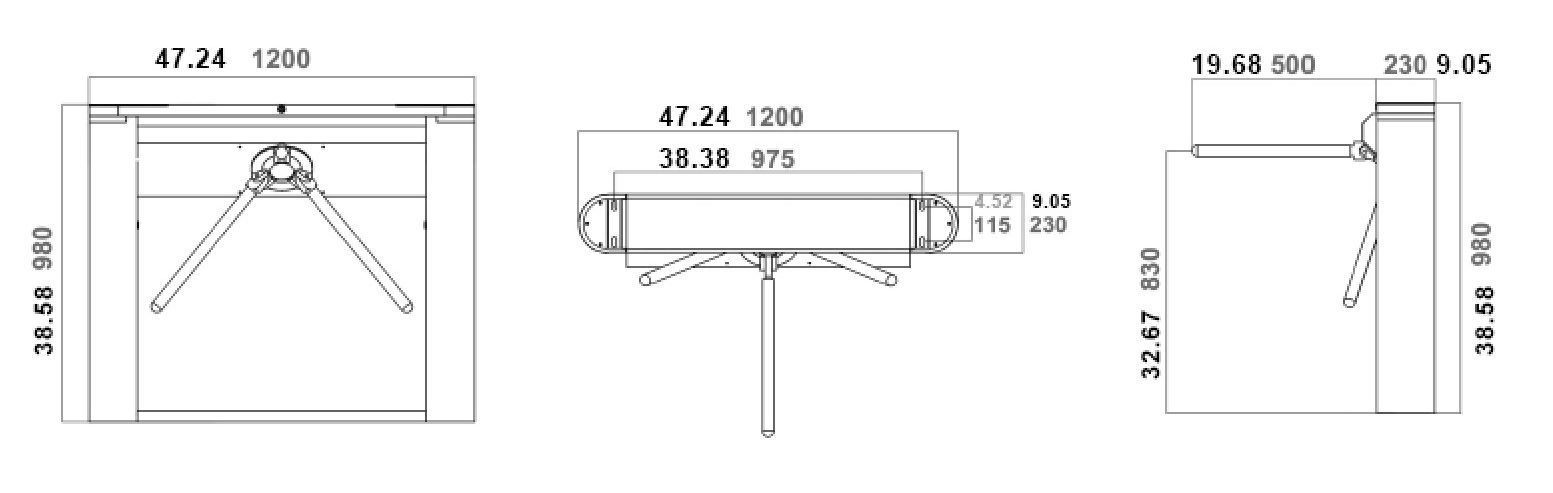

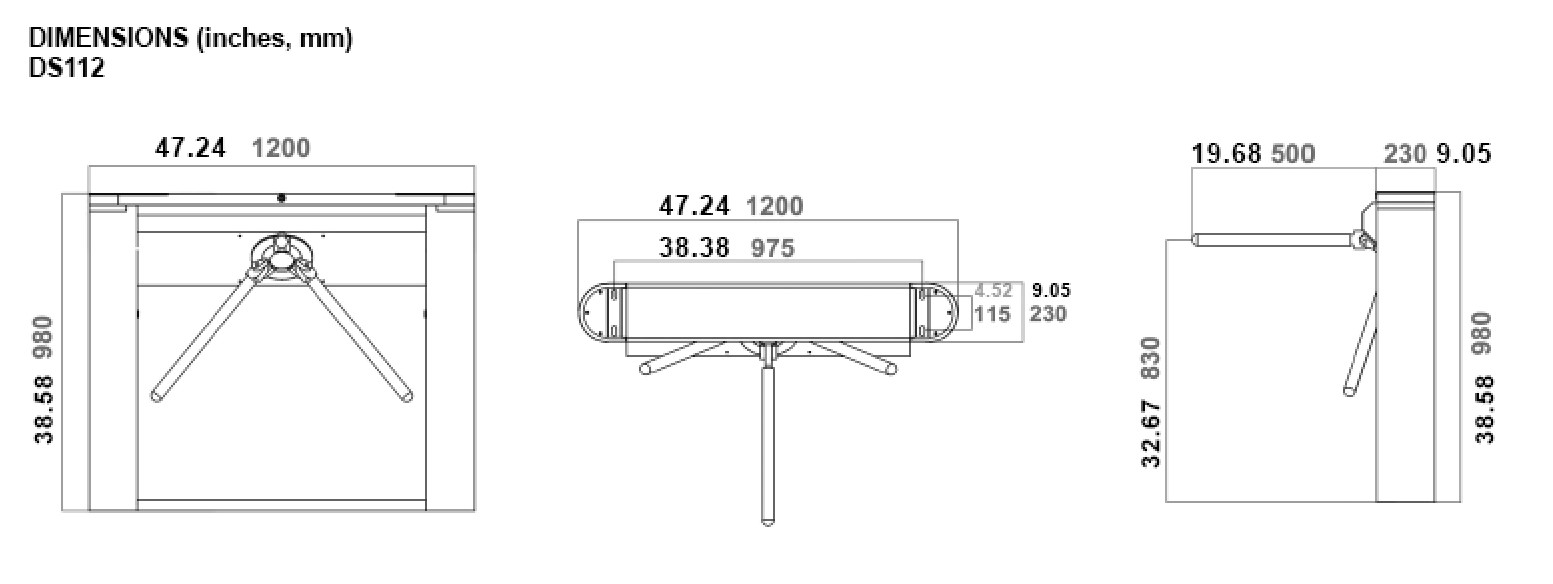

DIMENSIONS



SPECIFICATIONS

Model No. TUSDS112
Vendor TURNSTILES.us
Framework Material 304 Full Stainless Steel
Dimensions 1200 * 230 * 980mm / 47.24in * 28.73in * 38.58in
Weight 50kg / 110lbs
Passage Width 550mm / 21.6in
Passing Direction Single directional / Bi-directional
MCBF 5 million
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 40W
Operation Temperature -20 °C – 75 °C
Operation Humidity 0 ~ 95% (will not freeze)
Working Environment Indoor / Outdoor
Flow Rate 35-40 people per minute
LED Indicator Yes
Emergency Arm drops with loss of power
Communication Dry contact

INSTALLATION

Contact TURNSTILES.us for a delivery quote and freight information.
See our Turnstile Installation Portfolio



Additional information

Weight 135 lbs
Dimensions 55 × 52 × 88 in
