Description

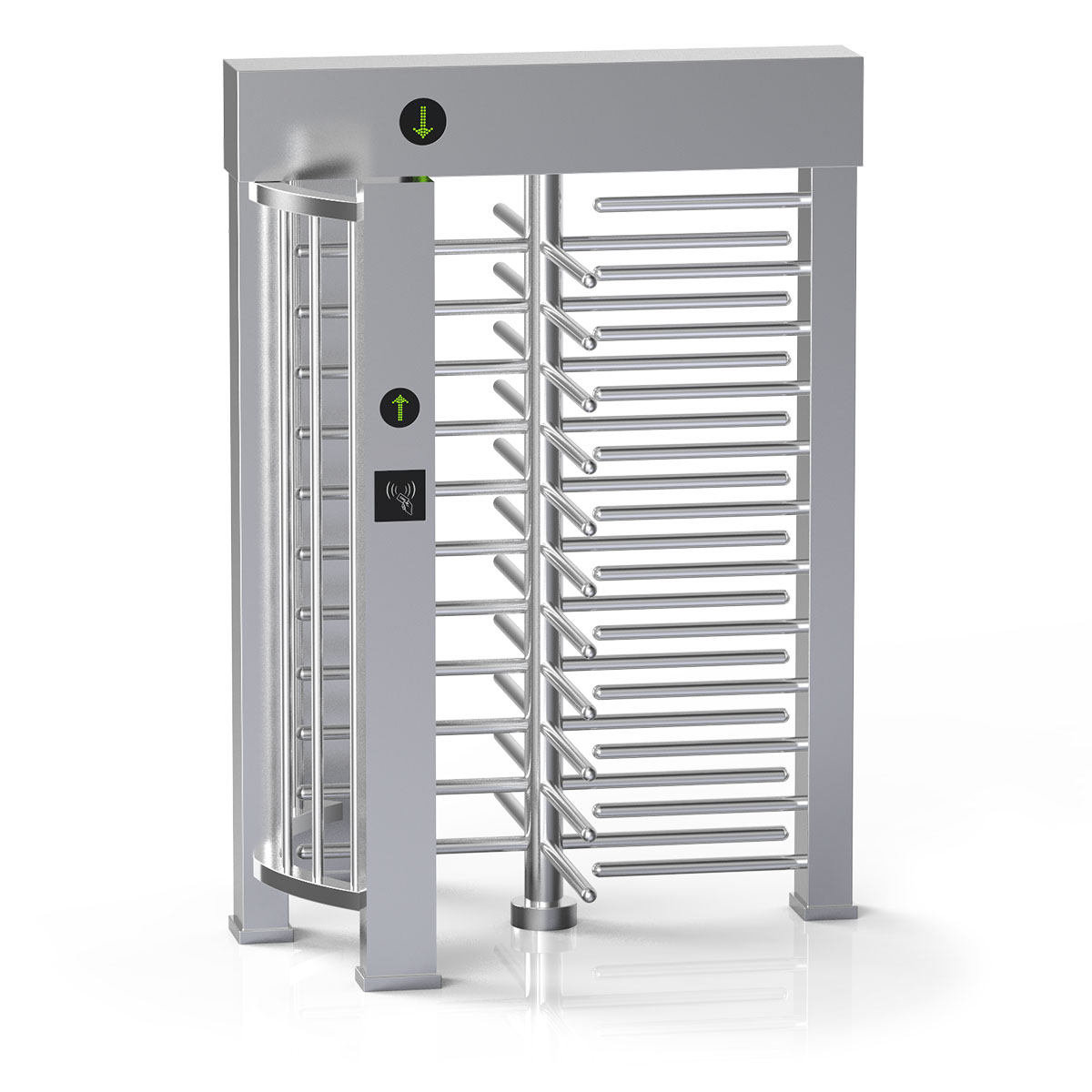

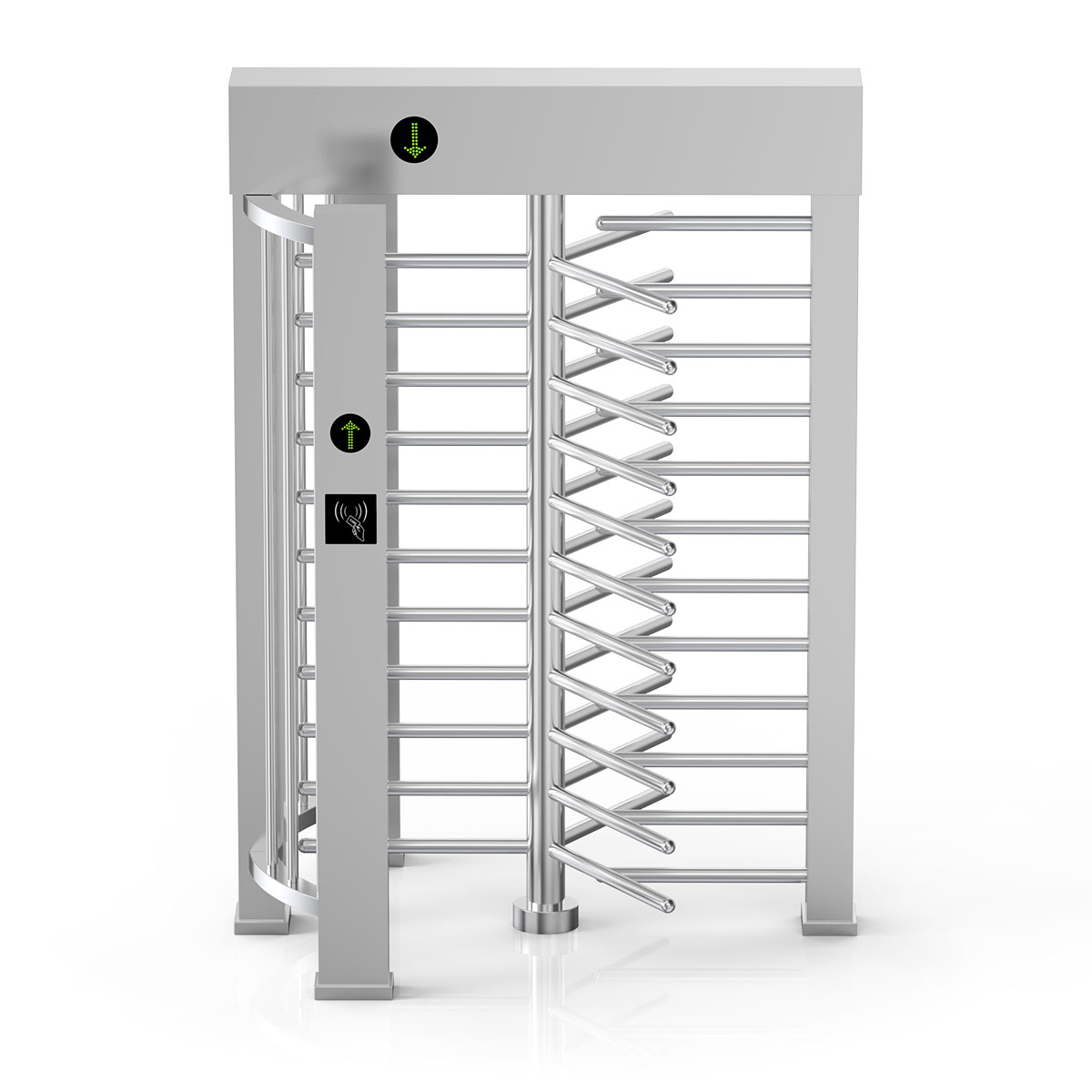

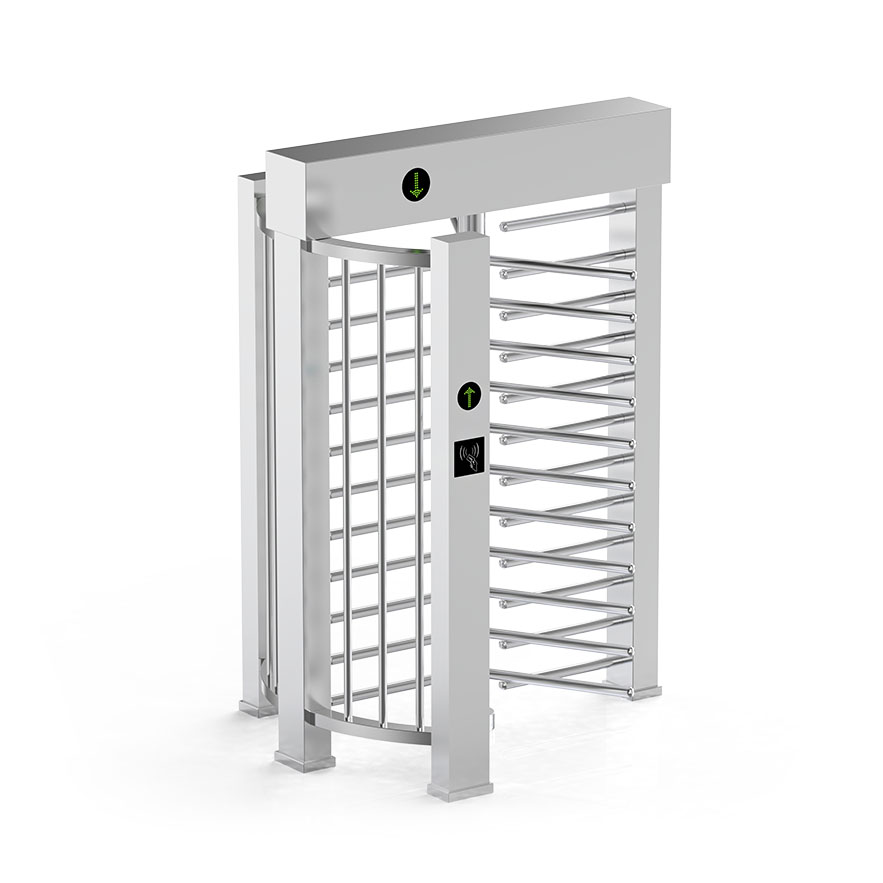

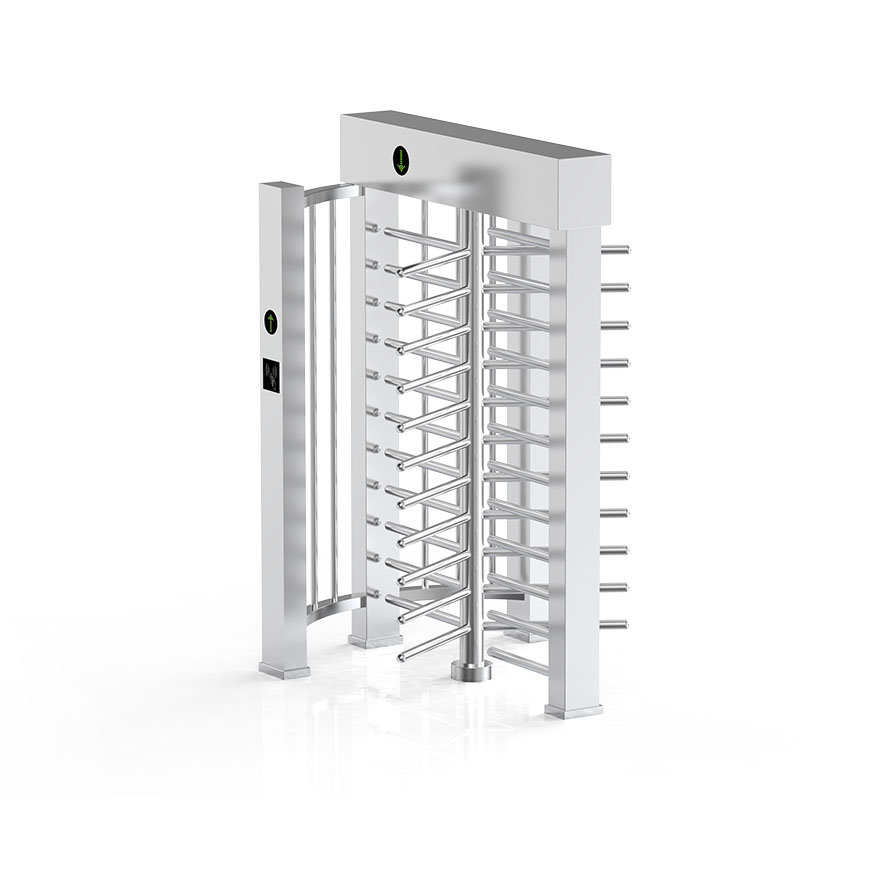

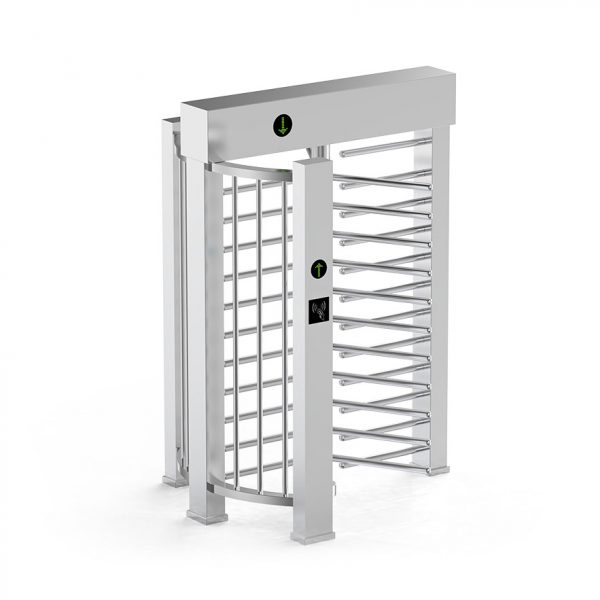

This full-height turnstile TUSDS401 is designed to provide entry access control solutions in places that need high security, such as prisons, stadiums, and construction sites.
- Single Full Height turnstile with bi-directional passage control.
- It is ideal for both indoors and outdoors, as the whole body is made of finished and brushed stainless steel, which is waterproof, anti-corrosive, and rigid.
- There are LED lights at the front on both the top cover and body side to indicate entry is accepted or denied.
- Choice of three or four rotor arms.
- It’s with enough space availability to firmly embed the access control device (e.g.: RFID, fingerprint device, display, counter, push-button, coin insert, barcode/QR reader).
Data Sheet – TUSDS401 Full Height Turnstile
FEATURES
- Full Height Industrial Single Turnstile
- Long-life performance, high operation dependability, and fast response
- The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running
- Single directional or Bi-directional is selectable
- Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delays to enter
- When power is off, arms will open automatically, which is complying with fire safety requirements
- LED indicator (red × means no entry; green → means entry)
- Structure of trunking to contain cable tidy inside the case
- Beauty ring cover on top and bottom
- Override key function for manual locking in one or both directions
- Easy to install and maintain
- 3-year warranty support
- 2-Way Electric, Steel, 3-Arm or 4-Arm, 25.59″ Passage
- Readers and Door Controller Panels optional
- Ensure entrance compliance

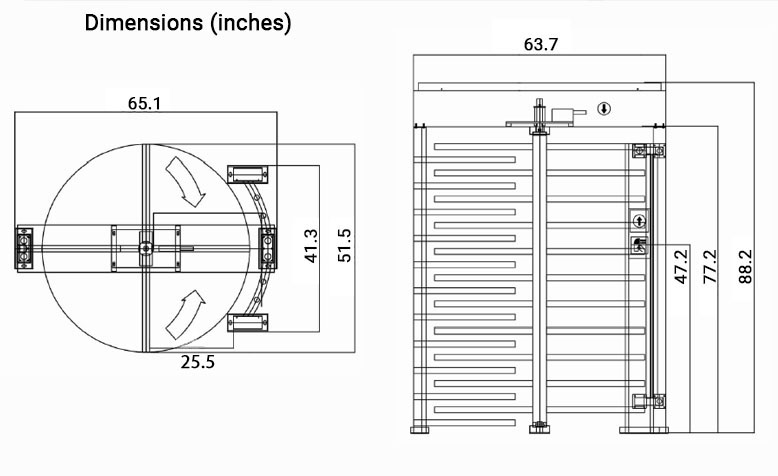

DIMENSIONS
SPECIFICATIONS
| Model No. | TUSDS401 |
|---|---|
| Framework Material | 304 Full Stainless Steel |
| Dimensions | 1580 * 1372* 2240mm / 65.1 x 51.5 x 88.2 in |
| Weight | 200kg / 440.93lbs |
| Passage Width | 650mm / 25.59in |
| Arm Support | 120° rotors with 3 sections, or 90° rotors with 4 sections |
| Passing Direction | Single directional or Bi-directional programming |
| MCBF | 5 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -15 °C – 60 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 35-40 people per minute |
| LED Indicator | Yes |
| Emergency | Arm rotates freely during power failure |
| Communication | Dry contact |

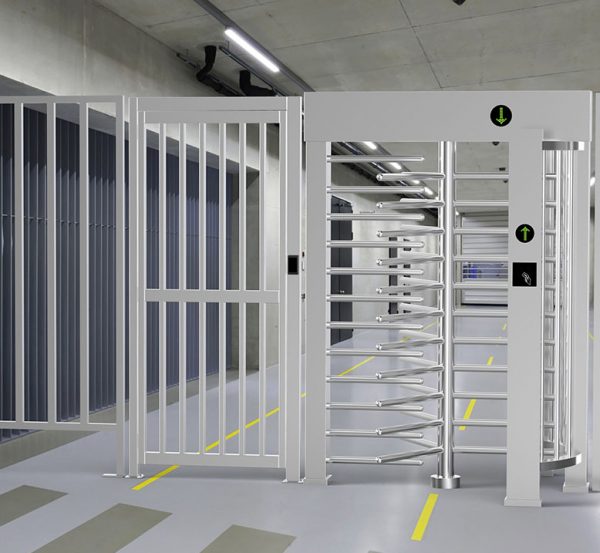

INSTALLATION
Contact TURNSTILES.us for a delivery quote and freight information.
Full-Service Installation is available at your location! See our Portfolio of work
