TUSDS7200 Optical Speed Gate Turnstile, Swing Barrier Low Glass

Please Login for Pricing

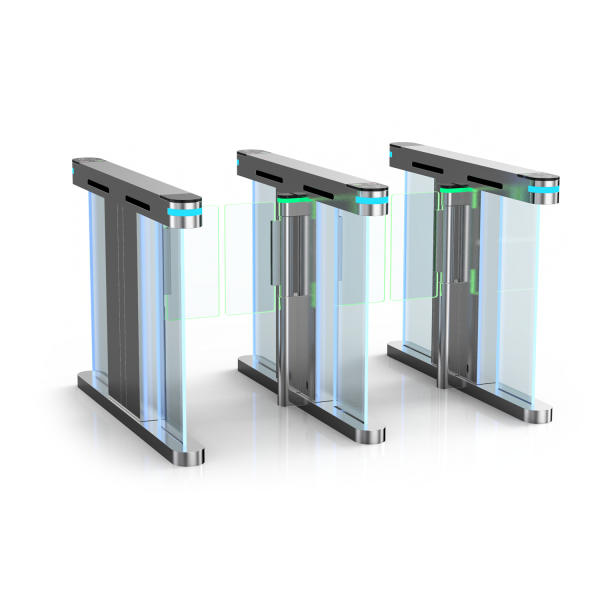

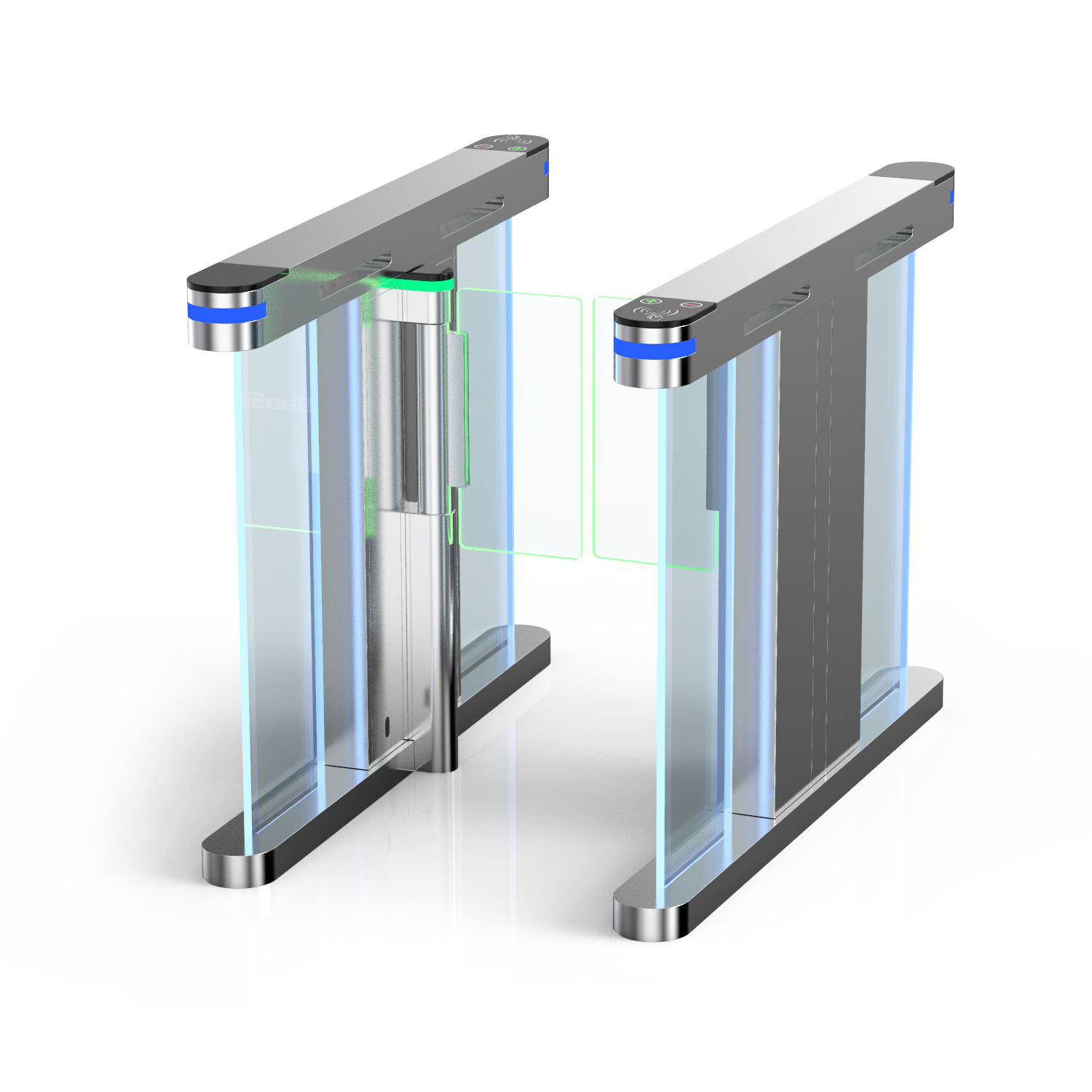

The TUSDS7200 is an optical speed gate turnstile with illuminated plexiglass swing gates. It has the ability to integrate with Access Control hardware and Software including RFID, Card, and Biometric Readers. Shipped worldwide and in larger quantities. See more details below and contact a friendly team member at TURNSTILES.us for purchase information.

Login or Sign Up


  • Speed gate is designed with a super-fast, slim, and artistic style to provide access control at places with elegant architecture
  • The body is made of brushed stainless steel and the arm is transparent Plexiglas/acrylic.
  • The housing is specially designed only to 120mm.
  • The material is equipped with LED light which shows the current working mode (open/close) on the top cover.
  • The system is with a quick open and close rate (0.2S) and 50 persons/minute throughput.
  • It has 6 pairs of infrared sensors to ensure the security of passage at high throughput.
  • It can integrate with different third-party access controllers or (e.g.: RFID card reader, biometric reader device, and counter).


Data Sheet

User Manual

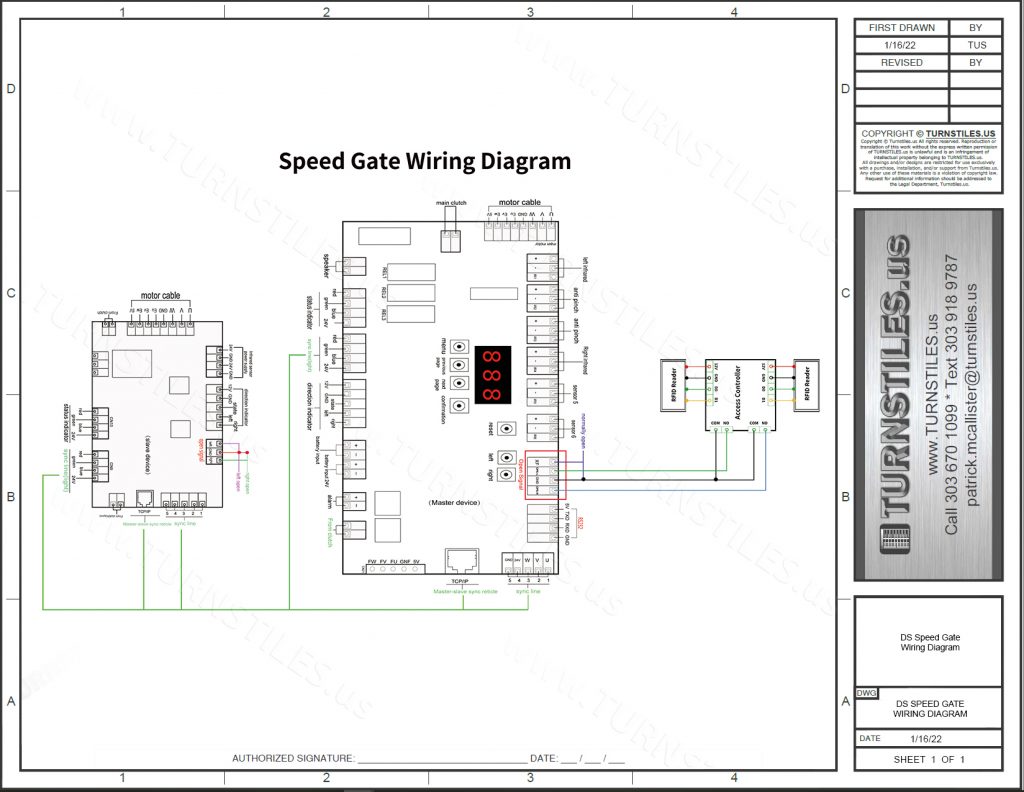

Wiring Diagram



  • Long-life performance, high operation dependability, and fast response
  • The whole system runs smoothly, low noise, no mechanical impact
  • Single directional or Bi-directional is selectable
  • Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delays to enter
  • Anti-tailing function: only one person passes at a time
  • When power is off, an emergency fail-open setting ensures arms will rotate freely
  • LED indicator (red × means no entry; green → means entry)
  • Easy to install and maintain







Model No. TUSDS7200
Framework Material 304 Full Stainless Steel
Arm Material Plexiglass-transparency

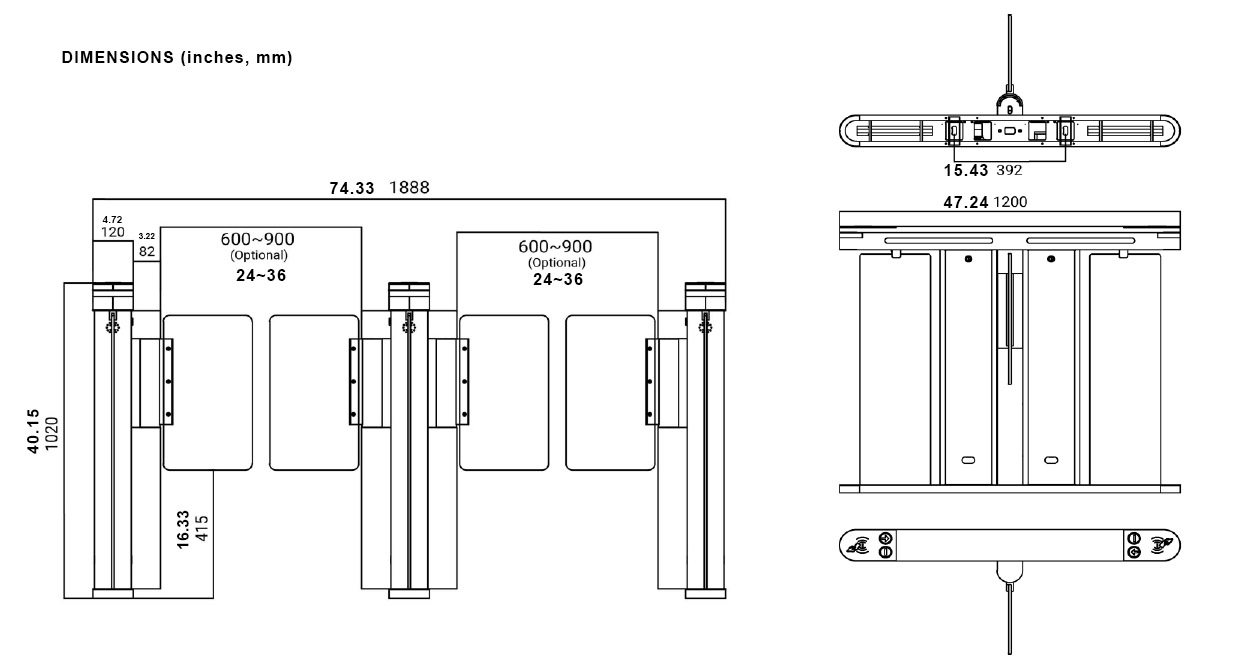

Dimension 1200 * 120 * 1020mm / 47.24 * 40.15 * 4.72 in
Weight 80kg / 176 lbs per module
Passage Width 600-900mm / 24-36in (One passage)
Passing Direction Single directional OR Bi-directional
MCBF 15 million
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 40W
Operation Temperature -15 °C – 60 °C
Operation Humidity 0 ~ 95% (won’t freeze)
Working Environment Indoor / Outdoor
Flow Rate 45-55 people per minute
LED Indicator Yes
Infrared Sensor 6 pairs (standard)
Emergency Gates swing freely during power failure
Communication Dry contact, Relay signal, RS485



Contact TURNSTILES.us for a delivery quote and freight information.
See our Turnstile Installation Portfolio


Additional information

Weight 360 lbs

DS7200 One Lane, DS7200 Two Lanes, DS7200 Center Expansion Module
