Description

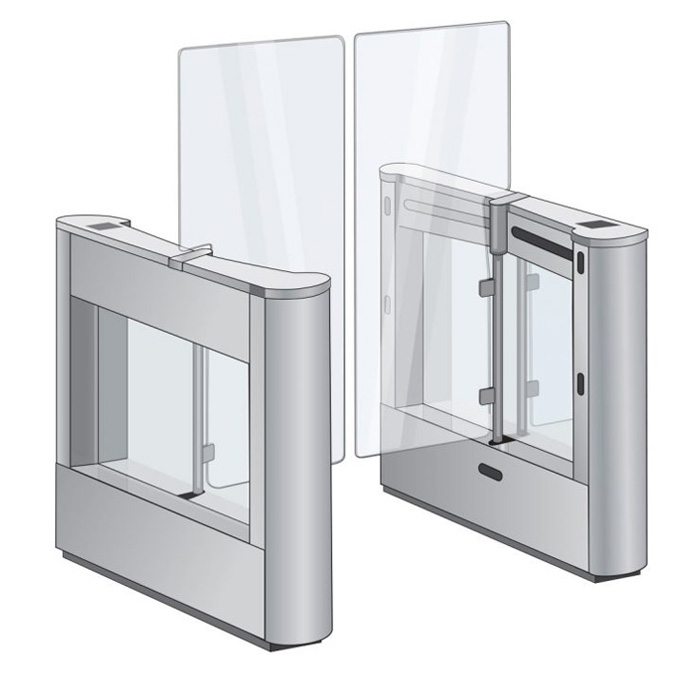

The open look of the Optical Barrier Swing Glass–High Glass–Clear View SpeedGate provides any lobby with a sleek and modern security option. 3/8-inch (9.525 mm) transparent glass on the sides and 3/8-inch tempered swing glass provides opportunities for custom branding.
Data Sheet – OBSG-HG-CV Standard
Installation Manual – OBSG-HG-CV Standard
STANDARD FEATURES for the OBSG-HG-CV
- Swing glass
- Low voltage 24vdc requirements
- Handicap accessible
- Beam Scan Optical Detection
- Flat or rounded ends
- Multiple glass barrier heights
- Standard finish: brushed stainless steel, horizontal grain, Corian® top
OPTIONAL FEATURES
- Destination dispatch
- Climb-over detection
- Infinity Remote Lane Control Software
- EntraPASS Access Control Software
- Custom branding on glass
- Custom finish
- Optional braking system
VIDEO DEMONSTRATION
See three operation scenarios of the optical swing gates:
1. Tailgating Audio Alarm and Notification
2. Stop Command (barrier stays shut if there is someone on the other side of the lane)
3. Collison Protection (barrier stops immediately if someone enters the lane from the opposite side when gates are in motion)

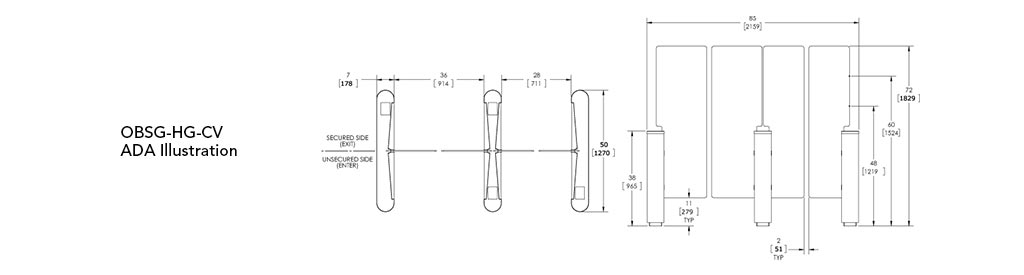

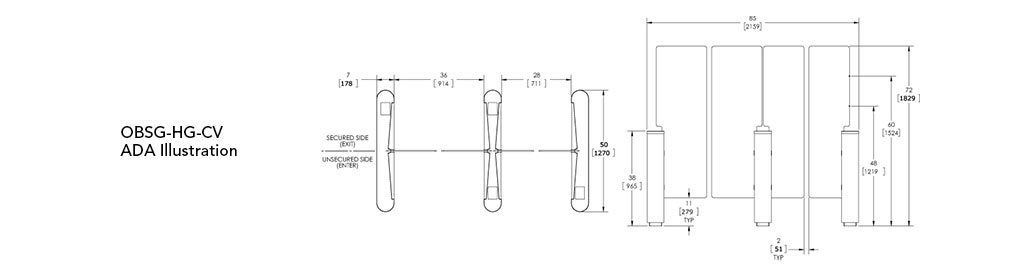

DRAWING & DIMENSIONS
| Standard Inch | Standard MM | ADA Inch | ADA MM | |
| Lane Width | 28 | 711 | 36 | 914 |
| Pedestal Length w/ Rounded Ends | 50 | 1270 | 50 | 1270 |
| Pedestal Length w/ Flat Ends | 48 | 1219 | 48 | 1219 |
| Pedestal Height | 38 | 965 | 38 | 965 |
| Pedestal Width | 7 | 178 | 7 | 178 |
| Glass Height Available AFF | 48, 60, 72 | 1219, 1524, 1829 | 48, 60, 72 | 1219, 1524, 1829 |
INSTALLATION
Contact TURNSTILES.us for a shipping and installation estimate.
