OBSG-HG Optical Barrier Swing Glass – High Glass SpeedGate

Please Login for Pricing

Single Lane

Clear
Login or Sign Up

Description

The Optical Barrier Swing Glass-High Glass SpeedGate comes with clear 3/8-inch tempered, no-touch swinging glass. The clear glass barriers keep the clean look of the lobby while meeting the highest security standards.

Data Sheet – OBSG-HG Turnstiles

Models: OBSG-HG-F Flat Ends, OBSG-HG-R Round Ends

*Priced Per Lane



STANDARD FEATURES for the OBSG-HG

  • Swing glass
  • Low voltage 24vdc requirements
  • Handicap accessible
  • Beam Scan Optical Detection

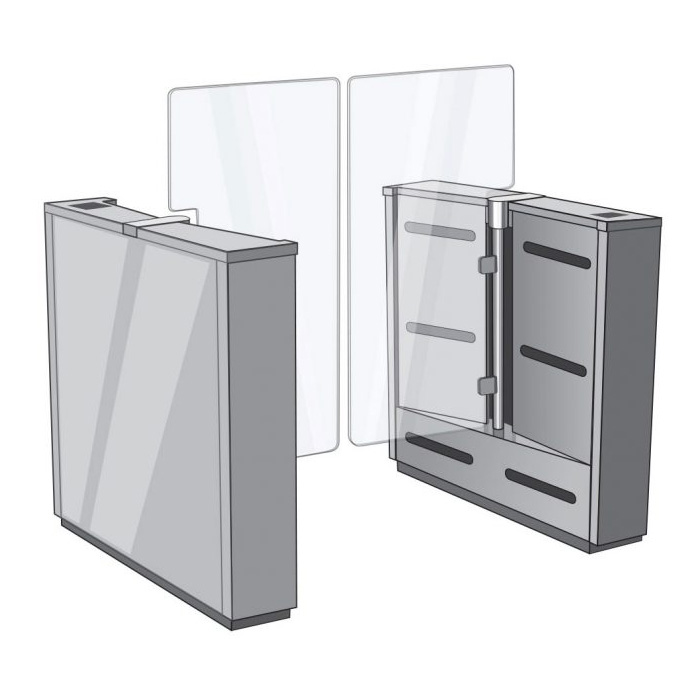

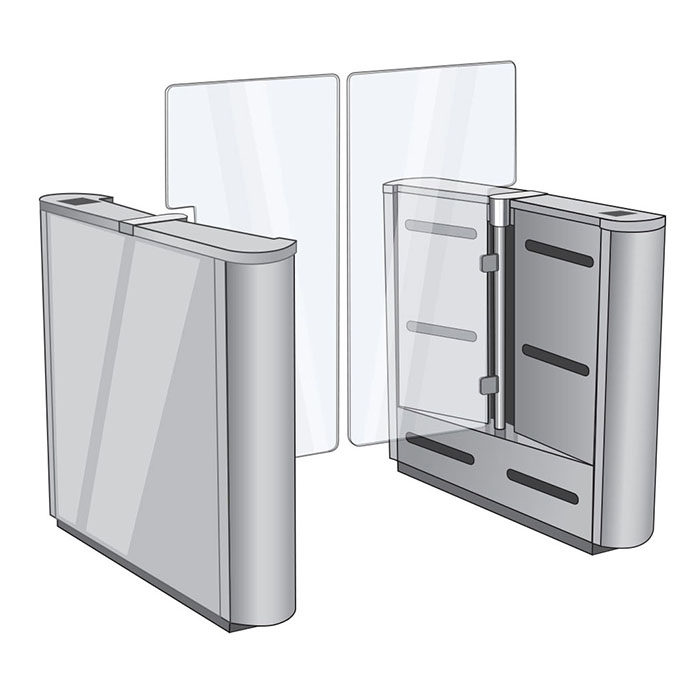

  • Flat or rounded ends
  • Multiple glass barrier heights
  • Standard finish: brushed stainless steel, horizontal grain, Corian® top
  • Motor tested to run for 10 million opening and closing cycles



OPTIONAL FEATURES

  • Destination dispatch
  • Climb-over detection
  • Infinity Remote Lane Control™ software
  • Custom branding on glass
  • Custom finish
  • Optional braking system



VIDEO DEMONSTRATION

See three operation scenarios of the optical swing gates:
1. Tailgating Audio Alarm and Notification
2. Stop Command (barrier stays shut if there is someone on the other side of the lane)
3. Collison Protection (barrier stops immediately if someone enters the lane from the opposite side when gates are in motion)

DRAWING & DIMENSIONS

Standard Inch Standard MM ADA Inch ADA MM
Lane Width 28 711 36 914
Pedestal Length w/ Rounded Ends 46 1168 46 1168
Pedestal Length w/ Flat Ends 42 1067 42 1067
Pedestal Height 38 965 38 965
Pedestal Width 7 178 7 178
Glass Height Available AFF 48, 60, 72 1219, 1524, 1829 48, 60, 72 1219, 1524, 1829

INSTALLATION

Contact TURNSTILES.us for installation information.

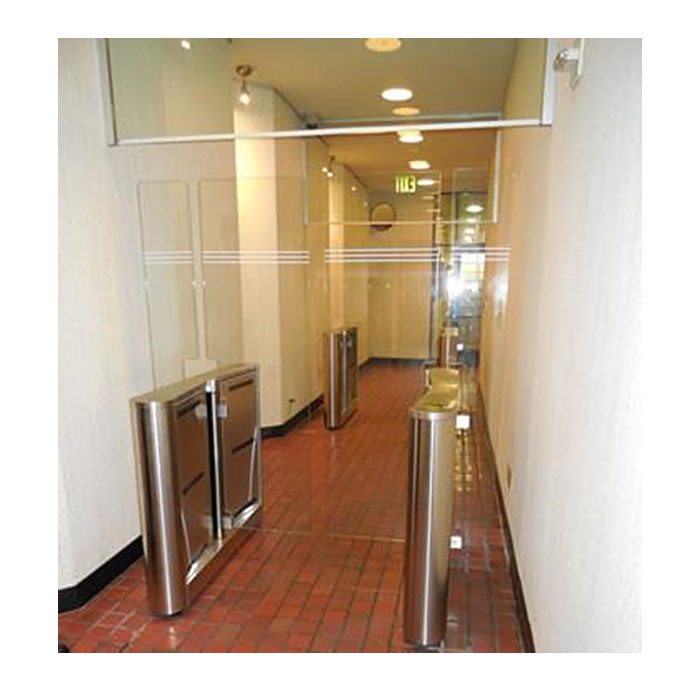

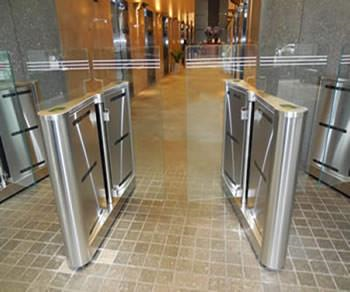

See our turnstile installation portfolio here.





*Please note the price listed is equipment only, and freight will be charged separately. Please contact us for a freight quote.



Additional information

Model

OBSG-HG-R Round Ends, OBSG-HG-F Flat Ends
