OBSG-LG-CV Optical Barrier Swing Glass – Low Glass – Clear View SpeedGate

Please Login for Pricing

Login or Sign Up

Description

The Optical Barrier Swing Glass-Low Glass-Clear View SpeedGate provides a sleek and modern option for turnstile security. The open look—accentuated by 3/8-inch transparent glass on the sides and 3/8-inch tempered swing glass—allows for multiple branding opportunities. Priced per lane.

Data Sheet – OBSG-LG-CV



STANDARD FEATURES for the OBSG-LG-CV

  • Swing glass
  • Low voltage 24vdc requirements
  • Handicap accessible
  • Beam Scan Optical Detection

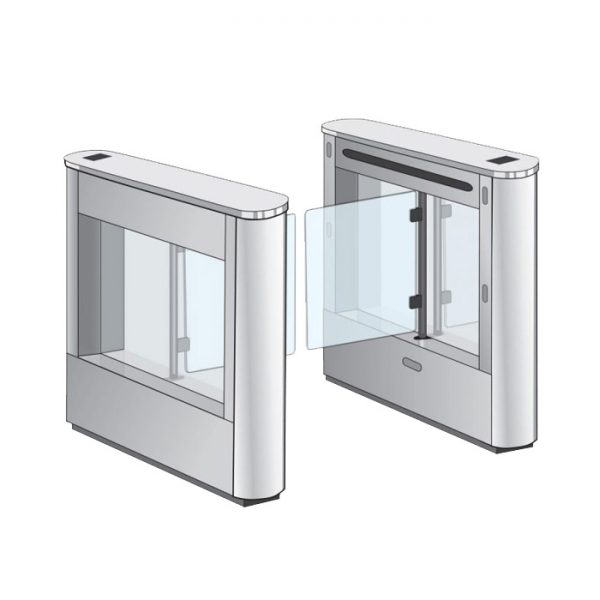

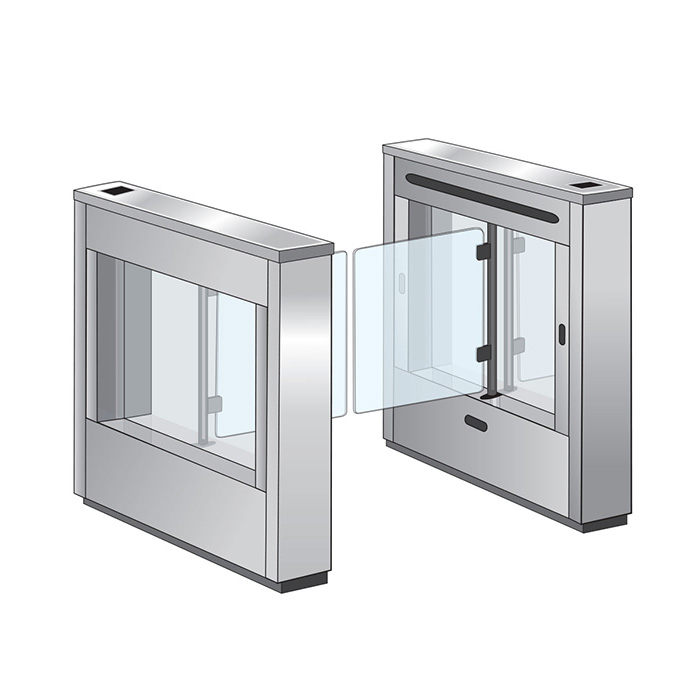

  • Flat or rounded ends
  • Standard finish: brushed stainless steel, horizontal grain, Corian top



OPTIONAL FEATURES

  • Destination dispatch
  • Climb-over detection
  • Custom branding on glass
  • Custom finish



DIMENSIONS

Standard Inch Standard MM ADA Inch ADA MM
Lane Width 28 711 36 914
Pedestal Length w/ Rounded Ends 49 1245 49 1245
Pedestal Length w/ Flat Ends 48 1219 48 1219
Pedestal Height 38.5 965 38.5 965
Pedestal Width 7 178 7 178
Glass Height Available AFF 31.5 800 31.5 800

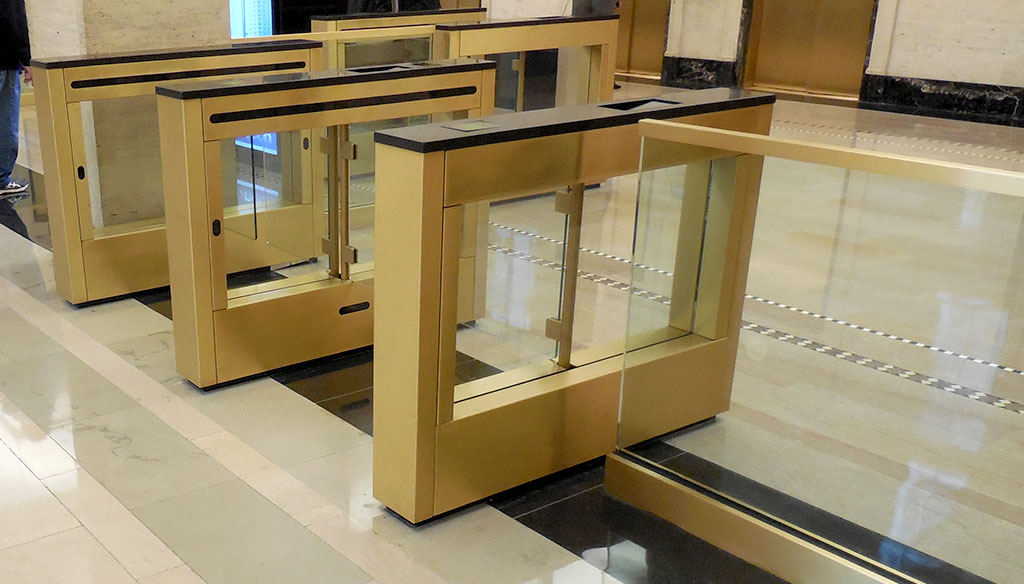

INSTALLATION

Contact TURNSTILES.us for installation information – available NOW!
See our turnstile installation portfolio here.



Additional information

Model

OBSG-LG-CV, OBSG-LG-CV-ADA
