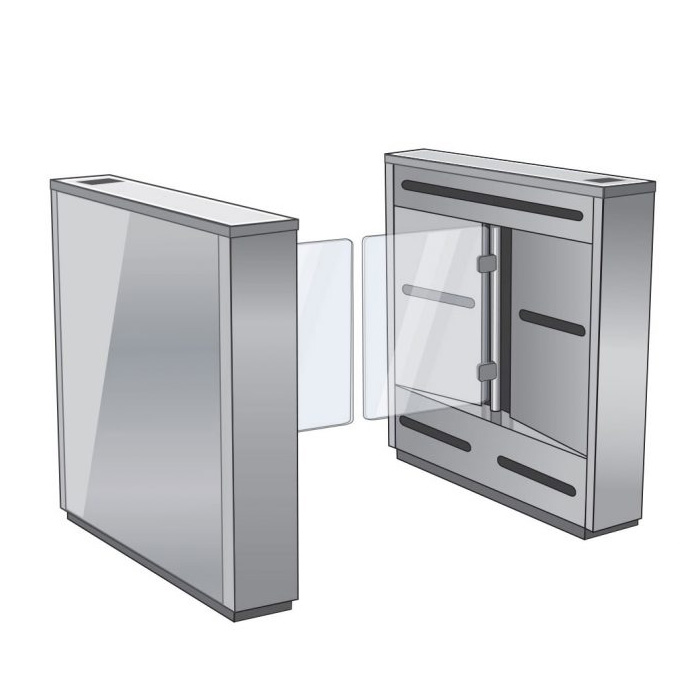

OBSG-LG Optical Barrier Swing Glass – Low Glass SpeedGate

Please Login for Pricing

Login or Sign Up

Description

The Optical Barrier Swing Glass – Low Glass SpeedGate comes with clear 3/8-inch tempered, no-touch swinging glass. The clear glass barriers keep the clean look of the lobby without compromising security. Orion turnstiles are priced per lane. Choose Standard or ADA width.

Data Sheet – OBSG-LG Turnstiles



STANDARD FEATURES for the OBSG-LG

  • Swing glass
  • Low voltage 24vdc requirements
  • Handicap accessible
  • Beam Scan Optical Detection

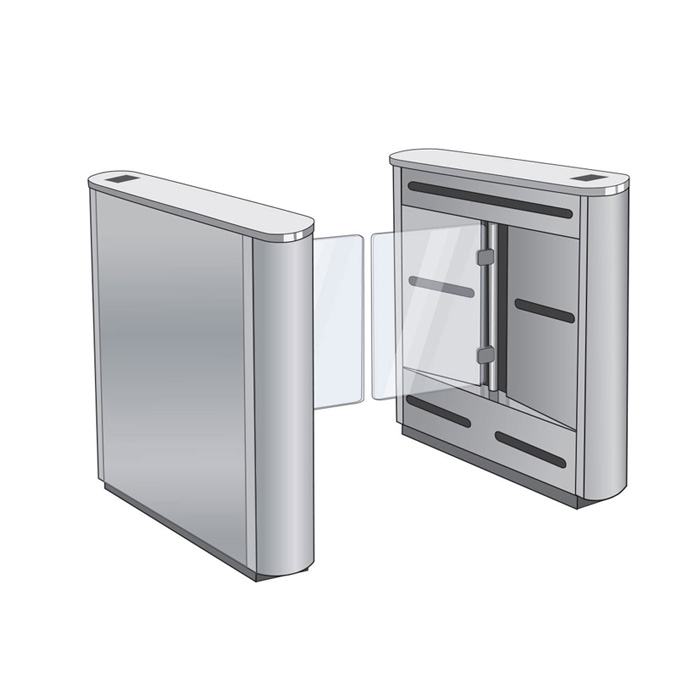

  • Flat or rounded ends
  • Multiple glass barrier heights
  • Standard finish: brushed stainless steel, horizontal grain, Corian top
  • The lanes include a feature called “card stacking” which allows for multiple cards to be swiped (credits stacked) in succession and passage to flow without the barriers closing between people.  The sensors still track and count in both directions.
    • Bi-directional Card Stacking: For increased throughput, the system is capable of receiving up to 99 authorized access credits. Barriers don’t need to close between transactions and will remain in the open position until all of the credits are used. If all credits are not used or after 5 seconds of inactivity the system resets and secures the lane. Credit stacking is active in both directions simultaneously.



OPTIONAL FEATURES

  • Destination dispatch
  • Climb-over detection
  • Remote Lane Control software
  • EntraPass Access Control Software
  • Custom branding on glass
  • Custom finish
  • Optional braking system

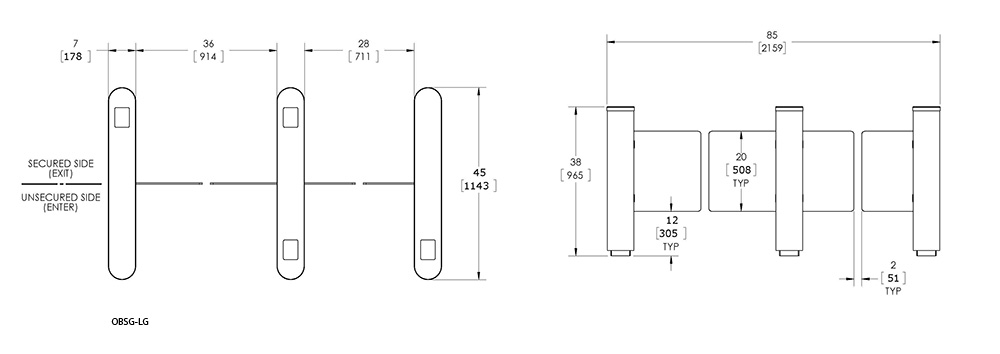

DRAWING & DIMENSIONS



Standard Inch Standard MM ADA Inch ADA MM
Lane Width 28 711 36 914
Pedestal Length w/ Rounded Ends 45 1143 45 1143
Pedestal Length w/ Flat Ends 42 1067 42 1067
Pedestal Height 38 965 38 965
Pedestal Width 7 178 7 178
Glass Height Available AFF 30.5 775 30.5 775

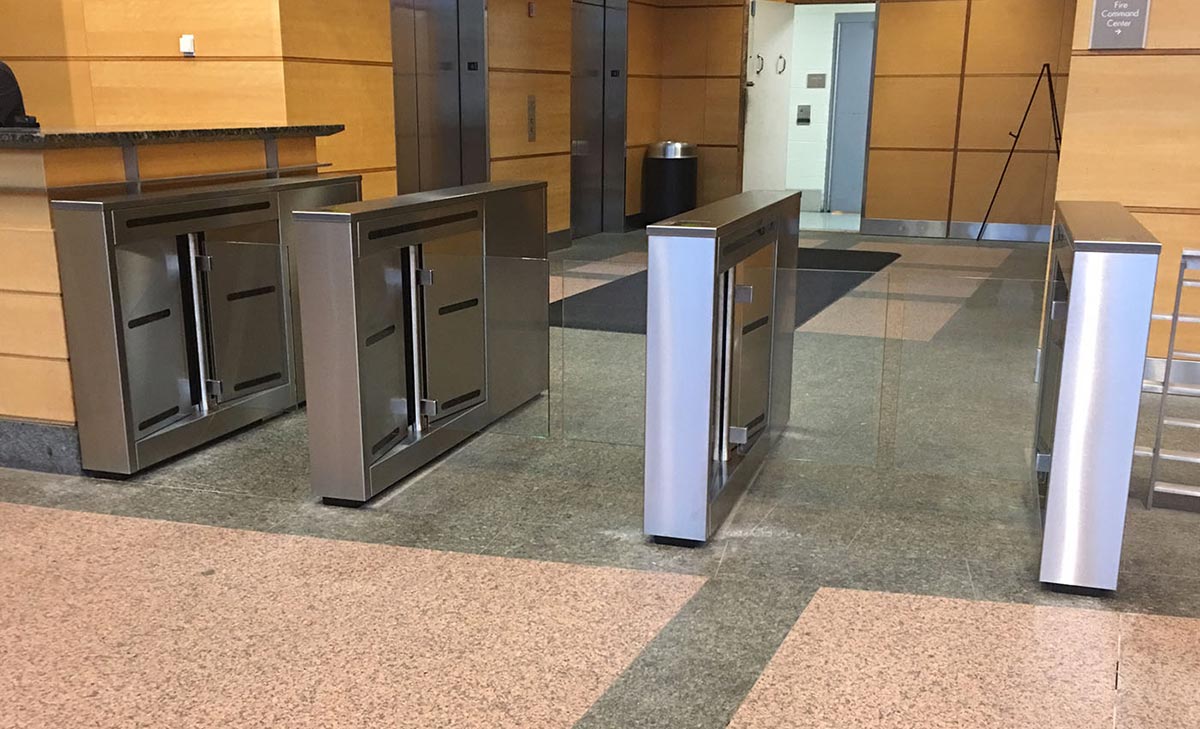

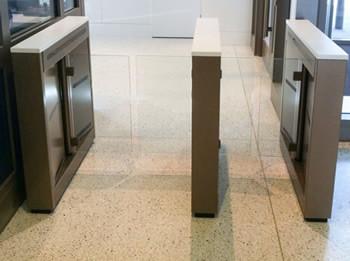

INSTALLATION

2 Standard and 1 ADA Lane, OBSG-LG Square Ends

*See our Installation used in the Showtime Billions TV Show here.

Installation is available. See our work portfolio Here







Additional information

Selection

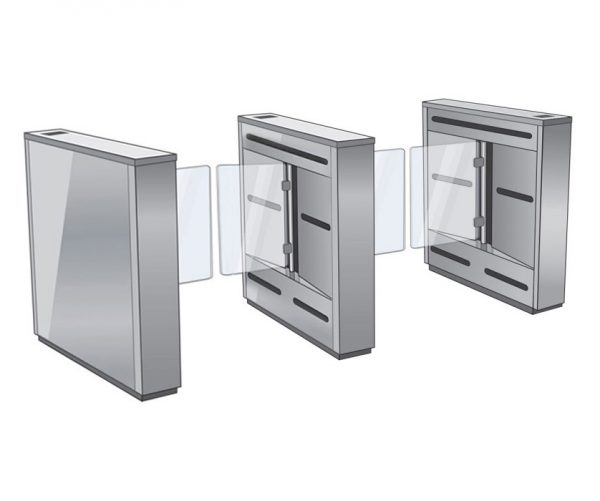

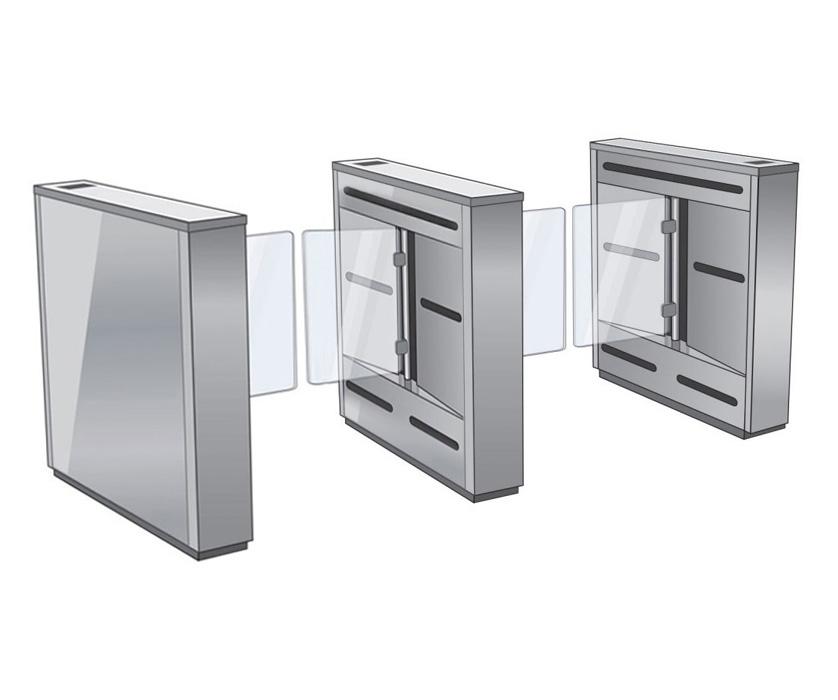

OBSG-LG (1 Lane), OBSG-LG-F-H (Center Lane Expansion Module), OBSG-LG-2 (2 Lanes), OBSG-LG-3 (3 Lanes), OBSG-LG-4 (4 Lanes), OBSG-LG-5 (5 Lanes), OBSG-LG-6 (6 Lanes)

End Shape

Flat Ends, Round Ends
