ODAB Optical Drop Arm Barrier SpeedGate

Please Login for Pricing

Single Lane

Login or Sign Up

Description

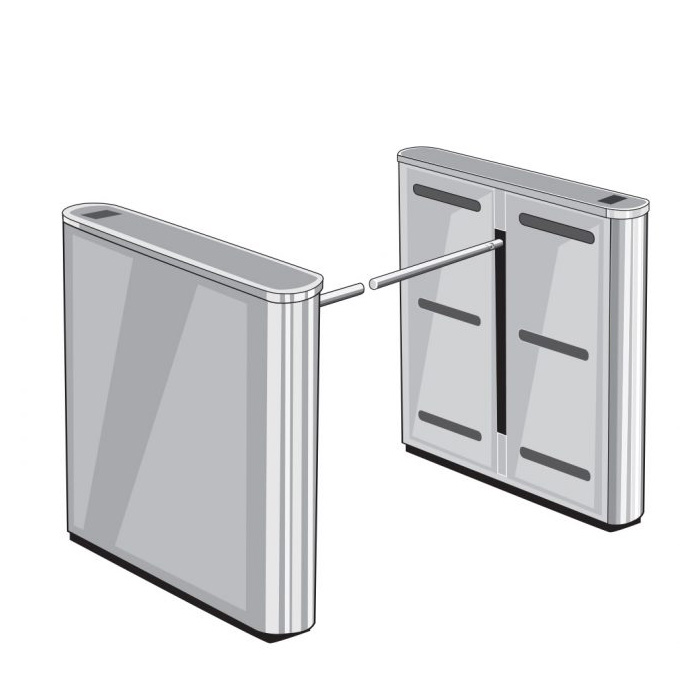

The Optical Drop Arm Barrier SpeedGate has one of the smallest barrier footprints on the market today and complements any setting.

Data Sheet – ODAB Turnstiles

Models: ODAB-F Flat Ends, ODAB-R Round Ends

STANDARD FEATURES for the ODAB

  • Drop arm
  • Low voltage 24vdc requirements
  • Handicap accessible
  • Beam Scan Optical Detection
  • Flat or rounded ends
  • Compact design
  • Standard finish: brushed stainless steel, horizontal grain, Corian® top

OPTIONAL FEATURES

  • Destination dispatch
  • Climb-over detection
  • Infinity Remote Lane Control™ software
  • Custom finish options

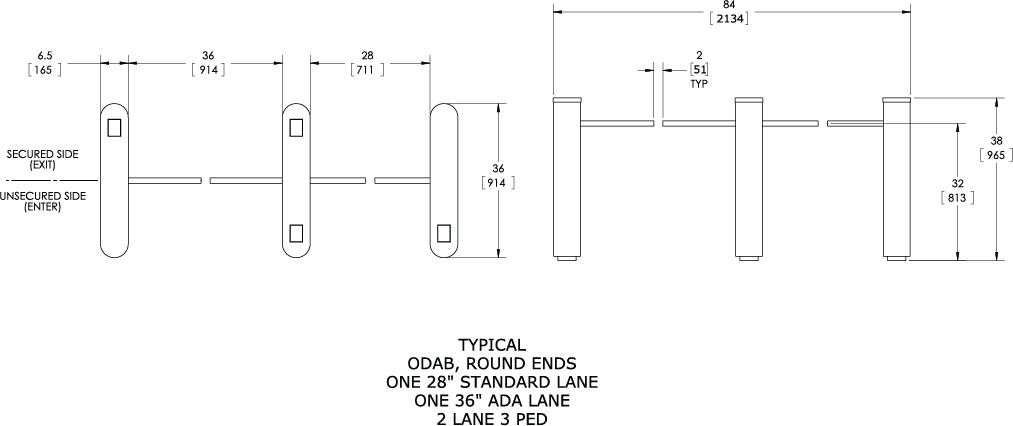

DRAWING & DIMENSIONS



Standard Inch Standard MM ADA Inch ADA MM
Lane Width 28 711 36 914
Pedestal Length w/ Rounded Ends 36 914.4 36 914
Pedestal Length w/ Flat Ends 33 838 33 838
Pedestal Height 38 965 38 965
Pedestal Width 6.5 165 6.5 165



INSTALLATION



Additional information

Model

ODAB-F (Flat Ends), ODAB-R (Round Ends)
