Description
The Slim Line Pure Optical 12-inch SpeedLane system is a slimmer version of the SLPO-24 inch model. This eight-beam, bi-directional, single detection lower-level security turnstile is perfect for narrow spaces. Priced per lane.

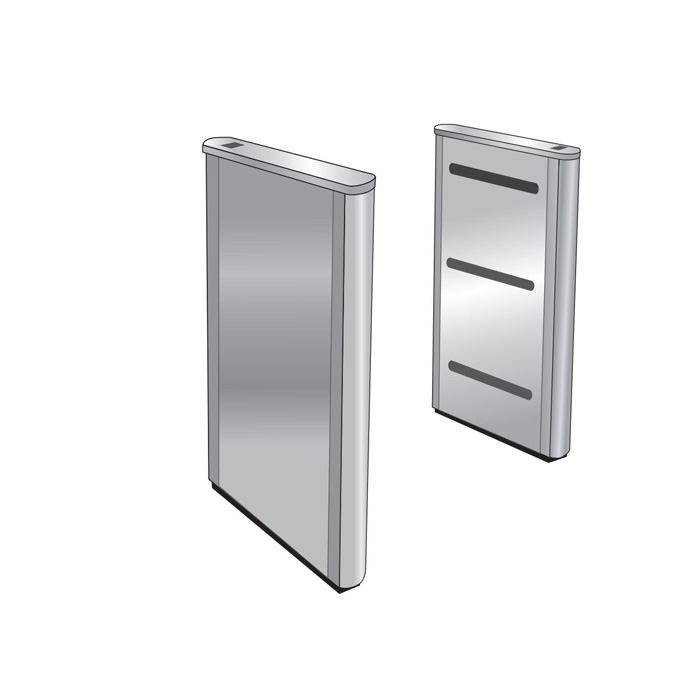

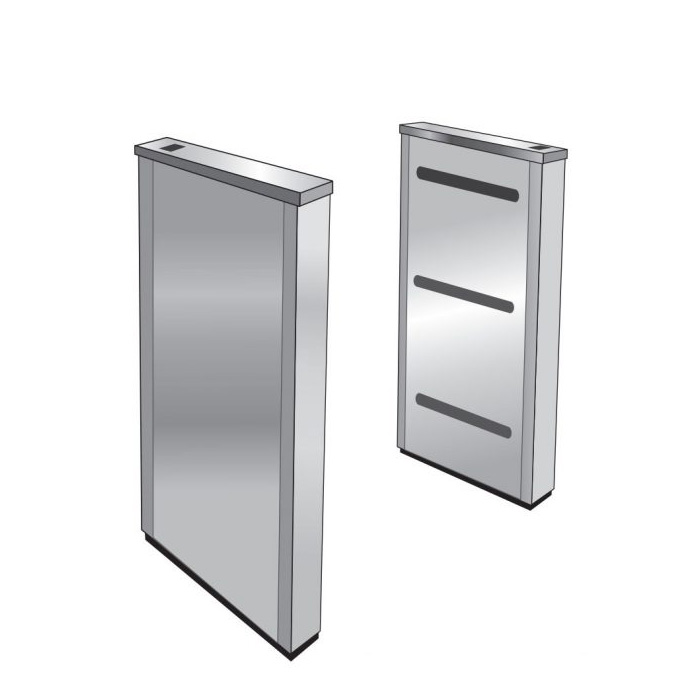

Models: SLPO-12-R Round Ends, SLPO-12-F Flat Ends
Data Sheet – SLPO-12 Slim Line Pure Optical Slim Line 12″ SpeedLane
STANDARD FEATURES for the SLPO-12
- Handicap accessible
- Low voltage 24vdc requirements
- Compact design
- Crawl under detection
- Flat or rounded ends
- Beam Scan Optical Detection
- Standard finish: brushed stainless steel, horizontal grain, Corian top
OPTIONAL FEATURES
- Climb-over detection
- Orion Infinity Remote Lane Control software
- EntraPASS Access Control Software
- Custom finish options

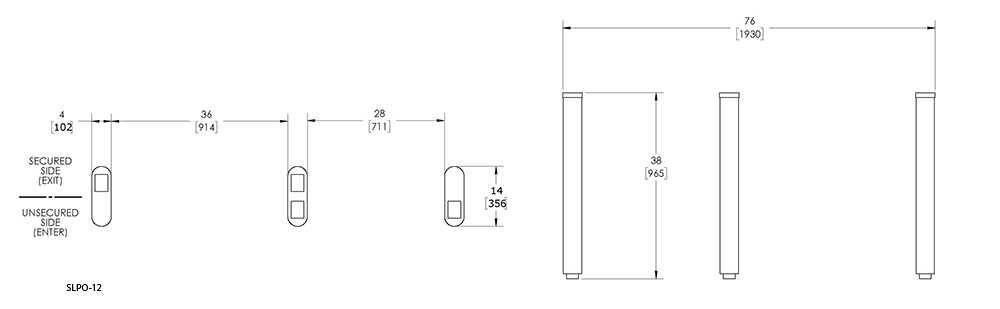

DRAWING & DIMENSIONS
| Standard Inch | Standard MM | ADA Inch | ADA MM | |
| Lane Width | 28 | 711 | 36 | 914 |
| Pedestal Length w/ Rounded Ends | 14 | 356 | 14 | 356 |
| Pedestal Length w/ Flat Ends | 12 | 305 | 12 | 305 |
| Pedestal Height | 38 | 965 | 38 | 965 |
| Pedestal Width | 4 | 102 | 4 | 102 |
*Contact us for a freight quote.
