Orion SLPO-24 Slim Line Pure Optical Barrier – 24″ SpeedLane

$ 13,125.00

Clear

Description

Appropriate for installations that require a lower level of security, the pedestals of the Slim Line Pure Optical Barrier-24 encase this eight-beam, bi-directional SpeedLane. Centrally-located onboard controls make installation and service stress-free. Available with round or flat ends. Priced per lane.



Data Sheet – SLPO-24 Slim Line Pure Optical Slim Line 24″ SpeedLane



STANDARD FEATURES for the SLPO-24

  • Handicap accessible
  • Low voltage 24vdc requirements
  • Compact design
  • Crawl under detection

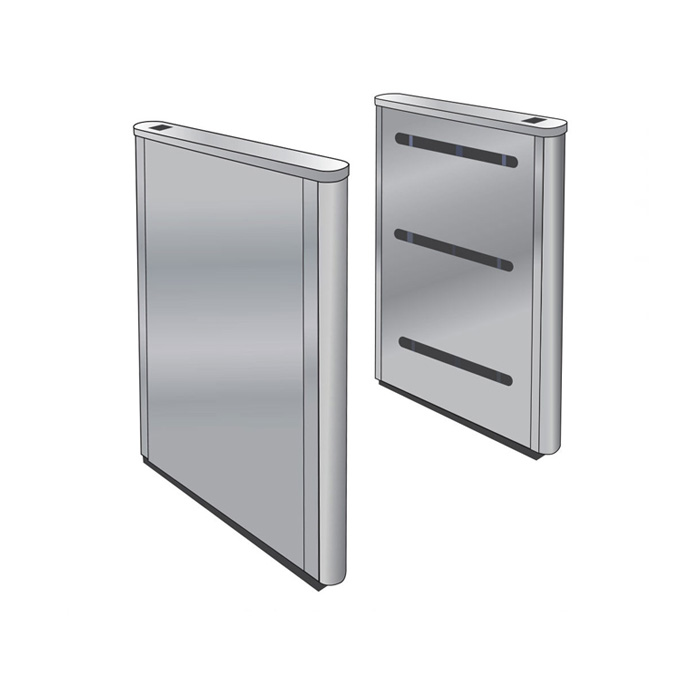

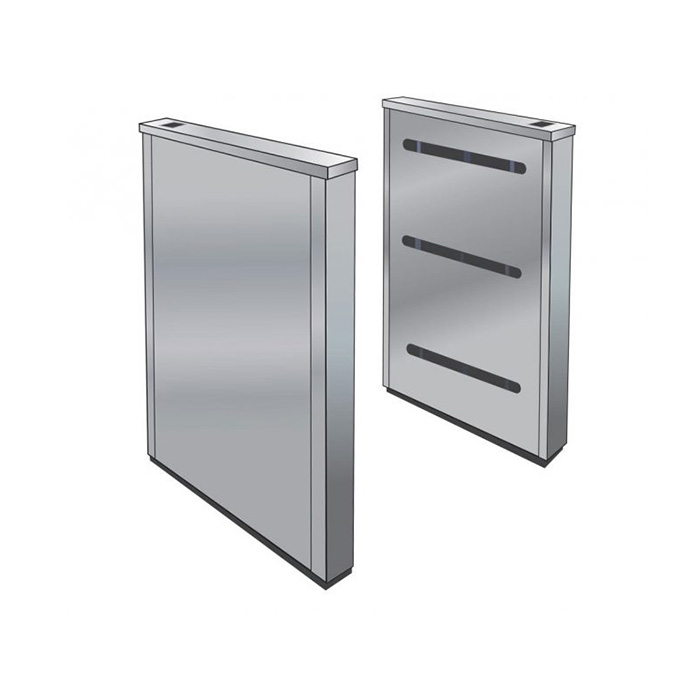

  • Flat or rounded ends
  • Beam Scan Optical Detection
  • Standard finish: brushed stainless steel, horizontal grain, Corian top

OPTIONAL FEATURES

  • Climb-over detection
  • Remote Lane Control software
  • Custom finish options

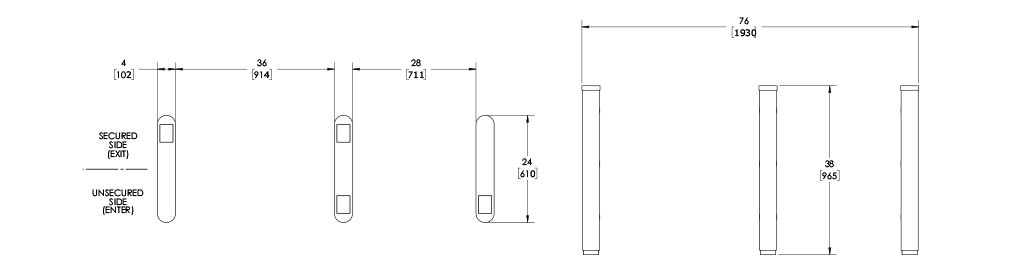

DRAWING & DIMENSIONS





Standard Inch Standard MM ADA Inch ADA MM
Lane Width 28 711.2 36 914.4
Pedestal Length w/ Rounded Ends 24 609.6 24 609.6
Pedestal Length w/ Flat Ends 24 609.6 24 609.6
Pedestal Height 38 965.2 38 965.2
Pedestal Width 4 101.6 4 101.6



*Contact us for a freight quote.

Additional information

Model

SLPO-24-R (Round Ends), SLPO-24-F (Flat Ends)
