OSAB-SA Optical Swing Arm Barrier – Single Arm SpeedGate

Please Login for Pricing

Single Lane

Login or Sign Up

Description

The no-touch single swing arm barrier of the Optical Swing Arm Barrier – Single Arm SpeedGate offers a visual deterrent to would-be trespassers and tailgaters.

Data Sheet – OSAB-SA, Single Arm Swing Barrier Turnstiles

Models: OSAB-SA-F Flat Ends, OSAB-SA-R Round Ends



STANDARD FEATURES for the OSAB-SA

  • Swing Arm
  • Low voltage 24vdc requirements
  • Handicap accessible
  • Beam Scan Optical Detection

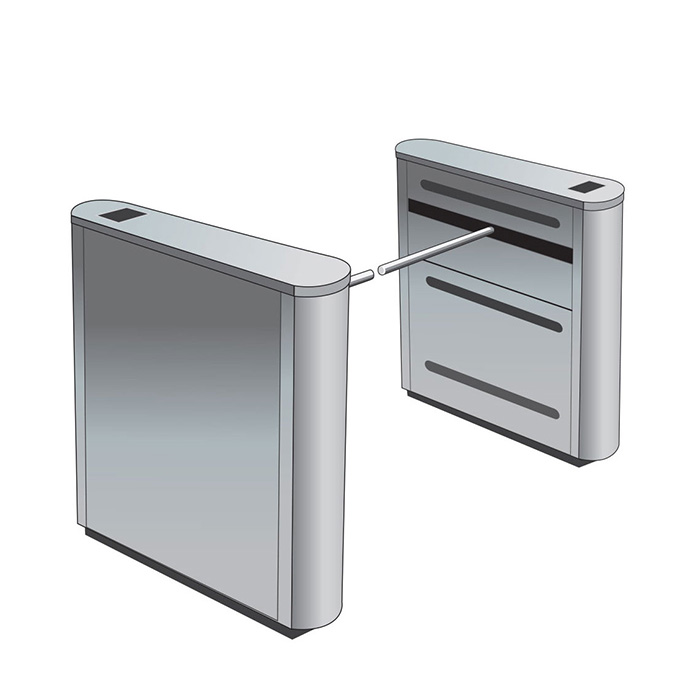

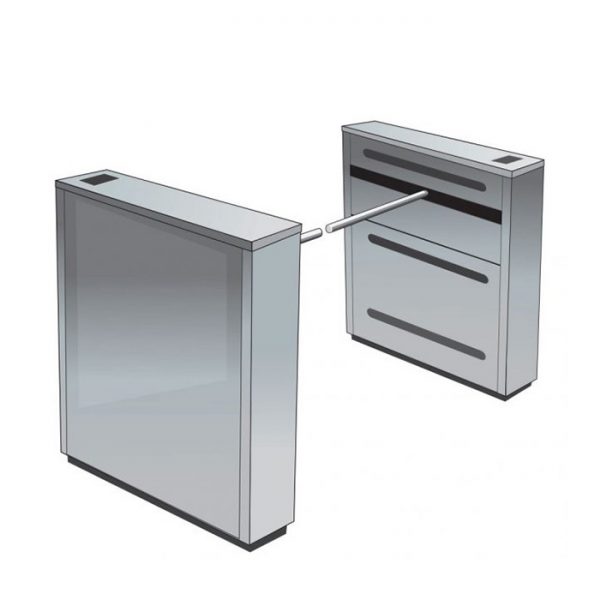

  • Flat or rounded ends
  • Standard finish: brushed stainless steel, horizontal grain, Corian® top

OPTIONAL FEATURES

  • Destination dispatch
  • Climb-over detection
  • Remote Lane Control software
  • Custom finish options

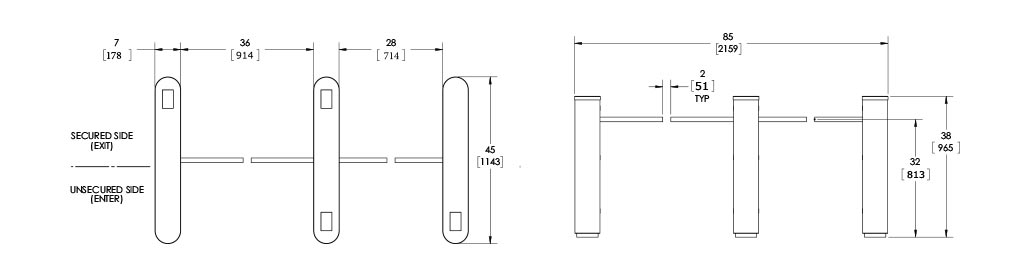

DRAWING & DIMENSIONS



Standard Inch Standard MM ADA Inch ADA MM
Lane Width 28 711 36 914
Pedestal Length w/ Rounded Ends 45 1143 45 1143
Pedestal Length w/ Flat Ends 42 1067 42 1067
Pedestal Height 38 965 38 965
Pedestal Width 7 178 7 178



Additional information

Model

OSAB-SA-F Flat Ends, OSAB-SA-R Round Ends
