Traffic H1 Horizontal Barrier

Please Login for Pricing

The Traffic H1 Horizontal Barrier provides high functionality for vehicle access control. The traffic boom barriers come up to 20 feet long and have the option of a horizontally folding arm. This special design allows for safety and can be used in areas with limited heights. Thanks to their efficiency, long service lives, and simple maintenance, these barriers are an excellent investment that will certainly pay off.

Login or Sign Up

Description

For specialized vehicle management

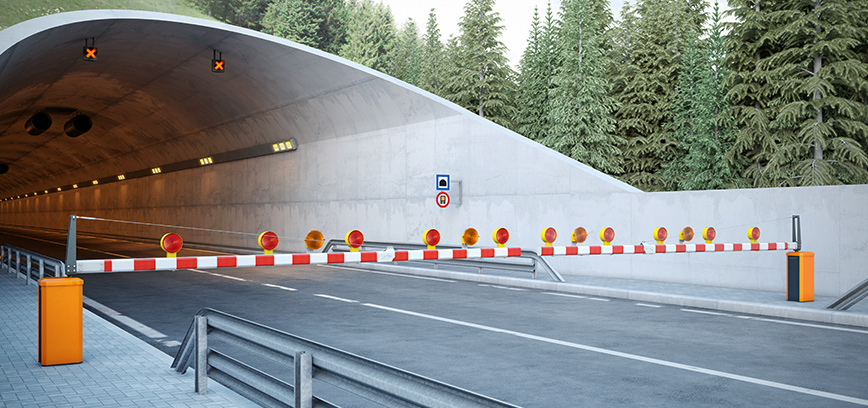

With its horizontal arm movement, the Traffic H1 is a specialist in vehicle management. It is not only used for blocking access to tunnels and lanes; It maximizes its full potential when controlling intersections with alternating cross traffic. It is
therefore not only the optimal solution for road traffic but also for protecting material flows in production plants. The H1 operates in extreme weather conditions and has corrosion protection.

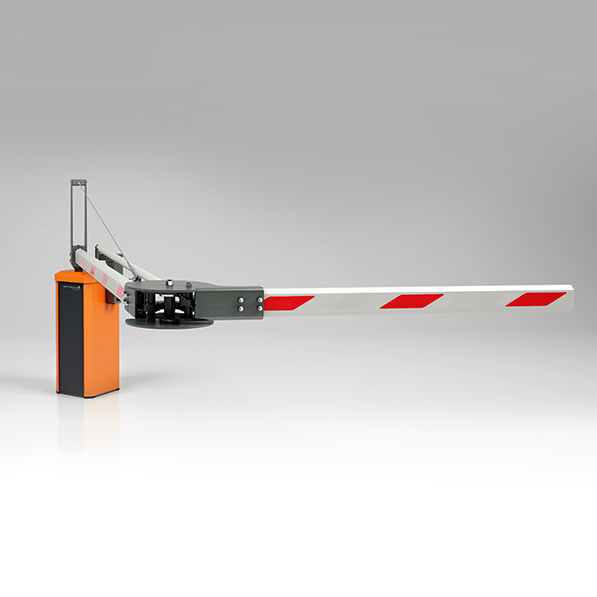

With the option of a patented folding articulated barrier arm, the Traffic H1 can block crossings where space limitations don’t allow for the full swing of the barrier arm to both end positions. At the heart of Traffic H1 is our innovative drive technology, characterized by its energy efficiency, lack of maintenance, and long service life.


Data Sheet – Traffic H1 Horizontal Barrier

Installation Operation Manual – Traffic H1 Horizontal Barrier

Technical Specifications – Traffic H1 Horizontal Barrier



FEATURES

  • High functionality for numerous special applications
  • Low power consumption for economical operation
  • Optimum accessibility for particularly simple maintenance
  • Barrier color: Orange (RAL 2000)
  • Door color: Black-Grey (Anthracite)(similar to RAL 7021)

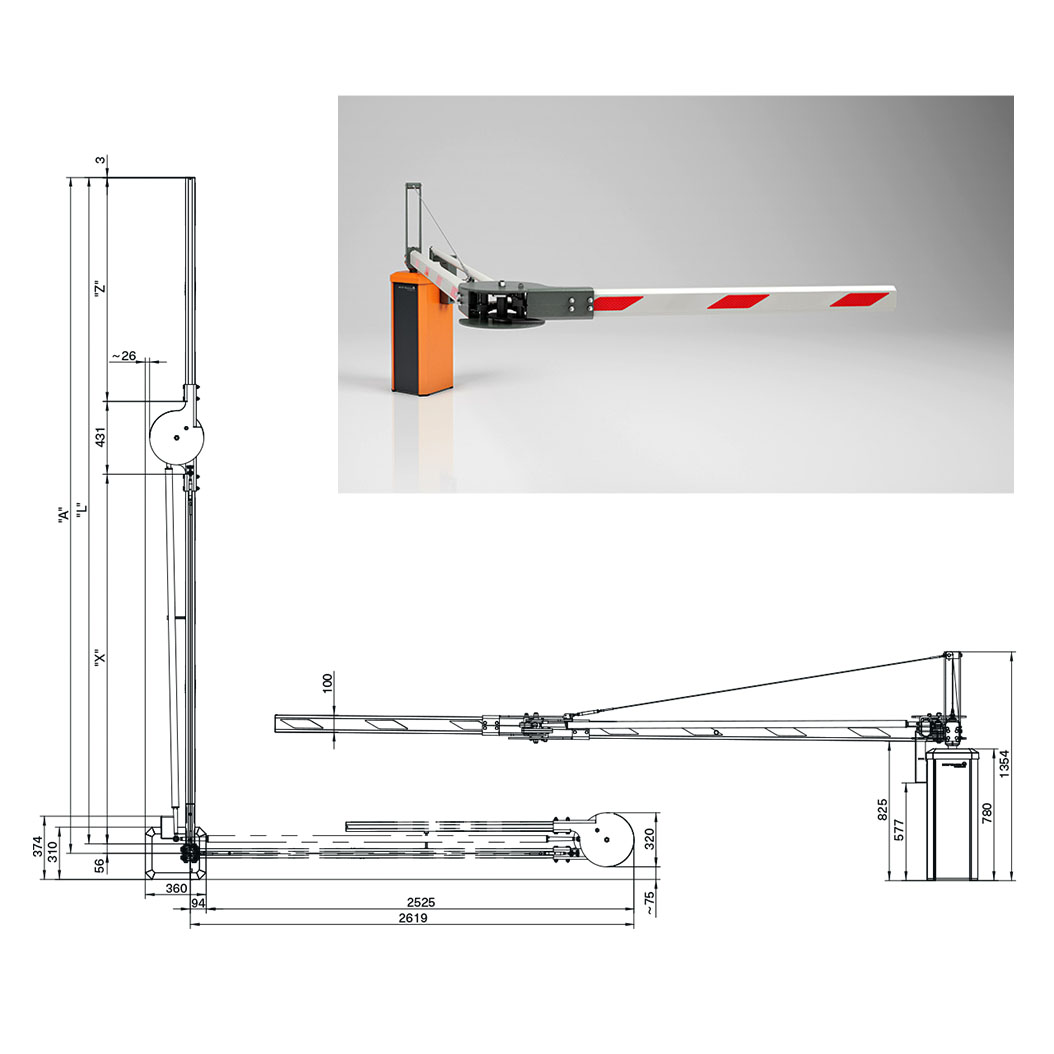

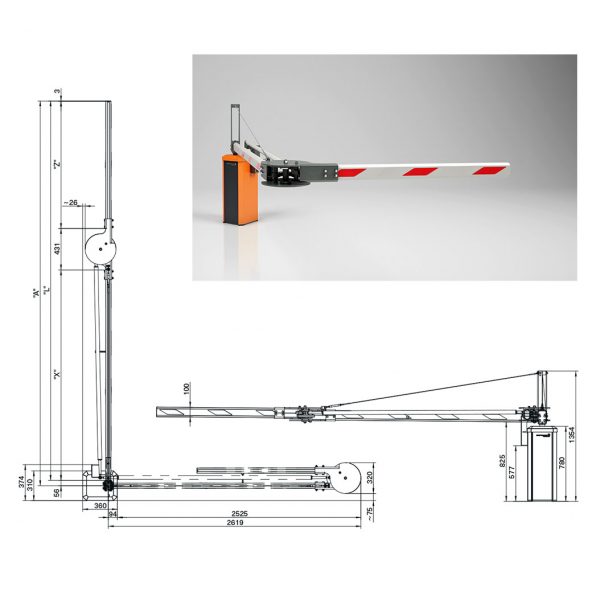

  • Patented folding boom for safety at indoor crossings with differing lane widths
  • Exported worldwide

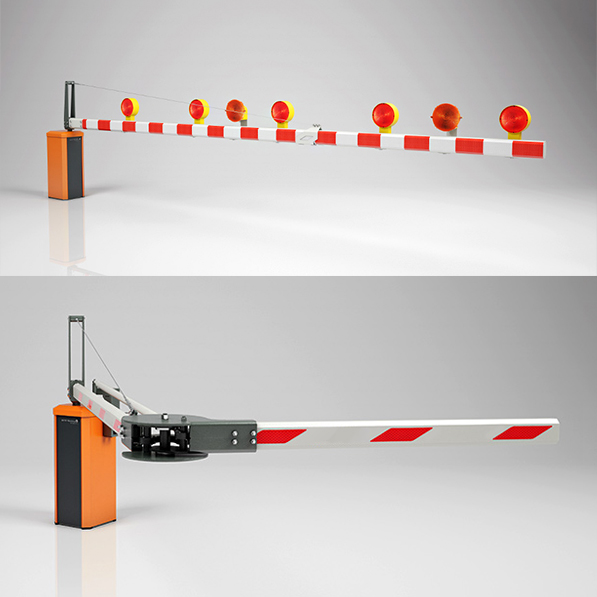

  • Available Configurations
    • With folding arm

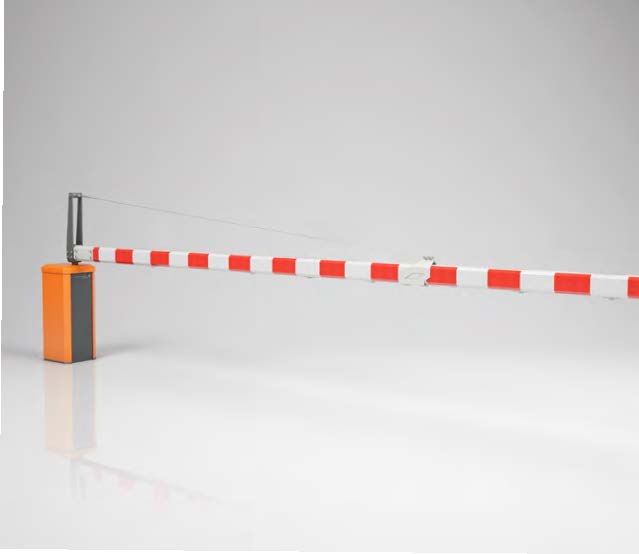

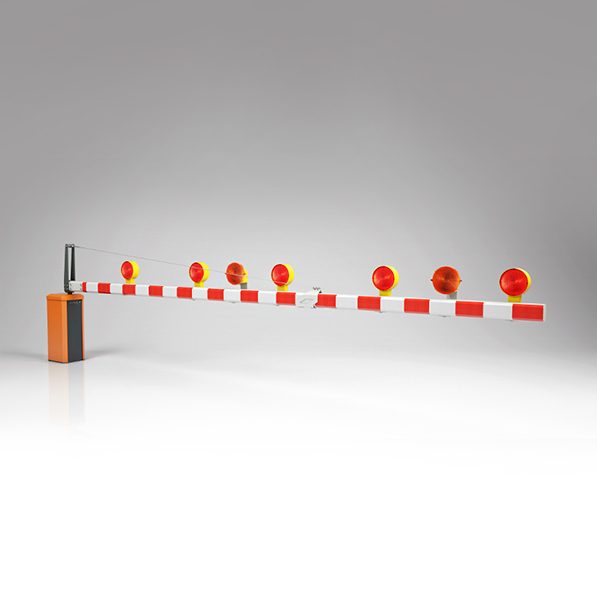

    • With standard boom arm
    • 10ft, 12ft, 15ft, 20ft



MODEL / Opening Width (D) / Speed
TRAFFIC H1SE-SC01000 / 10Ft / 2s
TRAFFIC H1SE-SC01200 / 12Ft / 2s
TRAFFIC H1LE-SC01000 / 10Ft / 2s
TRAFFIC H1LE-SC01200 / 12Ft / 4s
TRAFFIC H1LE-SC01500* / 15Ft / 4s
TRAFFIC H1LE-SC02000* / 20Ft / 4s

*Traffic barriers with arms over 14 feet must use a cable support

SPECIFICATIONS

Technical data H1LE with standard boom H1LE with folding boom H1SE
Barrier width Max. 20 ft Max. 14.7 ft Max. 12 ft
Opening/closing time 4.0 s 4.0 s 2.0 s
Power consumption Max. 45 W Max. 45 W Max. 90 W
Drive technology MHTM™ MHTM™ MHTM™
Voltage 85-264 VAC, 50/60 Hz 85-264 VAC, 50/60 Hz 85-264 VAC, 50/60 Hz
Duty cycle 100% 100% 100%

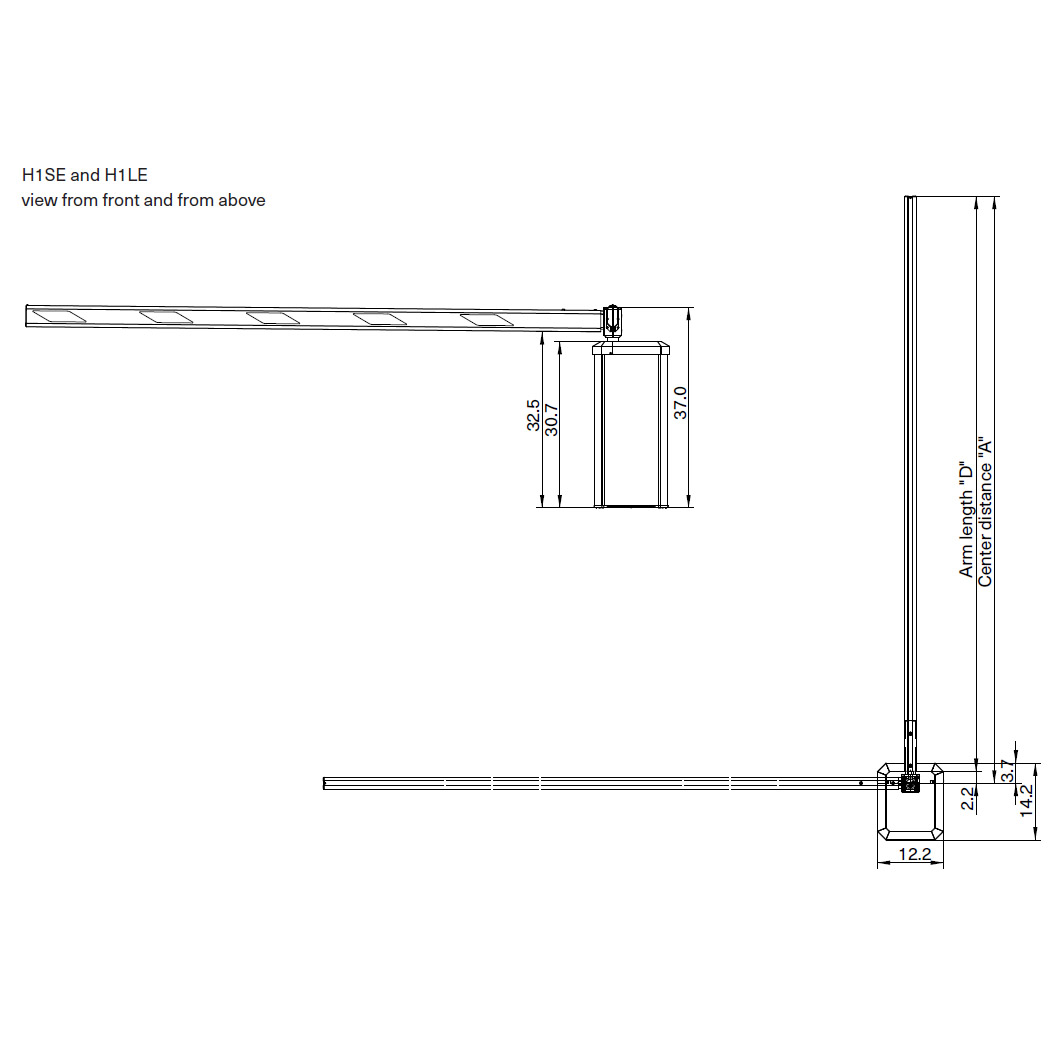

Housing dimensions (W x D x H) 12.2 x 14.2 x 53.4 in 12.2 x 14.2 x 37 in
Enclosure rating IP 54 IP 54 IP 54
Temperature range -22 to +131 °F  -22 to +131 °F  -22 to +131 °F
Weight (without boom) 121.3 lb 121.3 lb 121.3 lb



Features H1LE with standard boom H1LE with folding boom H1SE
Standard colors RAL 2000 RAL 2000 RAL 2000
Barrier boom MicroBoom-H1 MicroBoom-F1 MicroBoom-H1
Control system MGC Pro MGC Pro MGC Pro
Integrated 2-channel detector for induction loops Standard Standard Standard
Modular expansion of control system Freely expandable Freely expandable Freely expandable
Variable I/O assignment Standard Standard Standard
Number of digital inputs 8 8 8
Number of relays/digital outputs 6/4 6/4 6/4
Input for safety photoelectric switch with test Standard Standard Standard
Selectable closing speed Standard Standard Standard
Selectable opening speed Standard Standard Standard

INSTALLATION

Installation Services Available
See our Portfolio of Work Here

*Please note that freight is not included and will be charged separately. Worldwide freight is available by sea/air/ground. Contact TURNSTILES.us for a personalized quote.



Additional information

Weight 231 lbs
Dimensions 15 × 18 × 60 in
Selection

TRAFFIC H1SE-SC01000 (10Ft, 2s), TRAFFIC H1SE-SC01200 (12Ft, 2s), TRAFFIC H1LE-SC01000 (10Ft, 4s), TRAFFIC H1LE-SC01200 (12Ft, 4s), TRAFFIC H1LE-SC01500 (15Ft, 4s), TRAFFIC H1LE-SC02000 (20Ft, 4s)
