TUSDS412 Steel Full Height Turnstile Tandem

Please Login for Pricing

This 304 steel full-height tandem turnstile has dual 25.5″ wide passages. Each passage can be programmed to control access bi-directionally. It has the ability to integrate with Access Control hardware and Software including RFID, Card, and Biometric Readers. Shipped worldwide and in larger quantities. See more details below and contact a friendly team member at TURNSTILES.us for purchase information.

Login or Sign Up Request A Quote

Description

This full-height tandem turnstile is designed to provide entry access control solutions while saving space compared to two-single turnstiles. They may be installed indoors or outdoors (waterproof/IP65) in places that need high security, such as prisons, stadiums, and construction sites.

  • Tandem Turnstile with Dual Passages
  • Bi-directional passage control
  • 25.5″ Passage Width
  • It is ideal for both indoors and outdoors, IP65 Rated.
  • The whole body is made of finished and brushed stainless steel, which is waterproof, anti-corrosive, and rigid.
  • For each passage, LED light displays are on the top and side to indicate if entry is accepted or denied.
  • Choice of three or four rotor arms.
  • Sufficient space in the frame to embed access control devices (e.g.: RFID, fingerprint device, display, counter, push-button, coin insert, barcode/QR reader).



FEATURES

  • Full Height Industrial Single Turnstile
  • 2-Way Electric, Steel, 3-Arm or 4-Arm, 25.5″ Tandem Passage
  • Long-life performance, high operation dependability, and fast response
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running
  • Single directional or Bi-directional is selectable
  • Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delays to enter
  • Single-file passage
  • When power is off, arms will open automatically, which is complying with fire safety requirements
  • LED indicator (red × means no entry; green → means entry)
  • Structure of trunking to contain cable tidy inside the case
  • Beauty ring cover on top and bottom
  • Override key function for manual locking in one or both directions
  • Easy to install and maintain
  • Readers and Door Controller Panels optional
  • Ensure entrance compliance

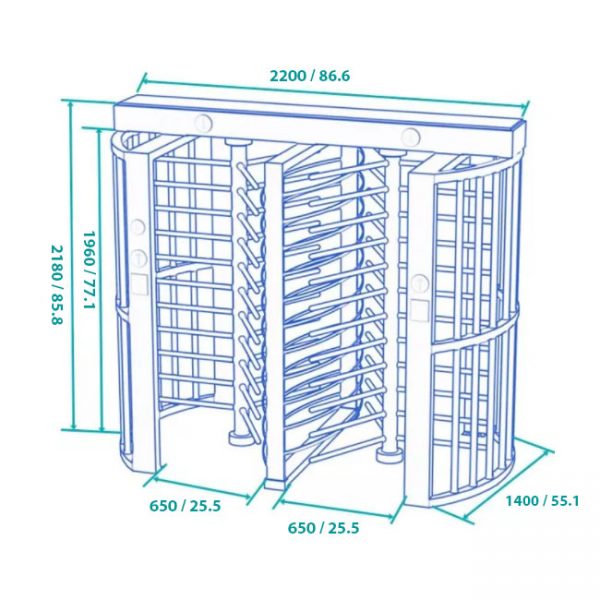

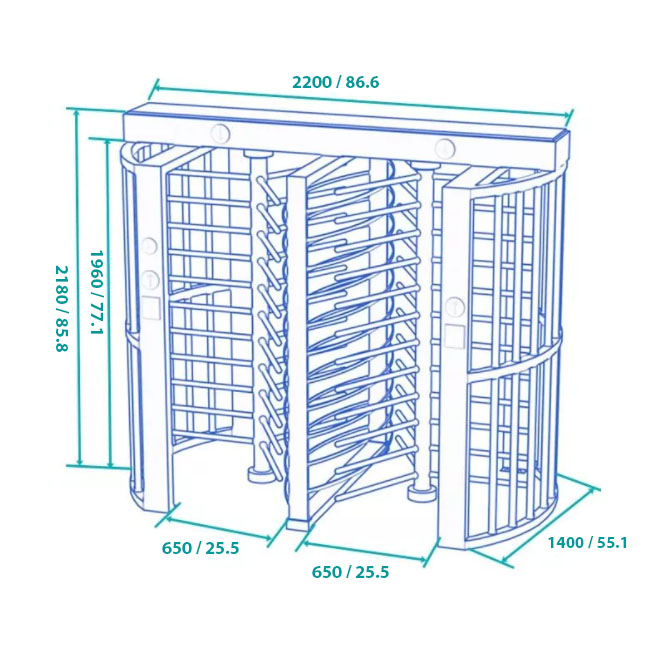

DIMENSIONS

SPECIFICATIONS

Model No. TUSDS412
Framework Material 304 Full Stainless Steel
Dimensions  2200 * 1400 * 2180mm /
Weight 320kg each /
Passage Width Dual passages, 650mm per lane /
Arm Support 120° rotors with 3 sections, or 90° rotors with 4 sections
Passing Direction Single directional or Bi-directional programming
MCBF 5 million
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 40W
Operation Temperature -15 °C – 60 °C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor
Flow Rate 35-40 people per minute
LED Indicator Yes
Emergency Arm rotates freely during power failure
Communication Dry contact, Relay

INSTALLATION

Contact TURNSTILES.us for a delivery quote and freight information.
Full-Service Installation is available at your location! See our Portfolio of work



Additional information

Weight 695 lbs
Dimensions 55 × 52 × 88 in
Selection

TUSDS412-3A Full Height Tandem Turnstile, Three-Arms, TUSDS412-4A Full Height Tandem Turnstile, Four-Arms
