TUSDS7300 Optical Speed Gate Turnstile, Swing Barrier Low Glass

Please Login for Pricing

The TUSDS7300 is an optical speed gate turnstile with illuminated plexiglass swing gates. It has the ability to integrate with Access Control hardware and Software including RFID, Card, and Biometric Readers. Shipped worldwide and in larger quantities. See more details below and contact a friendly team member at TURNSTILES.us for purchase information.

Login or Sign Up Request A Quote

Description

Data Sheet

User Manual



  • The TUSDS7300 speed gate is designed with a super-fast, slim, and artistic style to provide access control at places with elegant architecture
  • The body is made of brushed stainless steel and the arm is transparent Plexiglas/acrylic.
  • The housing is specially designed only to 120mm.
  • LED light shows the current working mode (open/close) on the top cover.
  • The system is with a quick open and close rate (0.2S) and 50 persons/minute throughput.
  • It’s with 6 pairs of infrared sensors to ensure the security of passage at high throughput.
  • It can integrate with different third-party access controllers or (e.g.: RFID card reader, biometric reader device, and counter).



FEATURES

  • Fast open/close rate of 0.2 seconds results in high throughput
  • Long-life performance, high operation dependability
  • The whole system runs smoothly, low noise, no mechanical impact
  • Single directional or Bi-directional is selectable
  • Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delays to enter
  • Anti-tailing function: only one person passes at a time
  • When power is off, an emergency fail-open setting ensures arms will rotate freely
  • LED indicator (red × means no entry; green → means entry)
  • Easy to install and maintain
  • Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion
  • Anti-intrusion function, the turnstile is locked automatically until valid opening signal input
  • Anti-reverse function, the turnstile alarms if someone wants to enter in the reverse direction
  • Anti-trailing function, the turnstile alarms if someone attempts to push through without permission
  • Glass arms will give (so as to prevent damage to the machine or person) and reset automatically if they get accidentally knocked out of position.
  • It has the fastest open and close speed rate, 0.2 seconds. The open and close speed rate can be adjusted.
  • Easy to install and maintain.

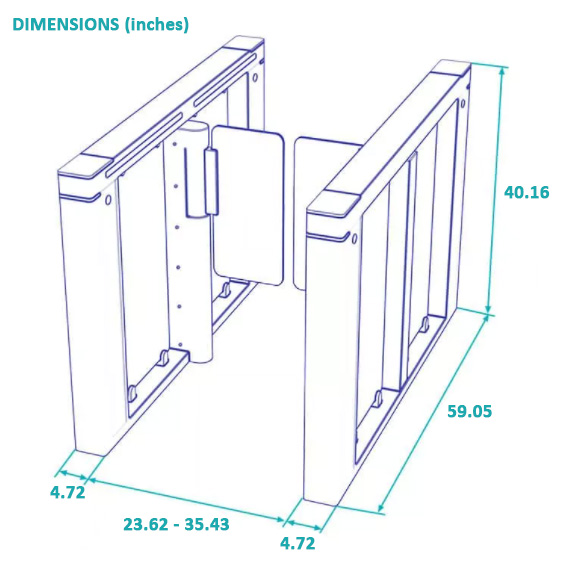

DIMENSIONS

*Standard or ADA Passage widths are available.
When planning for your space, usually cabinets are placed with 2-3″ of space between the glass gates.



SPECIFICATIONS

Model No. TUSDS7300
Vendor TURNSTILES.us
Framework Material 304 Full Stainless Steel
Arm Material Plexiglas-transparency
Dimension 1500 * 120 * 1020mm / 59.05 * 40.16 * 4.72 in cabinet
Weight 176 lbs/pcs (single-wing), 220 lbs/pcs (double-wing)
Passage Width 600mm / 23″  (standard), 900mm / 35″ (ADA)
Passing Direction Single directional / Bi-directional
MCBF 15 million
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 90-100W
Operation Temperature -20 °C – 75 °C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor(shelter)
Flow Rate 45-55 people per minute
LED Indicator Two LED indicators on top: green → entry, red × no entry
Infrared Sensor 6 pairs (standard)
Emergency Automatic arm open when power off
Communication Dry contact, Relay signal, RS485



INSTALLATION

Contact TURNSTILES.us for a delivery quote and freight information.
See our Turnstile Installation Portfolio



Additional information

Weight 240 lbs
Selection

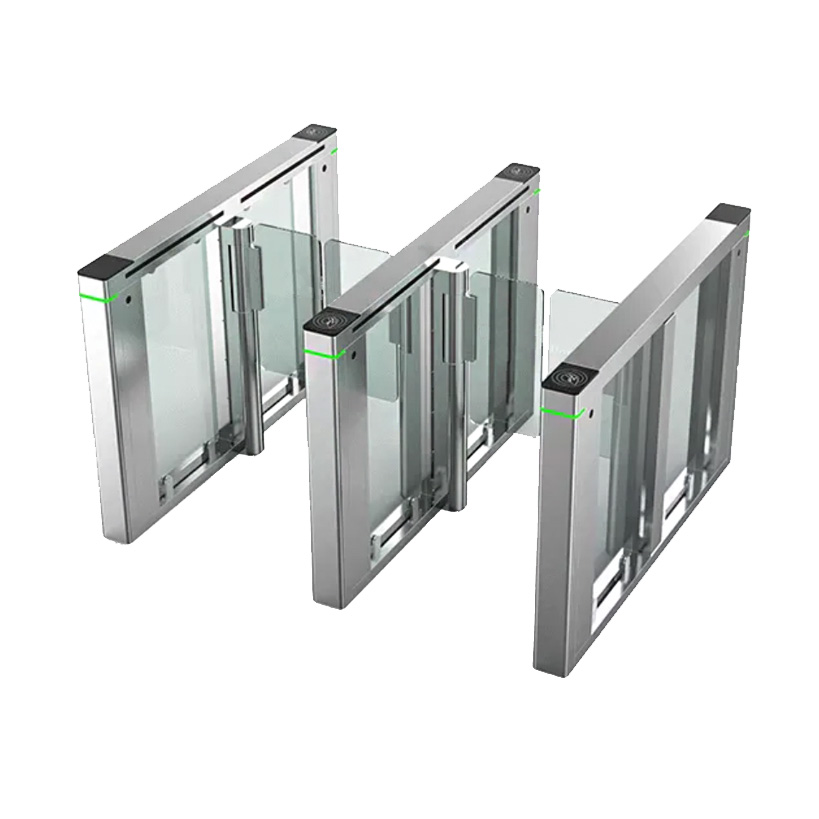

TUSDS7300 One Lane, TUSDS7300 Two Lanes, TUSDS7300 Center Expansion Module
