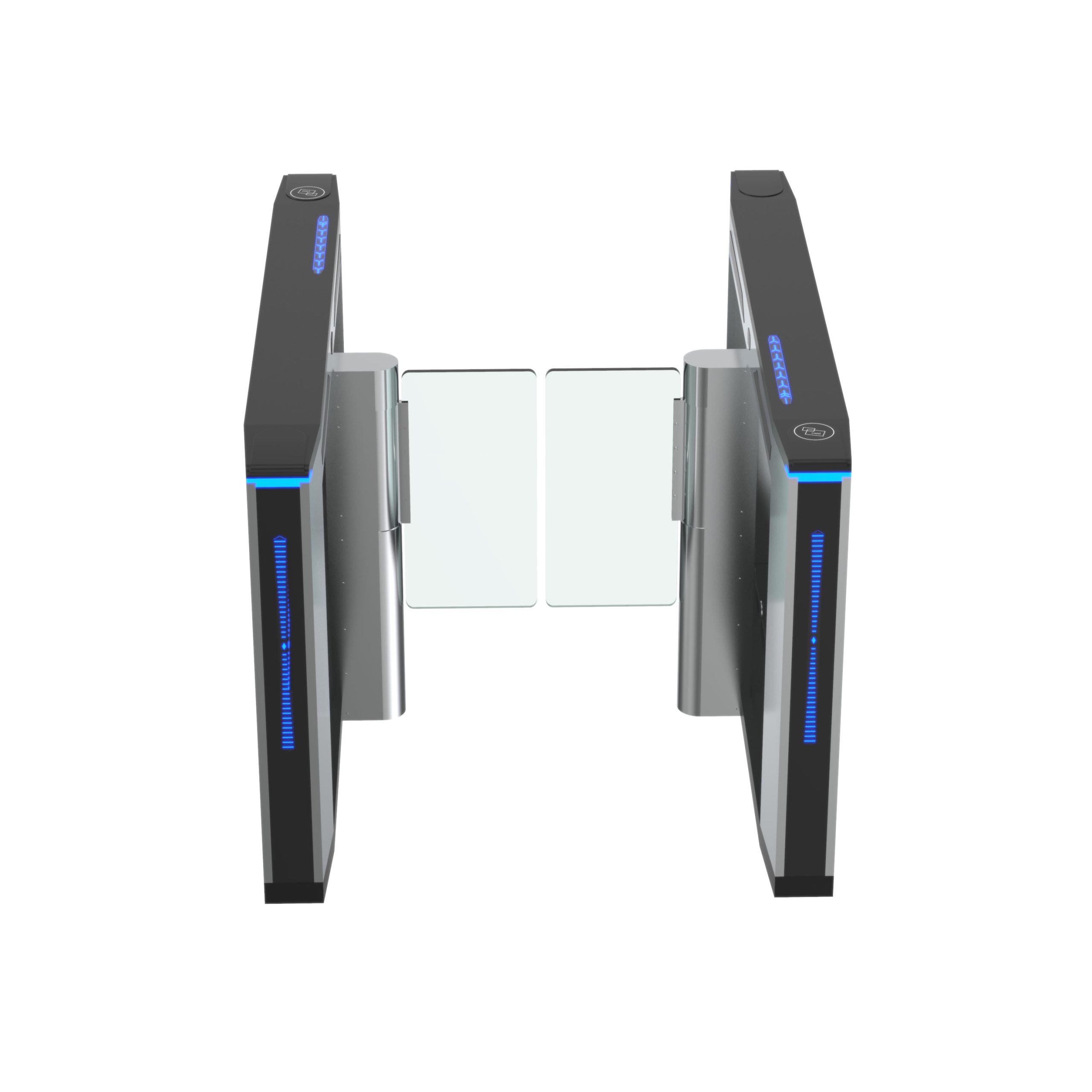

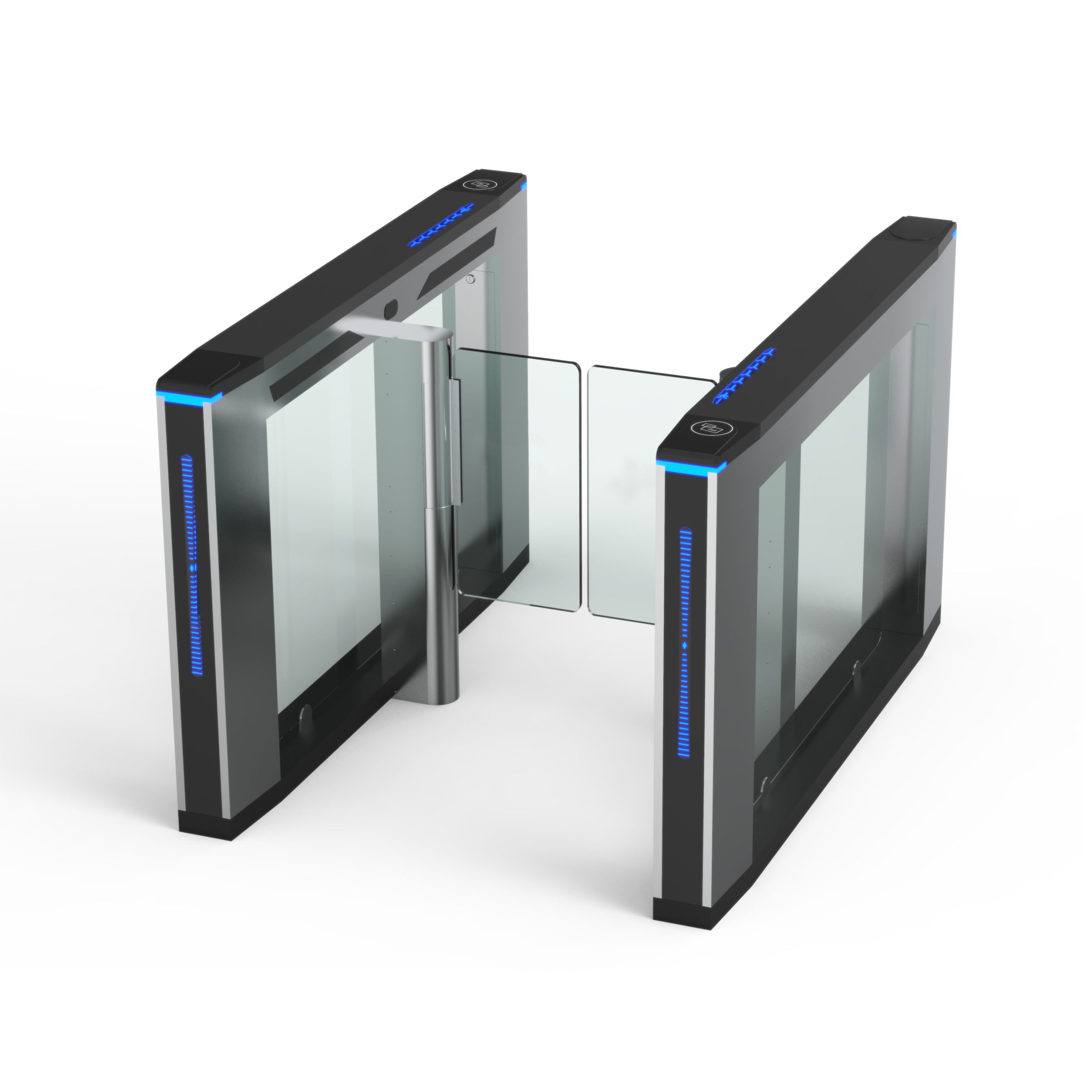

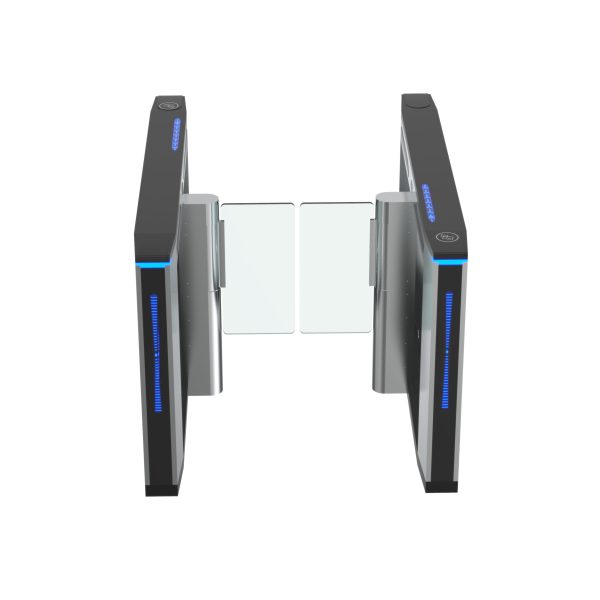

Data Sheet – TUSDSN-70 Speed Gate
FEATURES
- One of our fastest turnstile gates, the 0.2 second opening/closing speed allows up to 55 people per minute.
- The TUSDSN-70 has a unique design, modern stylish cabinet, tapered rectangle shape housing with brushed stainless steel and black enamel finish, polycarbonate panels, and LED directional accent lighting.

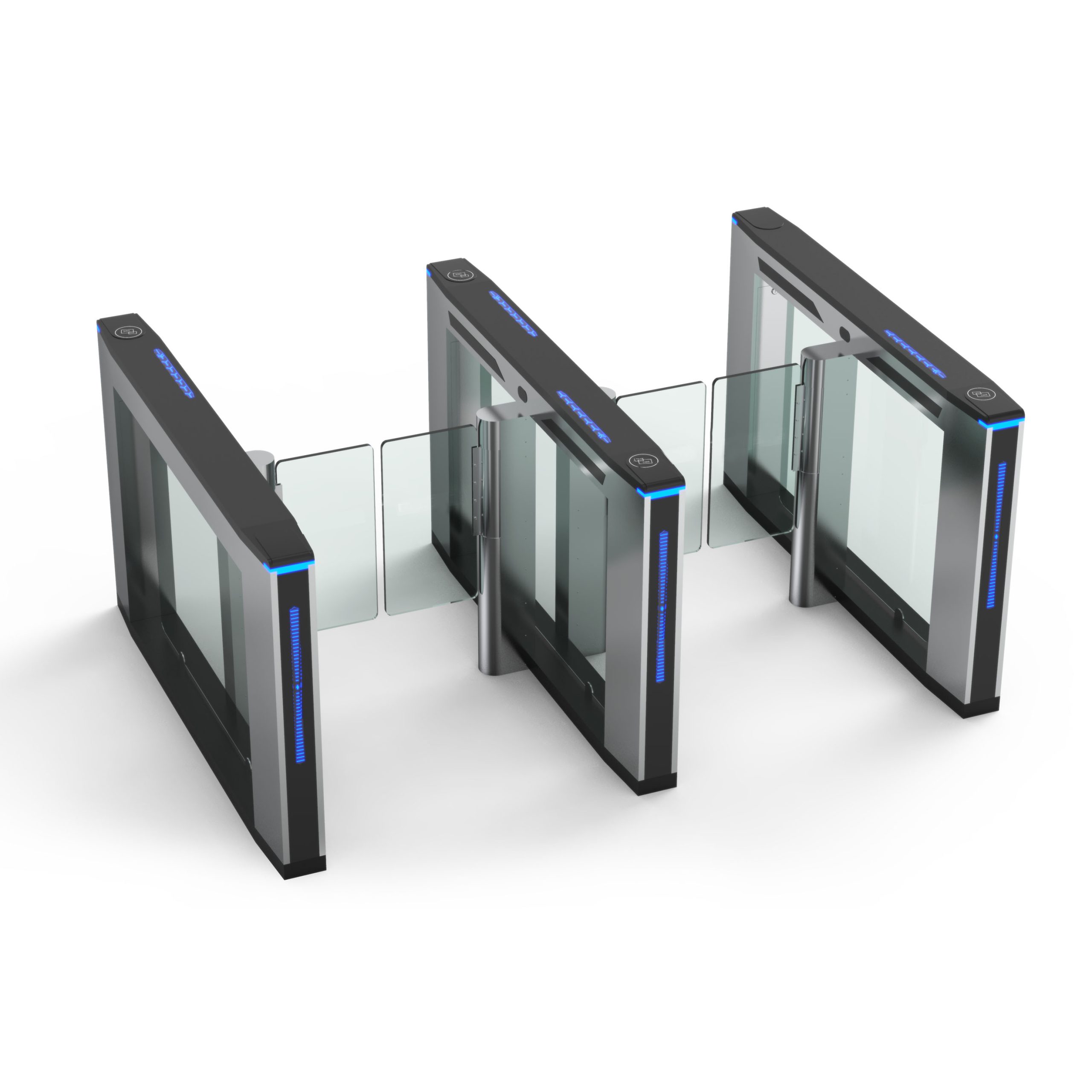

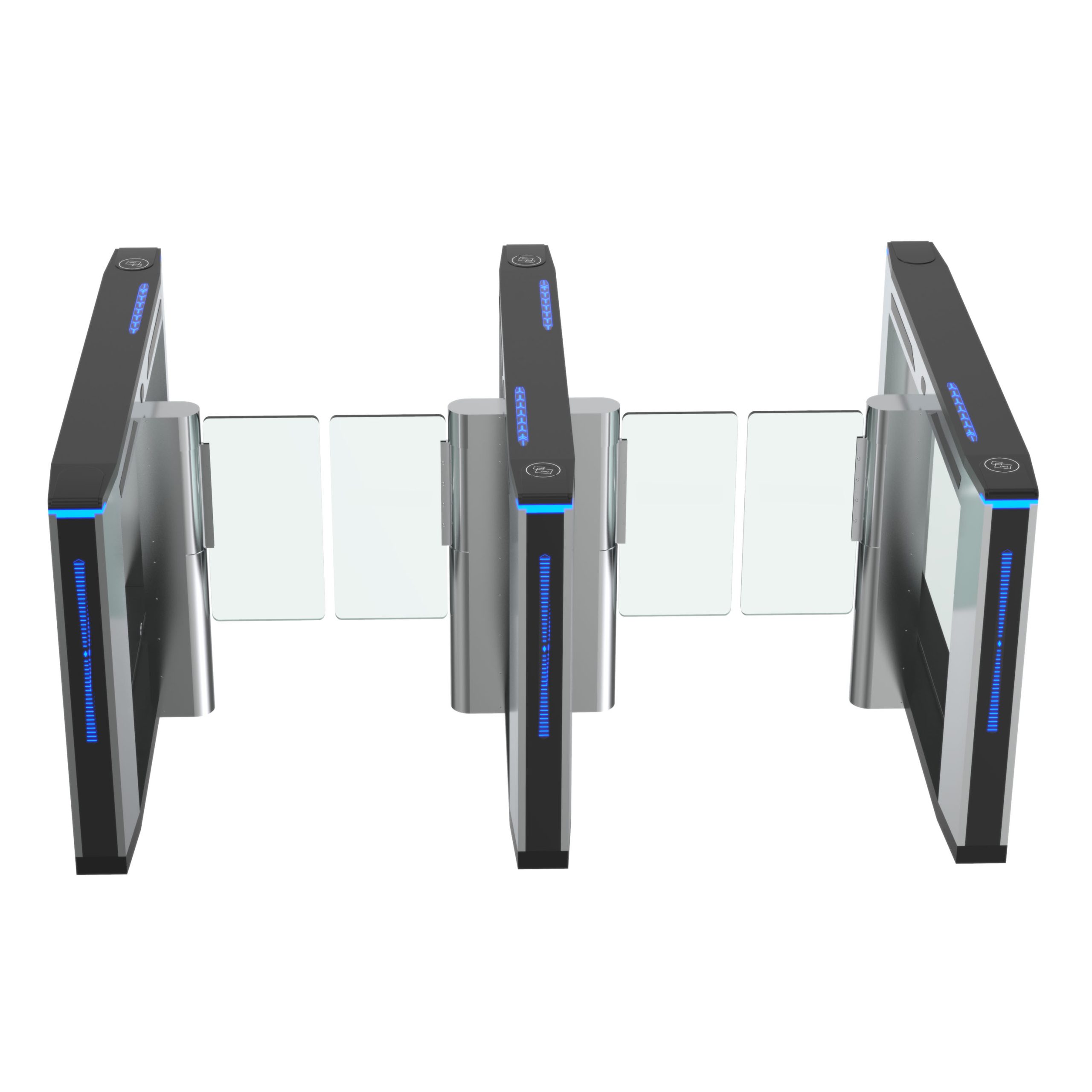

- Available with Standard or Wide lanes for wheelchair accessibility.
- Install indoors or outdoors under cover with its water-resistant design and wide operating temperature range.
- Made with superior Integrated mold production to ensure the highest quality.
- This model has a standard relay signal which can be integrated with an access control system.
- It supports any type of external device solution. (Counter, Reader, Push-Button, Card, Coin, Barcode/QR, etc).
- The gates open automatically to allow free passage during a power outage, or in response to your fire alarm.
- Long-life performance, high dependability and fast response.
- Single directional or Bi-directional passage is programmable.
- When power is off, swing arms will open by default.
- LED indicator lights (red no entry, green entry, blue when idle).
- Infrared sensor alarm function prevents tailgating.
- The speed gate remains locked until valid opening signal input.
- Anti-reverse alarm prevents reverse entry.
- Anti-collision and anti-kick function protects users and the equipment from collision.
- Self-centering mechanism resets the arm automatically if it is pushed off-position.
- If a user delays or does not enter the gate, it will close after 5 seconds (programmable).
- Suitable for areas with high pedestrian traffic.
- Easy to install and maintain.

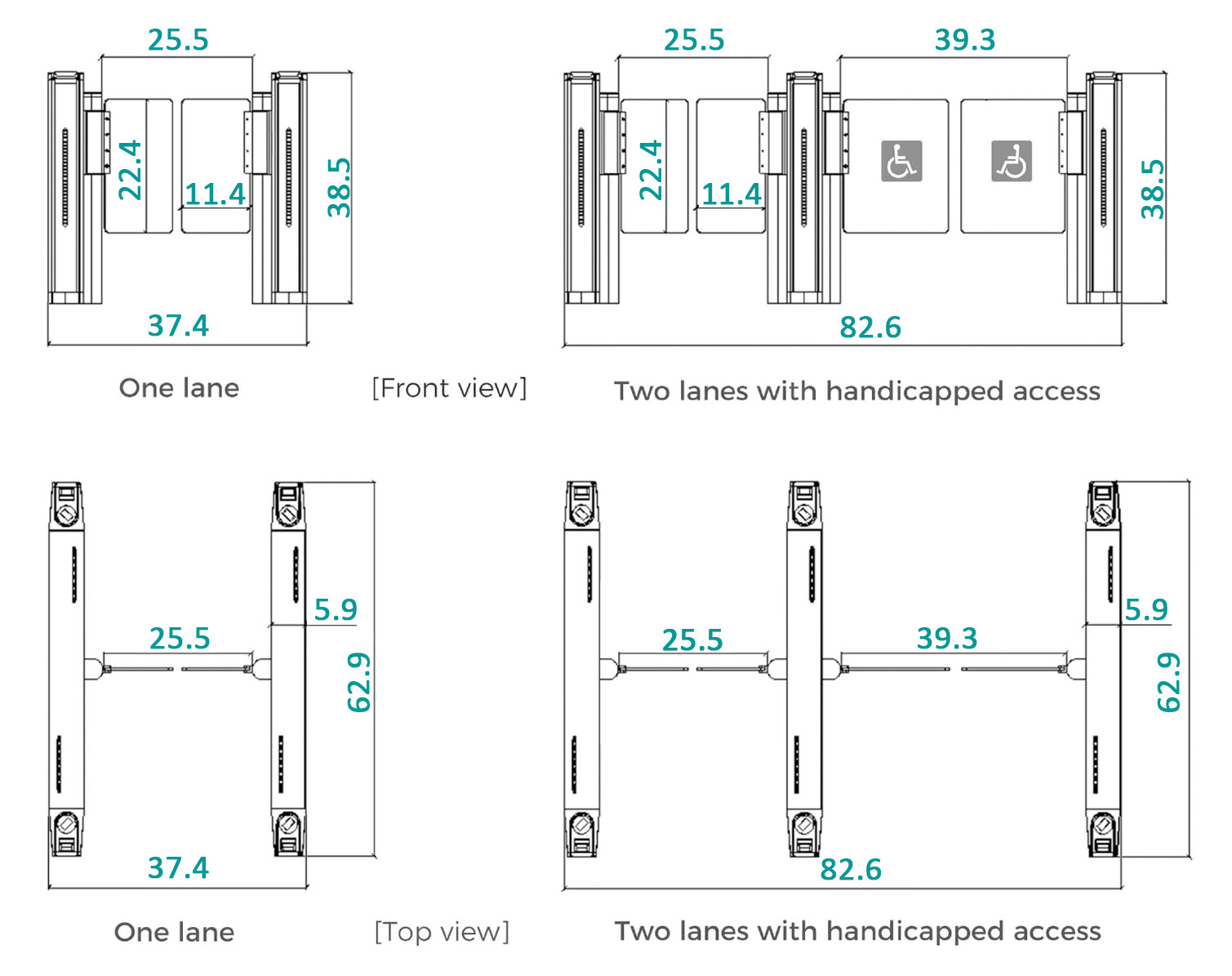

DIMENSIONS
SPECIFICATIONS
| Model No. | TUSDSN-70 |
|---|---|
| Brand | TURNSTILES.us |
| Framework Material | Steel+ stoving varnish |
| Swipe Card Panel Material | Tempered glass |
| Arm Material | Plexiglas-transparency (standard), tempered glass (optional) |
| Dimensions | 55.1 x 7.2 x 38.9 in |
| Weight | 187 lb/pc (single core) 232 lb/pc (double core) |
| Passage Width | 24-36in (One passage) |
| Passing Direction | Single directional OR Bi-directional |
| MCBF | 12 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W-70W |
| Operation Temperature | 5 °F – 158 °F |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor (shelter) |
| Flow Rate | 50-55 people per minute |
| LED Indicator | Yes, front and top |
| Infrared Sensor | 6 pairs (standard) |
| Emergency | Gates open during power failure |
| Communication | Dry contact, Relay signal, RS485 |
