TUSDSN-80 Speed Gate Turnstile

Please Login for Pricing

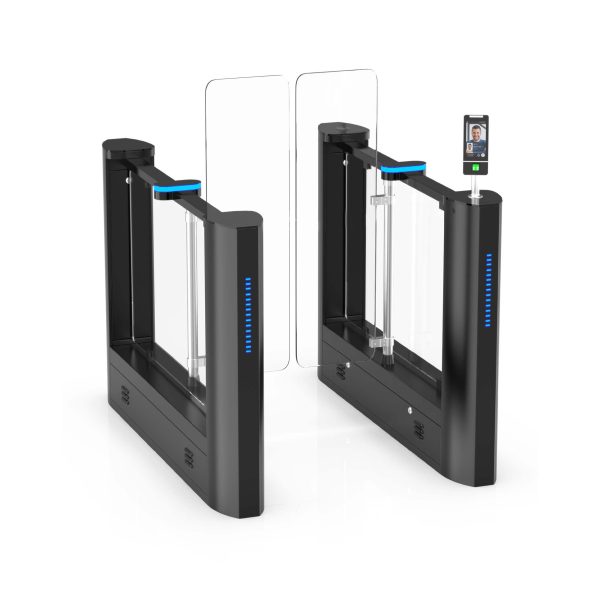

The TUSDSN-80 stands out from the rest with sleek shiny black frame, color changing LED light array, clear  sides and swing gates. It has the ability to integrate with Access Control hardware and Software including RFID, Card, and Biometric Readers. Shipped worldwide and in larger quantities. See more details below and contact a friendly team member at TURNSTILES.us for purchase information.

Login or Sign Up

Description

Data Sheet – TUSDSN-80 Speed Gate

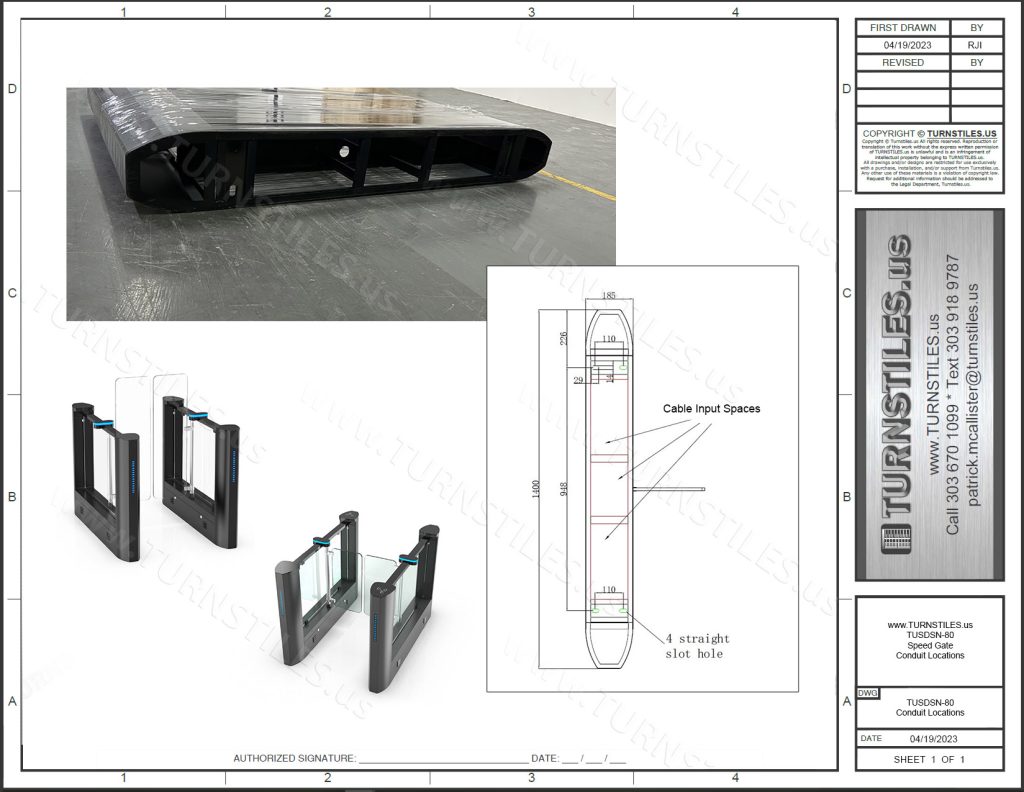

Conduit Locations

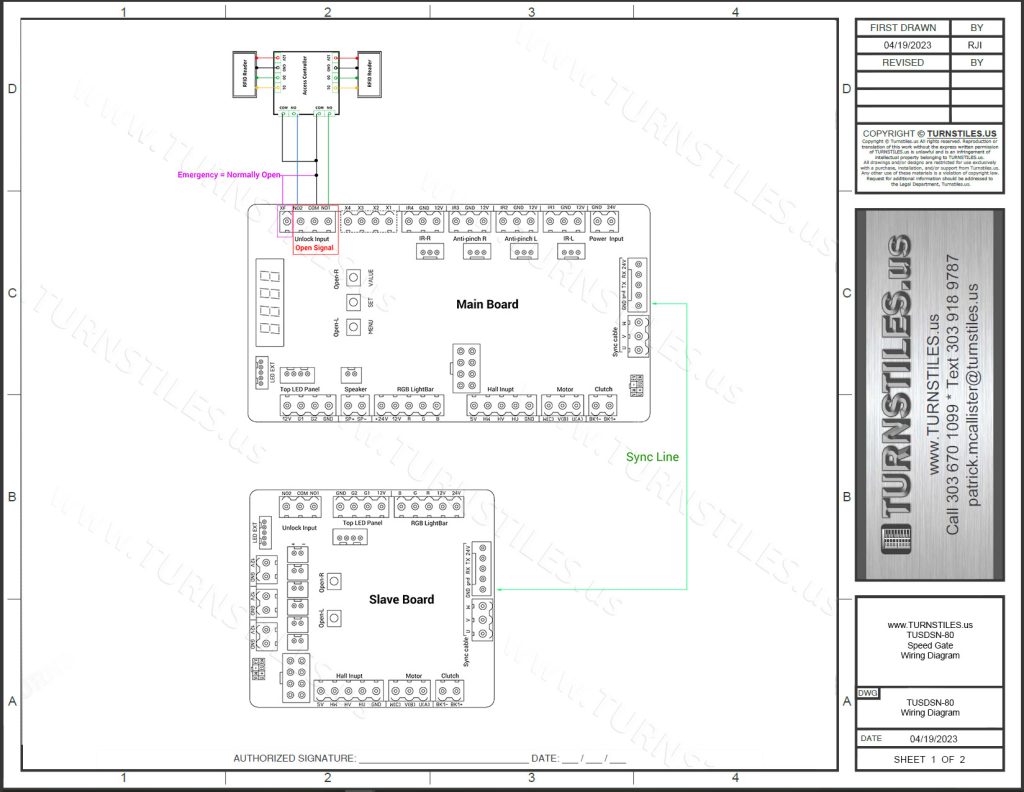

Wiring Diagram

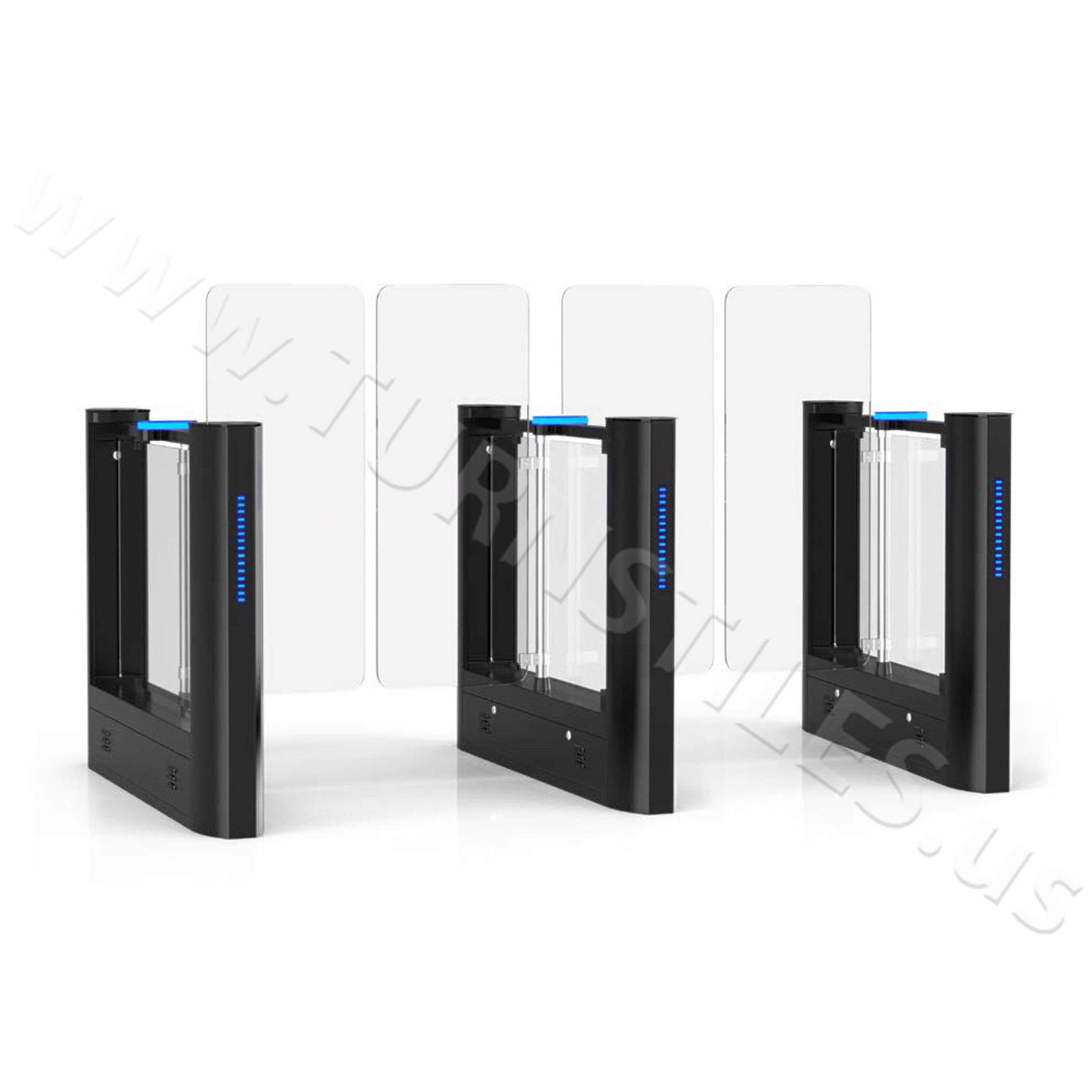

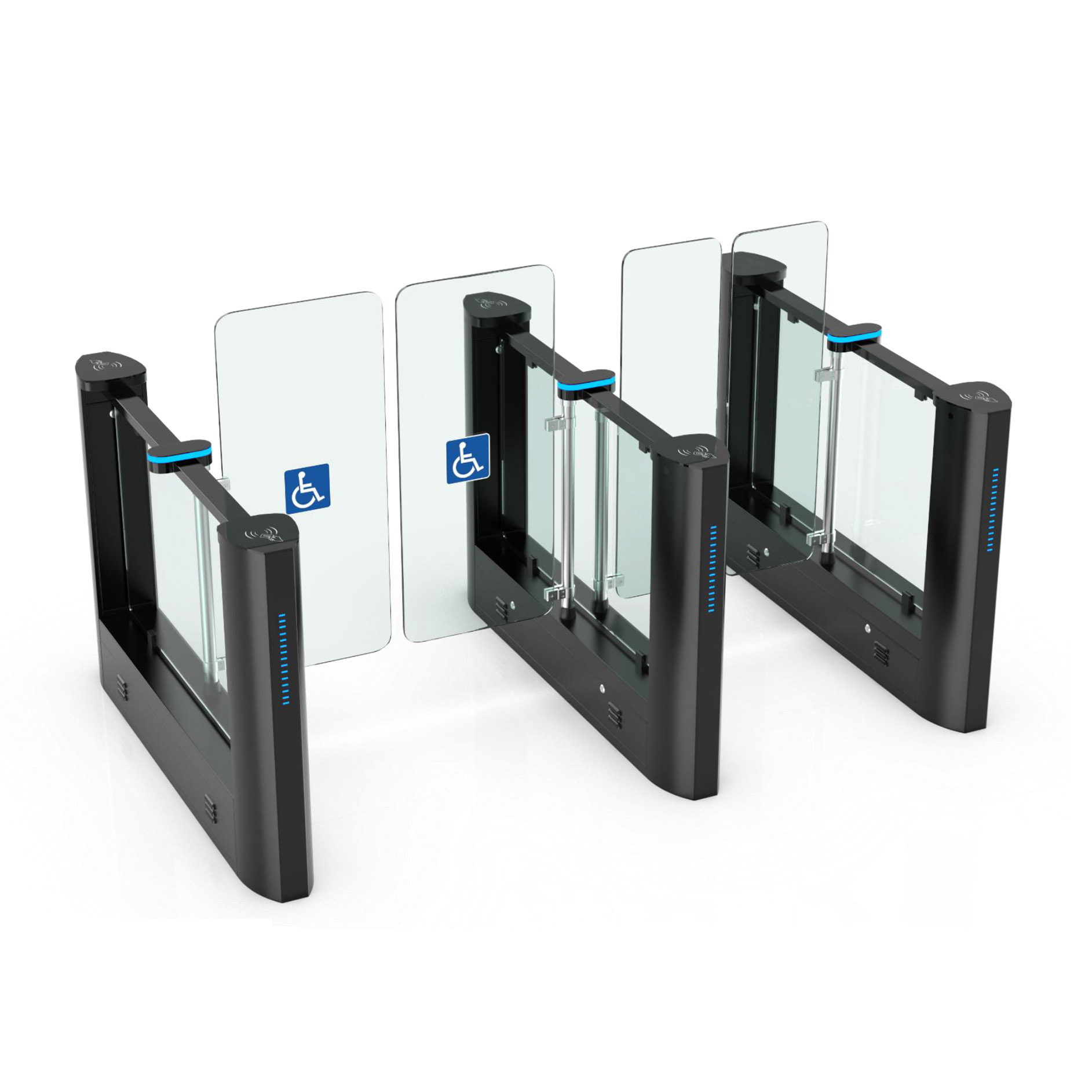

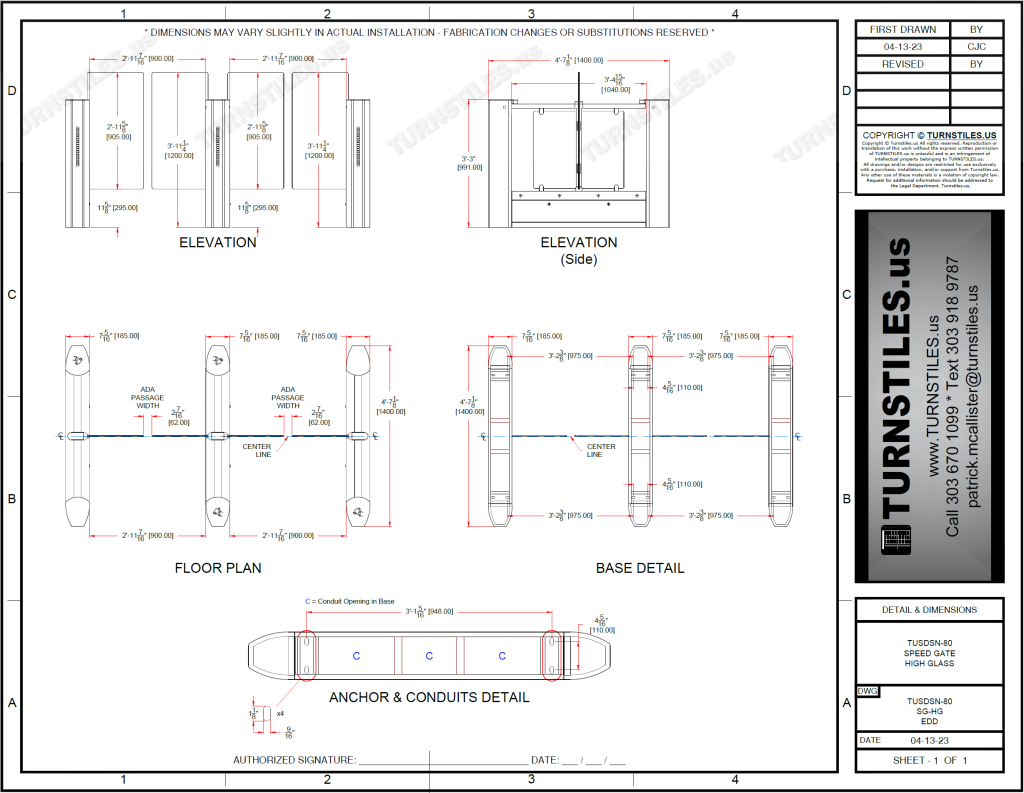

Equipment Dimensional Detail – Two ADA Lane Array, High Glass

FEATURES

  • Fast opening/closing speed, slim housing, 3-Color LED lighting

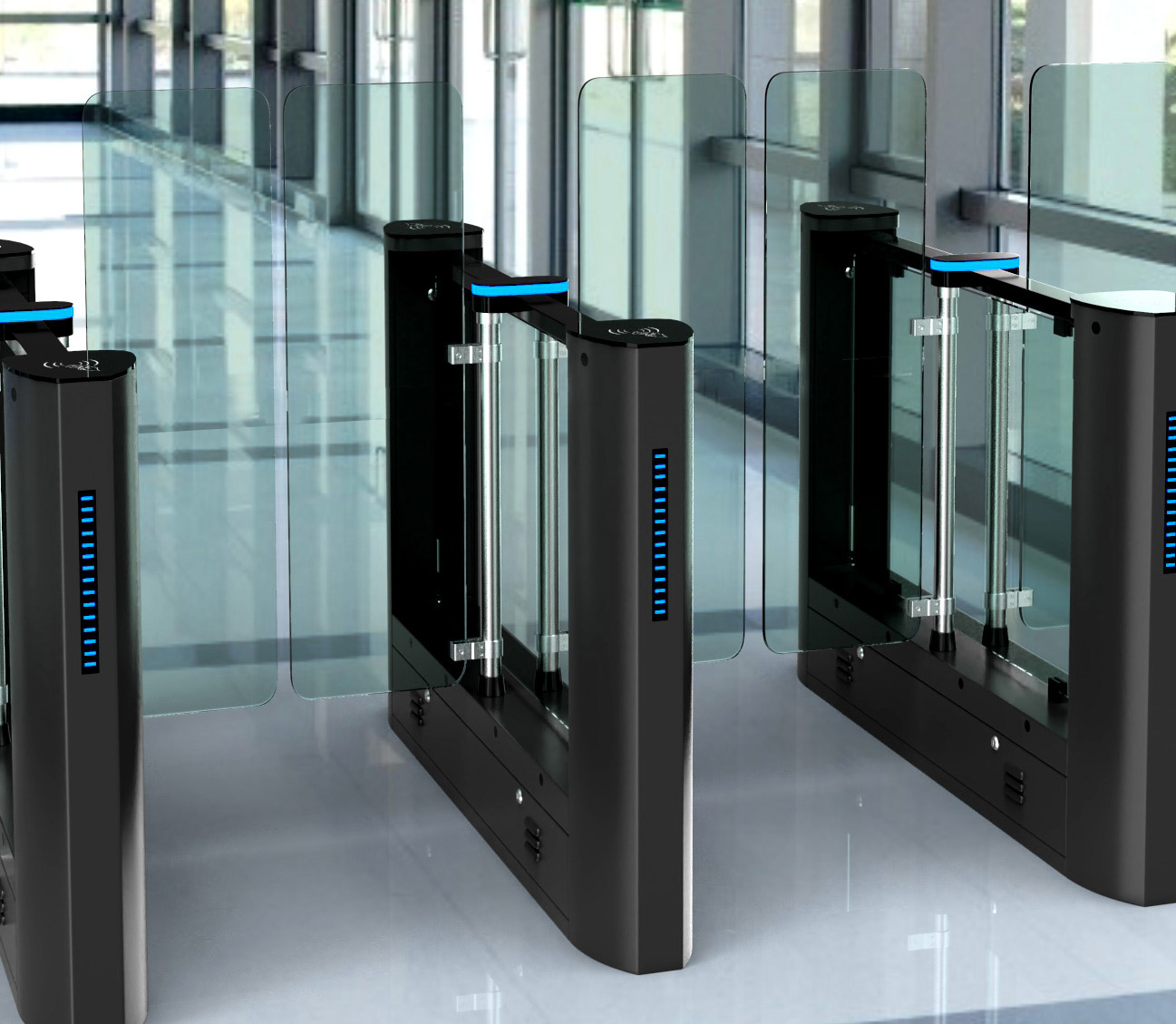

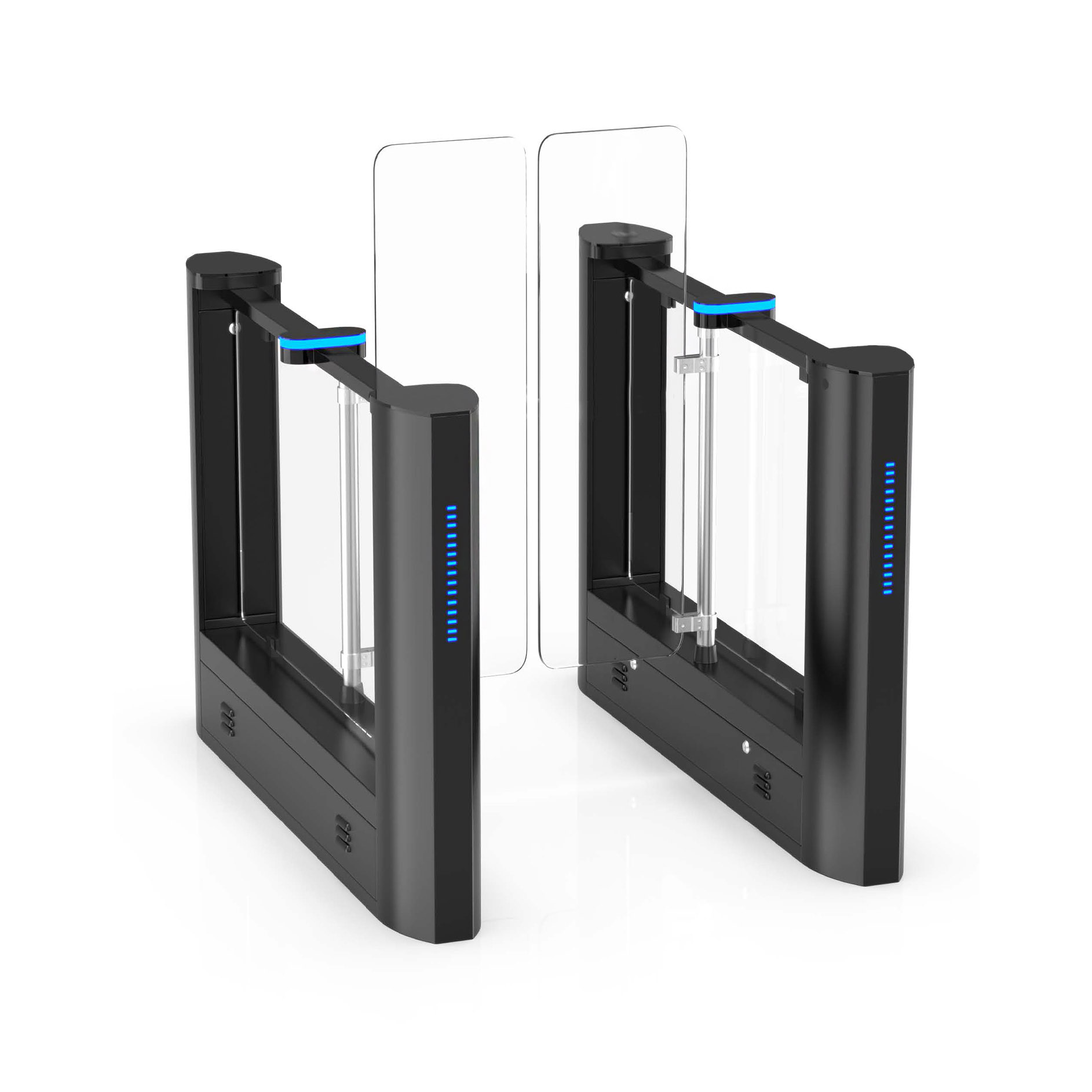

  • Available with three sizes of glass height: low, standard, or high-glass.

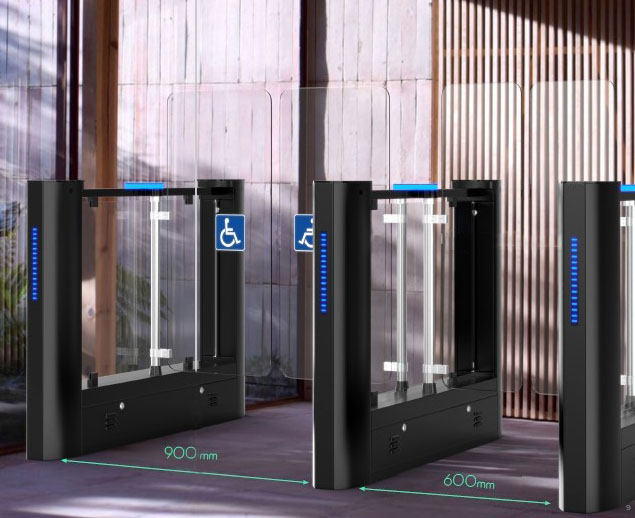

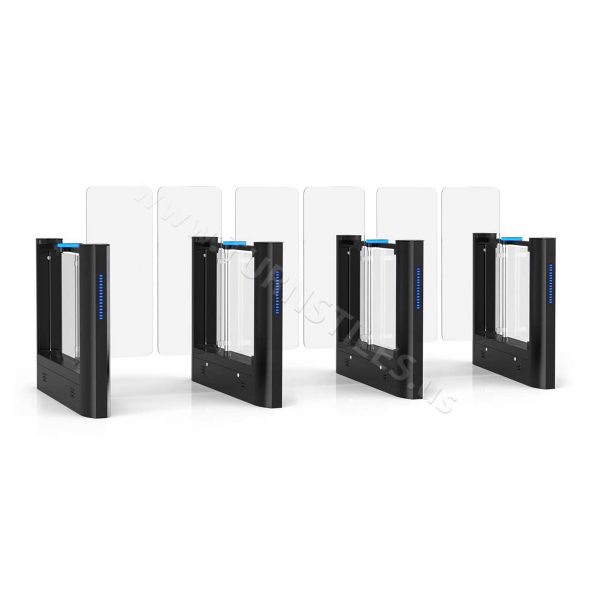

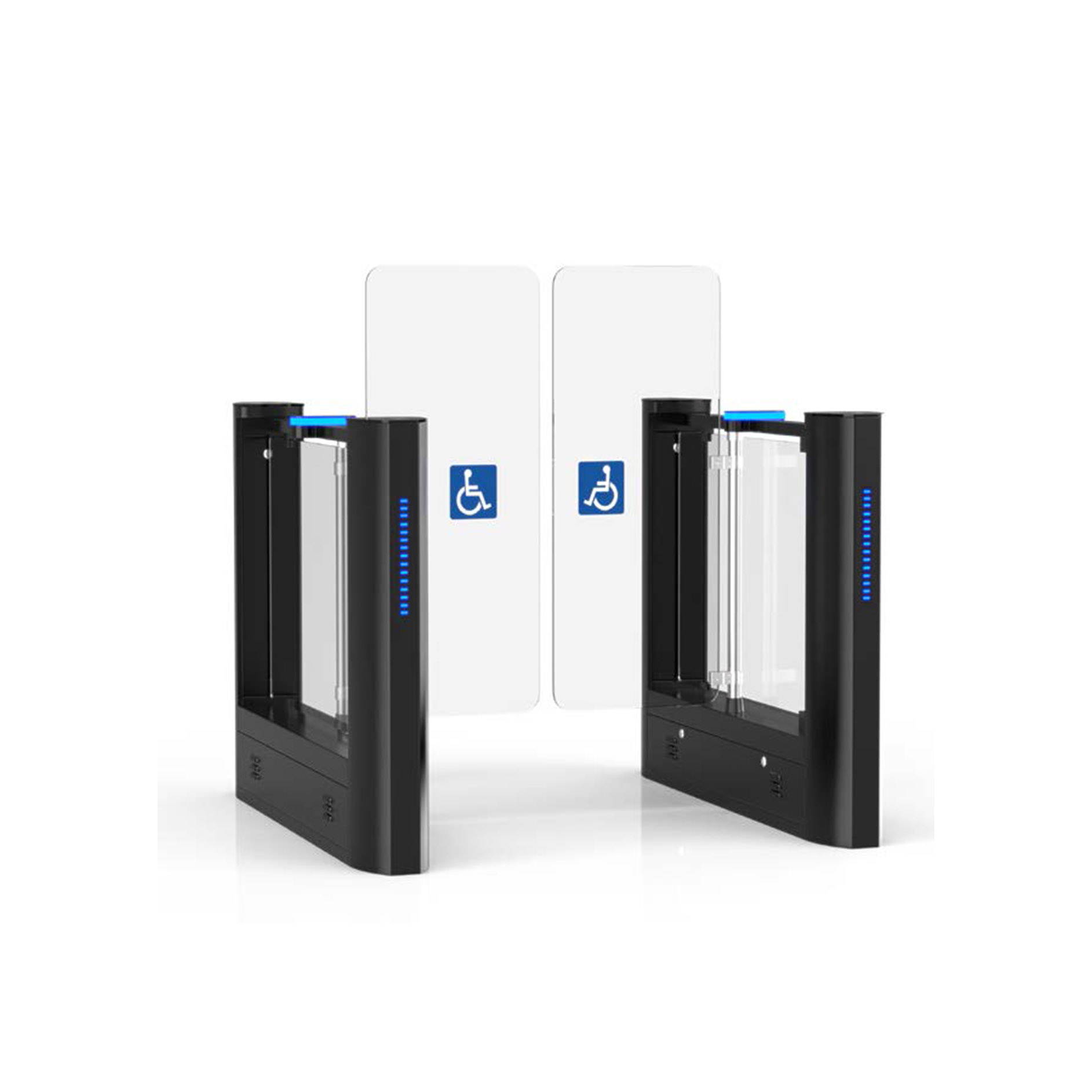

  • Available with Standard or Wide lanes for wheelchair accessibility.
  • Install indoors or outdoors under cover with its water-resistant design and wide operating temperature range.
  • Unique design, modern urban style cabinet, tempered glass panel, LED strips, sleek black finish.
  • Made with superior Integrated mold production to ensure the highest quality.
  • This model has a standard relay signal which can be integrated with an access control system.
  • It supports any type of external device solution. (Counter, Reader, Push-Button, Card, Coin, Barcode/QR, etc).
  • The gates open automatically to allow free passage during a power outage, or in response to your fire alarm.
  • Long-life performance, high dependability and fast response.
  • Single directional or Bi-directional passage is programmable.
  • When power is off, swing arms will open by default.
  • LED indicator lights (red no entry, green entry, blue when idle).
  • Infrared sensor alarm function prevents tailgating.
  • The speed gate remains locked until valid opening signal input.
  • Anti-reverse alarm prevents reverse entry.
  • Anti-collision and anti-kick function protects users and the equipment from collision.
  • Self-centering mechanism resets the arm automatically if it is pushed off-position.
  • If a user delays or does not enter the gate, it will close after 5 seconds (programmable).
  • Suitable for areas with high pedestrian traffic.
  • Easy to install and maintain.

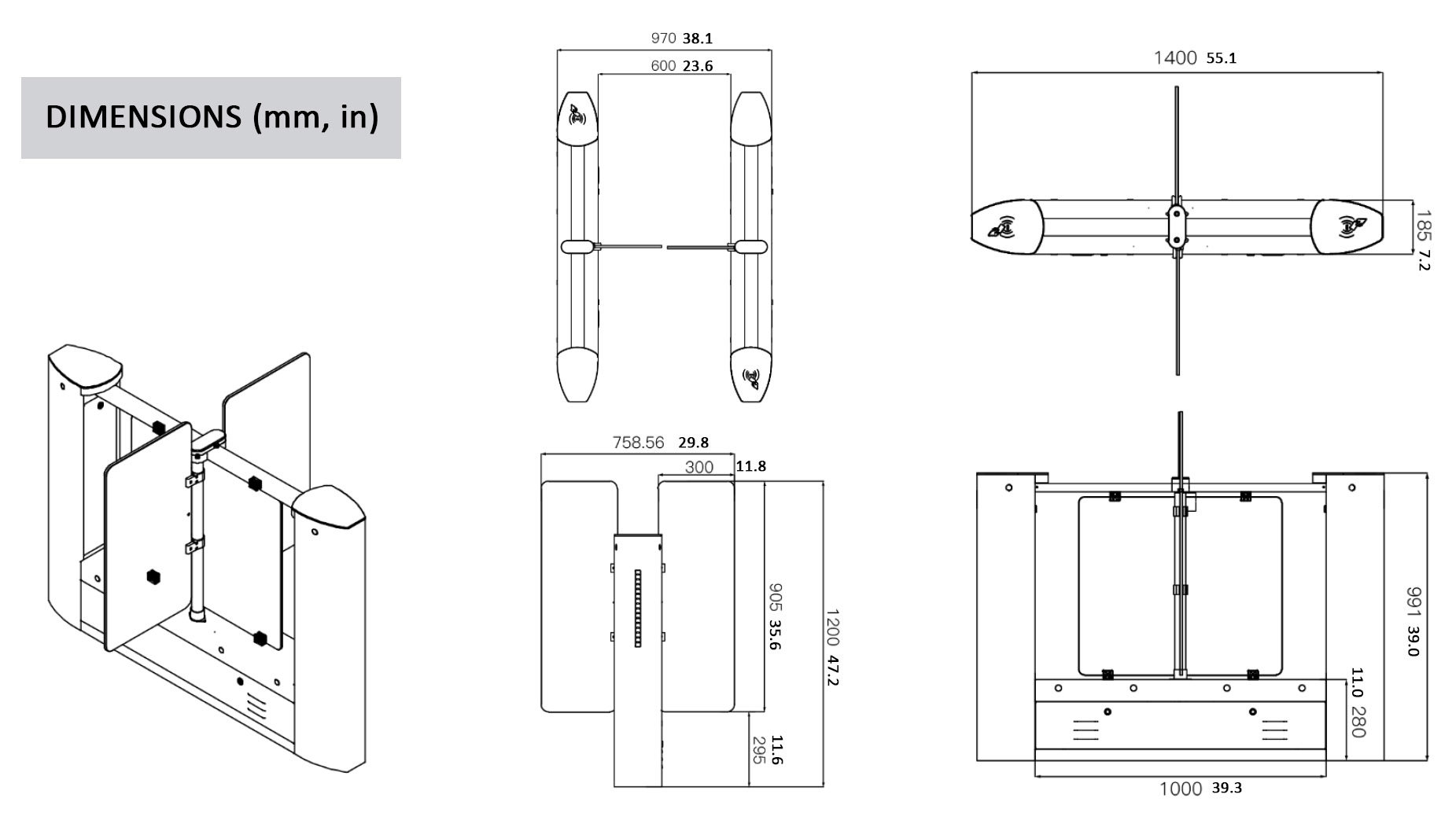

DIMENSIONS





SPECIFICATIONS

Model No. TUSDSN-80
Brand TURNSTILES.us
Framework Material Steel+ stoving varnish
Swipe Card Panel Material Tempered glass
Arm Material Plexiglas-transparency (standard), tempered glass (optional)
Dimensions 55.1 x 7.2 x 38.9 in
Weight 187 lb/pc (single core) 232 lb/pc (double core)
Passage Width 24-36in (One passage)
Glass Height 47.2in (standard), 35in – 70.8in (optional)
Passing Direction Single directional OR Bi-directional
MCBF 12 million
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 40W-70W
Operation Temperature 5 °F – 158 °F
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor (shelter)
Flow Rate 50-55 people per minute
LED Indicator Yes, front and top
Infrared Sensor 6 pairs (standard)
Emergency Gates open during power failure
Communication Dry contact, Relay signal, RS485





INSTALLATION

Installation is available worldwide!

Contact TURNSTILES.us for a delivery quote and freight information.
See our Turnstile Installation Portfolio



Additional information

Weight 232 lbs
Selection

TUSDSN-80 One Lane (Standard Width, 47" Glass), TUSDSN-80 One Lane (Wide Width, 47" Glass), TUSDSN-80 Two Lanes (ADA/Standard Width, 47" Glass), TUSDSN-80 Center Expansion Module
