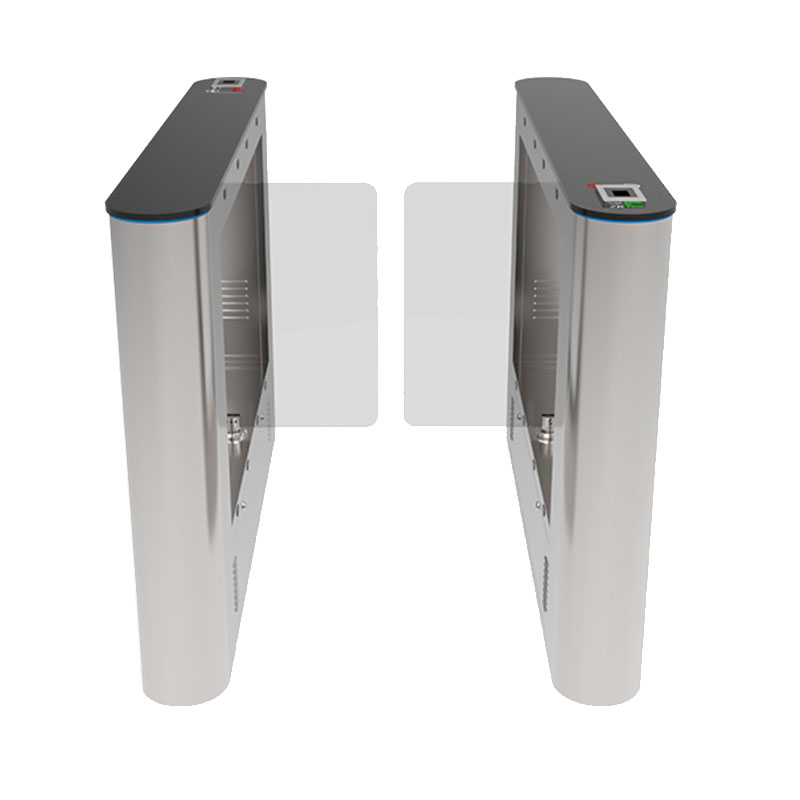

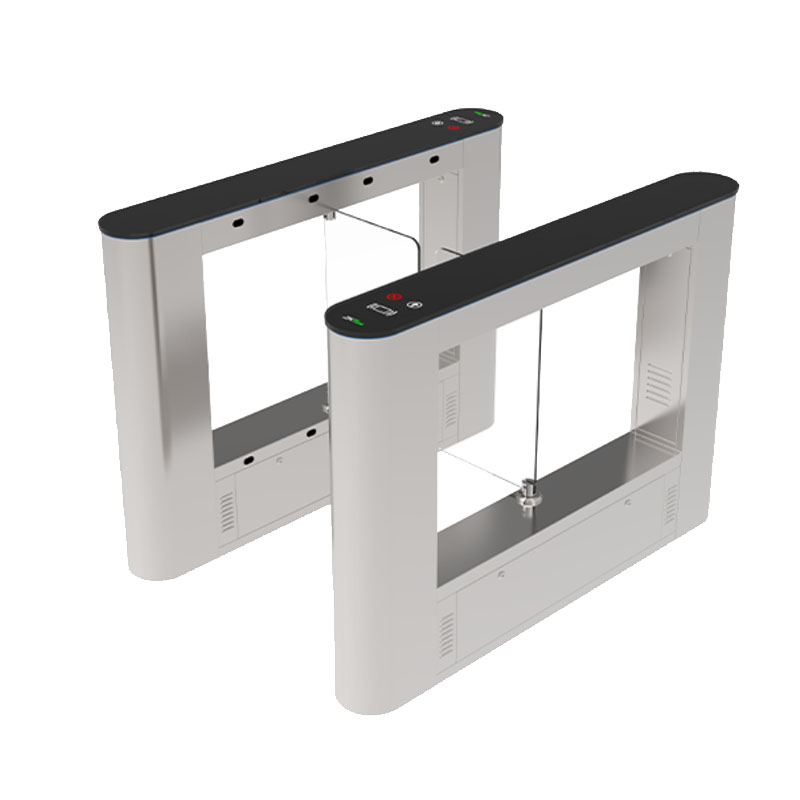

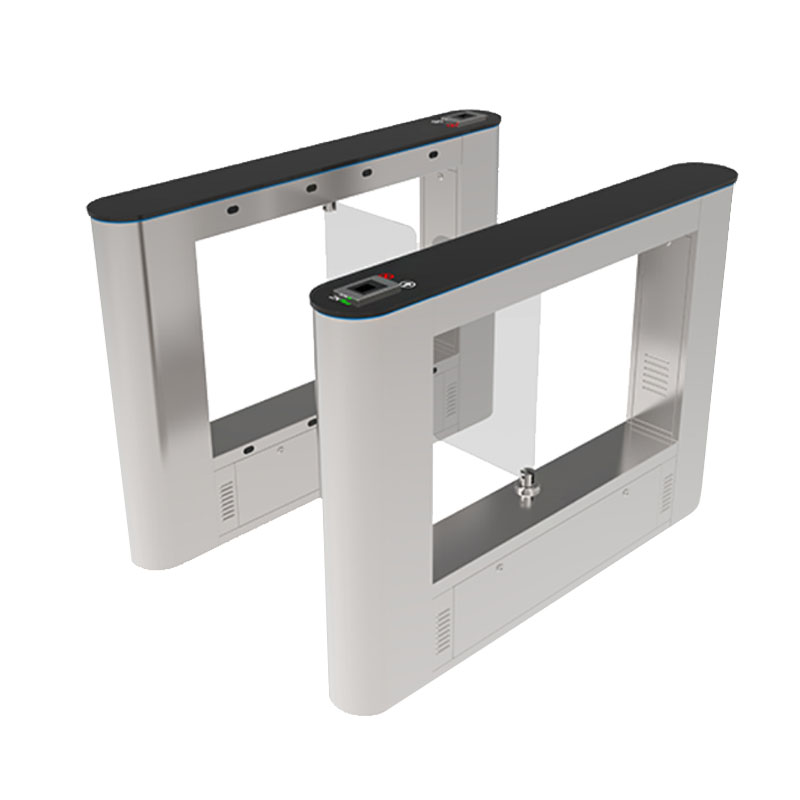

SBTL5000 Swing Barrier Optical Turnstile

Please Login for Pricing

The SBTL5000 series is a group of swing barrier turnstiles that are compact and designed for smooth & silent operation with very little power draw. Users can be granted access through the turnstile with your choice of access control method.



Clear
Login or Sign Up

Description

The SBTL5000 series is a group of single-lane swing barrier turnstiles that are compact and durable. The acrylic barriers are normally held in a locked position. Users can be granted access through the turnstile with a choice of readers (RFID, fingerprint, and more). This sleek and modern turnstile gate provides both security and convenient space, all in a very durable design.

Data Sheet – SBTL5000 Swing Barrier Optical Turnstile



FEATURES

  • SUS304 stainless steel case ensures long-lasting durability
  • High-quality electrical components Safety Features.
  • All smooth finishing. No exposed screws.
  • The ergonomic design makes card and fingerprint authentication fast & simple for users.

Reliability
• SUS304 stainless steel case ensures long-lasting durability
• High-quality electrical components Safety Features.
• All smooth finishing. No exposed screws.
• Ergonomic design makes card and fingerprint authentication fast & simple for users.

Built-In Reader Integration
• SBTL5000 series already integrated with customers’ preference for either card or fingerprint access control reader which greatly reduces installation time & expenses.
• SBTL5000 series and associated access control readers have passed the factory test before shipment.

Simplicity
• Simplify structure and connection, easy to maintain.
• Control board with LCD screen, easy to operate



Models
SBTL5000 single lane swing barrier turnstile
SBTL5011 single lane speed gate (w/controller and RFID reader)
SBTL5022 single lane speed gate (w/controller and fingerprint & RFID reader)

Center lane expansion modules
SBTL5000 Speed gates for additional lane
SBTL5211 Speed gates for additional lane (w/ controller and RFID reader)
SBTL5222 Speed gates for additional lane (w/ controller and fingerprint & RFID reader)



SPECIFICATIONS

  • Operating Temperature: -18 °F to 140 °F
  • Power Consumption: 30W running
  • Infrared Sensor: 10 pairs
  • Indoor Use
  • Lane Width: 25.5 inches standard
  • RFID Speed Throughput: Up to 30 passages per minute
  • Fingerprint Speed Throughput: Up to 25 passages per minute
  • Dimensions Per Lane (L x W x H)  55.1 x 7 x 39.3 inches
  • Packaging Dimensions (L x W x H)  59 x 10.2 x 443.3 inches
  • Weight: 265 lbs
  • Weight with Packaging: 331 lbs
  • SUS304 Stainless Steel Cabinet
  • Tempered Glass Lid and Wing

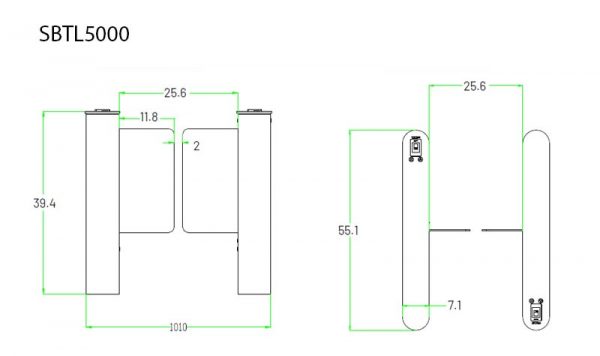

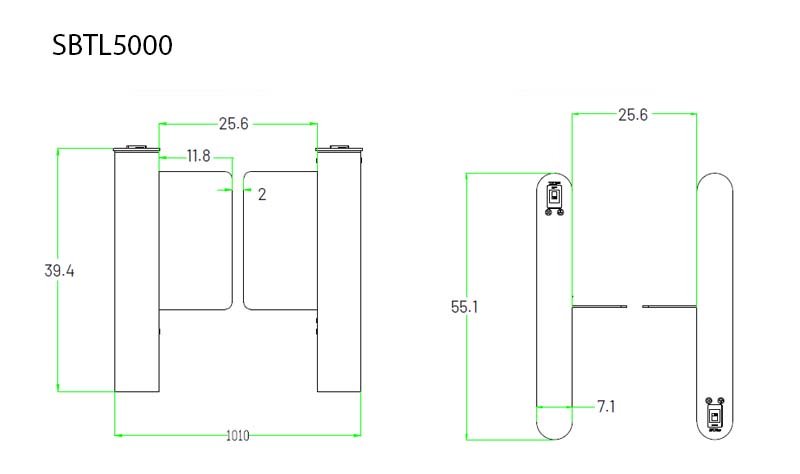

DRAWING & DIMENSIONS (inches)

INSTALLATION

Installation Services Available
See our portfolio of work Here.

*Please note: Freight is not included and will be verified separately. Contact us for a quote.



Additional information

Weight 331 lbs
Dimensions 67 × 24 × 45 in
Selection

SBTL5000 single lane, SBTL5011 single lane (w/controller and RFID reader), SBTL5022 single lane (w/controller and fingerprint & RFID reader)
