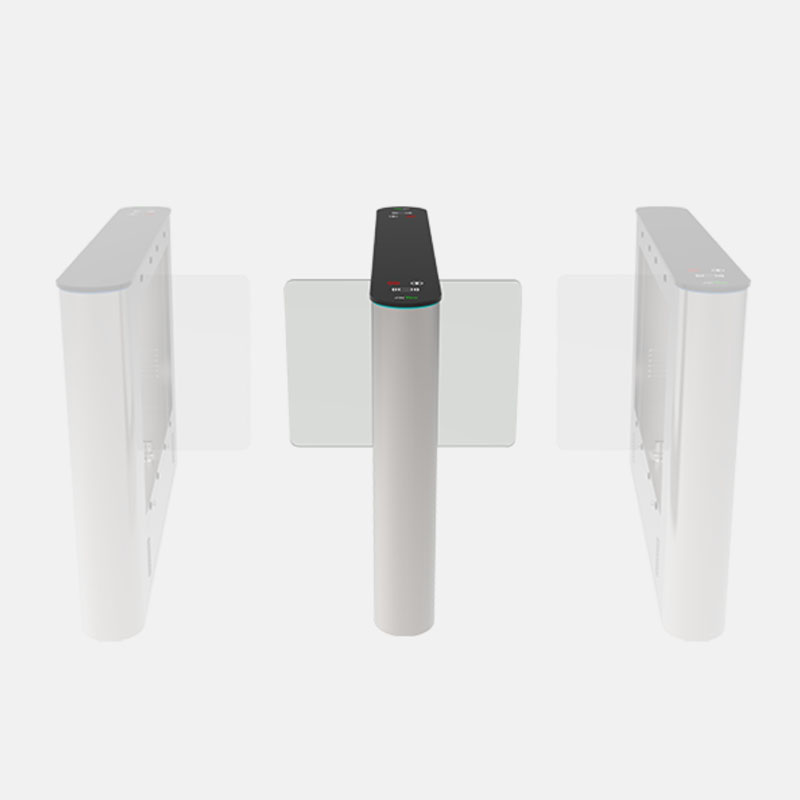

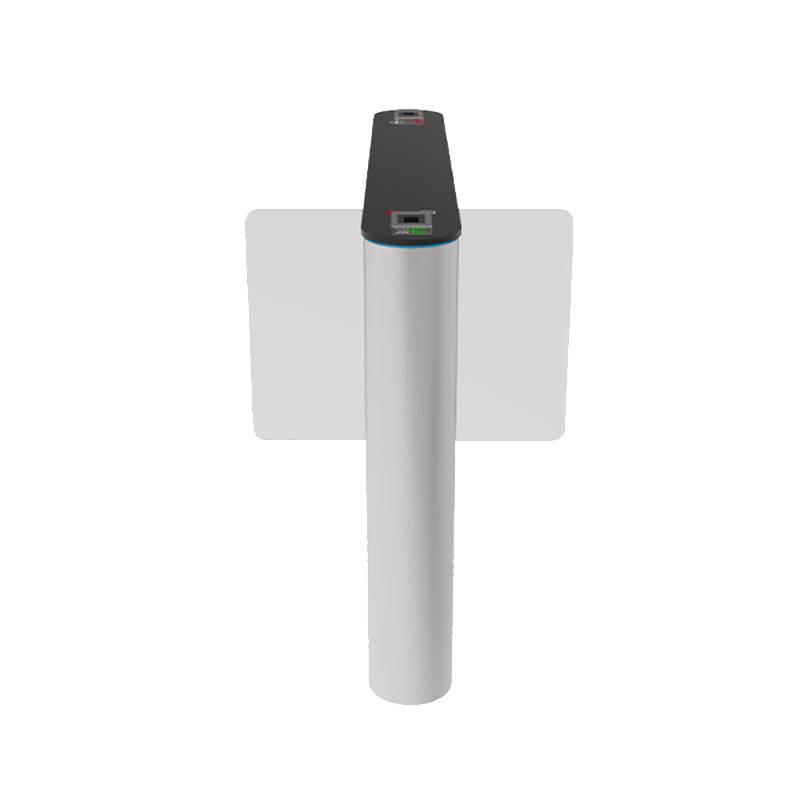

SBTL5200 Center Lane Expansion Module

Please Login for Pricing

The SBTL5200 series is a group of additional lane swing barrier turnstiles that are compact and durable. The SBTL5200 series turnstiles were designed to work with the SBTL5000 series turnstiles to build multiple lanes.



Clear
Login or Sign Up

Description

The SBTL5200 series is a group of additional lane swing barrier turnstiles that are compact and durable. The acrylic barriers are normally held in a locked position. Users can be granted access through the turnstile with a choice of readers (RFID, fingerprint, and more). The SBTL5200 series turnstiles were designed to work in combination with the SBTL5200 series turnstiles to build multiple lanes.

Data Sheet – SBTL5200 Swing Barrier Optical Turnstile



FEATURES

  • SUS304 stainless steel case ensures long-lasting durability
  • High-quality electrical components Safety Features.
  • All smooth finishing. No exposed screws.
  • The ergonomic design makes card and fingerprint authentication fast & simple for users.

Reliability
• SUS304 stainless steel case ensures long-lasting durability
• High-quality electrical components Safety Features.
• All smooth finishing. No exposed screws.
• Ergonomic design makes card and fingerprint authentication fast & simple for users.

Built-In Reader Integration
• SBTL5200 series already integrated with customers’ preference for either card or fingerprint access control reader which greatly reduces installation time & expenses.
• SBTL5200 series and associated access control readers have passed the factory test before shipment.

Simplicity
• Simplify structure and connection, easy to maintain.
• Control board with LCD screen, easy to operate



Center lane expansion modules
SBTL5000 Speed gates for additional lane
SBTL5211 Speed gates for additional lane (w/ controller and RFID reader)
SBTL5222 Speed gates for additional lane (w/ controller and fingerprint & RFID reader)



SPECIFICATIONS

  • Operating Temperature: -18 °F to 140 °F
  • Indoor Use
  • Lane Width: 25.6 inches standard
  • RFID Speed Throughput: Up to 30 passages per minute
  • Fingerprint Speed Throughput: Up to 25 passages per minute
  • Dimensions Per Lane (L x W x H)  55.1 x 7 x 39.3 inches
  • Packaging Dimensions (L x W x H)  59 x 10.2 x 443.3 inches
  • Weight: 159 lbs
  • Weight with Packaging: 192 lbs
  • SUS304 Stainless Steel Cabinet
  • Tempered Glass Lid and Wing

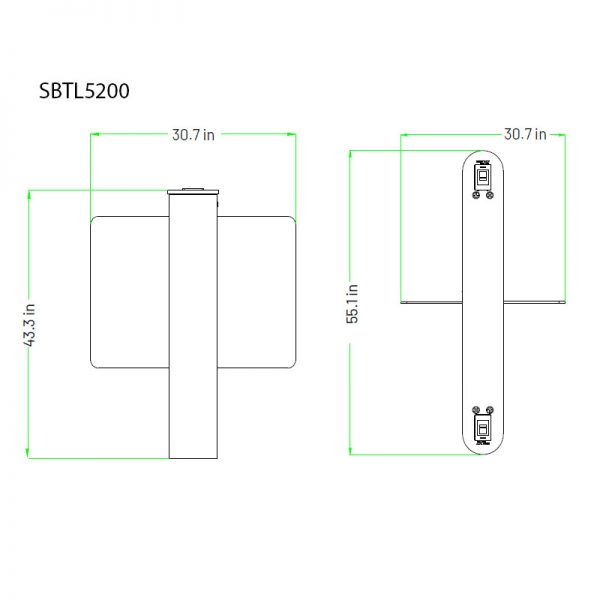

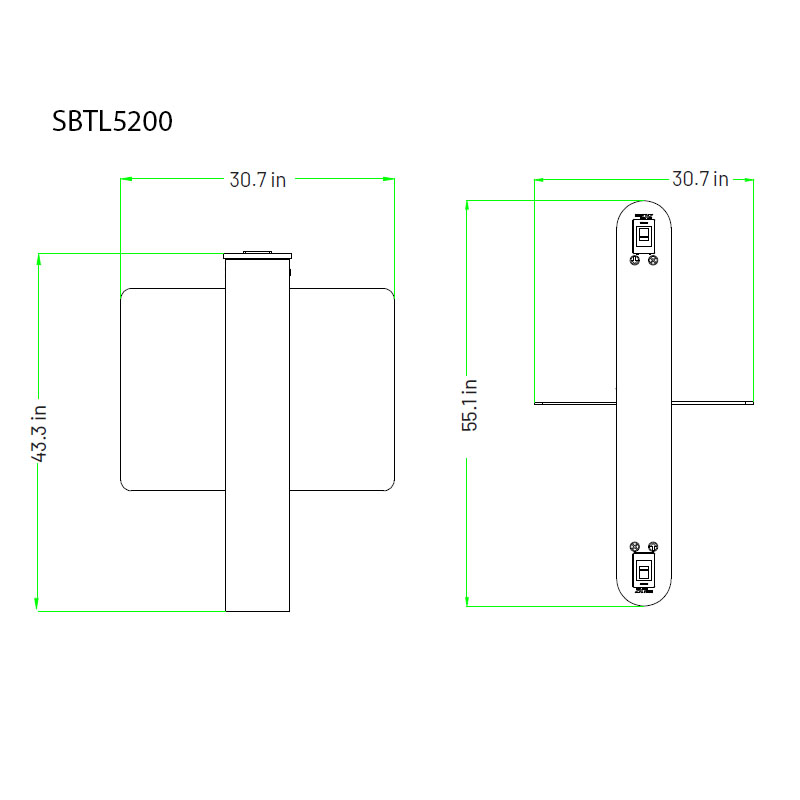

DRAWING & DIMENSIONS (inches)

INSTALLATION

Installation Services Available
See our portfolio of work Here.

*Please note: Freight is not included and will be verified separately. Contact us for a quote.



Additional information

Weight 331 lbs
Dimensions 67 × 24 × 45 in
Selection

SBTL5200 Center Lane Module, SBTL5211 Center Lane Module (w/controller and RFID reader), SBTL5222 Center Lane Module (w/controller and fingerprint & RFID reader)
