Turnstile Security Entrance

A. Company 02 - Phoenix, AZ

www.TURNSTILES.us is an organization dealing with the physical and electronic securing of building entrances with Turnstiles, Mantraps, EntraPASS Access Control Hardware, and Software since 1989.

The team at TURNSTILES.us is delighted to provide our Turnstile Entrance Solutions to our clients. Selected equipment information is listed below. We appreciate the opportunity to secure your facility.

Optical Turnstile Security Entrance

EQUIPMENT

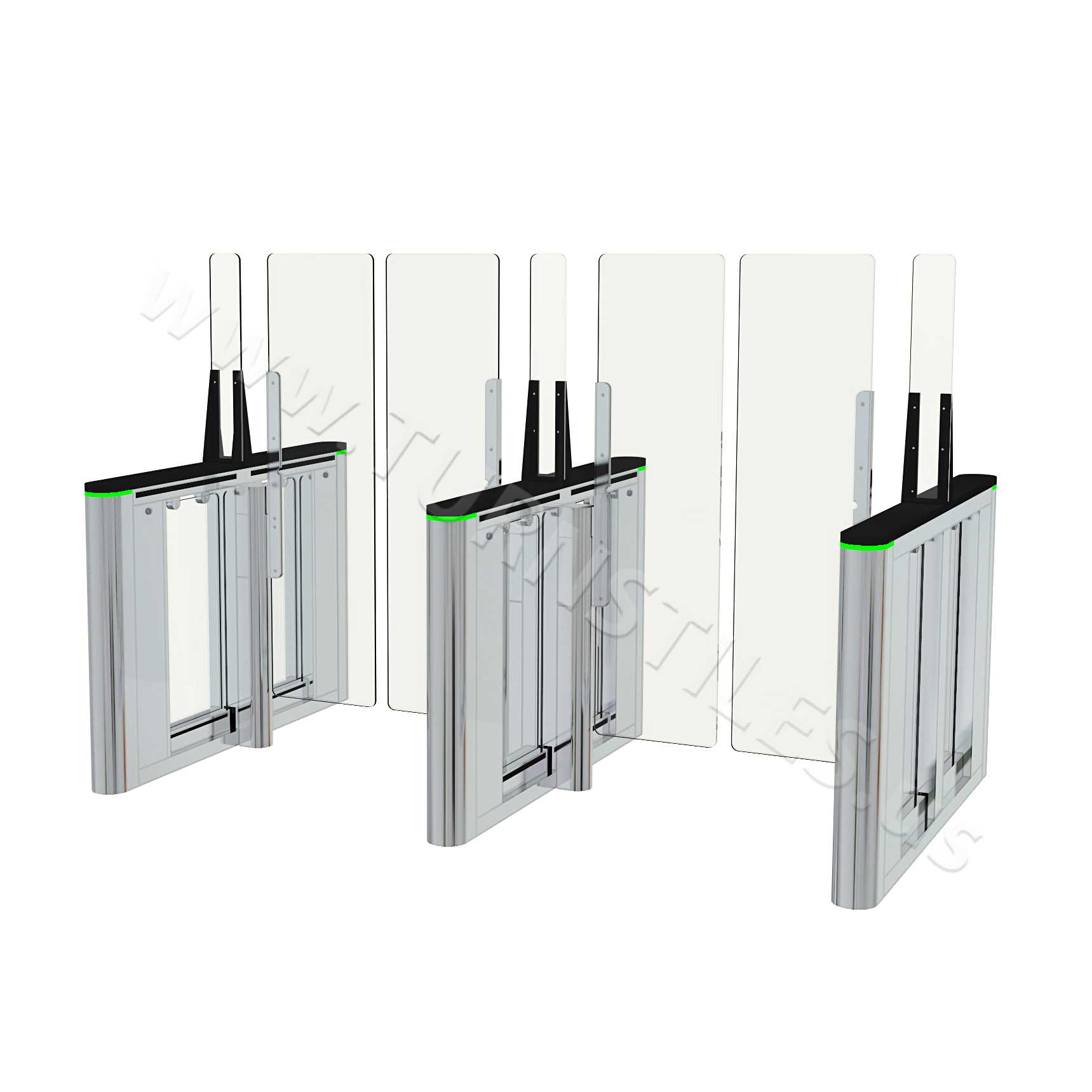

(2) Optical Turnstile Lanes (Array of 2-ADA)

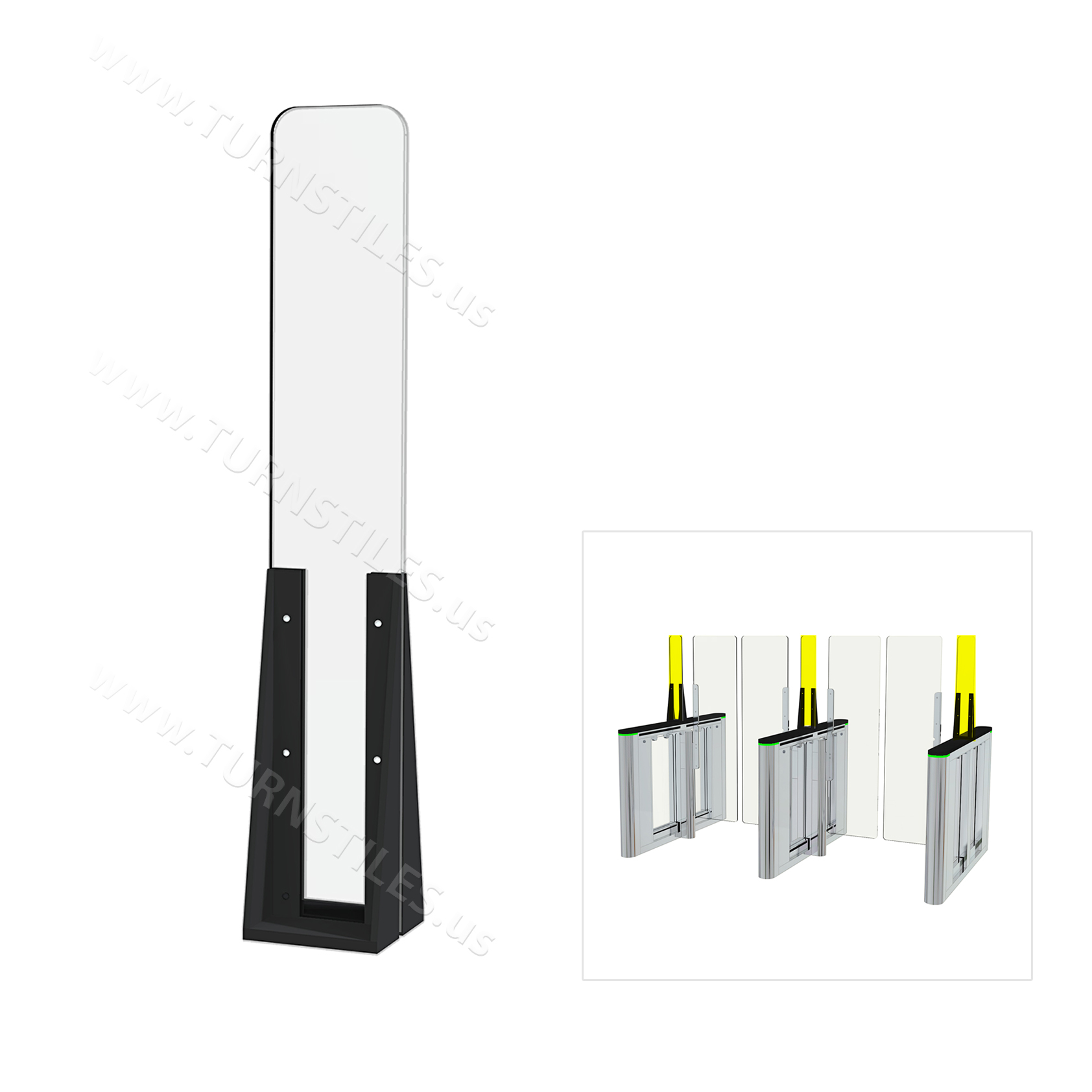

– Extra High Glass
– Card Reader Ready

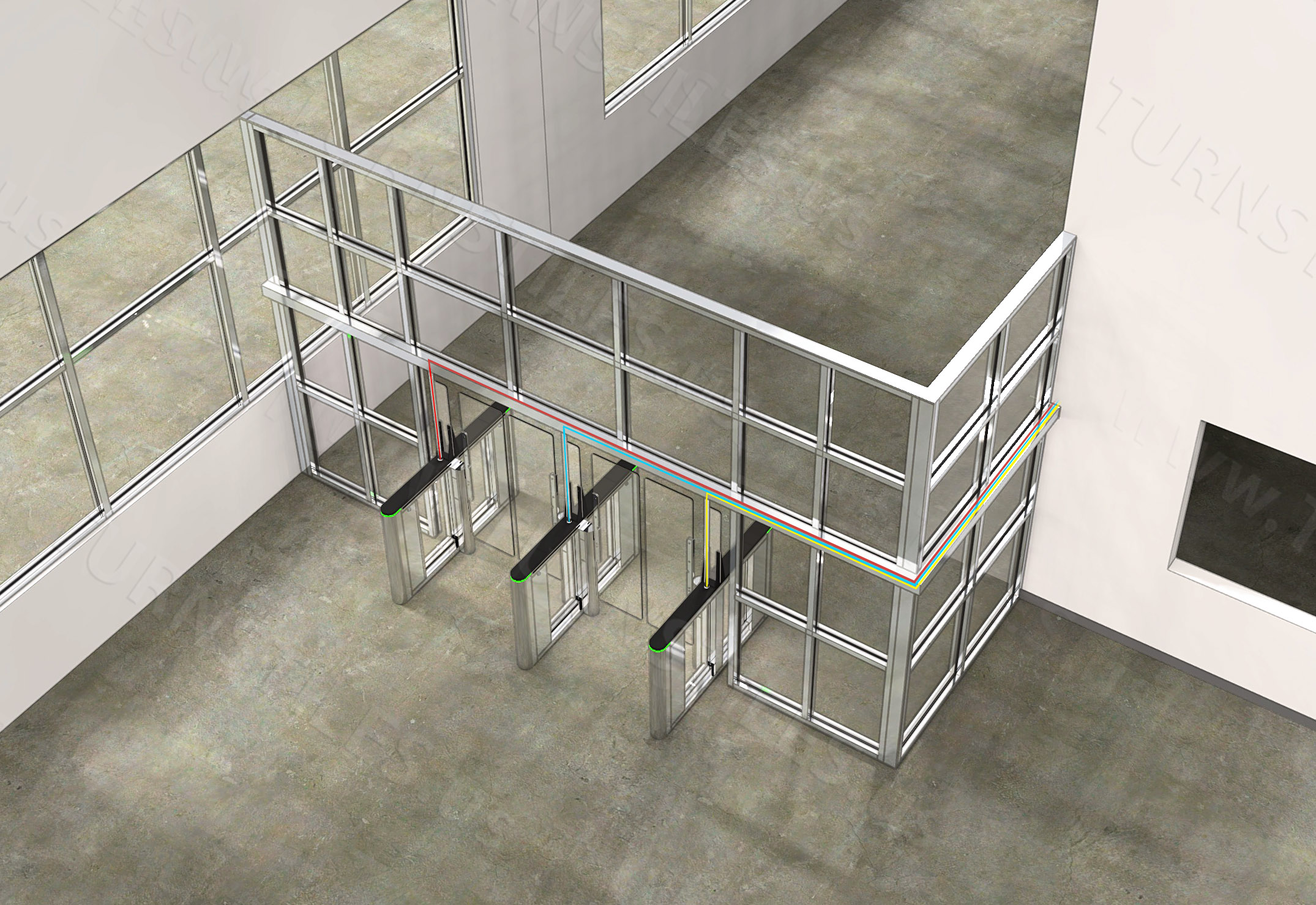

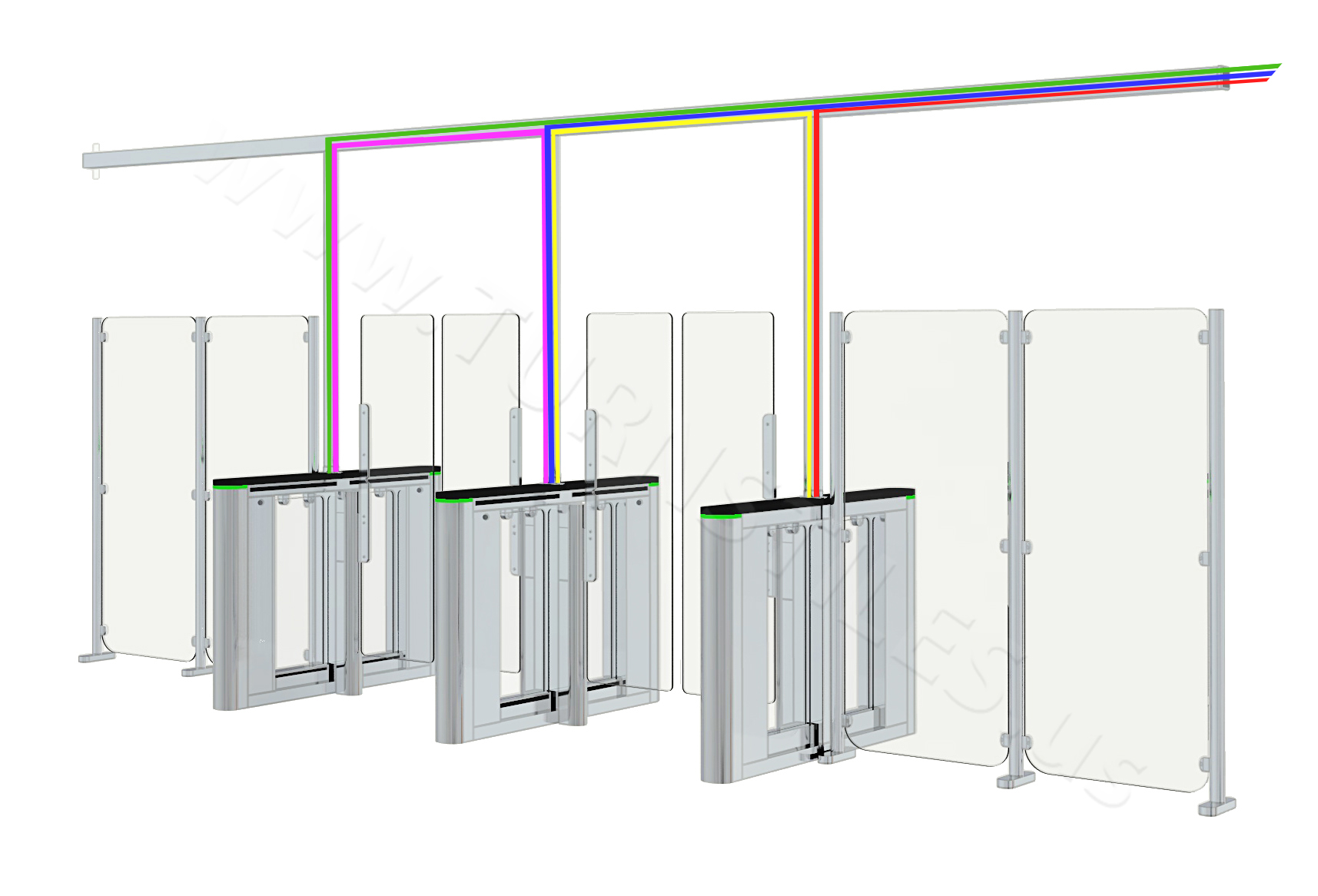

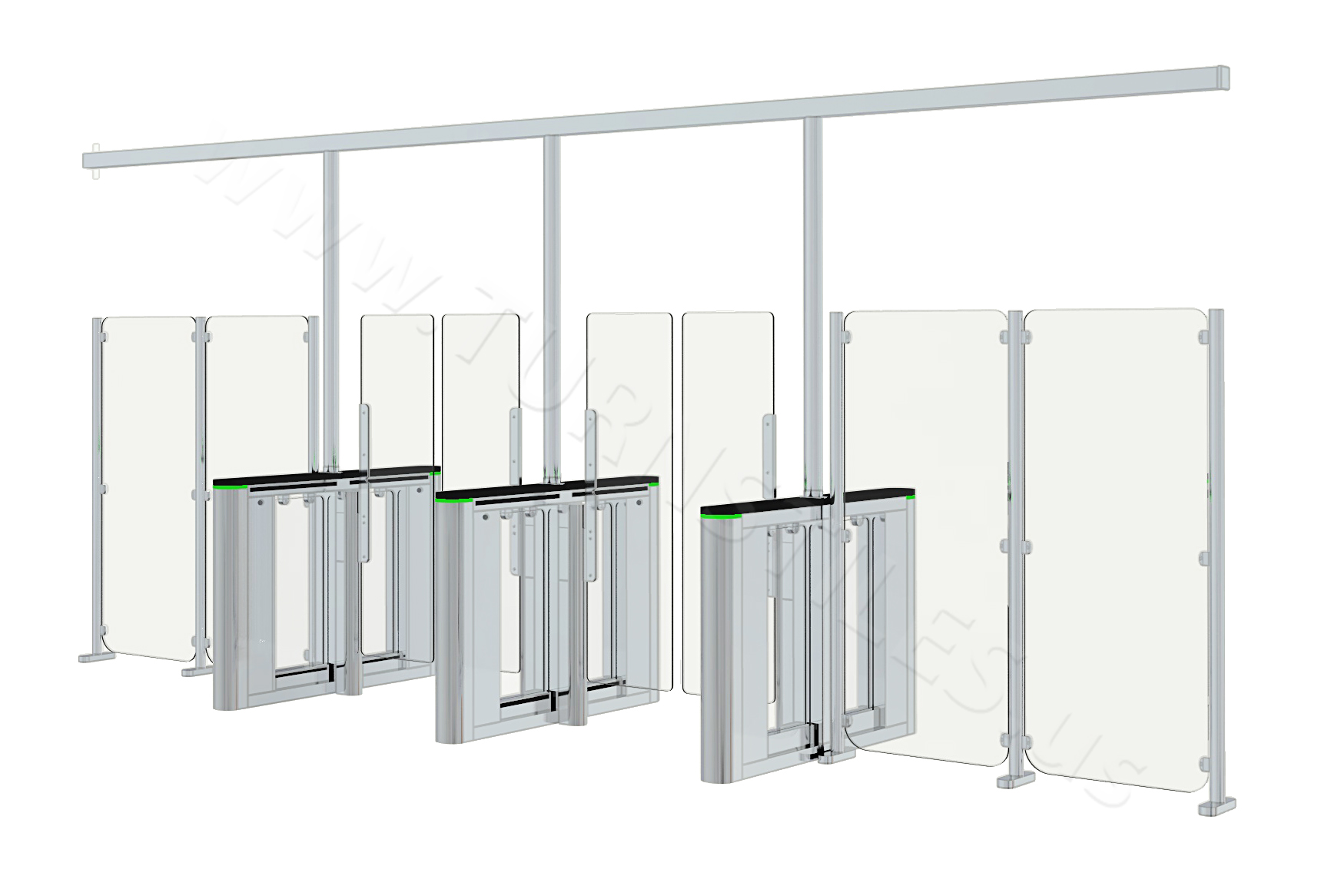

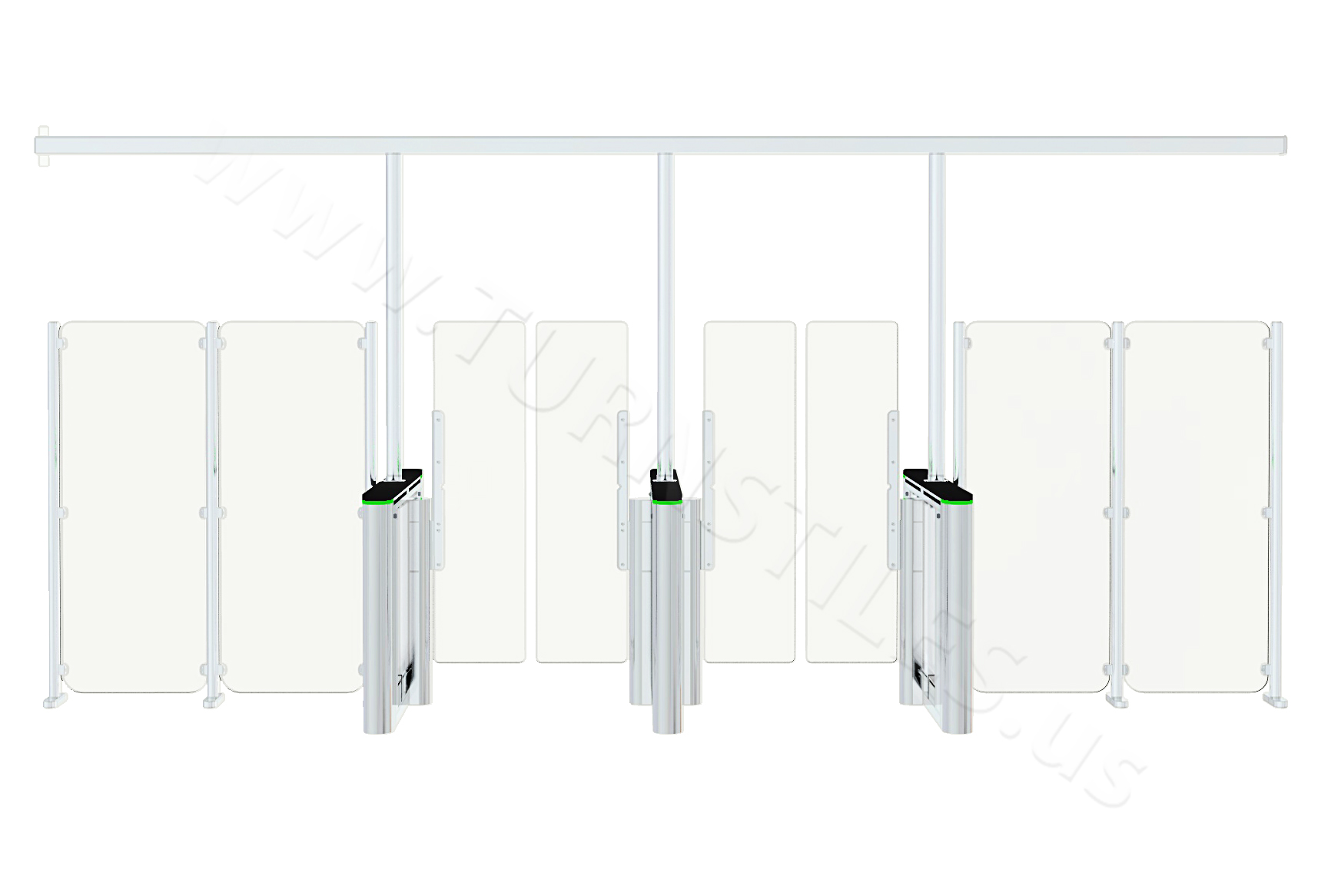

(3) Meyer’s Hub Pole Kits and Electrical Channel

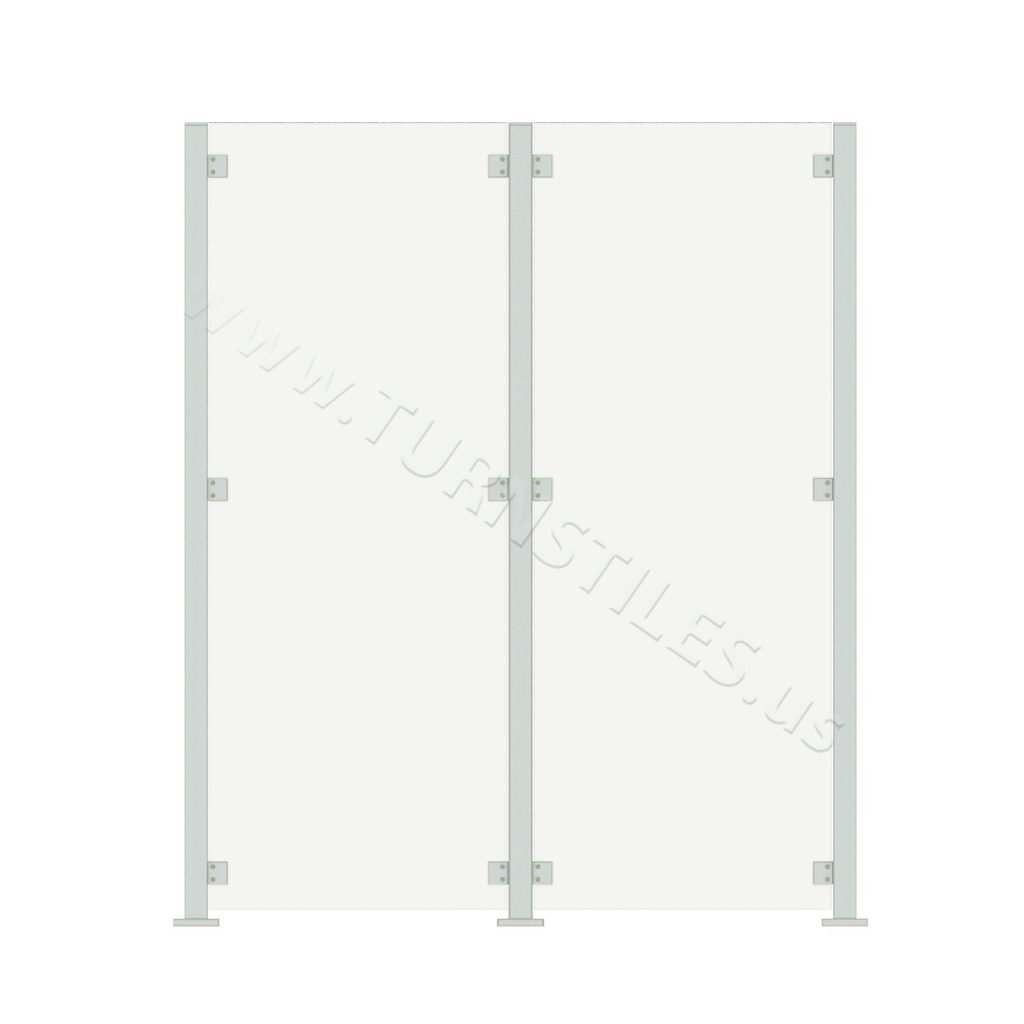

(1) Wall-to-Wall Partition

SERVICES

Field Labor & Travel
(2) Installers
(8) Days Field Labor
(2) Days of Travel
Uncrating and Removal of Debris
Installation Service
Test Operation of All Units
Owner Training

Engineering Drafting Programming

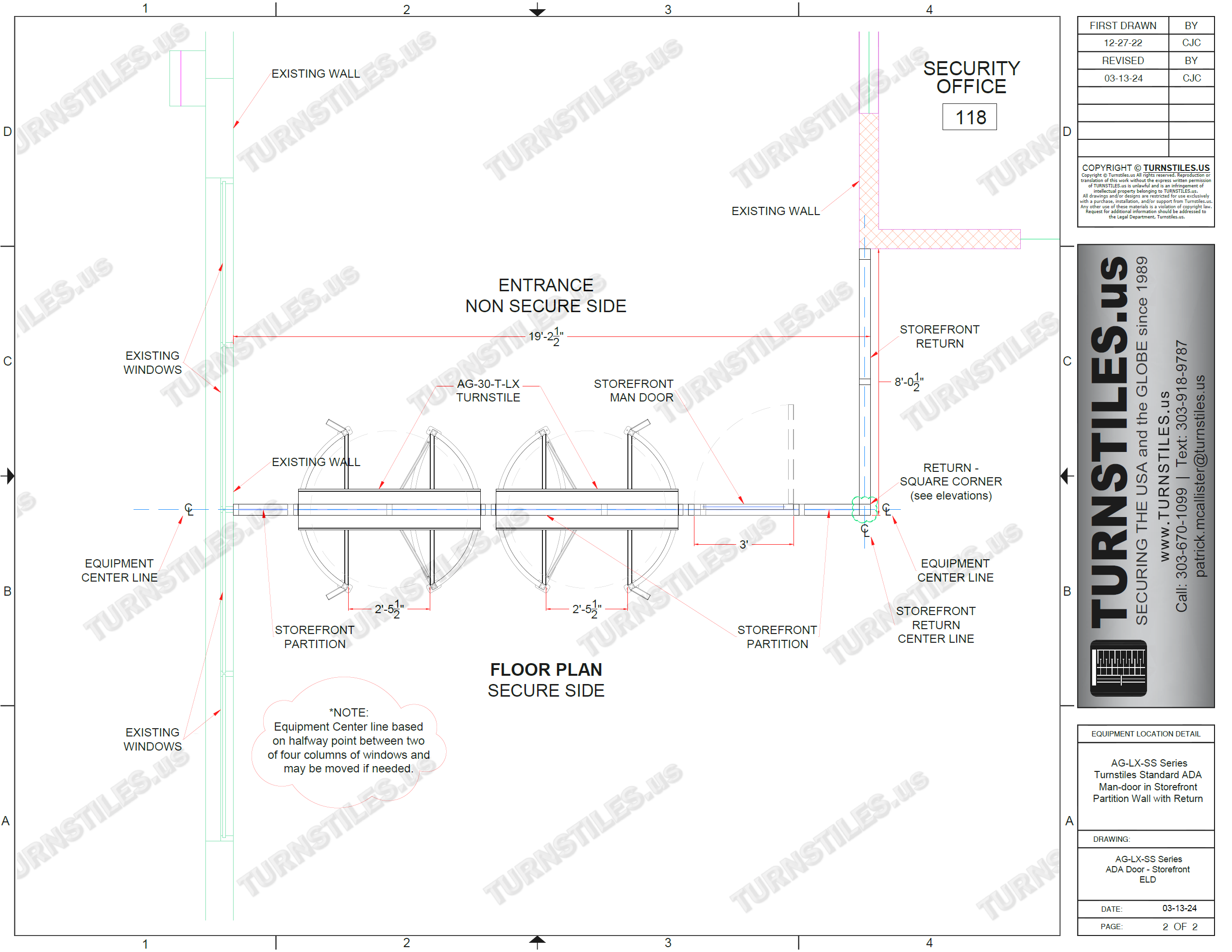

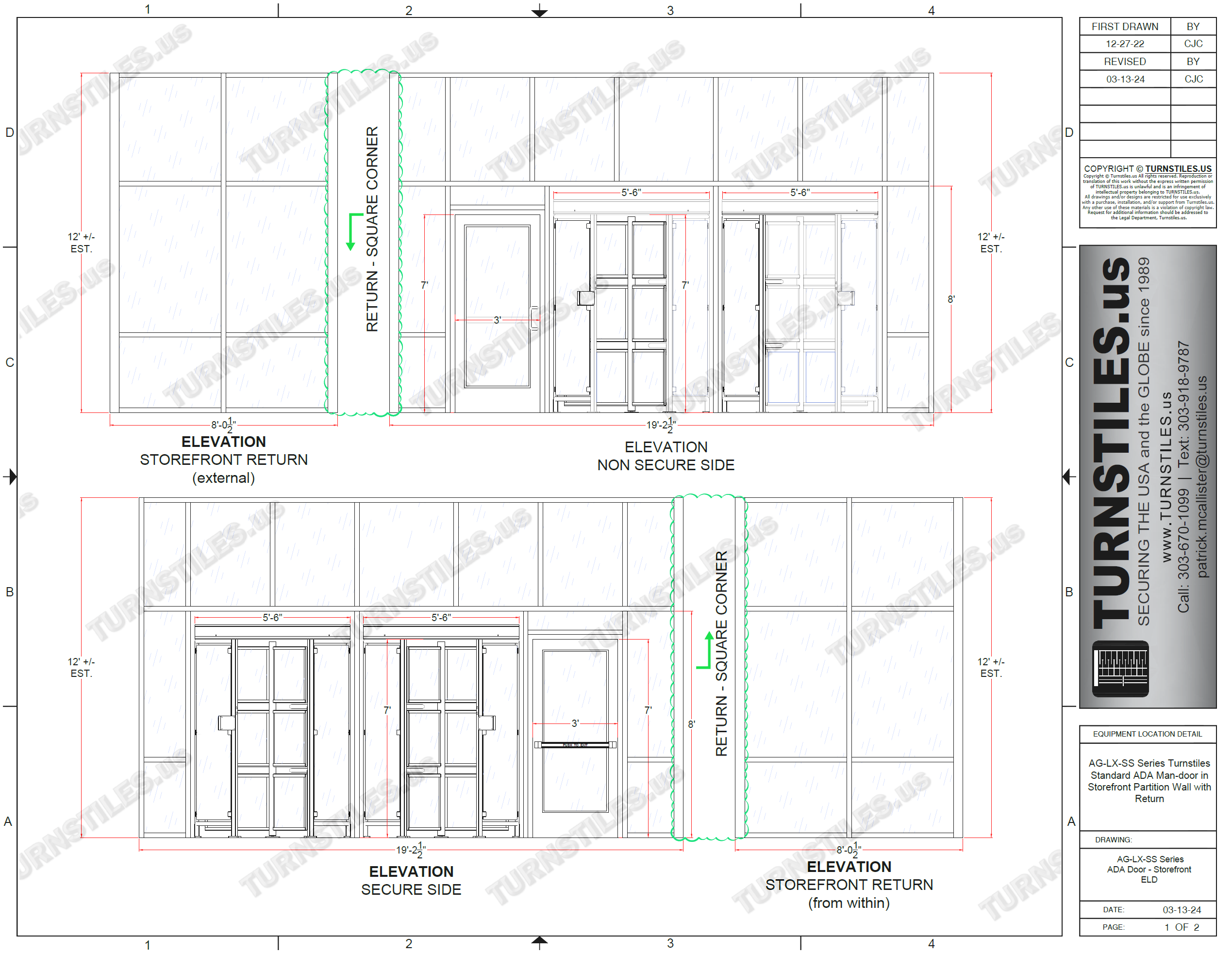

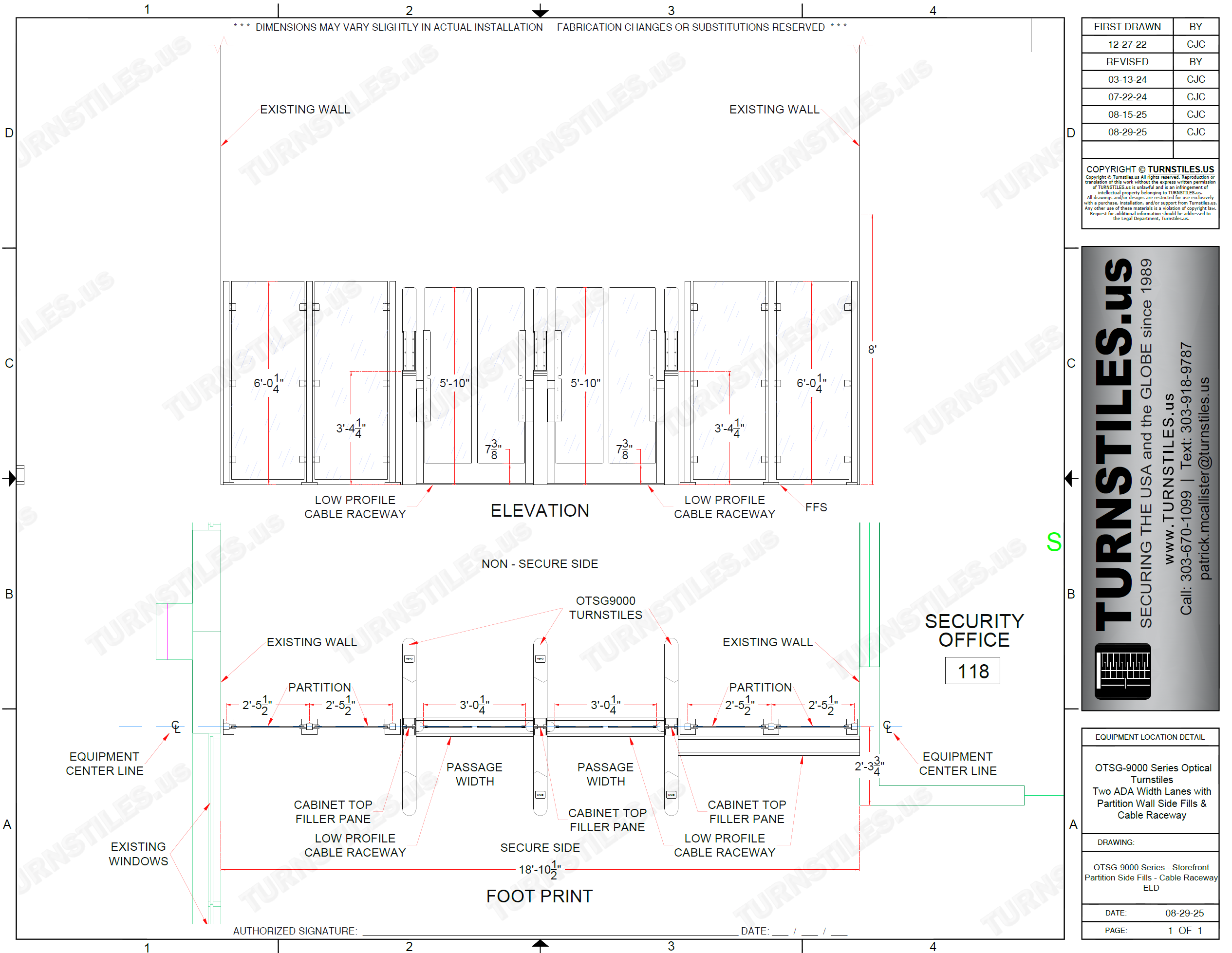

Provide 2D PDF AutoCAD Equipment Location Detail
Provide Concept Illustrations Design-Build
Initial Factory Programming
Remote Desktop Assistance
Shipping and Crating

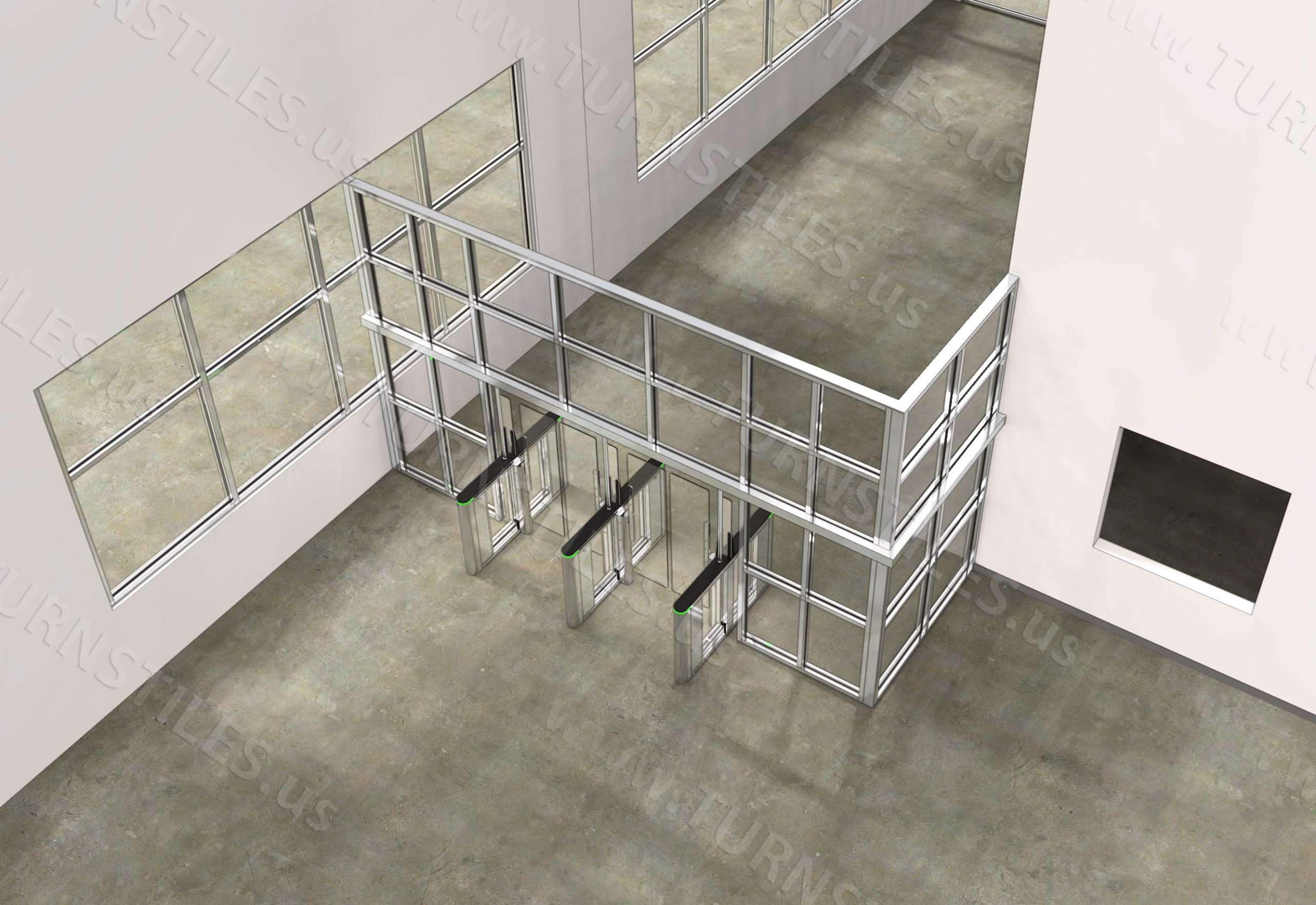

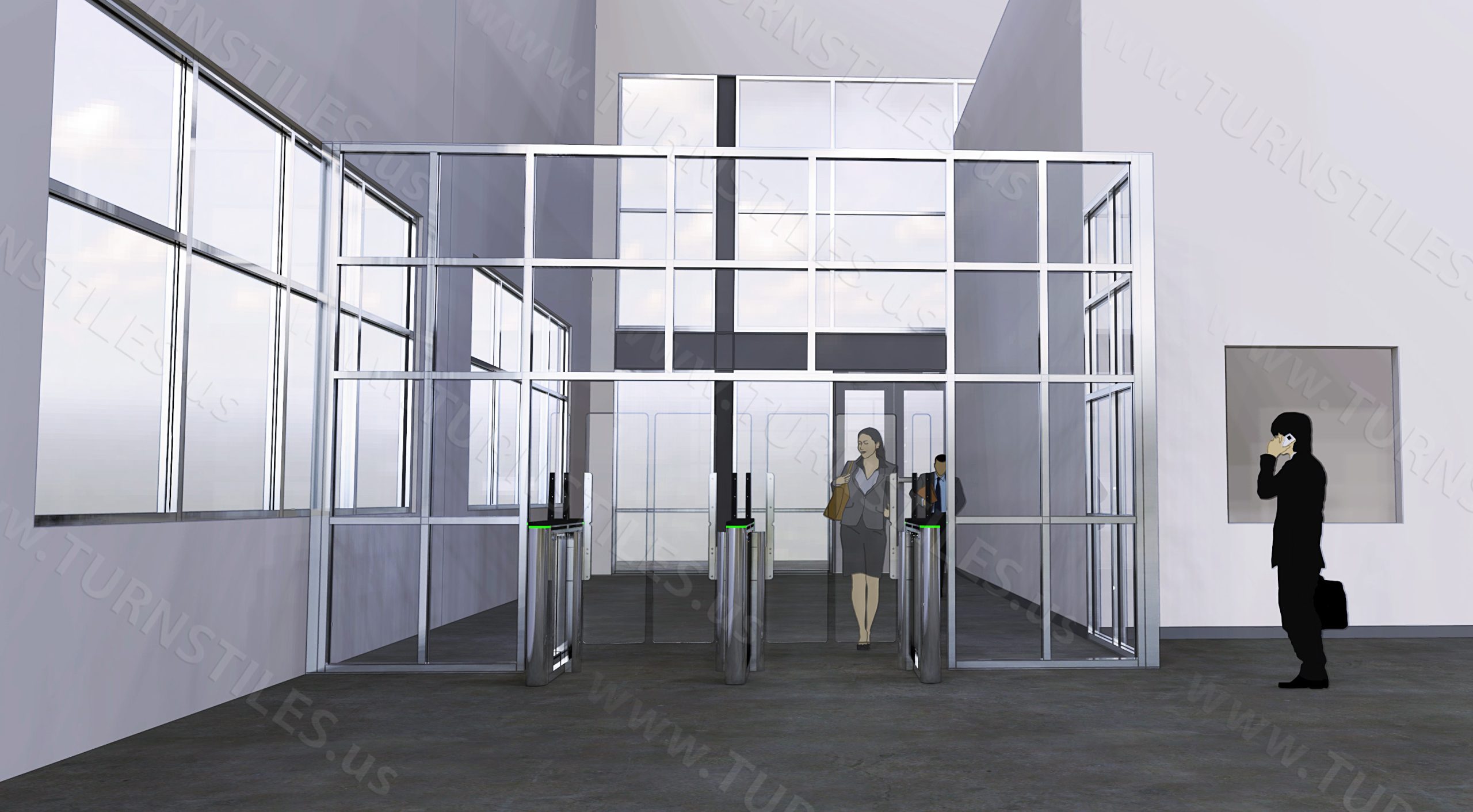

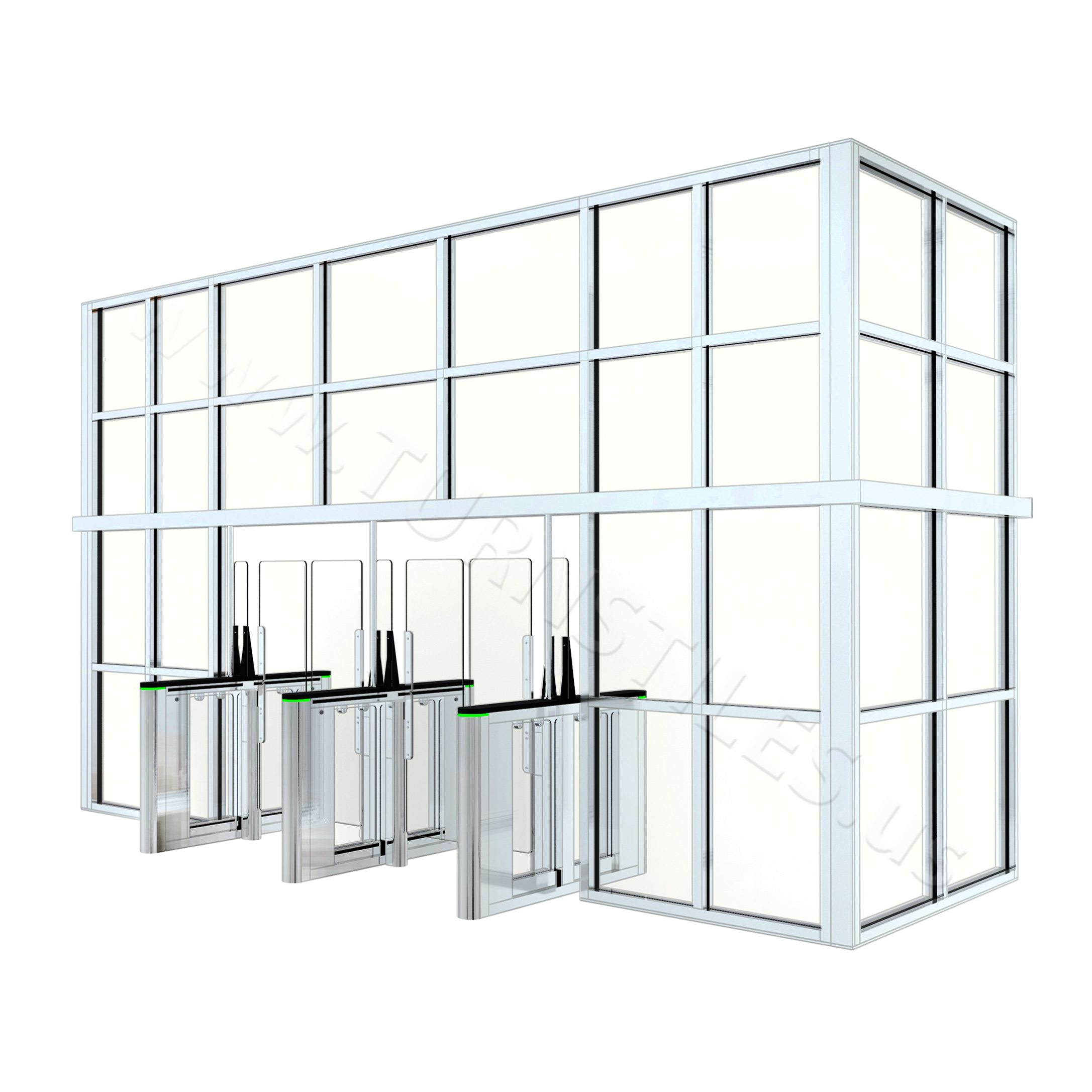

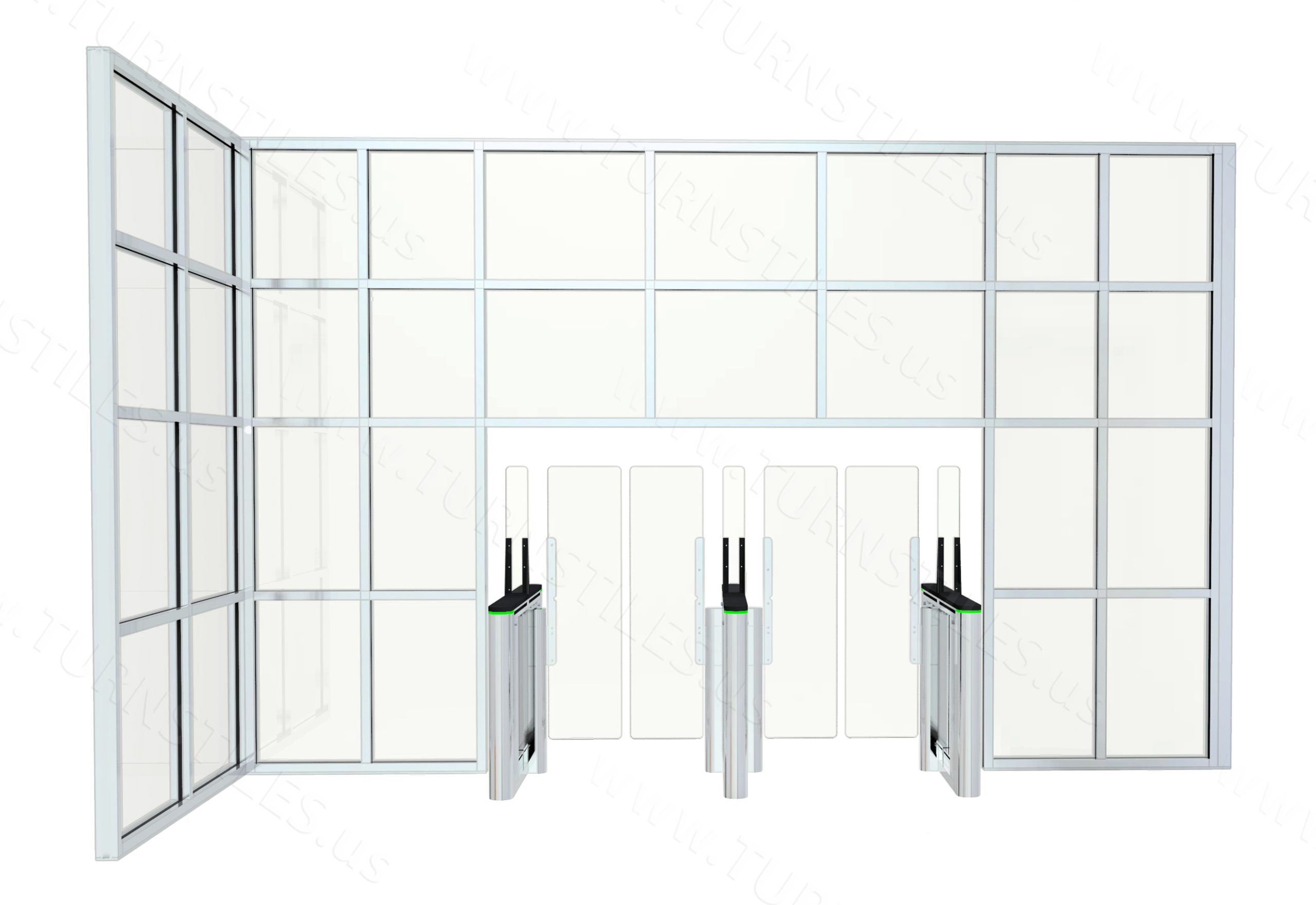

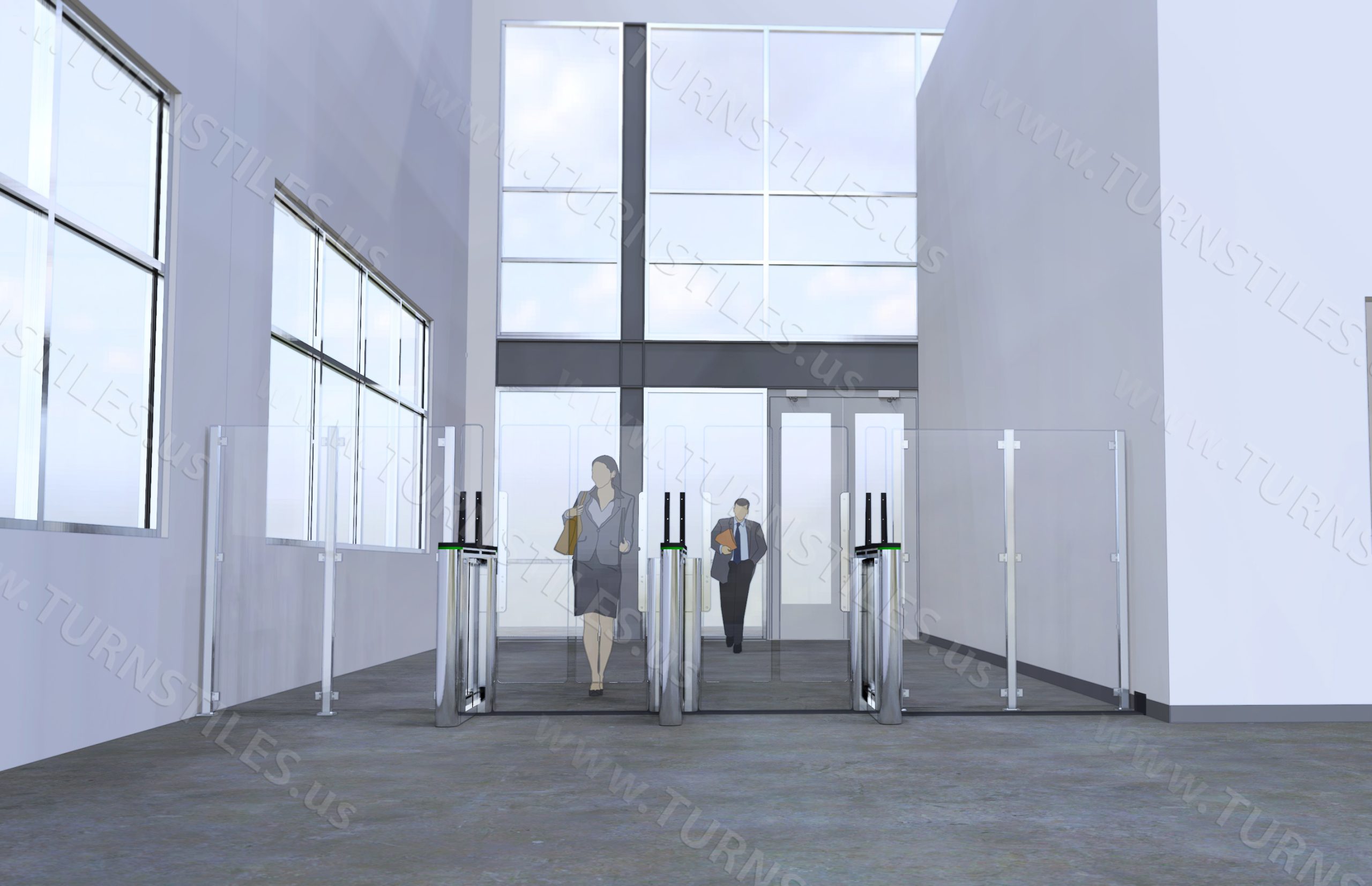

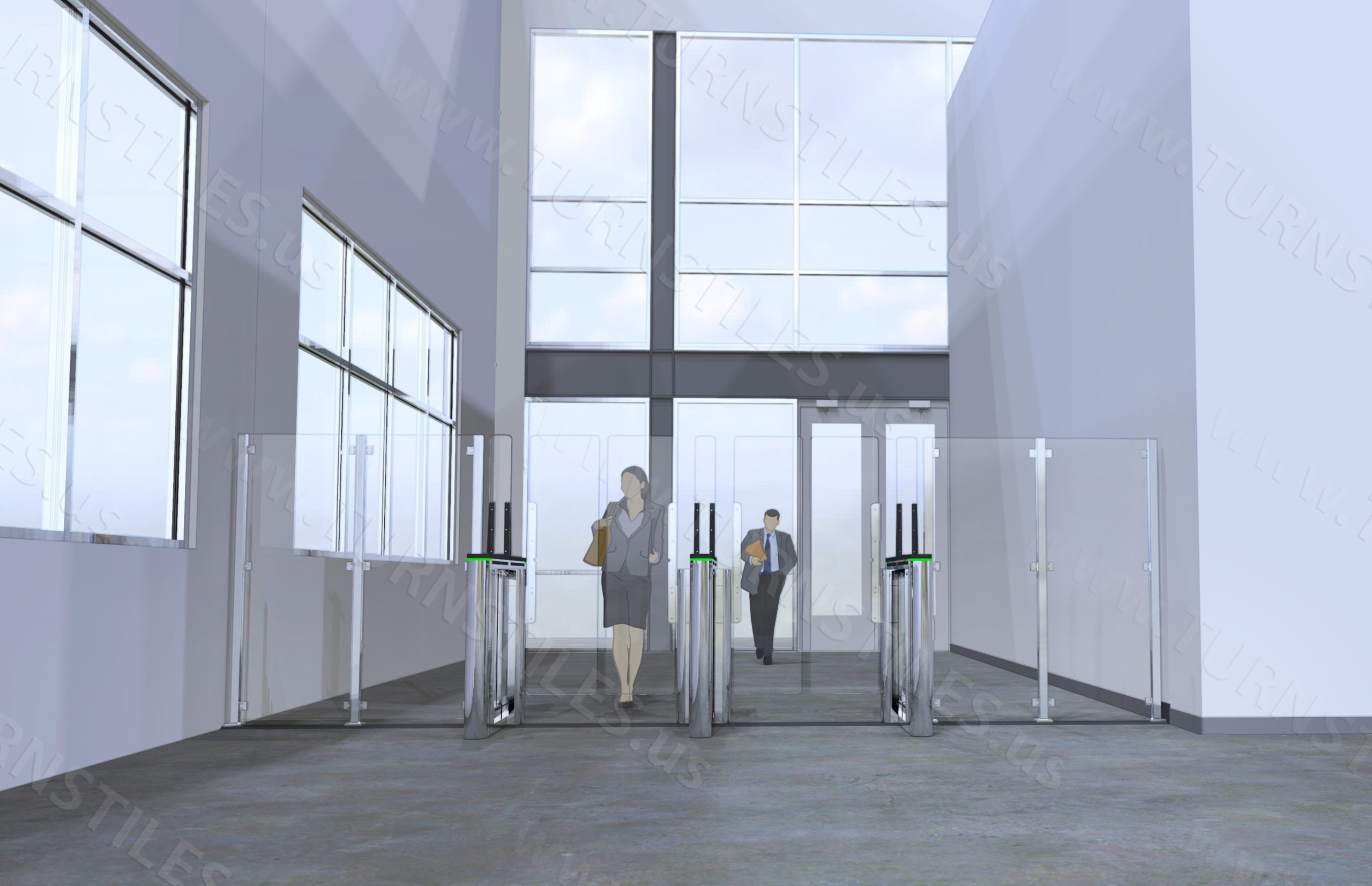

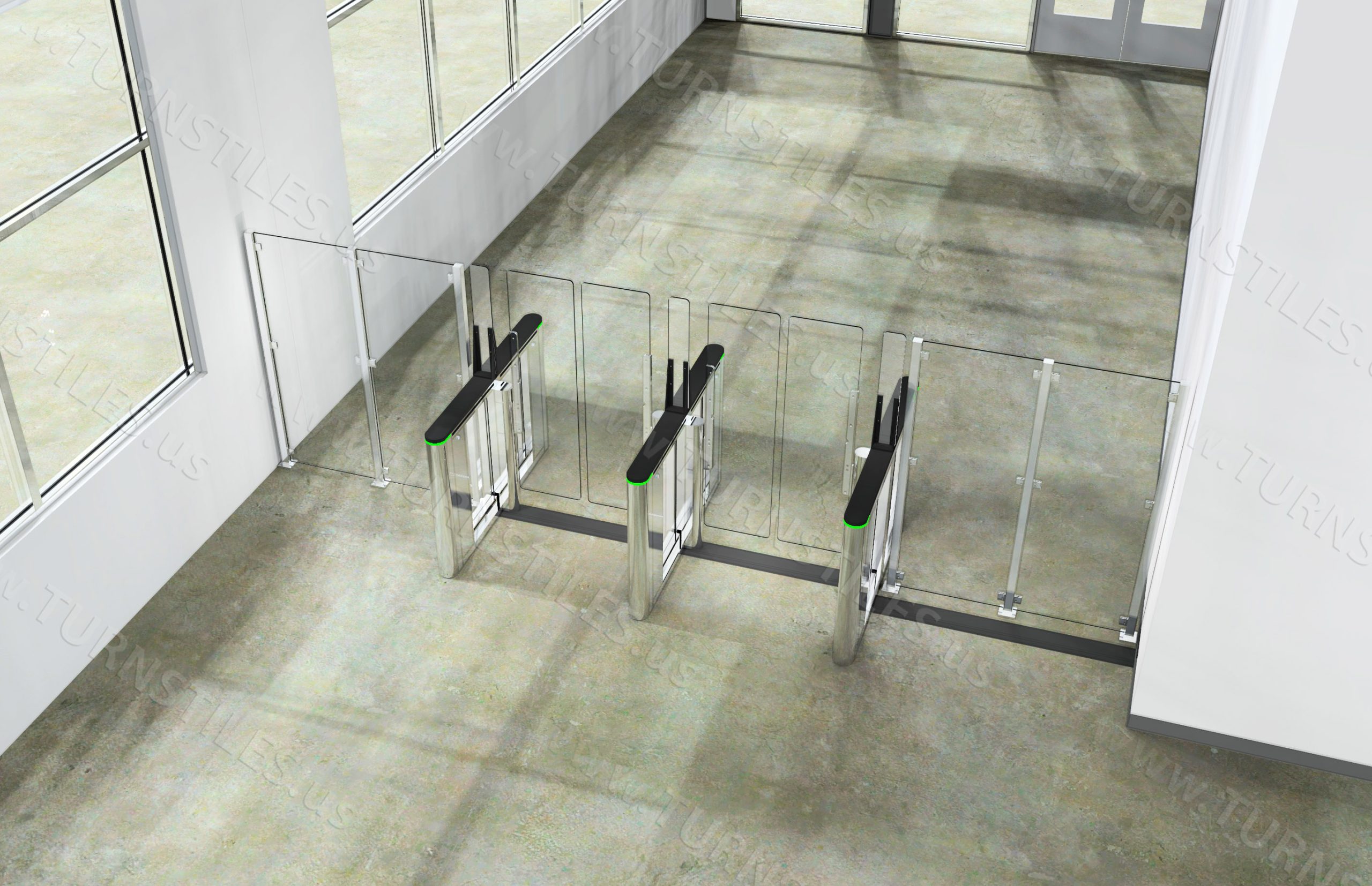

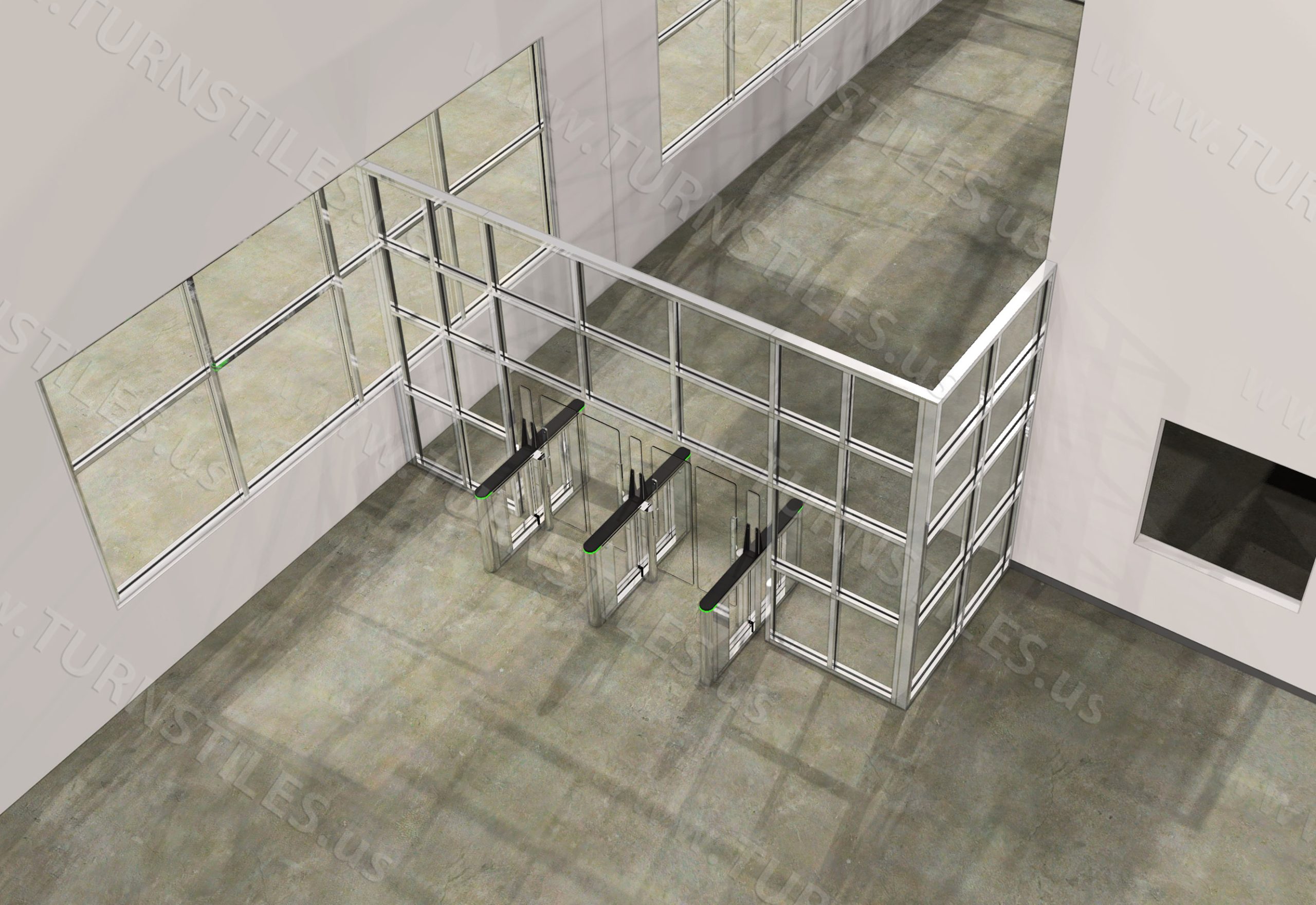

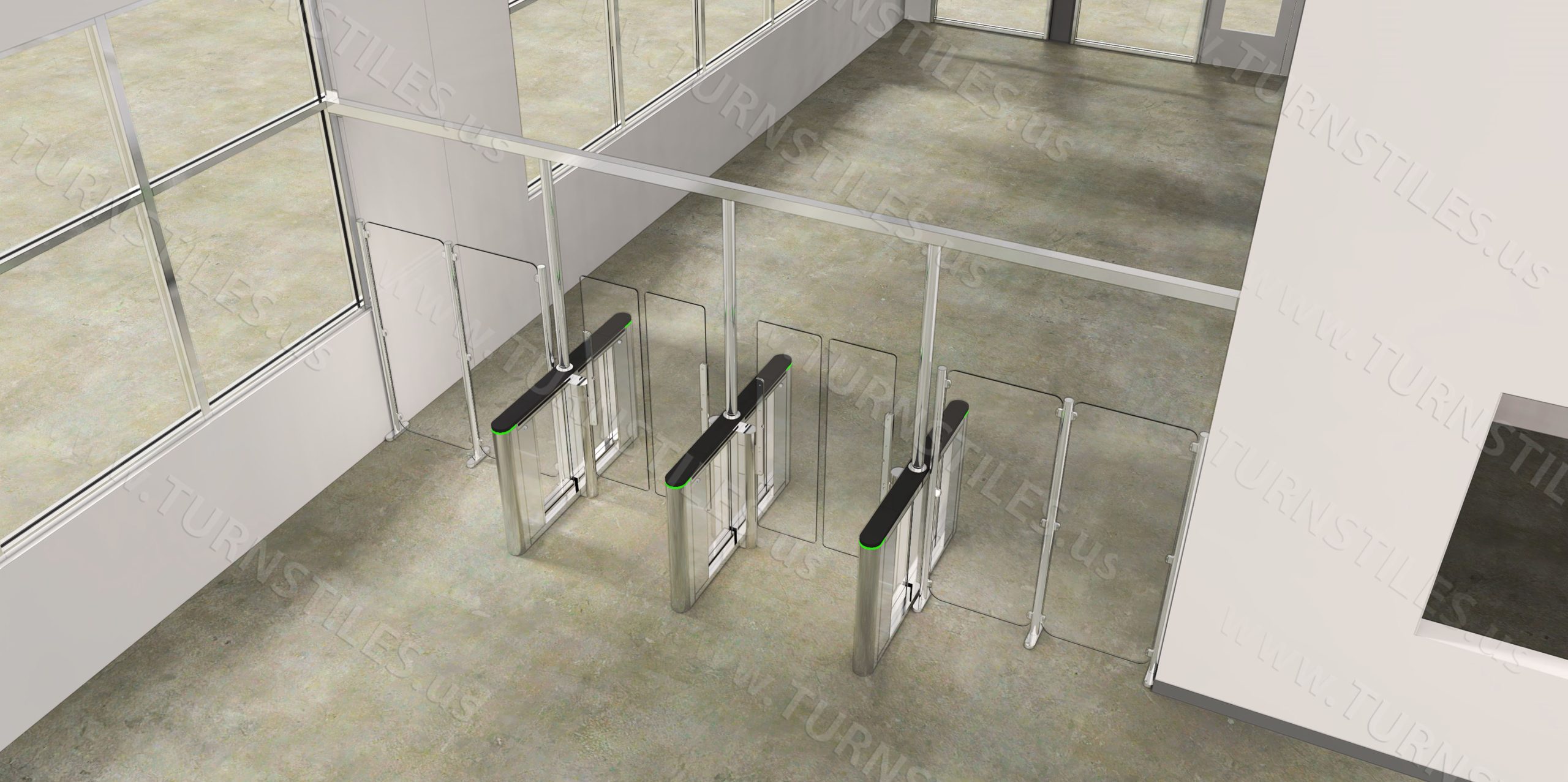

Concept Illustrations

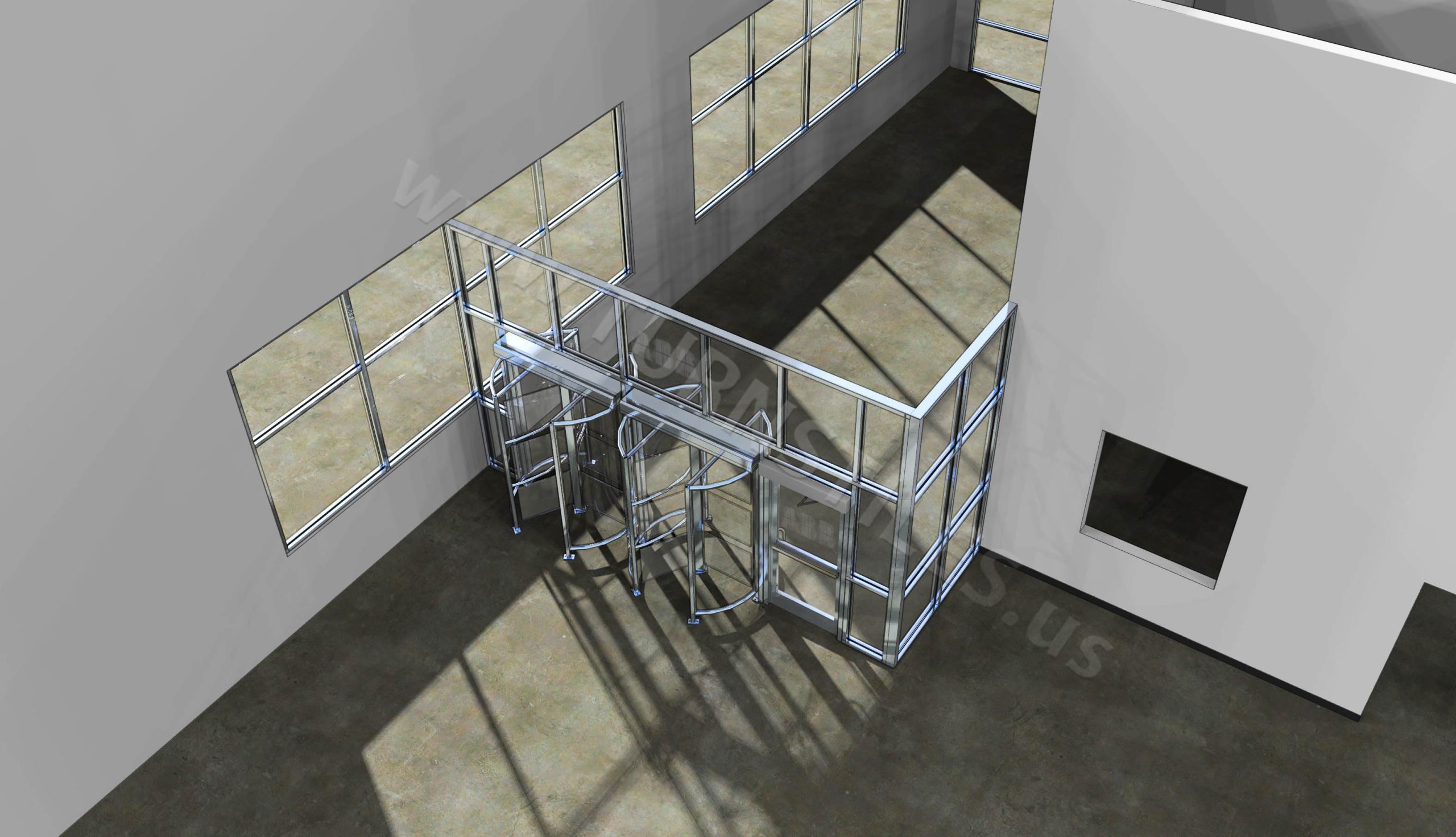

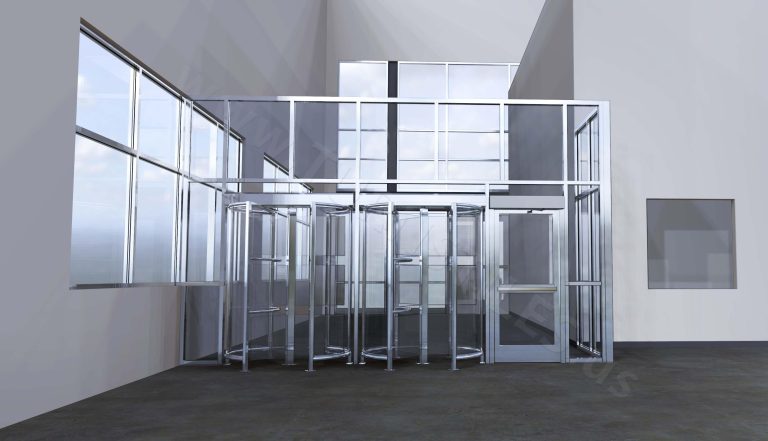

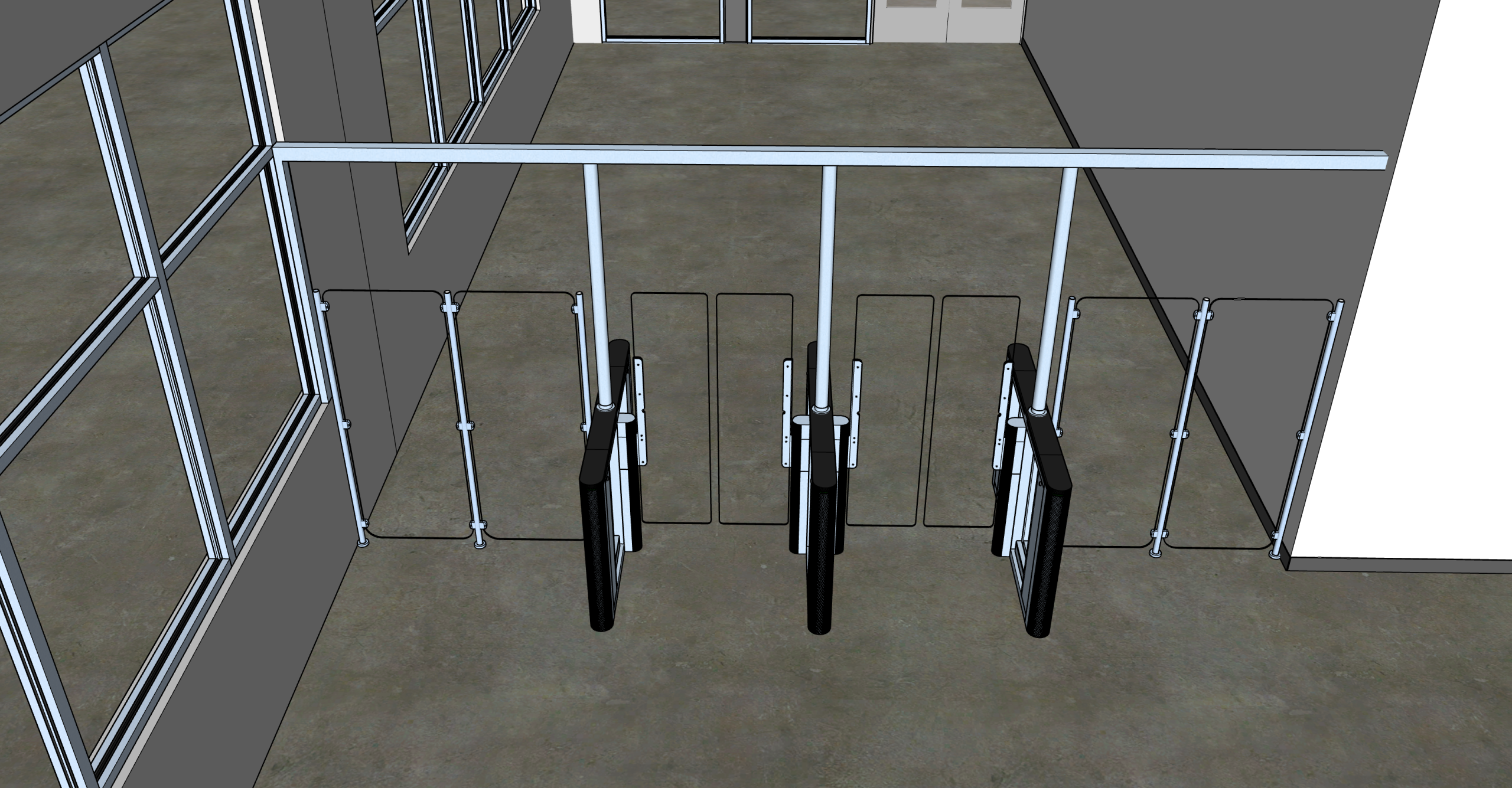

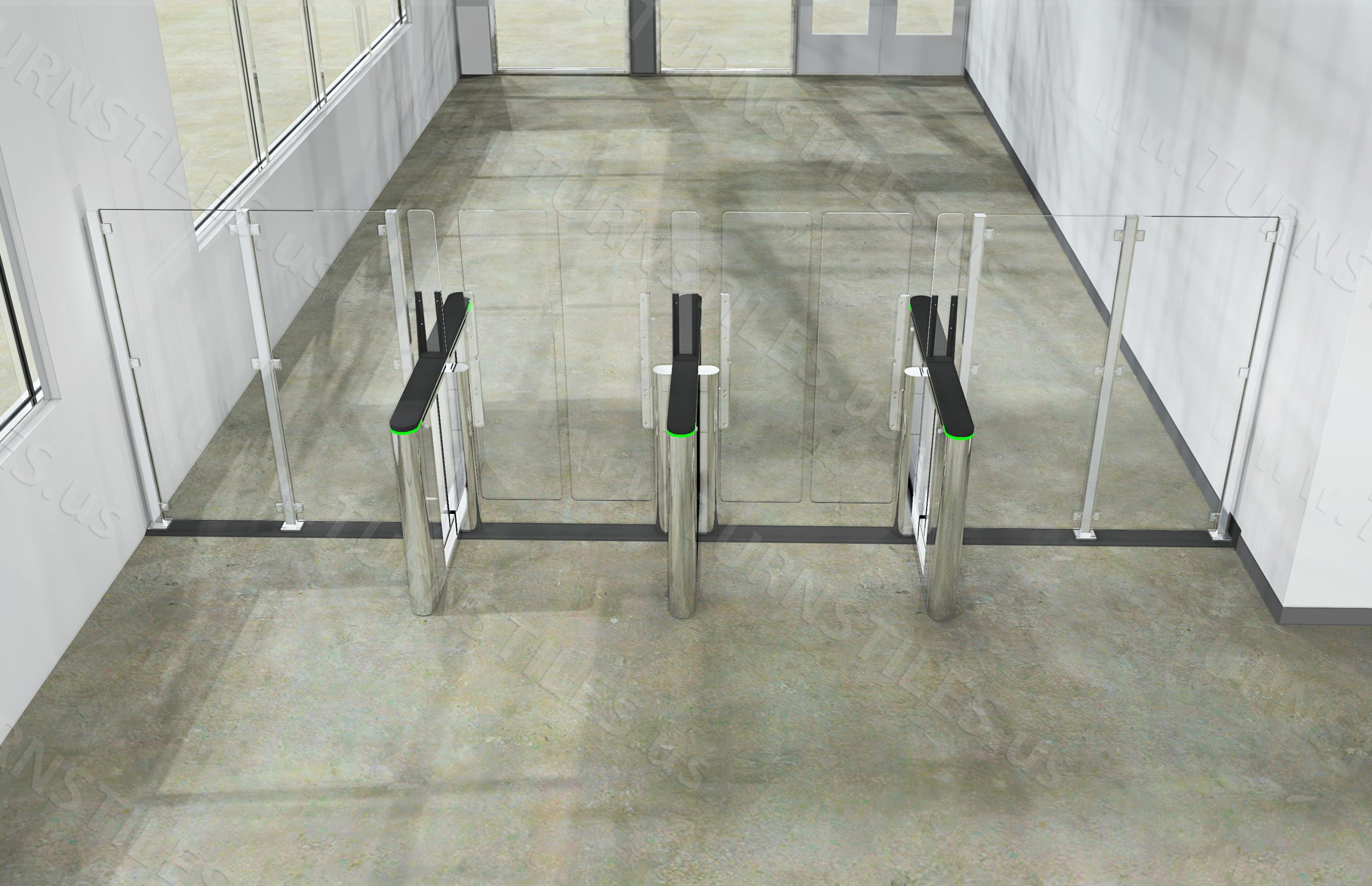

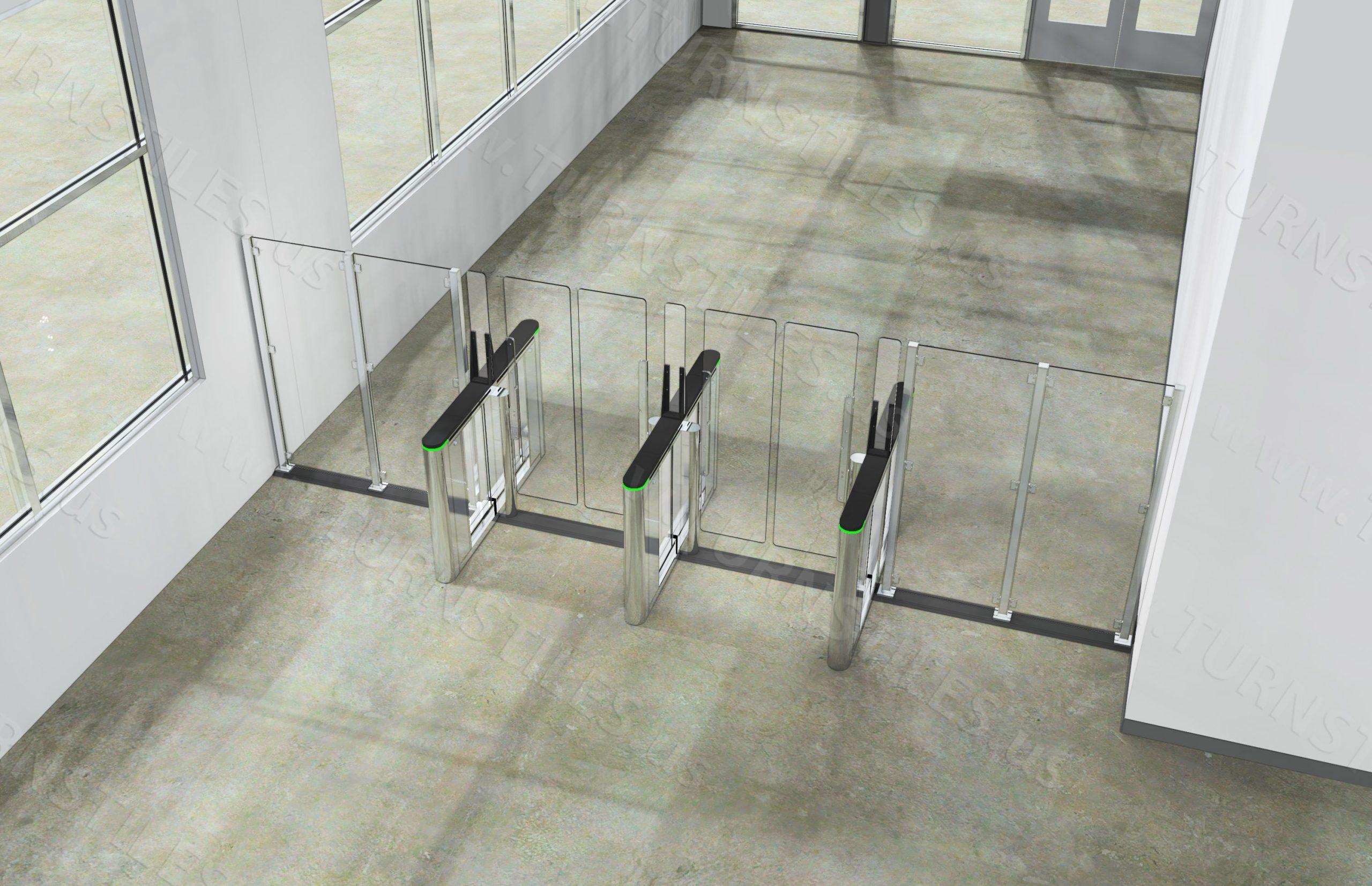

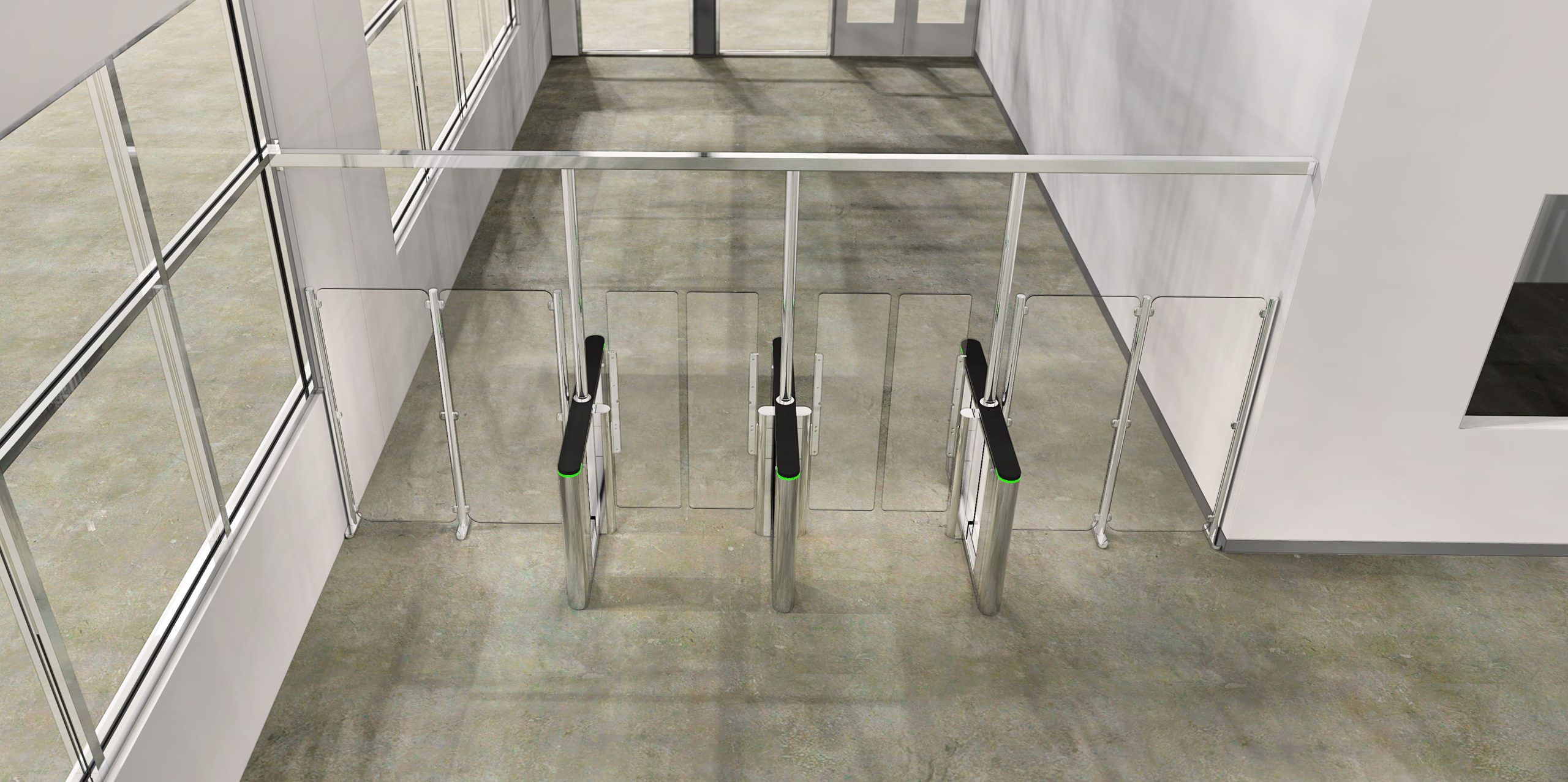

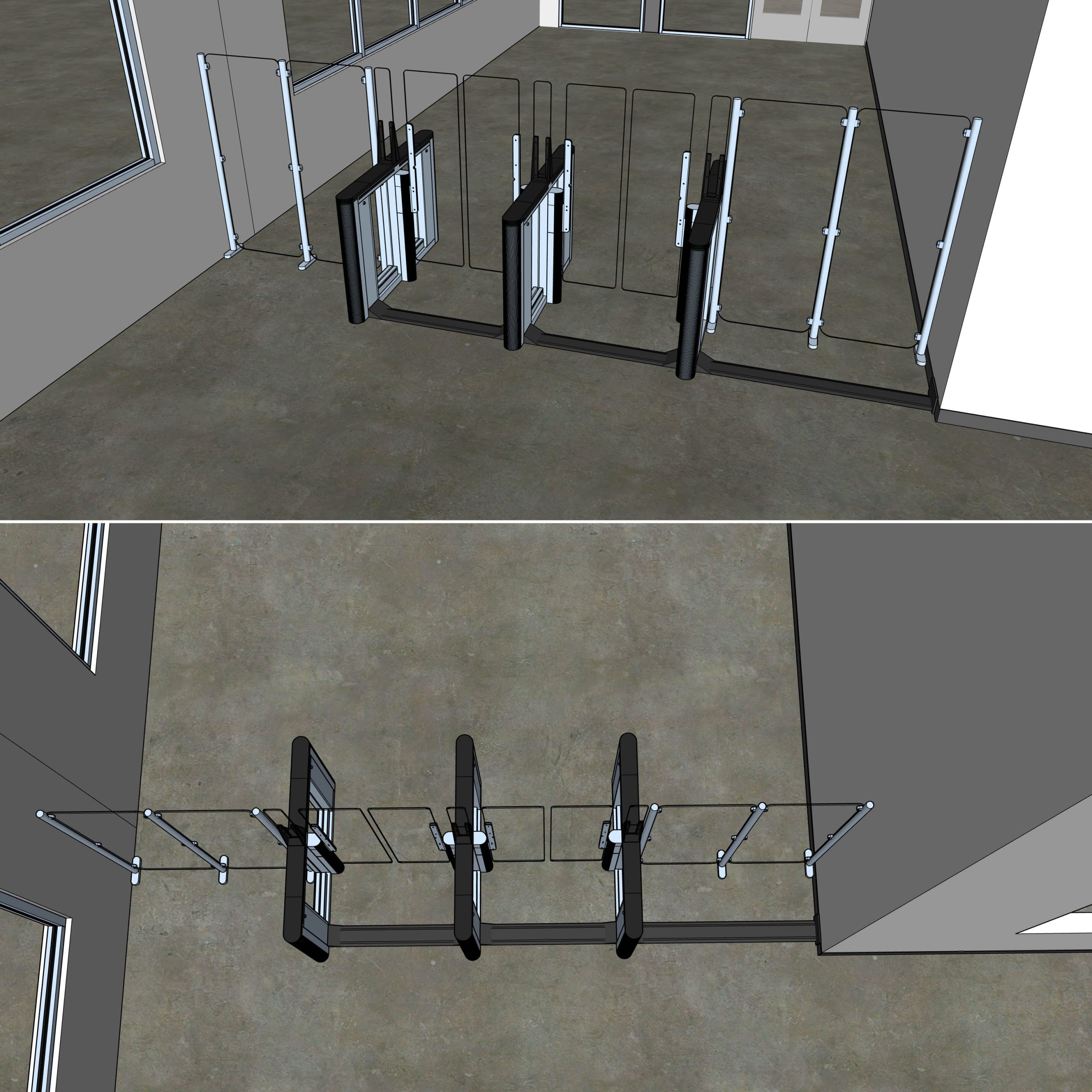

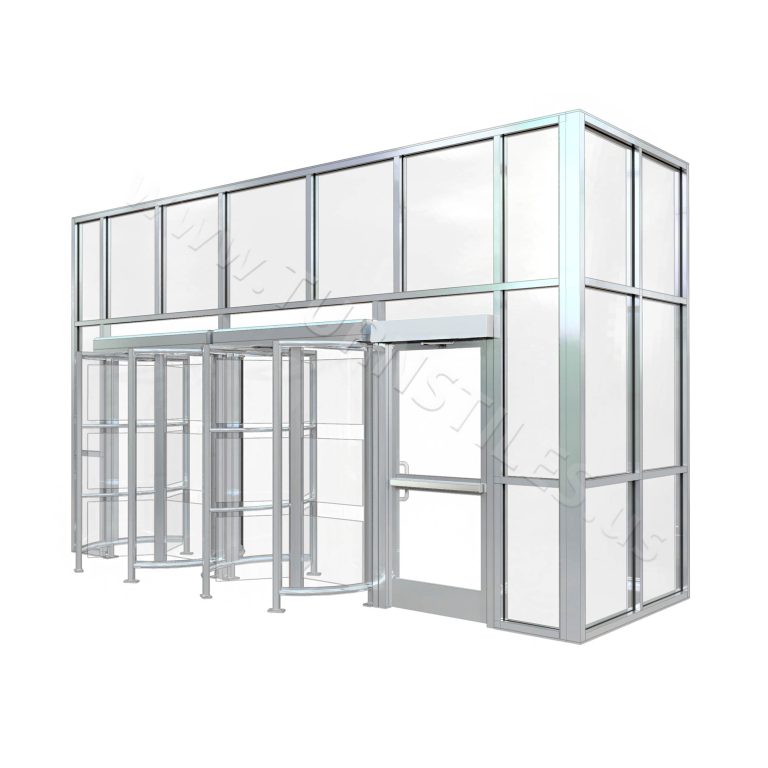

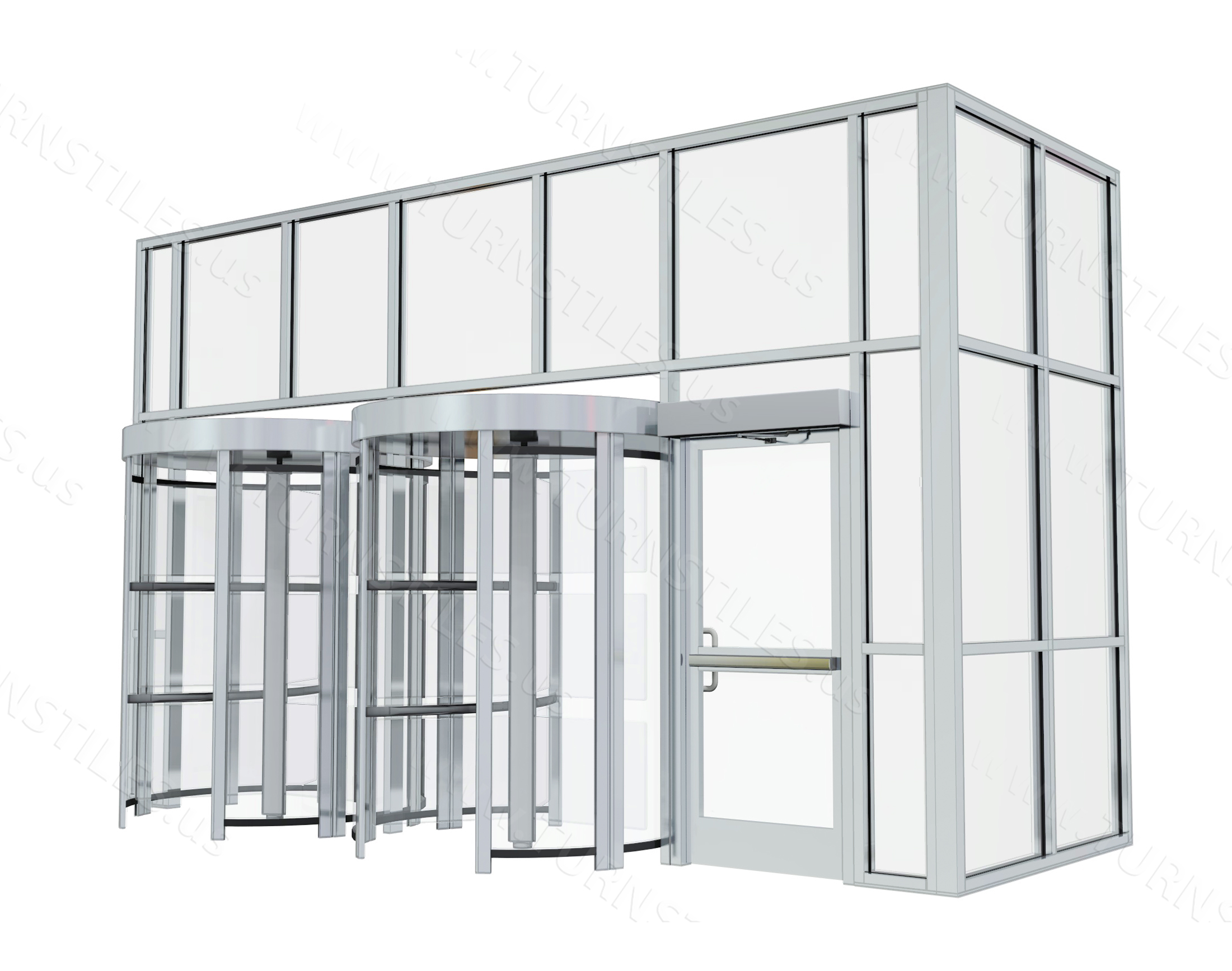

Previous Concepts

Turnstile System Type Comparison

Traditional Revolving vs Optical Turnstiles

Feature	A) Full-Height Turnstiles + ADA Gate	B) Full-Height Optical Turnstiles
Full Height Barrier
ADA Compliant	(via swing gate)	(built-in to both lanes)
Access Control Integration
2-Way Passage Capable
Shiny Silver/Clear Finish
Tailgating Prevention	Optional add-on; costly	Built-in via sensors
Anti-Passback (No Re-entry without Exit)	Optional	Integrated
Appearance	Traditional revolving	Sleek, modern, tech-forward
Touch-Free Operation	Turnstile is touched	No-touch operation
Fingerprints & Cleaning Needs	Visible with use	No direct contact
Lighting & Visual Feedback	Optional	LED lighting integrated
Reader Configuration	3 readers per direction (6 total)	2 readers per direction (4 total) or 2 total if free exit
Equality in Entry Experience	ADA gate feels separate	Universal, inclusive lane access
