Description
Concrete Alternative Modular Pavers are manufactured of 100% recycled plastic and molded under compression. They are interconnected with tabs on all sides and can be opened by professional contractors for tree root maintenance, utility access, seismic adjustment, relocation, etc.
Pavers are a grey-beige color and have a nonslip, sound-reducing surface. They are highly resistant to salt/chloride, magnesium chloride, UV light, impact, and freeze/thaw damage. Maintenance options include sweeping, hose-down, mopping, or steam cleaning. These precast concrete pavers have certification in areas of recycled content, stormwater drainage, heat island effect, innovative design, and regional materials.
Features and Benefits
- Modular, interlocking pavement system
- Made of 100% recycled plastic
- Pavers are interconnected with 1.5″ tabs on all sides
- They are a neutral grey-beige concrete color
- Pavers have a nonslip, sound-reducing surface
- Resistant to salt/chloride, UV light, impact, and freeze/thaw damage
- Channeled underside for maximum stormwater management and tree root accommodation
- Designed for permanent and temporary installations in any climate
- Made in the USA
Lightweight and Extremely Durable
- Looks like concrete but 1/8th the weight!
- Unbreakable and continually reusable
- Performs in all climates
- Can support heavy vehicular loads (more than 40,000 pounds)
- Proof load tested: Supports vehicles at more than 100,000 pounds of proof load.
Pavers did not crack, break, splinter, warp, or permanently deform during or after load testing.
Comfortable and ADA-Compliant Surface
- Firm, stable, vibration-free, and slip-resistant walking surface
- ADA-compliant with seams not exceeding ½ inch
- Flat surfaces are suitable for turnstile installations
- One size of paver arranges and cuts into the pattern you need
- Higher coefficient of friction (anti-skid) than concrete or matting
- Maintainable, cleanable, stain-resistant
For Permanent Installations OR Temporary Applications
- Fast, clean, easy, and secure installation lowers labor costs
- Easily delivered to hard-to-reach locations
- Requires no tools or equipment
- Safer and more secure than plywood, or rolled matting
- Channeled underside protects grass and vegetation
- Elevated above mud and pools of water, unlike rolled goods
- Provides portable, removable site paving for temporary use applications
- Provides firm and stable pavement for pedestrians, equipment, and vehicles
- Provides stable pavement in soft dirt and sand
- Outside tabs function as the main anchoring points to secure the panels, so they don’t move once they are laid out. We either backfill around the outside of the panels with dirt, or stone, or even landscape timber. If you need the tabs cut off for aesthetics, we can do that prior to shipment.
Superior Choice for Stormwater Drainage
- Unimpeded stormwater flow
- Improved water quality and groundwater recharge
- No surface or joint cleaning required
- An infiltration rate of 420 cu in/hr (ASTM C 1701) means these pavers receive more water flow than other pervious systems, and exceeds typical rain fall quantities even in the wettest climates.
- Built-in reservoirs store 2.3 gallons of water per paver so water will slowly percolate through the base layer into native soil below. Due to saturation, or slow absorption of native soils, flow without storage results in run off—even if pavement has infiltration. They hold overflow and prevent storm water run off.
- Sediment and silt is filtered by non woven pervious geotextile, and permeable aggregate base, which recharges local groundwater.
- Unlike PICPs and pervious concrete which require periodic cleaning and vacuuming, Seams are open and smooth, allowing debris and sediment to flow through or naturally wash out.
100% Resistant to Freeze-Thaw Cycle
- Designed for sub-zero temperatures and freeze-thaw with no damage
- Unaffected by freeze-thaw cycles, snowplowing, or shoveling
- Never deteriorates, spalls, or has aggregate that pits
- Never breaks or needs to be replaced
- Not damaged by de-icing chemicals or most other chemicals
- Made of recycled plastics (polymers) which are resilient enough to tolerate frozen soil pressure (just as they provide a more comfortable and safer walking experience).
- Interlocking design allows for upward movement from frozen soil, and resettlement during thaw (ASTM C936 is used by the Interlocking Concrete Pavement Institute to assess durability in freezing climates).
- Pavers are pervious through the joints (for maximum storm water management year round) but not pervious through the surface, and therefore do not absorb water like concrete does.
- Their patented design has underside channels which allow space for water, ice, and tree roots. As ice melts, these “reservoirs” keep water from overflowing, or collecting on the surface and re-freezing. This also reduces the risk of a trip-and-fall.
- These specialized pavers have higher R-value (degree of insulation) than concrete so water has more time to infiltrate the soil before freezing.
- Proven track record of success. Installations exist in many cities with harsh winter conditions (see below list).
SPECIFICATIONS
- Material: 100% waste plastic molded under compression with low carbon footprint manufacturing.
- Weight: 5 lbs. per square foot (25 lbs per paving tile)
- Color: Concrete (beige gray)
- Size and Dimensions: Standard Sidewalk Panel, each panel covers 5 square feet, 24×30-inch rectangle. Interlocking tabs extend additional 1.5” per side on all sides/designed for 4’ or 5’ wide sidewalks. The panels can be pre-cut or cut onsite as needed. The edge tabs can be cut off if needed, though they are typically buried in the ground.
- Thickness: 1.75″
- One Size arranges into the pattern you need

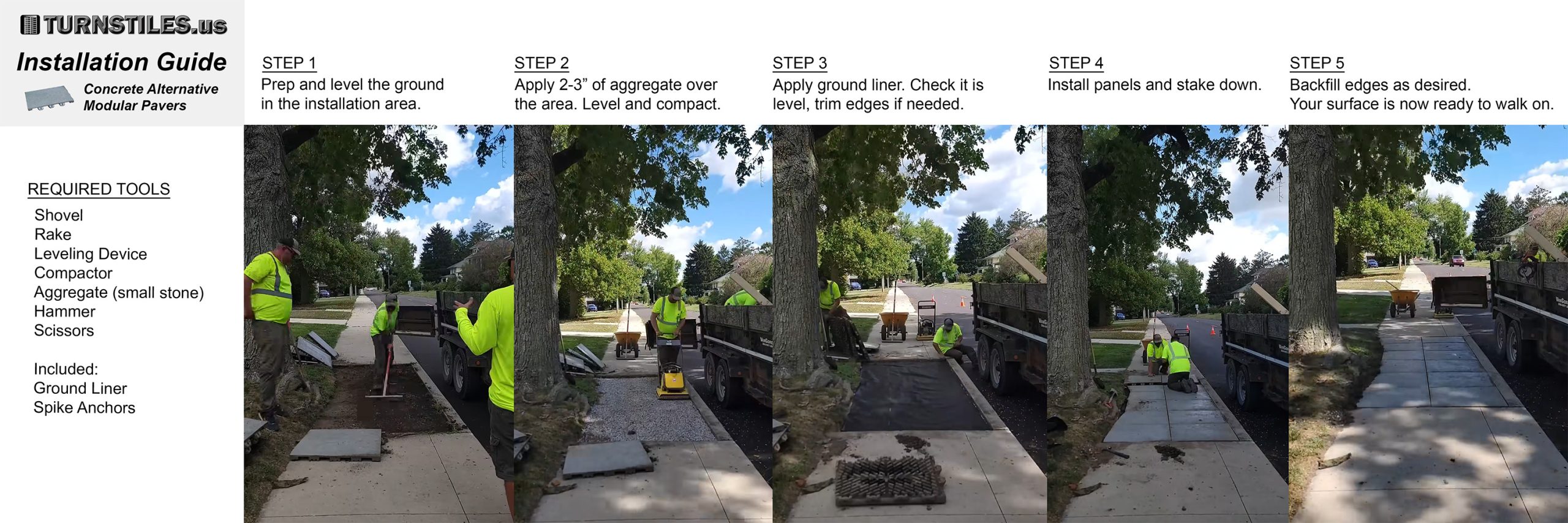

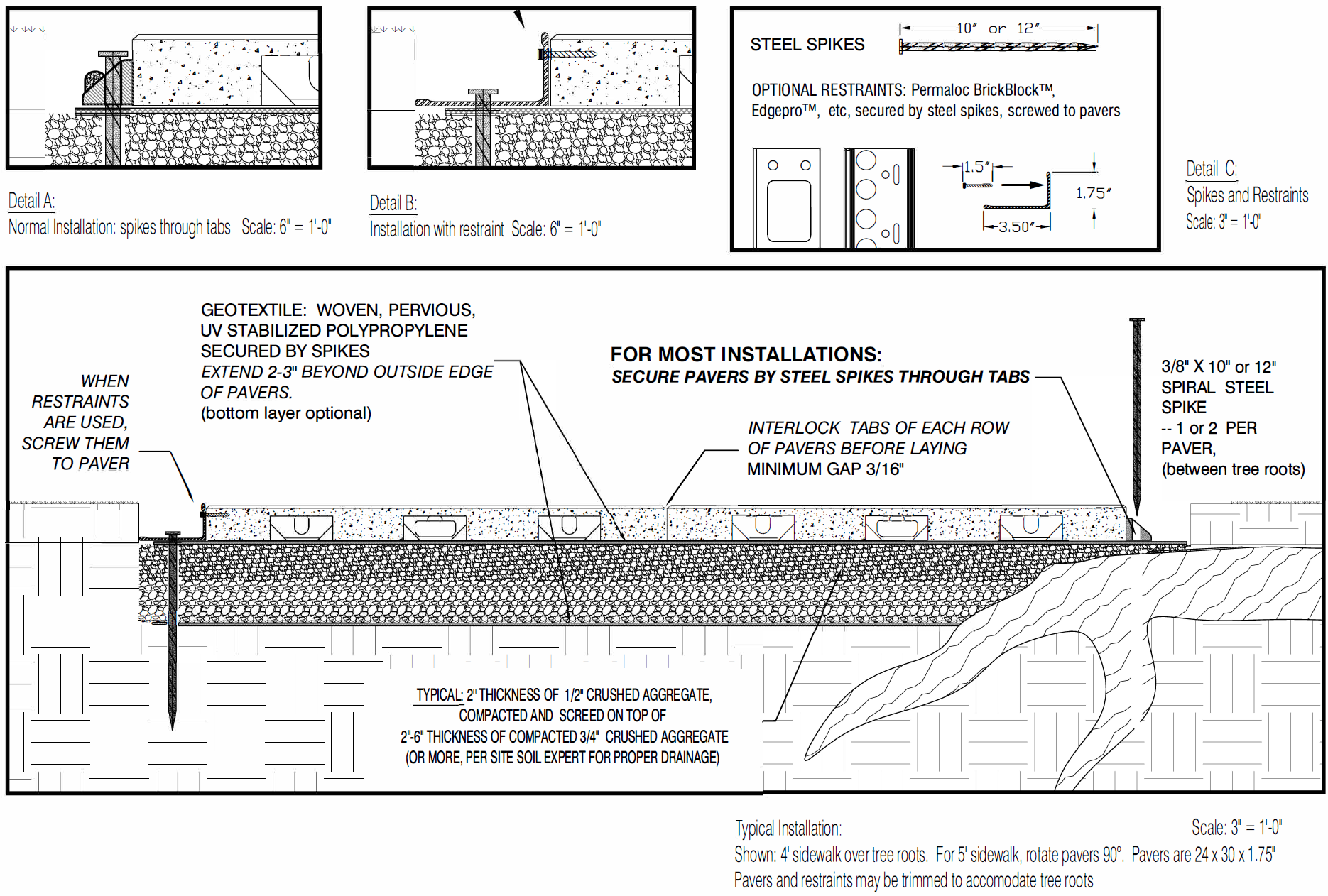

- The modular pavers are designed to be installed over a prepared base. For typical sidewalk and pedestrian applications, we recommend approximately 2 inches of compacted aggregate (crushed limestone/gravel works well) beneath the system. For areas that will support vehicle traffic, we recommend approximately 4 inches of compacted base material. Base materials not included.
- Estimated layout sizes:

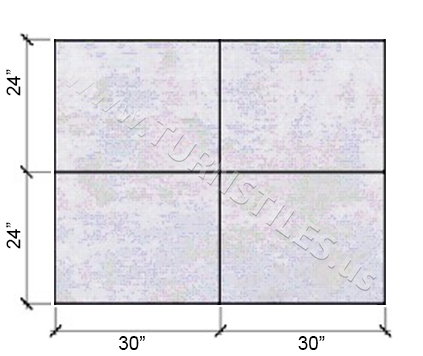

- 4 Tiles – 4×5 ft (20 sf) Area for a landing/standing room
- 9 Tiles – For a 30” Passage Single Turnstile (equipment 6×6′)
- 12 Tiles – For a 30″ Passage Tandem Turnstile (eq 9×6′)
- 15 Tiles – For a 30” Passage Single Turnstile and ADA Gate (eq 9×11′)
- 18 Tiles – For a 30″ Passage Tandem Turnstile and ADA Gate (eq 9×13′)
PRICING
Panels are sold in 5-square-foot increments, with a 20-square-foot minimum order (4 panels). Please round your order up to the nearest 5 square feet.
Standard Sidewalk System
$14.00 per square foot
Includes:
- Standard sidewalk panels
- Recommended metal ground anchors
- Geotextile ground liner
~ ~ ~ ~ ~ ~ ~ ~ ~ ~
Custom Options:
- Cobblestone Sidewalk Panel design available in the same dimensions as the standard sidewalk panel.
- Landscape Stepping Stones available in 13 and 16-inch round.
- Landscape Stepping Stones available in 16-inch square.
- Bulk rolls of geotextile ground liner available
- Custom panel layouts and configurations available
Contact TURNSTILES.us for a customized quotation.
Planning Tip: Send us a simple sketch, dimensions, or even a Google Maps screenshot of your project area. We’ll help calculate the number of panels and accessories needed.
INSTALLATIONS
See our products in-person in a city near you! Ask for our client references.
Since 2008, systems have been installed throughout North America in cities that undergo freeze thaw cycles, including cities in:
• British Columbia
• Colorado
• Illinois
• Indiana
• Iowa
• Maine
• Michigan
• New Jersey
• Ontario
• Oregon
• Tennessee
• Utah
• Washington
• Washington, DC
• Wisconsin
*Please note: Shipping is billed separately from materials and subject to change.
Questions? *Contact TURNSTILES.us for a quote. See our portfolio of work Here.
