Description

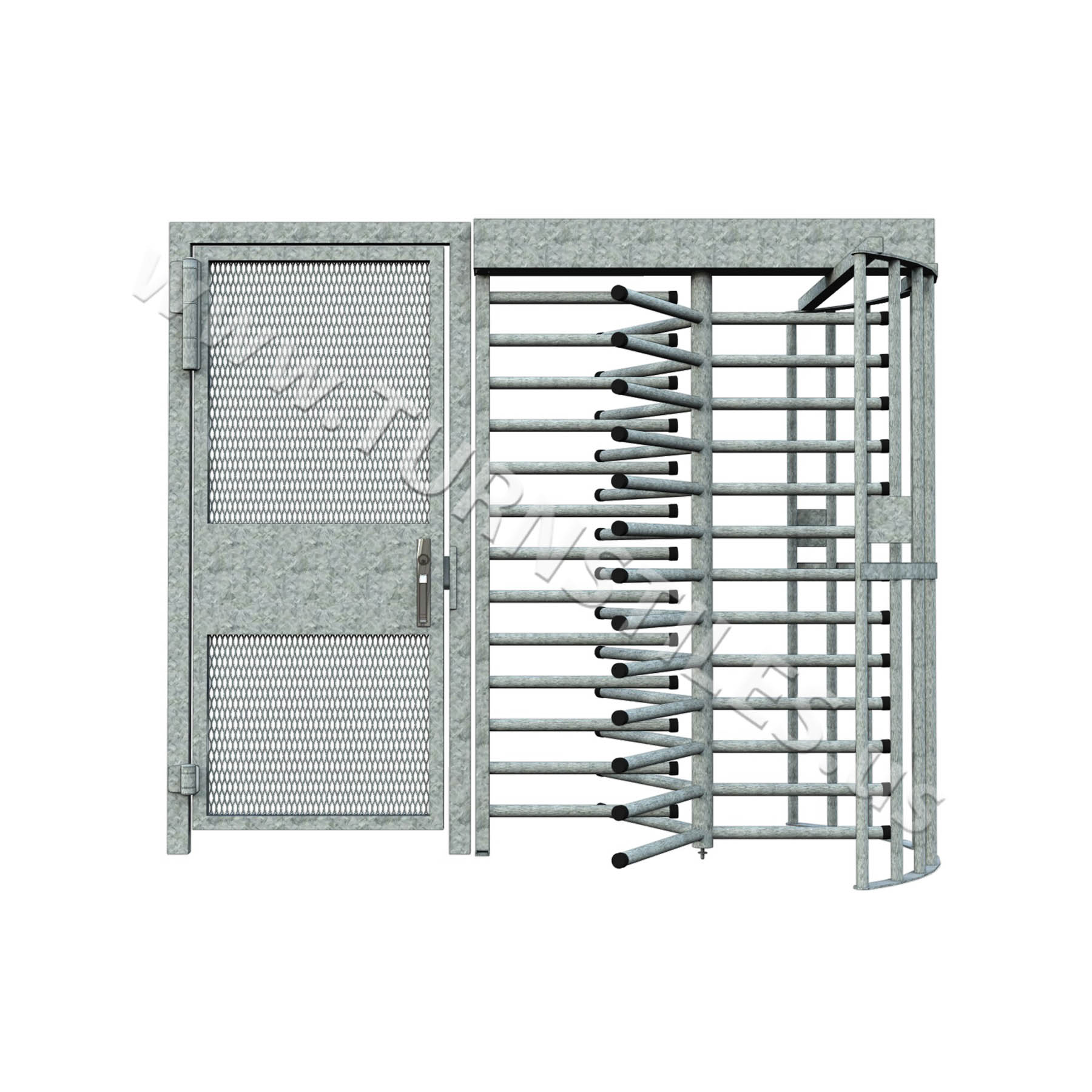

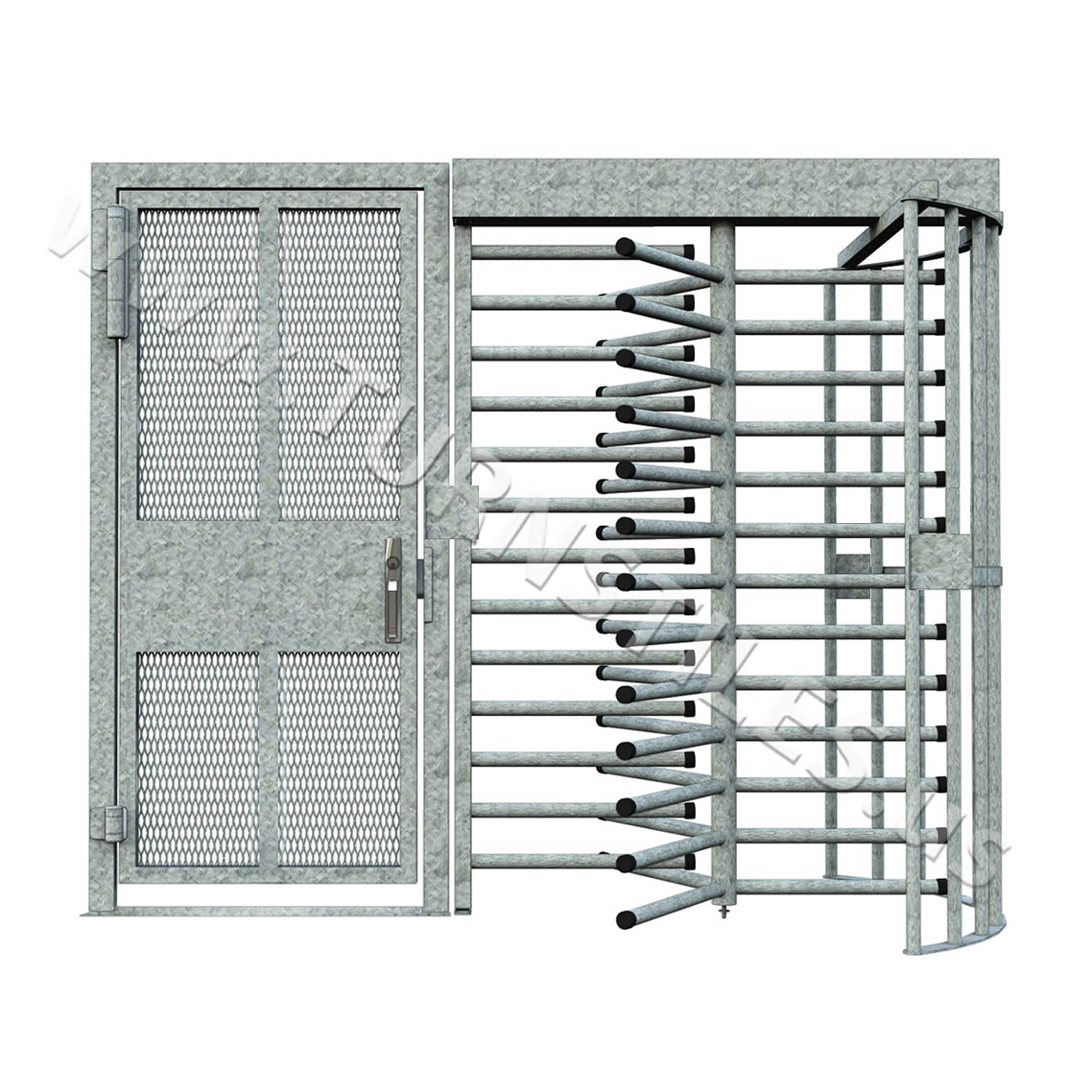

Full Height Turnstiles and ADA Gates are some of our most popular items and are frequently purchased together. This heavy-duty, full-height high-security turnstile and gate set provides controlled access when entering or exiting a facility.
FEATURES
- (QTY 1) Full Height Single Turnstile
- Electric 2-Way
- 30″ Passage Width
- 1.5″ Diameter Tubing
- Galvanized finish (upgrade to Powder Coated over Galvanized)
- Black end caps
- Card reader mounting plates
- Bidirectional key override
- Dimensions
- 59.25″ Depth
- 66″ Width
- 91″ Height
- Shipping Weight (each): 650lbs
- Shipping Dims (alone): 88 x 51 x 54
- (QTY1 ) Full-Height ADA Gate
- Strike Lock and Push Bar Exit
- 36″ Passage Width
- Galvanized finish
- Security mesh infill
- Dimensions
- 3″ Depth
- 43.375″ Width (including frame)
- 91″ Height
- Shipping Weight (each): 490lbs
- Shipping Dims (alone): 105 x 51 x 54in
- (QTY 1) Anti-Reach Panic Bar Barrier
– Matching finish
– Card reader mounting plate
– Option to add an extra barrier - COMBINATION Shipping Data
- HS430-S (1) & HS336-ADA-MS (1)
- Weight: 1095lbs
- Crate Dimensions: 103 x 51 x 54in
- Turnstile and gate have channels for wiring between them
- Use on a fence line, in an entry or hall, indoors or outdoors
- Made in the U.S.A.
OPTIONS
- Upgrade Finish
- Add Accessories
DOCUMENTATION
Turnstile:
Data Sheet
Installation Manual
ABCD Anchor Base Conduit Detail
Correct vs. Incorrect Center Rotation
Gate:
Data Sheet
Installation Manual
Dimension Drawing
ABCD Anchor Base Conduit Detail
Card Reader Mounting Plate Enclosure:
Dimension Drawing
Anti-Reach Barrier:
Product Page
DIMENSIONS
INSTALLATION
Contact TURNSTILES.us for installation information in your area!
See our turnstile installation portfolio here.
*Please note the price listed is equipment only, and freight will be charged separately. Please contact us for a freight quote.
