EntraBOX Double Man Trap Security Portal

Please Login for Pricing

The Double Man Trap Security Portal is a sleek clear-sided security portal that monitors and controls interlocking doors that cannot be open simultaneously. Per each passage, either door can be unlocked and opened, as long as the other door is locked and closed. Between these interlocking doors is a small, secure space, which only admits one person at a time. Ideal for high-security areas. Often dual cubicles are used because one is programmed for entry and the other for exit. The clear-sided cubicle can be modified in various ways to suit your needs.



Login or Sign Up Request A Quote

Description

The Double Man Trap Security Portal (AGMT-DBL) is a Sleek Clear-Sided Security Vestibule that Monitors and Controls Two Interlocking Doors That Cannot Be Open Simultaneously. Ideal for High-Security Areas. The Mantrap Includes Aluminum and Tempered Glass Storefront Construction (With a Polycarbonate Option). It features 2 – 36” Aluminum And Glass Doors With Programmable Automatic Openers That Meet The ANSI/BHMA 156.19 Standards.

The AGMT-DBL Incorporates Integrated Tailgating Technology To Ensure That Only One Person Enters The Mantrap At a Time. It Also Incorporates a Pressure Sensing Floor That Ensures the PLC That a Person Has Entered/ Exited The Mantrap. The AGMT-DBL Has Indicator Lights Upon Entry And Exit To Provide User With A Clear Indication Of Flow. Mantrap Features our Programmable Logic Controller For Precise Management Of All Components, Ease Of Adjustments And Safety Features.

Each Door is Equipped With 1500LB. Electro Magnetic Locks That Are UL Listed, UBC 97 Standard Compliant ANSI/BHMA Cert. NFPA 80 & 101 For Life Safety. The AGMT-DBL is Made With Pride In The USA With American Made Products For Your Safety As Well As Ours!

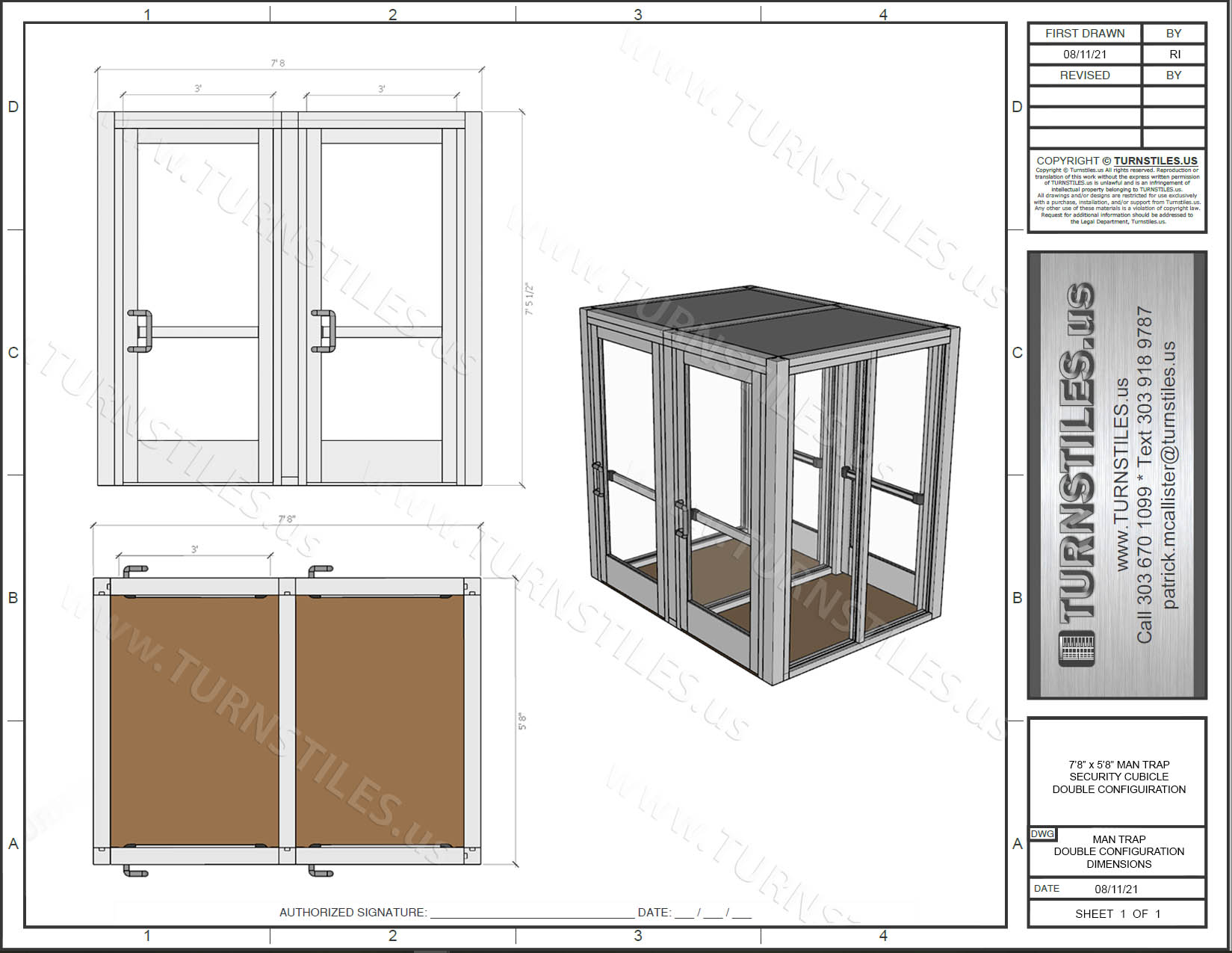

Dimensional Drawing – Double Man Trap

Specifications – Double Man Trap



FEATURES

  • Four Man-Trap Doors, Two Passages
  • Electric Locks, Pushbar Kit
  • Clear Side Panels
  • Enclosed floor and roof
  • 3 x 5ft Floor Mat in Each Passage
  • Heavy-Duty Frame and Hardware
  • Interior or Exterior Use
  • USA Steel and Manufacturing
  • High-Quality Craftsmanship



ADDITIONAL OPTIONS

  • Custom dimensions available
  • Walls of Polycarbonate, or Clear/ Tinted Glass
  • Custom powder coated color finish instead of steel finish
  • Order open Ceiling instead of enclosed
  • Add interior lights or emergency intercom
  • Upgrade to Double Magnetic Lock, Motorized Doors
  • CCTV Video Cameras and Computer Workstations
  • Ready for Access Control Applications like EntraPASS Access Control Software
  • Code Scanners, Card Readers, Fingerprint Scanners, Temperature Measurement, Facial Recognition
  • Use as a part of your security array



DRAWING & DIMENSIONS

Double Man-Trap

  • Overall Dimensions 5’8″W x 7’8″L x 7′-5.5″H
  • 3′ Door Width
  • All 4 doors open outward (Pull/Push)



INSTALLATION

*Contact TURNSTILES.us for personalized, professional installation.



*Note Shipping Additional. Final details shall be signed off by the client before fabrication.



Additional information

Weight 1800 lbs
Dimensions 92 × 68 × 89.5 in
