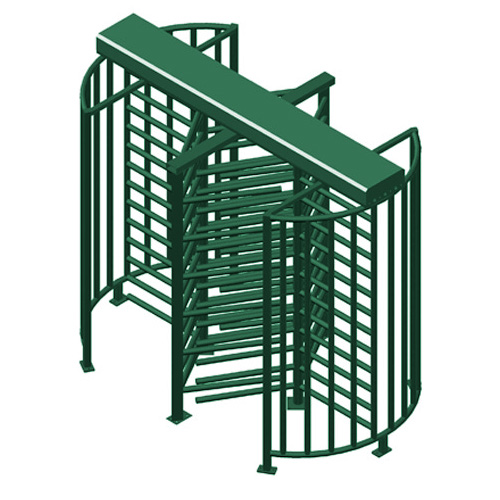

AG-30-TT Full Height Tandem Turnstile

Please Login for Pricing

Clear

Login or Sign Up

Description

The AG30-TT is a heavy-duty, full-height high-security tandem turnstile.  A tandem turnstile is essentially two turnstiles in one and has a smaller footprint than two single turnstiles put together. A tandem turnstile is used when more than one turnstile is needed in high-traffic areas. It also had a reduced footprint of 8’ 6” wide – whereas two single turnstiles side by side have a total width of 11’.

The function of the turnstile is to provide controlled access when entering or exiting a facility where high flow traffic is present. It can achieve this both mechanically (no access control system/software, such as a pool gate where the passage would be used for only exiting and no entry), or electronically (with an access control system, card readers, fingerprint readers, etc for keeping track of who is on and off-site). It is constructed with American Pride right here in the USA. Portable Base Plate, Matching ADA Door, Filler Panels, and Reach-Through Barriers are also available.



Data Sheet – AG30 Series Full-Height Tandem Turnstiles

Turnstile Color and Finish Chart

Installation Manual – AG-30-TT Tandem Turnstile

Production Worksheet for Manufacturing – AG-30-TT Tandem Turnstile

Correct vs. Incorrect Center Rotation



STANDARD FEATURES

  • Full-Height Tandem Turnstile
  • Included:
    • (2) Two-Way Electronic Control Heads
    • (4) Card Reader Mounting Plates
    • (130) Plastic End Caps on all Arms
    • (2) Bidirectional Key Override Sets (turnstile can be unlocked manually by key, in either direction for service or temporary events where locking isn’t required)
    • (2) Modular Locking Mechanisms (fail-safe or fail-secure, clockwise or counterclockwise)
  • All Stainless Steel Hardware
  • Spline Shaft, Collar, Bearing, and Bottom Flange are Corrosion-Resistant Stainless Steel
  • Extra Thick Mounting Brackets for added Security
  • Durable Galvanized Finish
  • Made in America
  • Electrical Specifications:
    • Input voltage: 100-220 VAC
    • Frequency: 50/60 Hz
    • Operating Voltage: 30 VDC
    • Operating Current: 0,2A



ADDITIONAL OPTIONS



DIMENSIONS

  • AG-30-TT Tandem
    • 102″ Length
    • 60″ Width
    • 91″ Height
  • Approximate Weight
    • 1390lbs
  • Recommended Concrete Pad Size
    • Minimum 108″ Long x 72″ Wide x 6″ Thick
  • More Concrete Pad Sizes
    • For Single Turnstiles
      Model Length (min) Width (min) Thickness (min) PSI
      AG-27-T 66” 66” 6” 3500 PSI
      AG-30-T 72” 72” 6” 3500 PSI
      AG-36-T 84” 84” 6” 3500 PSI
      AG-39-T 90” 90” 6” 3500 PSI
      AG-48-T 108” 108” 6” 3500 PSI



    • For Tandem Turnstiles
      Model Length (min) Width (min) Thickness (min) PSI
      AG-27-TT 99” 66” 6” 3500 PSI
      AG-30-TT 108” 72” 6” 3500 PSI







FINISH CHOICES

  • Galvanized
  • Powder Coated over Raw Steel (See color chart)
  • Powder Coated over Galvanizing
  • Powder Coated over Stainless Steel
  • Custom colors available upon request



ACCESS CONTROL PACKAGES

1. EntraPASS with Proximity Reader Package

2. EntraPASS with Fingerprint Scanner Package

3. Photo-ID Badging Package





INSTALLATION

(2) Tandem Turnstiles with Extra Wide ADA Gate and CanopySee our installation for Kroger here.

Contact TURNSTILES.us for installation information.





*Contact us for a freight quote.

Additional information

Weight 1390 lbs
Dimensions 102 × 60 × 91 in
Finish

Galvanized, Powder Coated (black), Powder Coated (black) over Galvanized, Stainless Steel

Controls

Mechanical, Electric One-Way, Electric Two-Way
