AG-39-T Full Height Single Turnstile

Please Login for Pricing

The AG-39-T is an extra-wide, full-height security turnstile. The AG-39 has an expanded 39″ passage width. This is perfect to allow the comfortable passage of larger people or those who are carrying backpacks and bags through the turnstile. It is constructed with pride in the USA and can be fully integrated with other access control components.

GV = Galvanized
PC= Powder Coated
POG = Powder Coated Over Galvanized
SS= Stainless Steel





Login or Sign Up

Description

The AG-39-T is an extra-wide, full-height security turnstile. Part of the AG30 Series, the AG-39 has an expanded 39″ passage width. This is perfect to allow the comfortable passage of larger people or anyone carrying backpacks and bags through the turnstile. The AG39 Single Turnstile provides controlled access when entering or exiting a high-traffic facility. It can achieve this both mechanically (no access control system/software, such as a pool gate where the passage would be used for only exiting and no entry), or electronically (with an access control system, card readers, fingerprint readers, etc for keeping track of who is on and off-site). These industrial-grade turnstiles have weather-proof finishes in a variety of colors to match your building. Our turnstiles are constructed with pride in the USA.

Data Sheet – AG Series Full Height Single Turnstiles

Installation Manual – AG Series Full Height Single Turnstiles

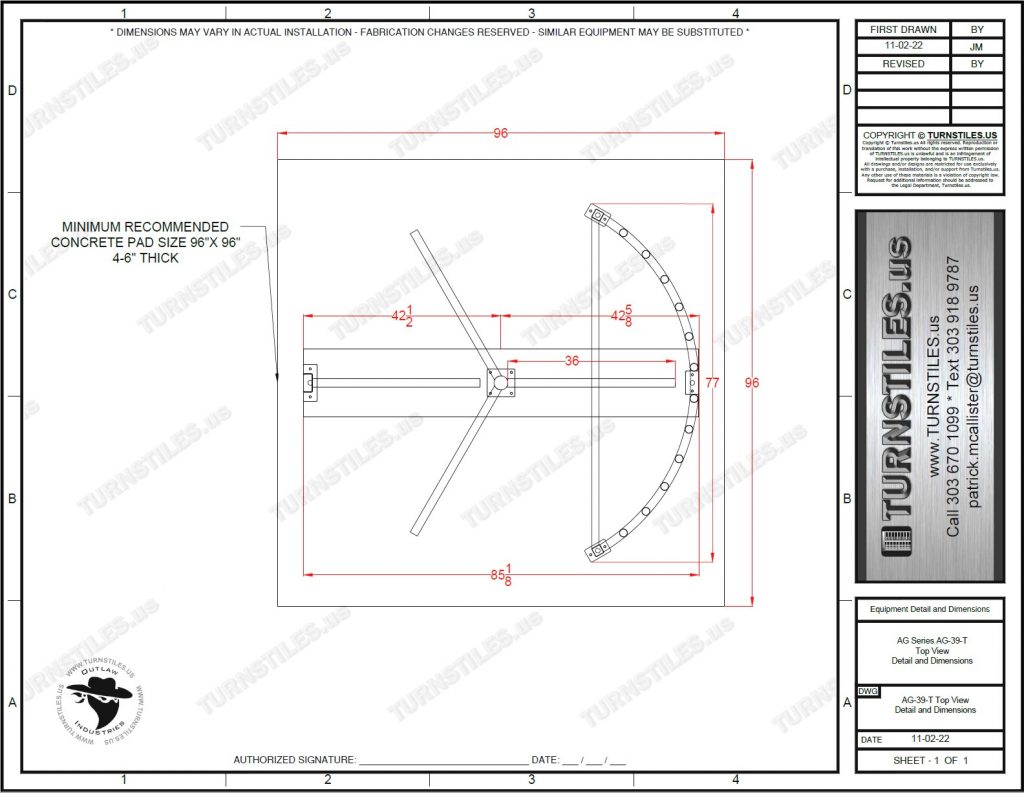

AutoCAD PDF – AG-39-T Single Turnstile Detail and Dimensions

AutoCAD PDF – AG-39-T Footprint Detail and Pad Dimensions

AutoCAD PDF – AG-39-T Conduit Height Dimensions

Production Worksheet for Manufacturing

Correct vs. Incorrect Center Rotation

Finish and Color Options



STANDARD FEATURES

  • Full-Height, Extra Wide Single Turnstile
  • Included:
    • (2) Card Reader Mounting Plates
    • (52) Plastic End Caps on all Arms
    • (1) Bidirectional Key Override Set (turnstile can be unlocked manually by key, in either direction for service or temporary events where locking isn’t required)
    • (1) Modular Locking Mechanism (fail-safe or fail-secure, clockwise or counterclockwise)
  • All Stainless Steel Hardware
  • Spline Shaft, Collar, Bearing, and Bottom Flange are Corrosion-Resistant Stainless Steel
  • Extra Thick Mounting Brackets for added Security
  • Durable Galvanized Finish
  • Made in America
  • Electrical Specifications:
    • Input voltage: 100-220 VAC
    • Frequency: 50/60 Hz
    • Operating Voltage: 30 VDC
    • Operating Current: 0,2A



ADDITIONAL OPTIONS

DIMENSIONS

  • AG-39-T Single
    • 7′ 1″ Length
    • 6′ 5″ Width
    • 7′ 7″ High
  • Shipping Weight
    • 890lbs
  • Recommended Concrete Pad Size
    • Minimum 90″ Long x 90″ Wide x 6″ Thick



FINISH CHOICES

  • Hot Dipped Galvanized
  • Powder Coated Black (Other RAL colors available – see chart below for examples)
  • Complete # 304 Stainless Steel
  • 316 Stainless Steel for corrosive or coastal environments
  • Powder Coated over Galvanized
  • Powder Coated over Stainless Steel





INSTALLATION

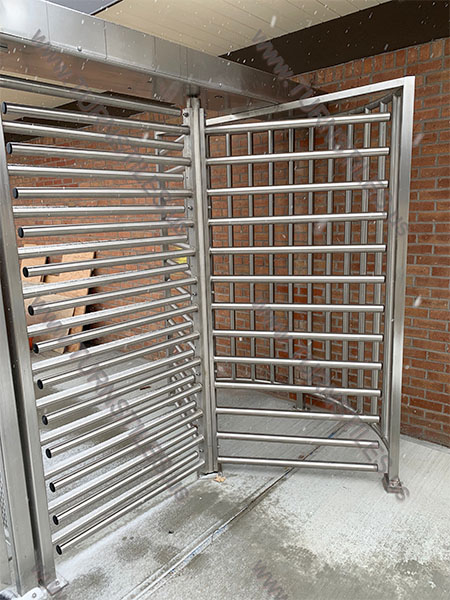

Our Outlaw AG-39-T Outdoor Installation with AG-36-ADA Gate – See More Photos from this Installation at Rockland State Park

Outlaw AG-39-T  Turnstile Array under a Custom Canopy – See More Photos from this Installation at Aurubis

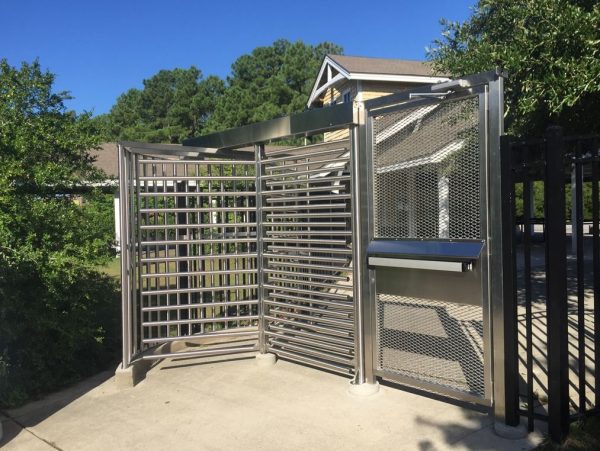

Stainless Steel AG-39-T  Turnstile with a matching AG-39-ADA Gate – See More from our NC Aquarium Installation





*Contact us for a freight quote.

Additional information

Weight 890 lbs
Dimensions 85 × 77 × 90 in
Finish

Galvanized, Powder Coated (Black), Powder Coated (Black) over Galvanized, 304 Stainless Steel

Controls

Mechanical, Electric One-way, Electric Two-Way
