EntraBOX ADA-Compliant Man Trap Security Portal

The Clear-Sided ADA-Compliant Man Trap is a sleek clear-sided security portal that monitors and controls two interlocking doors that cannot be open simultaneously. Either one of the doors can be unlocked and opened, as long as the other door is locked and closed. Between these interlocking doors is a small, secure space, which only admits one person at a time. Ideal for high-security areas.

Request A Quote

Description

The EntraBOX ADA-Compliant Man Trap Security Portal (AGMT-ADA) is a clear-sided vestibule that monitors and controls two interlocking doors that cannot be open simultaneously. Either one of the doors can be unlocked and opened, as long as the other door is locked and closed. Between these interlocking doors is a small, secure space, which only admits one person at a time. Ideal for high-security areas. The cubicle can be modified in various ways to suit your needs. Made in the USA.

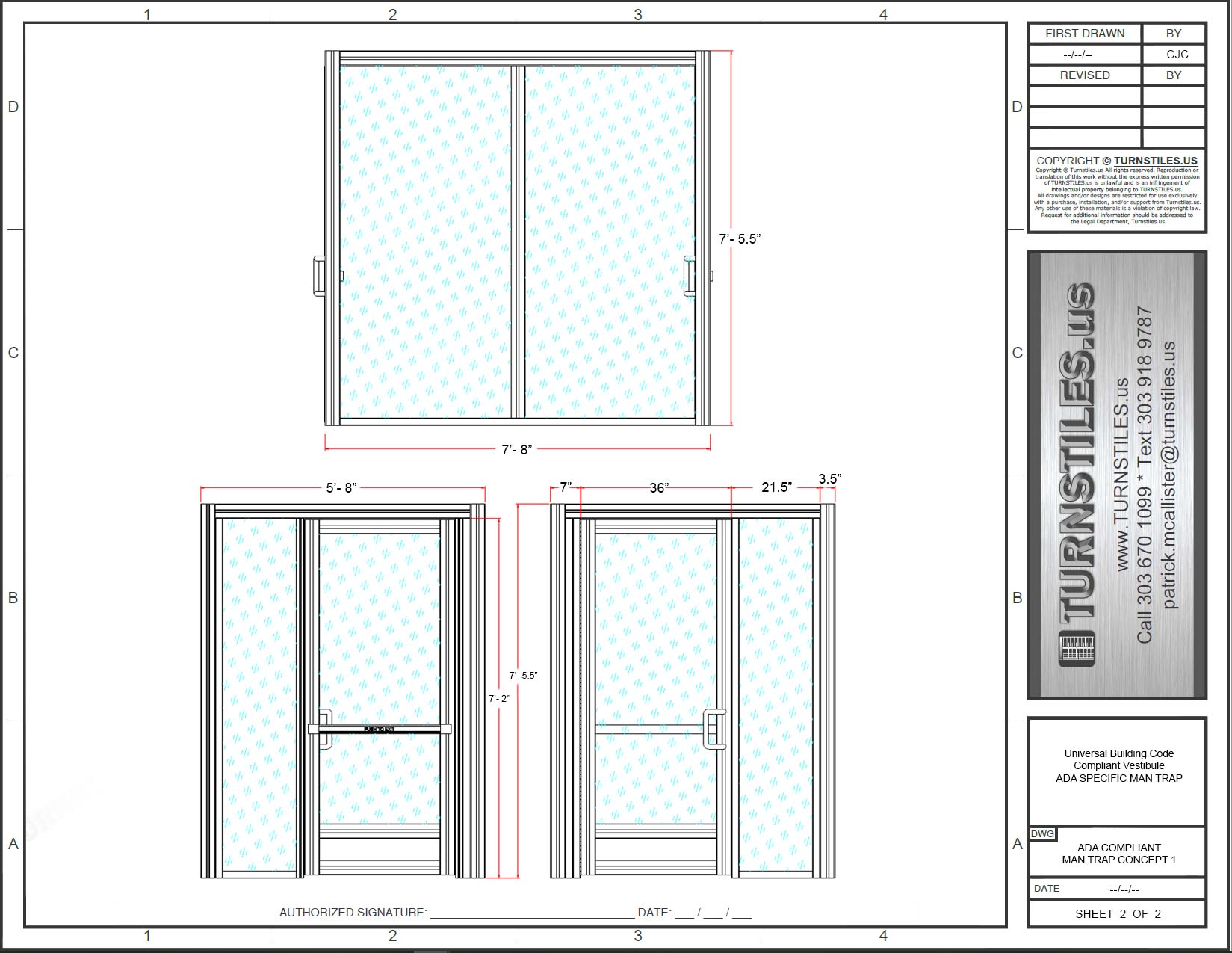

Concept and Dimensional Drawing – ADA Compliant Man Trap Vestibule



FEATURES

  • Two Glass Man-Trap Doors, ADA Width
  • Electric Locks, Pushbar Kit
  • Full Clear-Sided Enclosure
  • Heavy-Duty Frame and Hardware
  • Interior or Exterior Use
  • USA Steel and Manufacturing
  • High-Quality Craftsmanship



ADDITIONAL OPTIONS

  • Custom dimensions available
  • Walls of Glass or Polycarbonate, Clear or Tinted
  • Request an Open Ceiling
  • Add interior lights or emergency intercom
  • Upgrade to Double Magnetic Lock, Motorized Doors
  • CCTV Video Cameras and Computer Workstations
  • Ready for Access Control Applications like EntraPASS Access Control Software
  • Code Scanners, Card Readers, Fingerprint Scanners, Temperature Measurement, Facial Recognition
  • Use as a part of your security array



DRAWINGS & DIMENSIONS

Man-Trap

  • Overall Dimensions 5’8″W x 7’8″L x 7′-5.5″H
  • 36″ Door Width
  • 5′ Interior Diameter in addition to door swing area allows someone in a wheelchair to turn around
  • Both doors open in the same direction (Push/Push)



INSTALLATION EXAMPLE

Shown: Clear-Sided ManTrap and Two Full-Height Single Turnstiles under a 12′ x 18′ Enclosed Glass Canopy



*Contact TURNSTILES.us for personalized, professional installation.



*Note Shipping Additional. Final details shall be signed off by the client before fabrication.



Additional information

Weight 1800 lbs
Dimensions 92 × 68 × 89.5 in
