Turnstile Security Entrance

ABB Installation Products Inc – Byhalia, MS

The team at TURNSTILES.us is honored to present our Turnstile Access Control Solutions to ABB. Please find the selected equipment information listed below. We appreciate the opportunity to work with you.

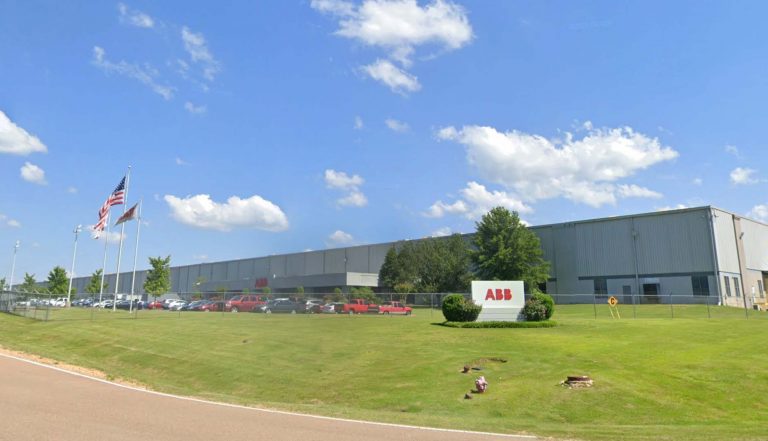

Location Photos

Custom Glass Turnstile Security Entrance

Installation Photos

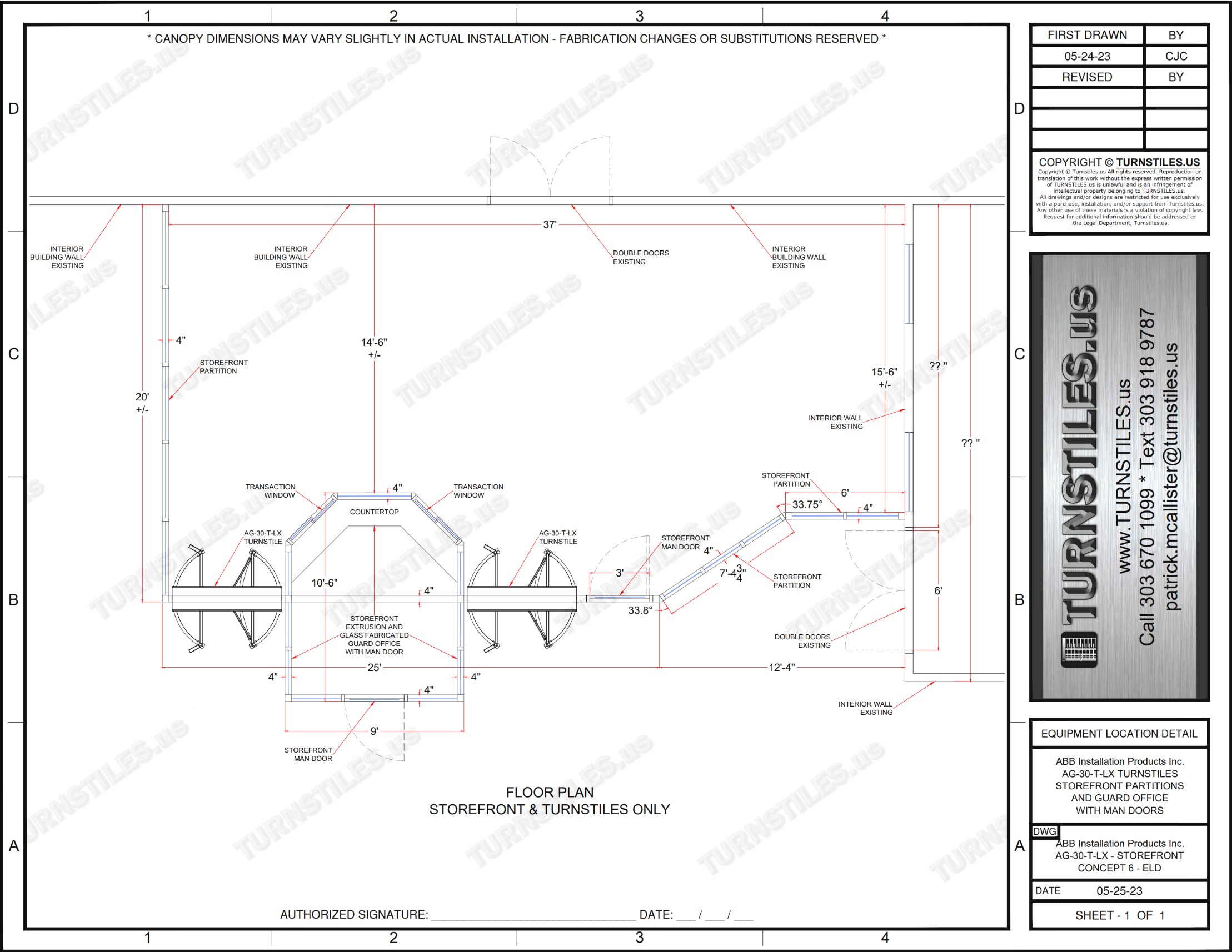

AutoCAD Equipment Location Detail

Given Dimensions
Concept 6 Diagram
*Integrated Ceiling not shown*

Equipment Data

EQUIPMENT

Turnstile and Gate Equipment
(2) AG Lexan Turnstiles
(4) Card Reader Mounting Plates
(2) Key Override Sets
(1) AG Lexan ADA Gate with Full Panic Bar
(1) Automatic Door Operator
(2) Magnetic Door Contacts
(2) KT-400 Door Controllers
(2) Battery Backup and Power Supplies for Door Controller
(8) Relay, Base and Snap track
(1) Wiring Package

Custom Storefront Guard Station
(2) Transaction Windows 36″ x 36″ with Sliding Drawer

(1) Electrical Supplies and Sub Panel
(1) Standard Door on Secure Side
(1) Company Logo Frosted on Front
(1) Extrusion and Steel Storefront

  • Guard Office Designed to be mounted on a slab or floor.
  • Includes Flooring appropriate for the Installation.
  • Framed Enclosure with Aluminum and 1/4 Tempered Glass Storefront.
  • 1/4 Insulated Panels for a Wainscot.
  • 36″ Man door With Lock and Push to exit hardware.
  • Desk and Chair
  • Electrical Package, Includes Breaker Box with GFCI and AFCI Tech.
  • Single Phase 100 Amp Panel, 20 Amp Outlets and Light Switches, LED Interior Lights, LED Exterior Lights
  • Safety Kit Includes, Fire Extinguisher, First Aid Kit, Flash light.
  • Cleaning Kit , Includes A Broom, A dust Pan, Trash Can, Window and desk cleaner.
  • Integrated Data Cabinet with 8 Port switch.
  • HVAC Heating and Air Conditioning.
  • Outdoor Version Has Integrated Roof, With Trim, Gutters And Downspouts.
  • Indoor Version Has Integrated Ceiling.

SERVICES

Field Labor & Travel
(2) Installers
(14) Days Field Labor
(2) Days of Travel
Uncrating and Removal of Debris
Installation Service
Test Operation of All Units
Owner Training

Engineering Drafting Programming
Provide 2D PDF AutoCAD Equipment Location Detail
Provide Concept Illustrations Design-Build
Initial Factory Programming
Remote Desktop Assistance
Shipping and Crating

Frosted Logo

ABB Logo:

Example photos of frosted look:

On these panels and directions pending approval:

Previous Renditions

CONCEPT 5

Concept 5 Diagram
*Integrated Ceiling not shown*
Dimensions will be included in AutoCAD ELD

CONCEPT 4

Concept 4 Diagram

CONCEPT 3

CONCEPT 2 – Proposal #2023-354169

CONCEPT 1

5/5
