RS232 9541 Multi-Conductor Shielded Turnstile Connection Cable

$ 299.00

RS232, #24-15c, SR-PVC, O/A Foil, PVC Jkt, CMG

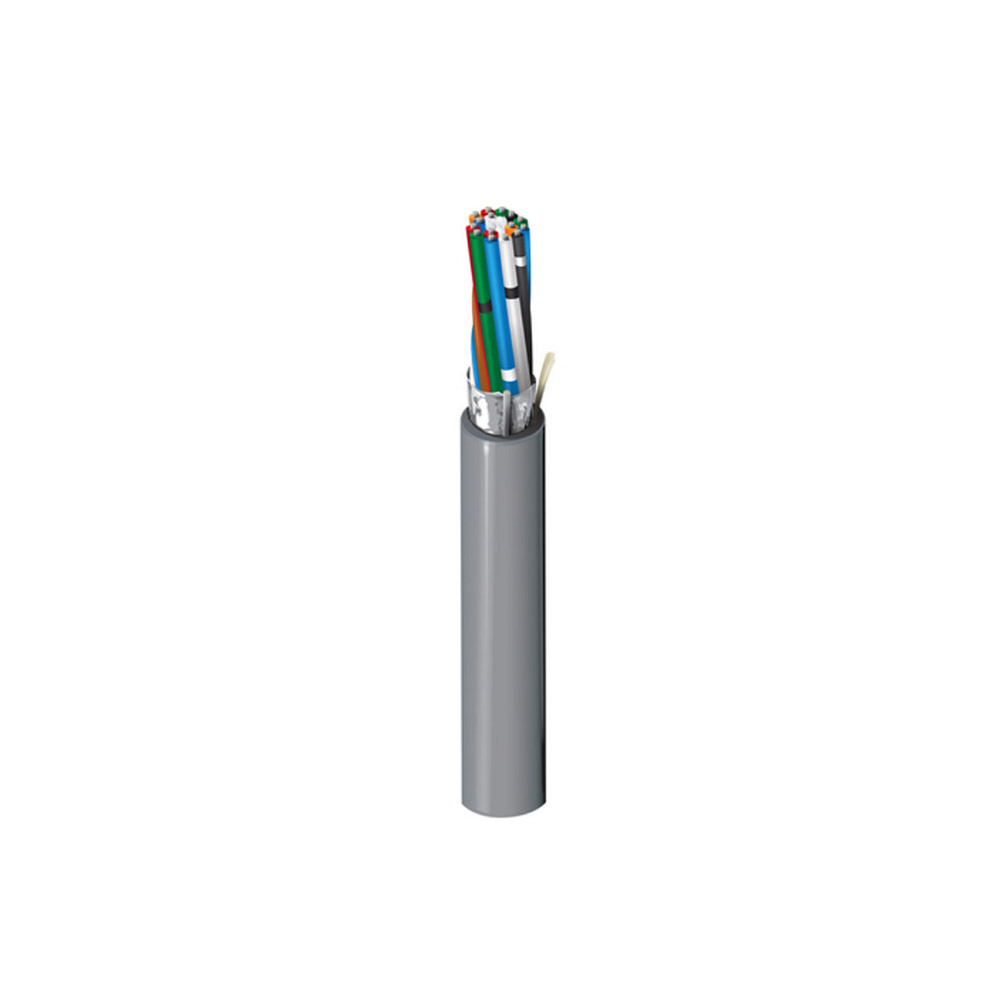

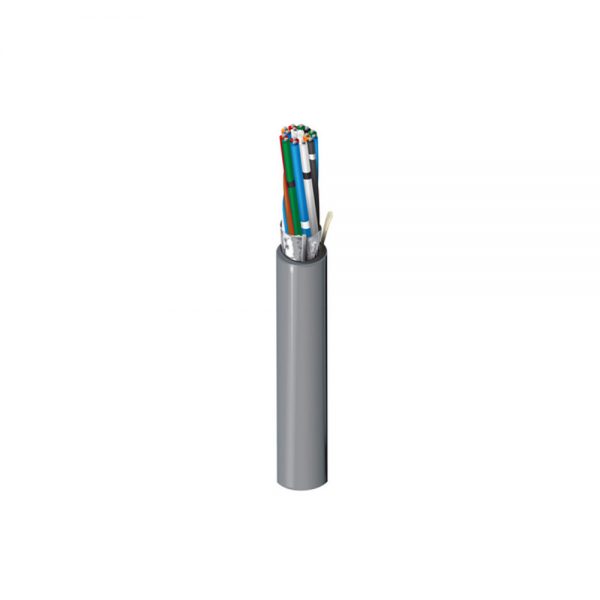

Computer EIA RS-232 Cable, 24 AWG stranded (7×32) tinned copper conductors, semi-rigid PVC insulation, overall shield (100% coverage), 24 AWG stranded tinned copper drain wire, gray PVC jacket, 500 feet.

Description

9541 Multi-Conductor Shielded Cable is suitable for RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20mA, 0-10V, …); Low Voltage Digital Control (24V, …); Line Level Audio; Panel Wiring, Gray Jacket. 500 feet of cable per box.

Data Sheet – RS232

Construction

Conductor
Element Number of Element AWG Stranding Material
Conductor(s) 15 24 7×32 TC – Tinned Copper
Insulation
Element Material Thickness [in.] Color Code
Conductor(s) SR-PVC – Polyvinyl Chloride (Semi-Rigid) 0.011 Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe
Outer Shield Material
Shield Type Material Coverage Drain wire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC
Outer Jacket Material
Material Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.032 in 0.284 in
Cable Diameter (Nominal): 0.284 in

Electrical Specifications

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Conductor(s) 25 Ohm/1000ft 30 pF/ft 55 pF/ft 1.5 Amps per Conductor at 25ºC
Nom Outer Shield DCR: 18 Ohm/1000ft
Voltage
UL Voltage Rating
300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

Temperature
UL Rating Operating
60°C (UL CMG);80°C (UL AWM 2464) -30°C to +80°C
Bend Radius
Stationary Min. Installation Min.
3 in 3.4 in
Max. Pull Tension: 88 lbs
Bulk Cable Weight: 52 lbs/1000ft

Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65
Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, IEC 60332-1-2
NEC / UL Compliance: Article 800, CMG
AWM Compliance: 2464, I A
CEC / C(UL) Compliance: CMG
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)



*Please note that freight is not included and is charged separately. Contact us for a quote.
