Optical Turnstile Entrance

Trucco, Inc. - Vineland, NJ

www.TURNSTILES.us is an organization dealing with the physical and electronic securing of building entrances with Turnstiles, Mantraps, EntraPASS Access Control Hardware, and Software since 1989.

The team at TURNSTILES.us is honored to provide our Optical Turnstiles to Trucco in Vineland, New Jersey. Please find featured equipment information, photos, and project documentation below. We appreciate the opportunity to secure your facility.

Optical Turnstiles with Ceiling Kit (No Trenching)

EQUIPMENT

OTSG9000 Optical Turnstiles
– 4-Lane Array (3 standard, 1 ADA width)
– 53″ High Acrylic Barrier Upgrade (to Prevent Gate Hopping)
– Myers Hub on top of each cabinet

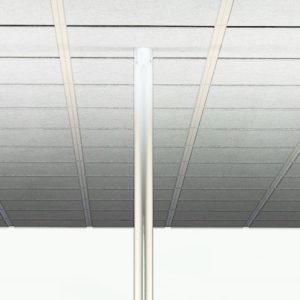

Vertical Conduit Ceiling Kits
– SS 6′ 316 Schedule piping
– SS Carriage Bolts, Nuts, Washers
– SS 1 7/8″ OD Base Flange

*Change Order/Add-On Required for:
Clear Infill Partitions (x2)

SERVICES
Crating and Shipping
Engineering / Drafting
– AutoCAD Equipment Location Details

Installation Technicians
– 2 Installers on Site for an estimated 5 days

Field Labor
Estimated (5) Days Field Labor
(2) Days of Travel Pay

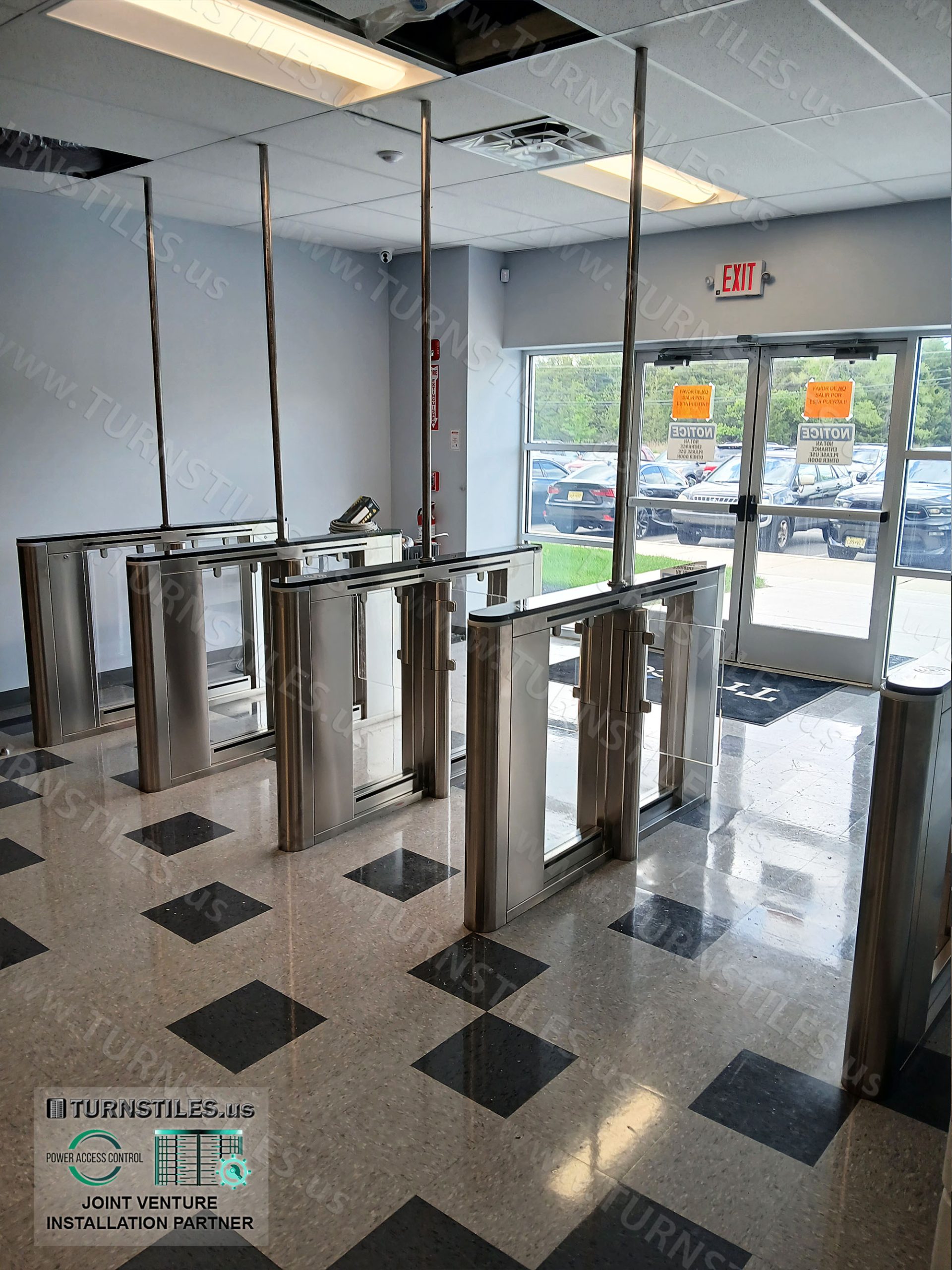

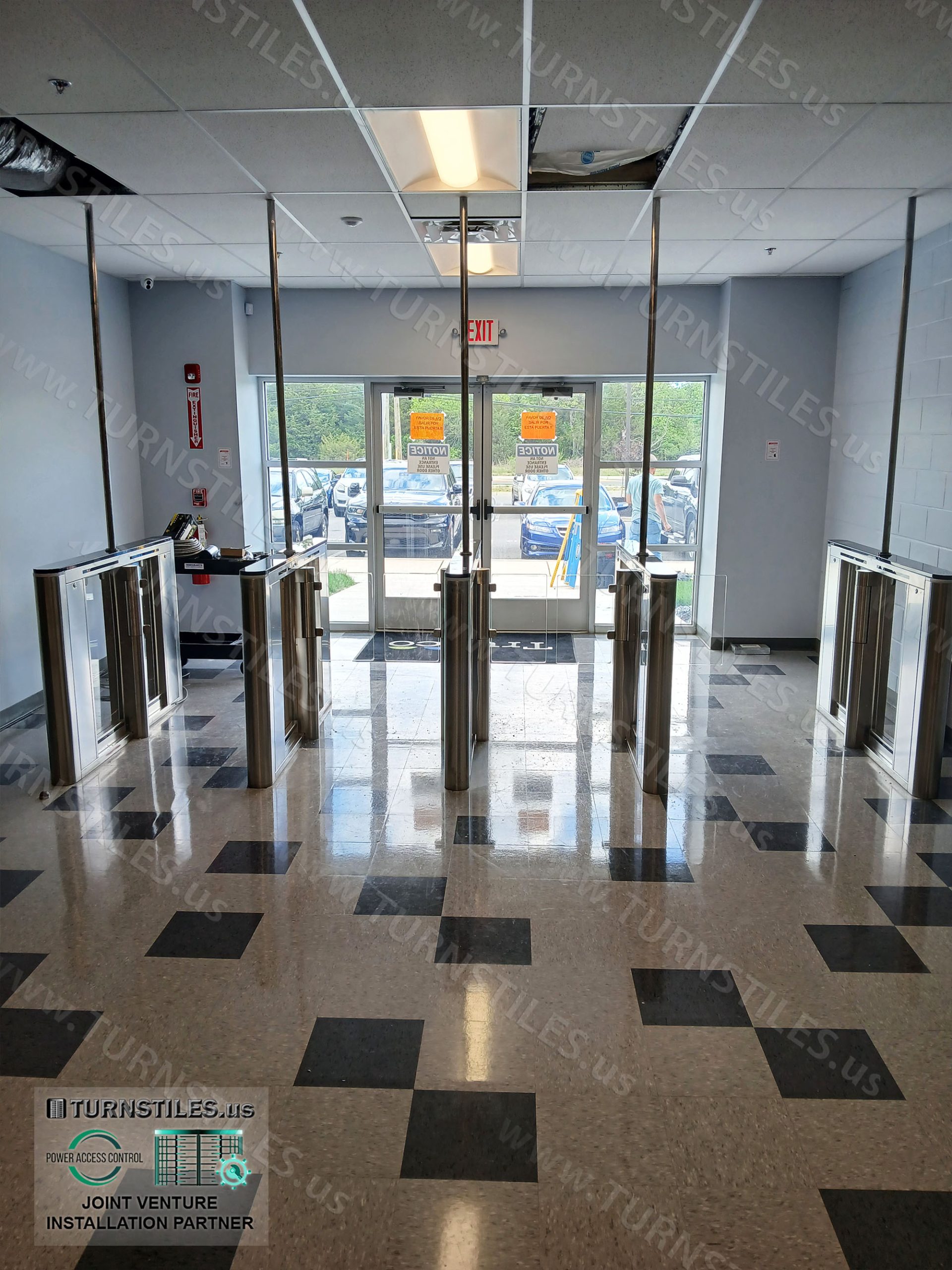

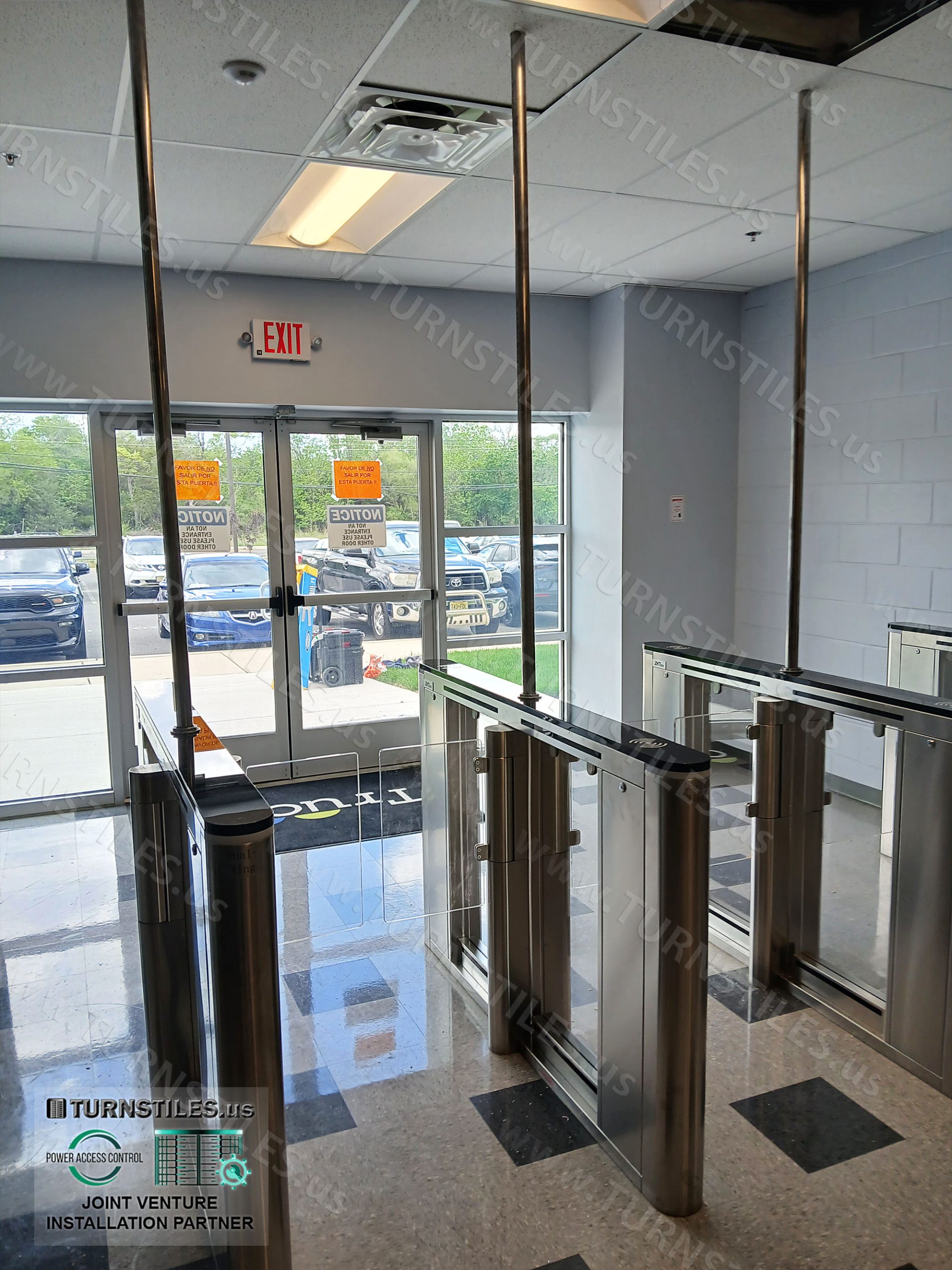

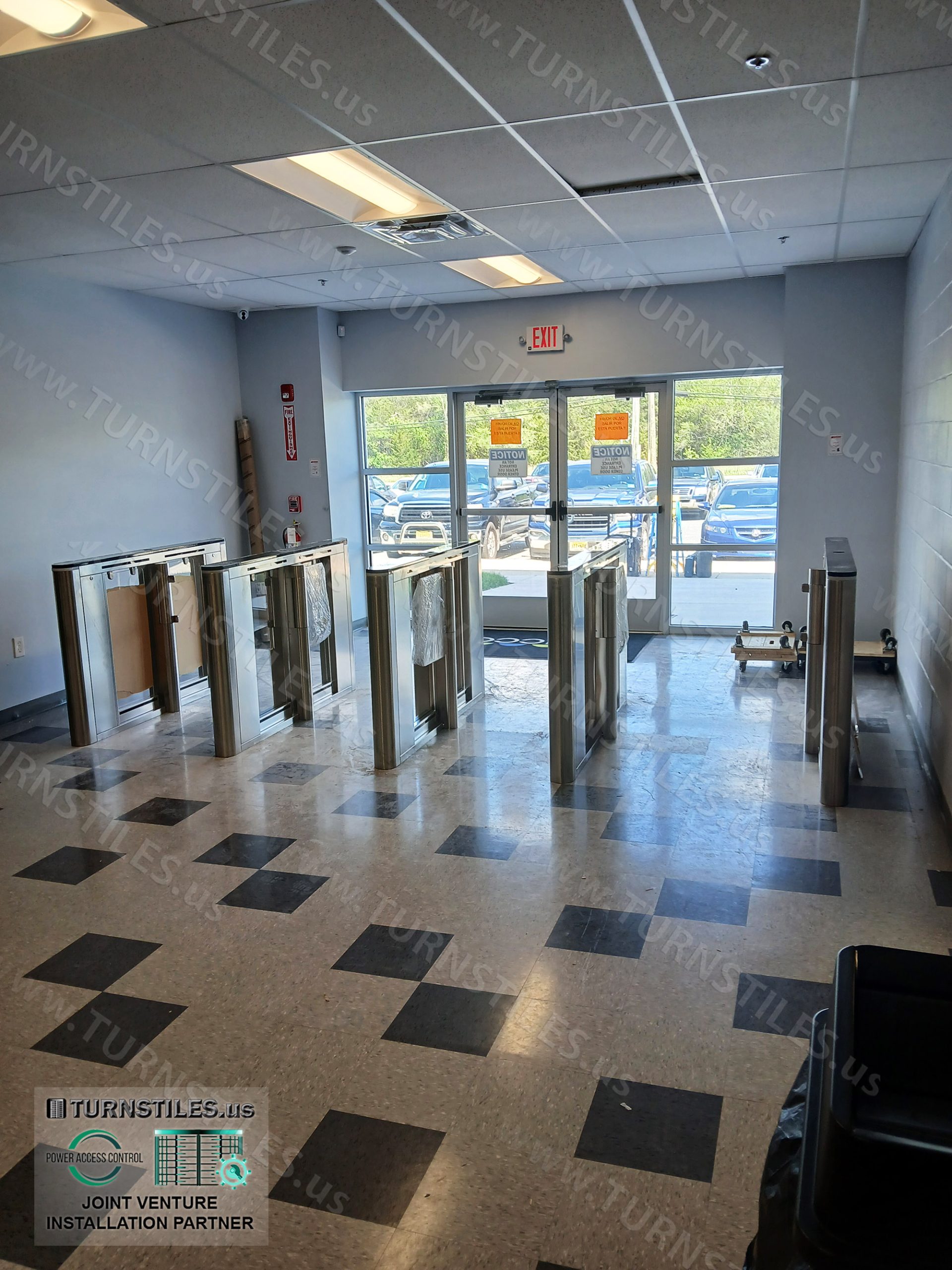

Installation Photos

Featured Equipment

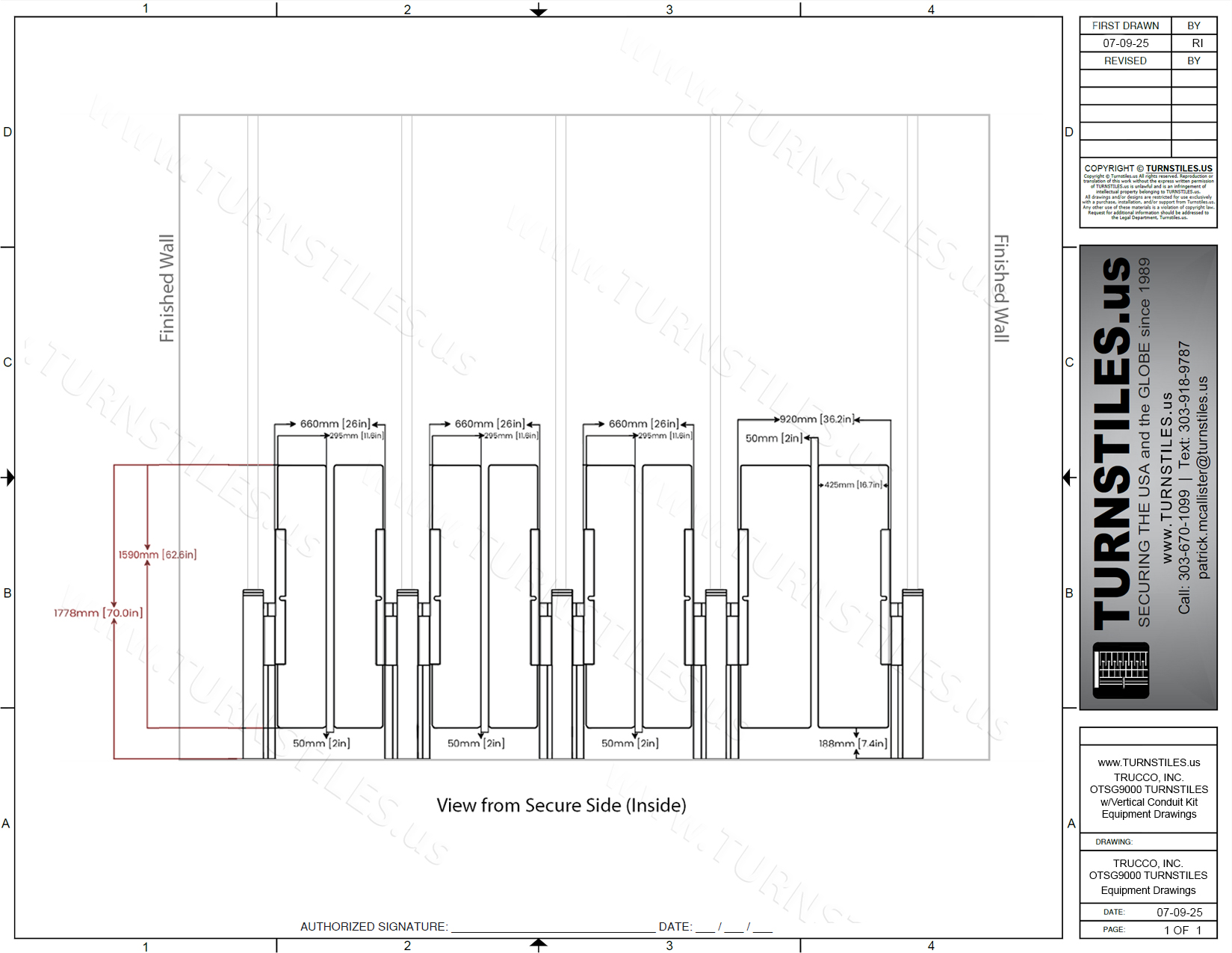

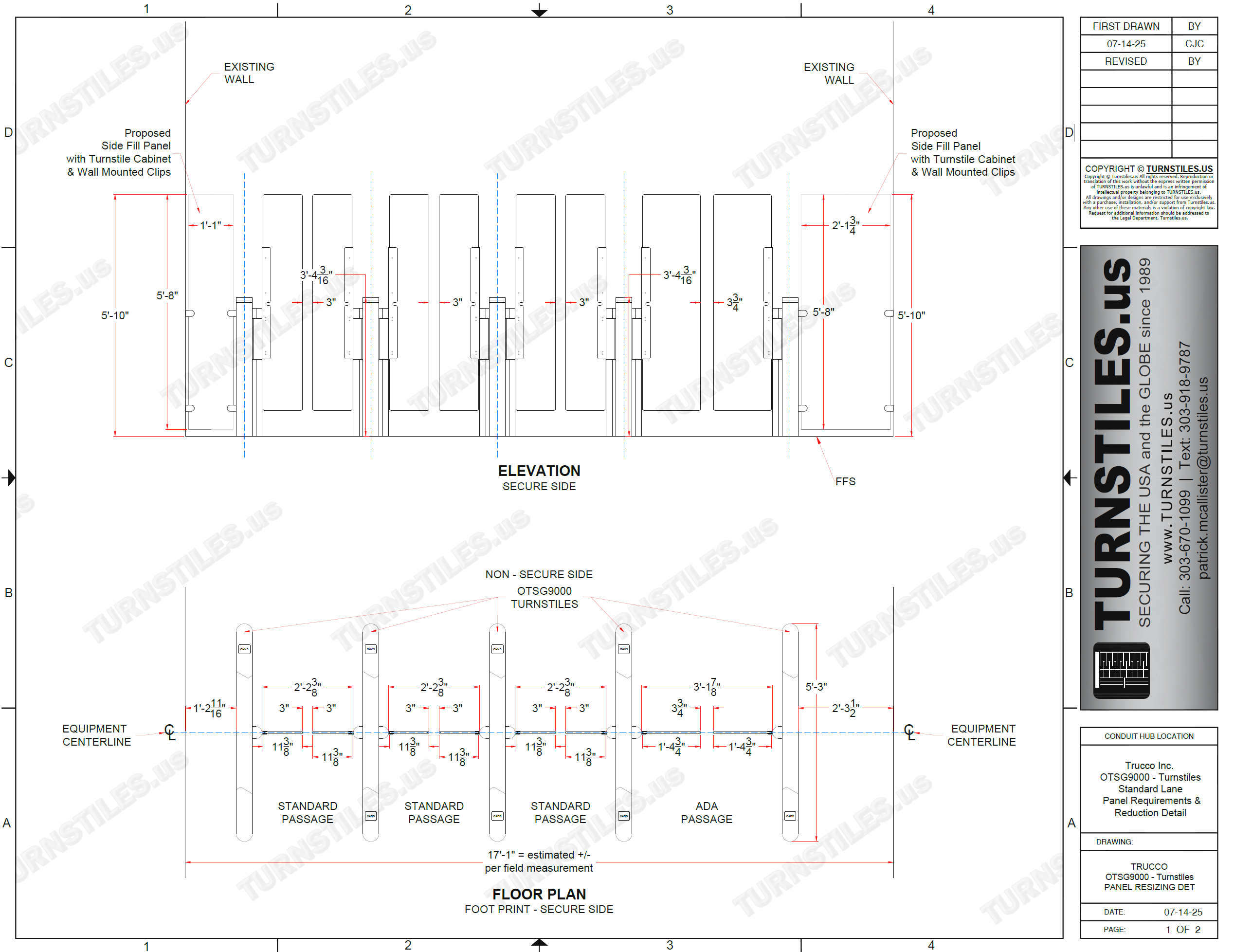

Equipment Dimension Details

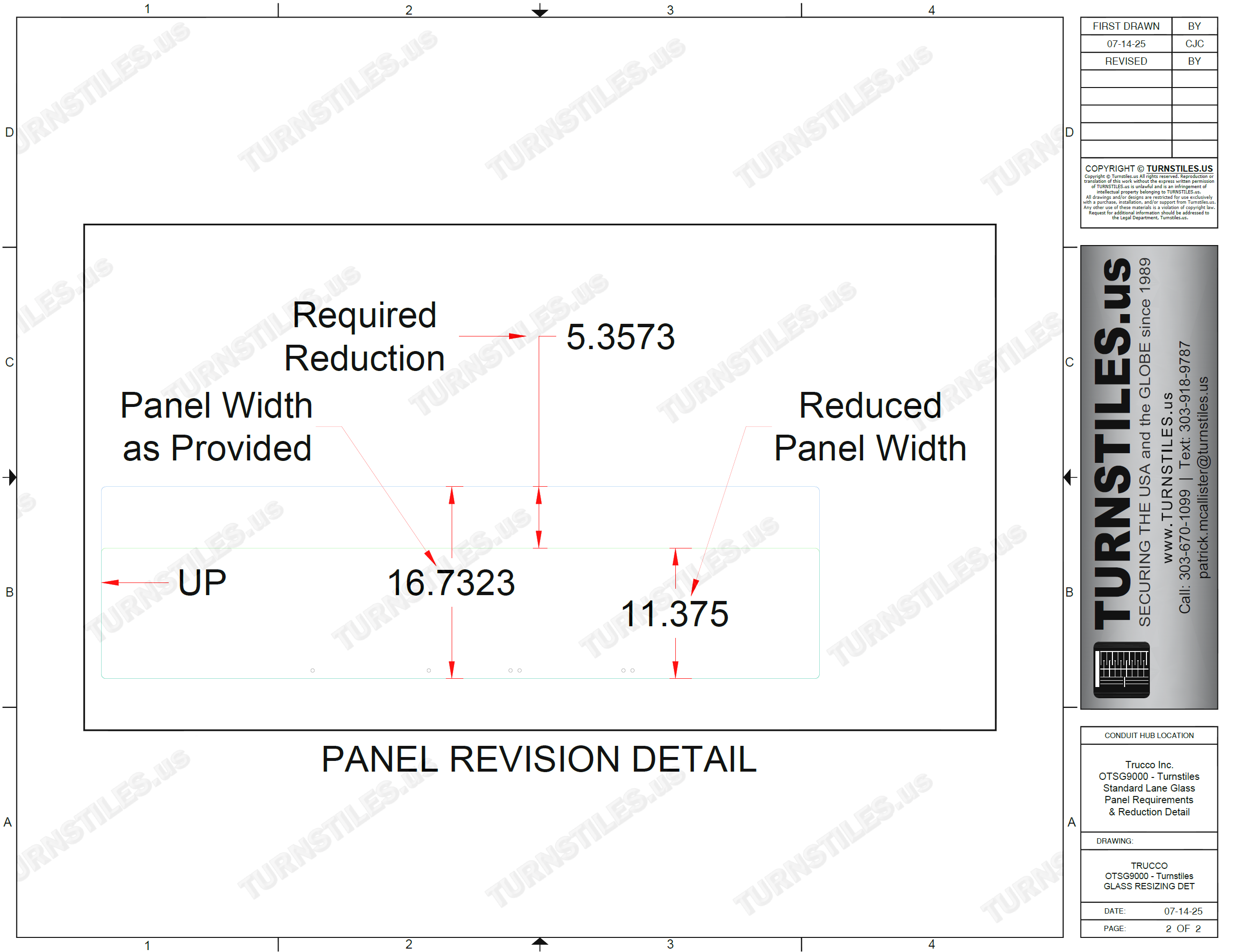

*Panel Revisions:

Need to cut: (QTY 6) Acrylic Panels cut down with touch-safe polished edge and corners, on one side from 16.732″ to 11.375″

Need to add: (QTY 1) 5’8″ x 1’1″ Polycarbonate Panel 1/4″Thick
(QTY 1) 5’8″ x 2’1.75″ Polycarbonate Panel 1/4″Thick
(QTY 8) Clips for 1/4″ Panels



Provided Dimensions of Space Between Cabinets As-Built:

Glass Partition 1 (ADA Gate to wall): 14 11/16″

ADA Access motor to motor: 37 7/8″

Standard Access motor to motor: 26 3/8″

Glass Partition 2 (Standard Access to wall): 27 1/2″

5/5
