CLEARbox Kit Temperature Controlled Polycarbonate Enclosure

$ 682.00$ 3,200.00

CLEARbox protective enclosures are designed specifically to help secure, contain, and most importantly help ‘weatherize’ electric devices functioning in harsh environments. The heating/cooling system with vent can keep the container at a controlled temperature, perfect for temperature-sensitive electronics.



Clear

Description

CLEARbox Kits are protective enclosures designed specifically to secure, contain, and most importantly help weatherize electric devices operating in harsh environments. The heating/cooling system with vent can keep the container at a controlled temperature, perfect for electronics that are temperature-sensitive – and to resolve heat generated by devices themselves. The locked cases help guard against vandalism (accidental or intentional), as well as dirt, dust, and grime. They come with A/C, fan, and/or heat to control the temperature inside the box so that electronic devices can be protected on outdoor turnstiles and gates. An access control reader can be mounted inside and be used through its clear window.

*PLEASE NOTE: Assembly required. Factory assembly, wiring, mounting plates, and installation services are available. Our most popular CLEARbox Full Kit uses an 18 x 16 x 10″ enclosure, with room to spare for the housing of your main equipment. A variety of custom options and devices can be built into your unit.  Contact TURNSTILES.us for assistance with your configuration.

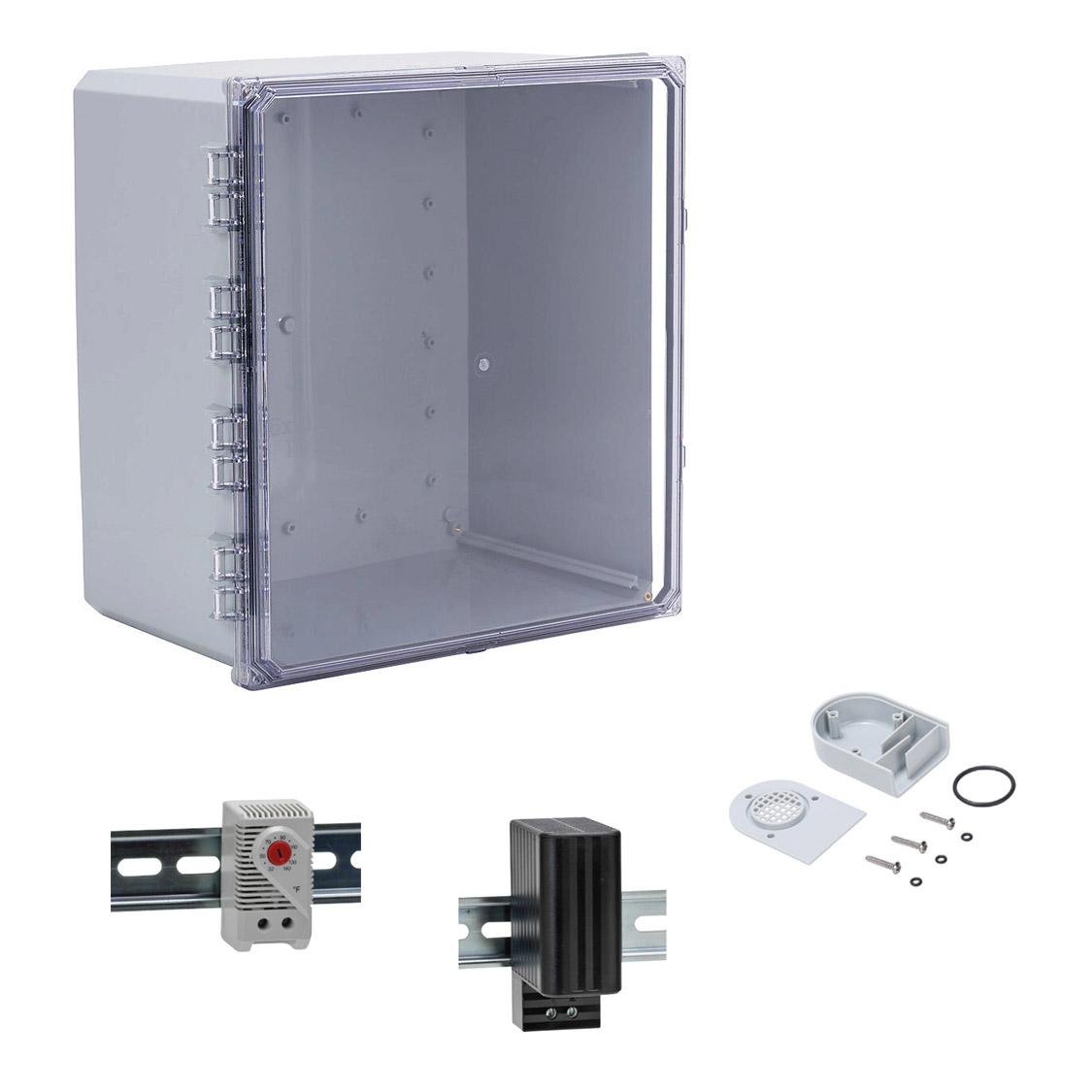

  • The Lite Heating Kit Includes:
    • CLEARbox Enclosure
    • Vent Assembly – Rainproof ventilator, large, polycarbonate, for pressure compensation. Mounting hardware.
    • Heating Unit – Electrical enclosure heater, 10W heating capacity, touch-safe PTC resistor heating element, 120-240 VAC/VDC operating voltage, 35mm DIN rail mount.
    • Small Adjustable Thermostat – N.C. (open on rise) 32 to 140 deg F, 12.6 deg F switching differential, 35mm DIN rail mount, for electrical enclosure climate control.
    • Back subpanel – fitted internal backplate, carbon steel, white, powder coat finish.
    • Rail/bracket mounting hardware included.



  • The Lite Cooling Kit Includes:
    • CLEARbox Enclosure
    • Vent Assembly – Rainproof ventilator, large, polycarbonate, for pressure compensation. Mounting hardware.
    • Cooling Fan – Compact directional cooling fan, for precise cooling of heat sources inside an enclosure, 100-240 VAC operating voltage, 50/60 Hz, panel mount, IP20.
    • Small Adjustable Thermostat – N.C. (open on rise) 32 to 140 deg F, 12.6 deg F switching differential, 35mm DIN rail mount, for electrical enclosure climate control.
    • Back subpanel – fitted internal backplate, carbon steel, white, powder coat finish.
    • Rail/bracket mounting hardware included.



  • The Full Kit Includes
    • CLEARbox Enclosure ( 18x16x10″ )
    • Vent Assembly – Rainproof ventilator, large, polycarbonate, for pressure compensation. Mounting hardware.
    • Heating Unit – Electrical enclosure heater, 10W heating capacity, touch-safe PTC resistor heating element, 120-240 VAC/VDC operating voltage, 35mm DIN rail mount.
    • Thermoelectric Cooler –  Premium thermoelectric cooler, 170 BTU/H, 24 VDC operating voltage, 2.5A running current, recessed mount. For use with NEMA/UL Type 4, 4X or 12 enclosures. Hardware included.
    • Dual Adjustable Thermostat – N.C. (open on rise) 32 to 140 deg F, N.O. (close on rise) 32 to 140 deg F, 13 deg F switching differential, 35mm DIN rail mount, for electrical enclosure climate control.
    • Switching Power Supply – 22-28 VDC output, 4.17A, 100W, 120/240 VAC or 100-375 VDC nominal input, 1-phase, enclosed, aluminum housing, panel mount, screw terminals.
    • Back subpanel – fitted internal backplate, carbon steel, white, powder coat finish.
    • Rail/bracket mounting hardware included.



FEATURES of the CLEARbox Enclosure

  • Specialized enclosure for electronic devices
  • Standard color – Light gray with a gloss finish, Clear Door
  • Best material – bases and clear covers are made of high-impact, UV resistant polycarbonate.
  • Easy ordering – One Kit includes base, lid, mounting feet or flanges and all lid fastening hardware.
  • Flexible interior mounting options
  • Features multiple bosses for easy installation of devices and DIN rails.
  • UL-50 / c-UL Listed (files # E229365, # E207562)
  • Polycarbonate is stable and holds its tensile strength better than other non-metallic materials over a temperature range from -40˚F to 265˚F.
  • Standard hinges for easy door removal or replacement while permitting a full 225-degree door swing.
  • Hinged cover with 4 screws, removable
  • Non-metallic, wifi-friendly
  • Protects readers, devices, wires, sockets, etc.
  • Outdoor use, waterproof boxes with lock
  • Temperature controlled units maintain a set temperature inside the box



DRAWING & DIMENSIONS

INSTALLATION Example Using CVX021 Device

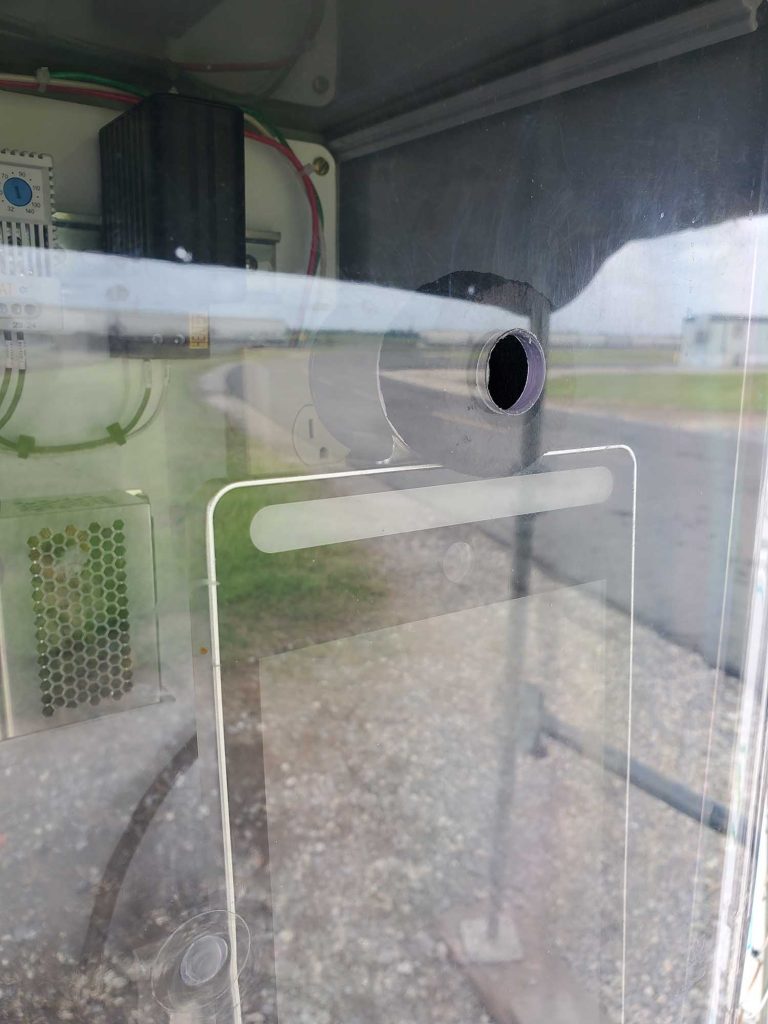

Shown: Customer photo of a CLEARbox Full Kit fitted with a CVX021 Temperature Scanner
