TUS-WKS Weigand Keypad System

Please Login for Pricing





Login or Sign Up

Description

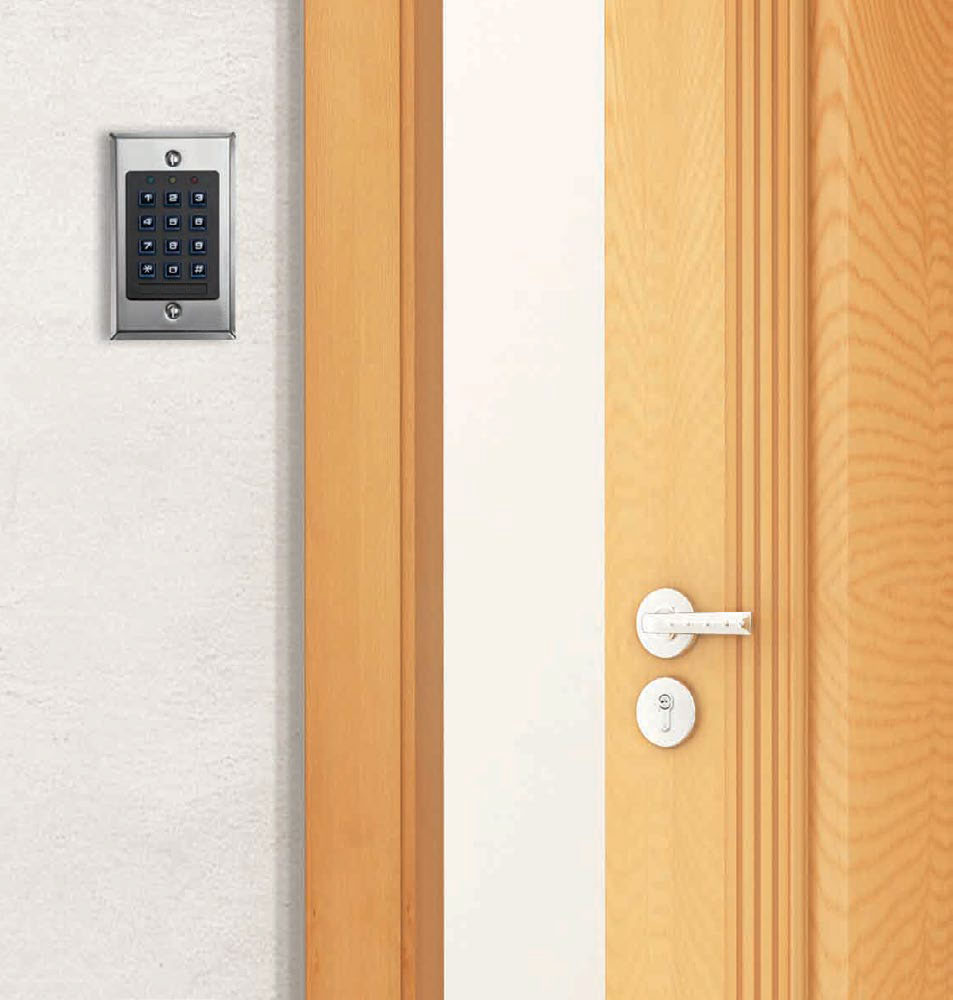

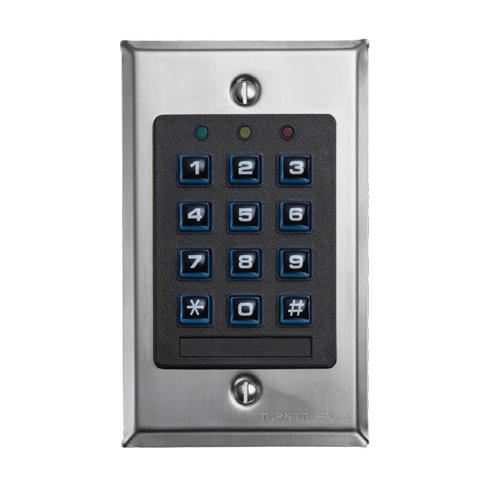

The TUS-WKS digital keypad comes pre-programmed and synced to a digital controller for complete control of up to two electrically locked doors (only one keypad included). The 3″x4″ illuminated keypad features a flush-mount stainless steel faceplate, ideal for indoor applications. It offers broad flexibility and ease of use for access control professionals looking for a cost-effective solution for one or two-door configurations.

Data Sheet – TUS-WKS Weigand Keypad System

Installation and Operation Instructions – TUS-WKS



FEATURES

  • 12-key illuminated 3×4 keypad
  • Dual-voltage 12 VDC or 24 VDC
  • Compatible with access control systems using standard Wiegand output
  • Compatible with access control systems using Wiegand or Character output
  • Single gang mounting
  • Red, green, and yellow status LEDs
  • Tamper detection
  • True 10-digit operation
  • Audible keystroke echo
  • 16 foot (4.88m) cable included

OPTIONS

  • Weather-resistant clear cover and/or backbox
  • Additional Keypad

SPECIFICATIONS

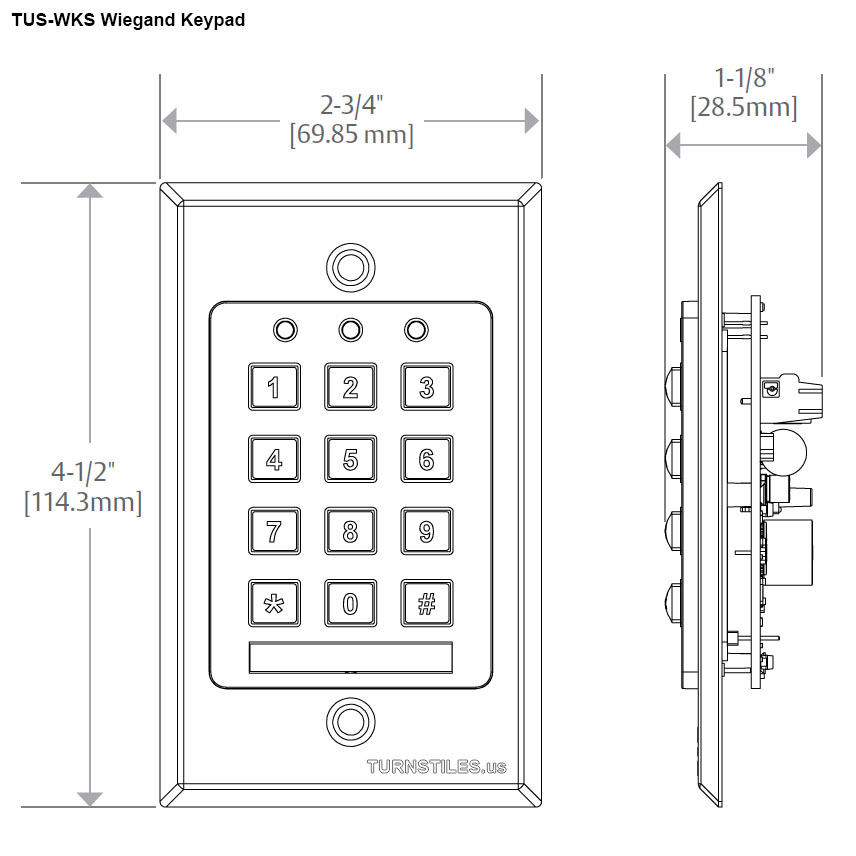

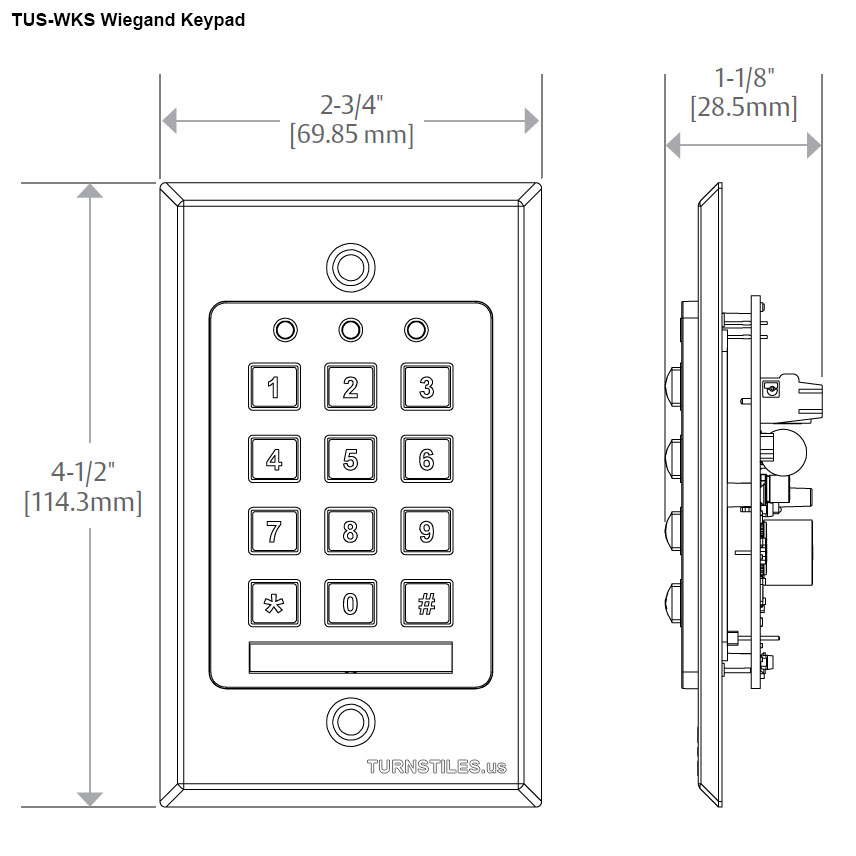

  • Dimensions:
    Keypad: 2-3/4″W x 4-1/2″H x 1-1/8″D
    Enclosure: 6″W x 8″H x 3″D
  • Electrical:
    CPU: Dual-voltage 12/24 VDC; Minimum 1A supply for the base unit, add supply current for any devices connected to the DC outputs
  • Keypad:
    12 VDC: 24 mA at rest; 52 mA active
    24 VDC: 50 mA at rest; 110 mA active
  • Operating Temperature:
    +32 to +110F [0 to +43C]
  • Indoor use
  • Endurance: 1,000,000 cycles
  • Shipping Weight: Keypad only: 1.5lbs [0.68kg]
  • Finishes: US32D/630 – Satin Stainless Steel

For More Information and Services Contact us



Additional information

Weight 2 lbs
Dimensions 8 × 6 × 8 in
