Description

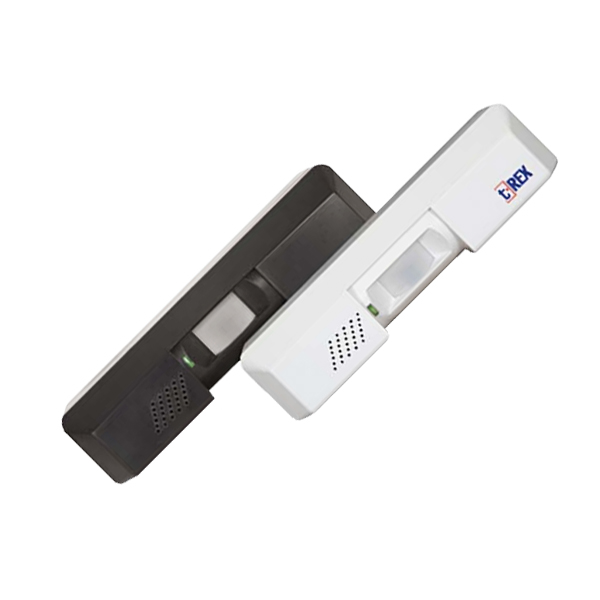

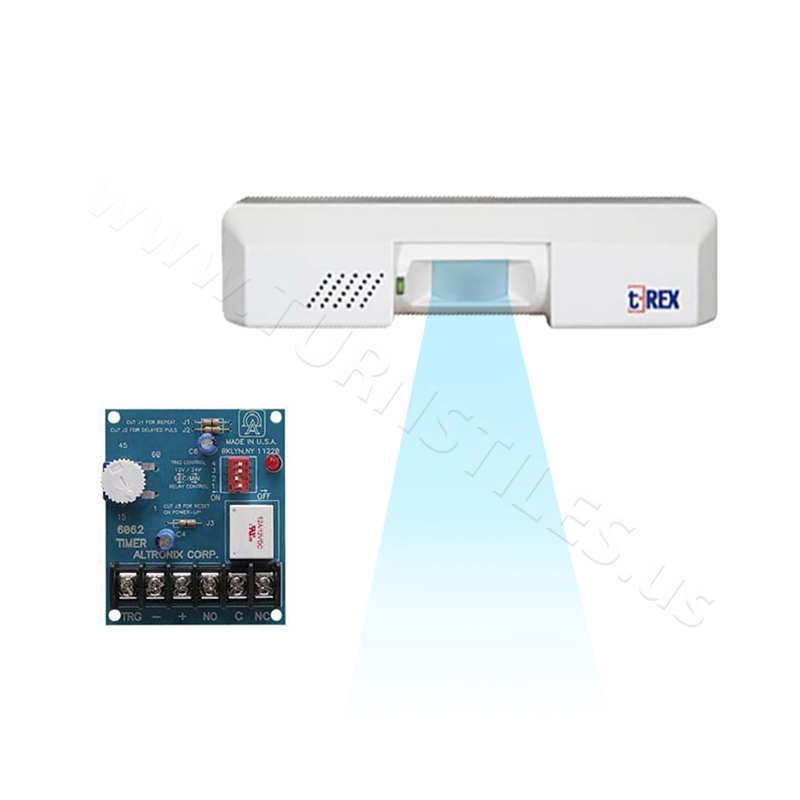

The T-Rex Infrared Exit Detector Kit is a complete solution for hands-free exit control in turnstile and access control applications.
By combining a precision infrared request-to-exit detector with a configurable timer relay module, the system delivers reliable, momentary output signals required for proper turnstile operation.

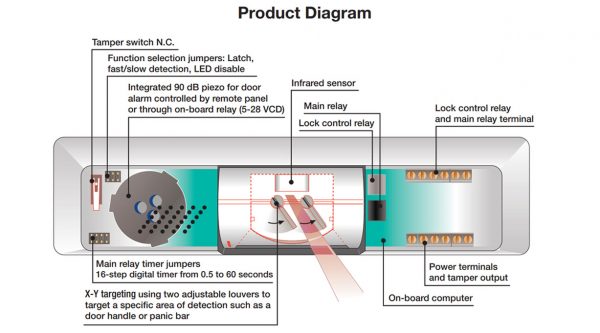

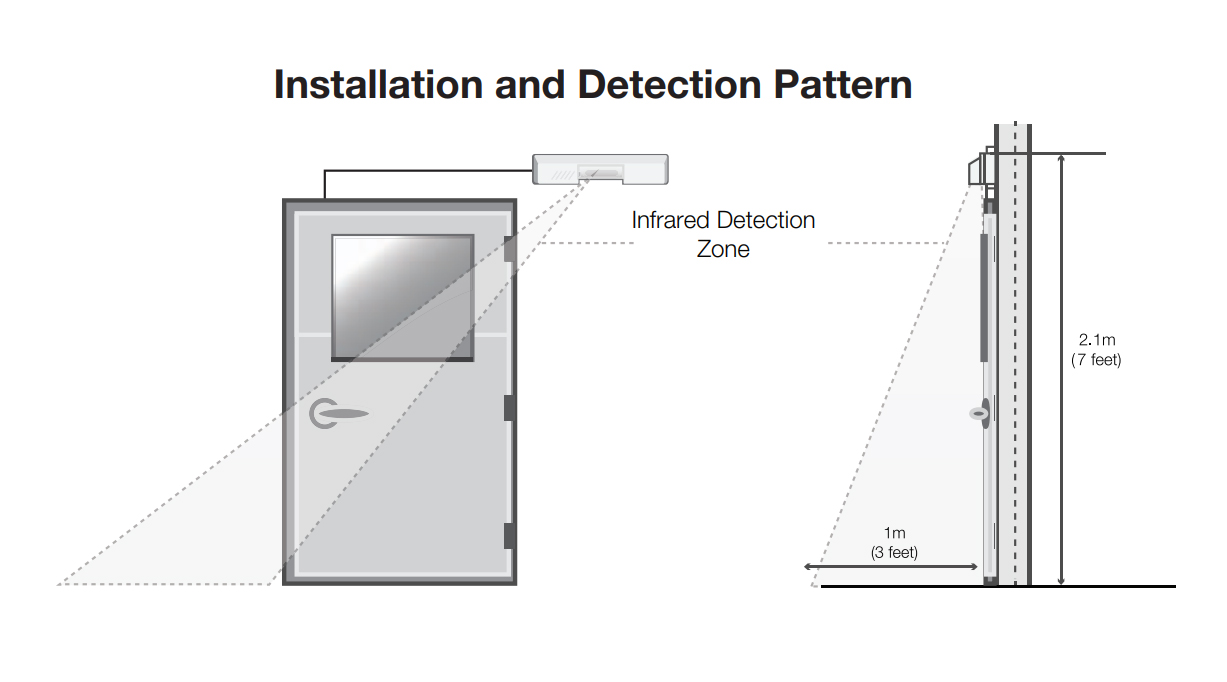

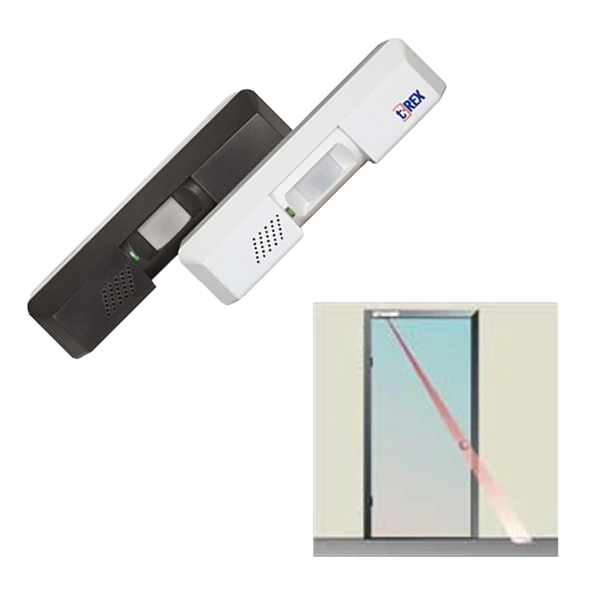

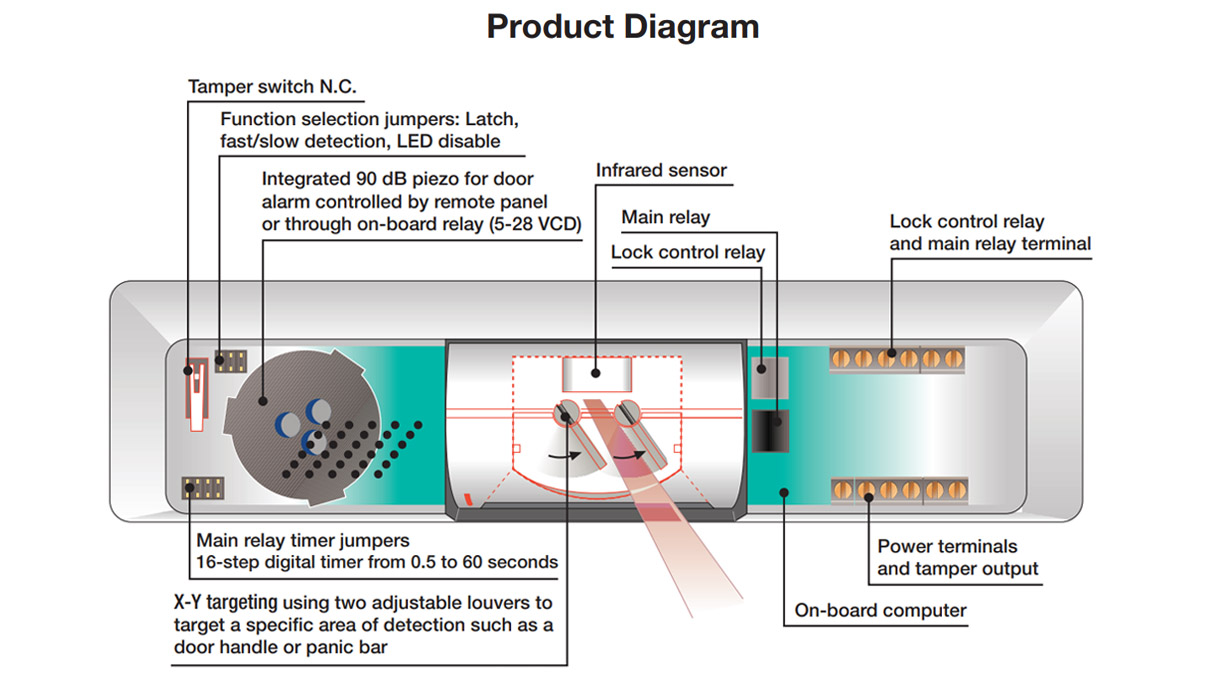

T-Rex provides a complete solution to exit detection and door surveillance for access control applications. Outstanding innovations such as horizontal and vertical Detection Zone Targeting and DSP (Digital Signal Processing) make T-Rex the fastest and most reliable passage detector on the market today. Horizontal and vertical targeting adds an extra layer of security by adjusting the detection zone. The detection area of the T-Rex can be adjusted so that it will not “hit” the floor along the doorjamb, defeating any attempt to circumvent door supervision by sliding objects under the door. In addition, it uses infrared detection coupled with DSP sampling to allow the T-Rex to accurately detect exits and prevent false “Door Forced Open” alarms.
Data Sheet – T-Rex InfraRed Request to Exit Detector with Timer Module Relay
Turnstile Integration
The T-Rex detector must be used in conjunction with a timer relay module for proper turnstile or gate control.
The detector triggers the relay, which outputs a momentary signal (~1 second) to the turnstile exit input, ensuring consistent and reliable operation.
Key Features & Benefits
- Hands-free exit detection (no push buttons required)
- Adjustable infrared detection zone
- Horizontal and vertical targeting control
- Reduces false alarms with DSP filtering
- Compatible with access control and turnstile systems
- Reliable momentary signal output via timer relay

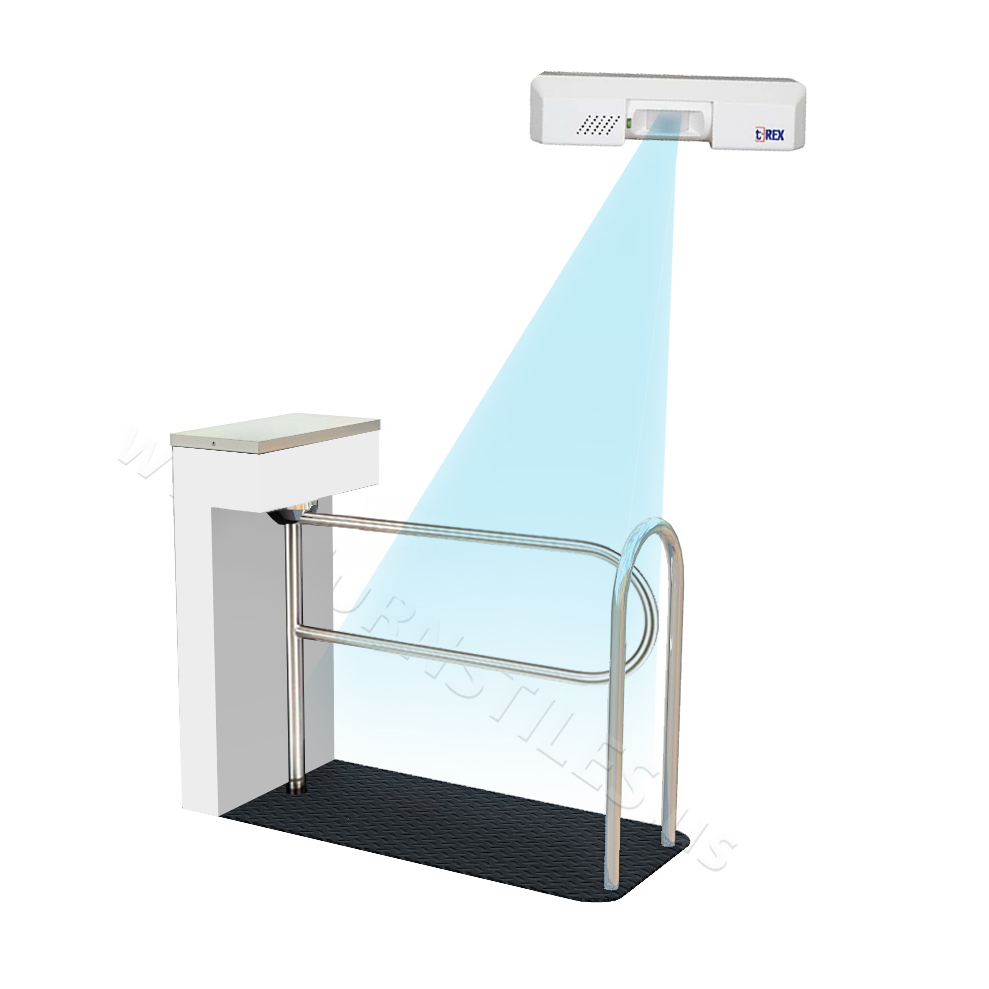

System Overview
How It Works:
- User approaches exit area
- T-Rex detects motion via infrared field
- Detector triggers timer relay module
- Relay outputs a momentary signal (~1 second)
- Signal activates turnstile exit input
Technical Specifications
Detector
Type: Passive Infrared (PIR)
Detection Range: Up to 20 ft (6 m)
Narrow targeting: ~10 ft (3 m)
Power: 12–28 VDC
Consumption: ~50 mA
Relay: SPDT, 1A @ 30 VDC
Timer: Adjustable 0.5–60 seconds
Timer Relay Module
Input: 12V or 24V DC selectable
Trigger: Voltage, dry contact, or release
Output: Configurable relay timing
Range: 1 second to 60 minutes
Contacts: 8A @ 120VAC / 28VDC
Features:
One-shot timing
Pulse / flasher mode
Reset function
