SolaTurn Solar Powered Portable Turnstile

Please Login for Pricing

Portable Turnstile on Base with Solar Power

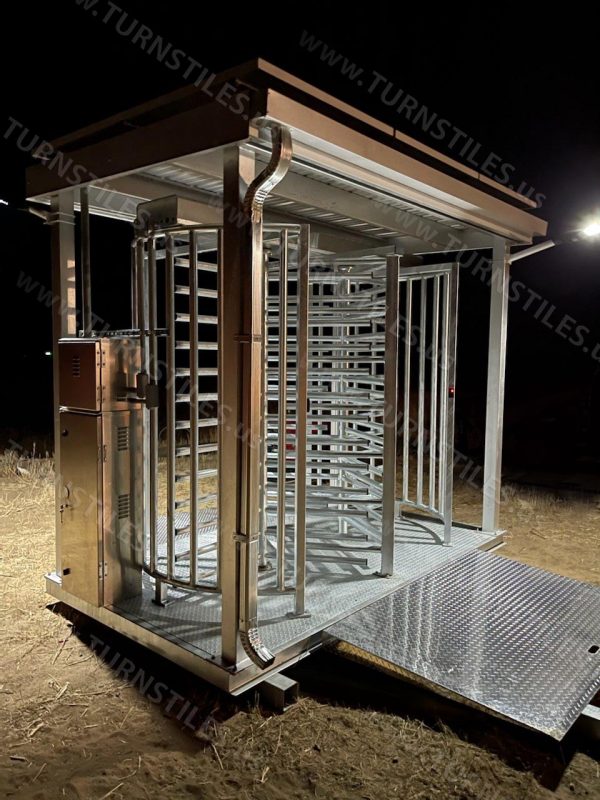

Leading the entrance security industry are our clean-energy solutions with Solar-Powered Turnstiles. Their unique functionality, convenience, and durability make them especially useful on construction sites. The SolaTurn Tandem Portable features a Tandem Turnstile, Portable Base, Canopy Roof, Solar Panels, Backup Battery, Electrical Box, and Floodlight. These units are built to last and are configurable to your requirements.

– Full-Height Tandem Turnstile
– Portable Base (6′ x 10′)
– Basic Turnstile Canopy (6′ x 10′)
– Solar Panel Roof and Electronics Cabinet
– Gutters and Downspouts
– Bright Motion-Activated Floodlight



Login or Sign Up

Description

TURNSTILES.us is leading the entrance security industry in clean-energy solutions with Solar-Powered Turnstiles. The function of the turnstile is to control the flow of people entering and exiting a facility. With a 2-Way Electric Controller, the dual passage may be programmed for Entry and Exit as you wish (both passages, both directions). Solar Power (and optional access control over wifi) makes this unit wireless and convenient to place and relocate when needed. The Portable Base allows it to be moved by forklift. Optional ramps allow people to walk up to the turnstile with ease. With EntraPASS Software, the turnstiles can be programmed as entry only with free exit, or require a scan-to-exit, thereby tracking who is on and off-site. These special features make them especially great for construction sites. The model pictured includes a Tandem Turnstile, Portable Base, Canopy Roof with Gutter, Solar Panel Roof, Backup Battery, and Electrical Box Housing. These products are proudly manufactured in Colorado with steel sourced in the USA. We are working to lead the security gate industry with innovative products and manufacturing that reduce the impact we make on the environment. Automated entrance control at your location offers many cost and time-saving benefits. Ask us how our turnstiles can work for you!

Data Sheet – Solar Powered Portable Turnstiles

Production Worksheet for Manufacturing – Tandem Turnstile

Turnstile Color and Finish Chart



FEATURES

  • Full-Height Tandem Turnstile
  • Portable Forklift Base (6′ x 10′)
  • Basic Turnstile Canopy (6′ x 10′)
  • Solar Panel Roof and Electronics Cabinet
  • Bright Motion-Activated Floodlight (has its own solar power separate from the turnstile)
  • Battery backup stores 3 to 5 days of power
    • Designed based on the following criteria:
    • 1185W, 24V, 297AH, It is sized for 41AH/Day 24VDC Load With approximately 5 Days of AUTONOMY near Birmingham AL.
    • It is designed to power Outlaw Industries AG-30-TT Tandem Turnstile with Fail Lock in Both directions No indicator lights,
      4-HID Card Readers, a 4-Door Controller (for example a KT400), a Small Switch, and an EZ Bridge Point to Point wireless system.
  • Turnstile specifications:
    • (2) Two-Way Electronic Control Heads
    • (4) Card Reader Mounting Plates
    • (130) Black Rubber End Caps on all Arms
    • (2) Bidirectional Key Override Sets (turnstile can be unlocked manually by key, in either direction for service or temporary events)
    • (2) Modular Locking Mechanisms (fail-safe or fail-secure, clockwise or counterclockwise)
    • Steel Hardware
    • Corrosion-Resistant
    • Extra Thick Posts and Mounting Brackets
    • Galvanized Finish
    • Electrical Specifications:
    • Input voltage: 100-220 VAC
    • Frequency: 50/60 Hz
    • Operating Voltage: 30 VDC
    • Operating Current: 0,2A
  • Wiring Installed and Tested
  • Hand Built In The USA



ADDITIONAL OPTIONS

  • Steel Folding Ramps
  • 8-Digit Resettable Counter
  • Extra Battery Backups
  • Cold Weather Package
  • Heel Guards
  • Hinged Lid
  • Filler Barrier or Fence
  • Lockout Bar
  • Portable Base Plate
  • Upgraded Finish
  • Integrate with EntraPASS Access Control Software
  • More Solar-Powered Equipment
    • Matching ADA Doors
    • Single Turnstiles
    • Auto / Vehicle Gates
    • Access Control Reader Station



DIMENSIONS

  • Tandem Turnstile Dimensions
    • 102″ Length
    • 60″ Width
    • 91″ Height
  • Platform Dimensions
    • 6′ length
    • 9′ width
    • 6″ Base Thickness
  • Canopy and Solar Panel
    • 6′ length
    • 9′ width
    • 9.5′ height overall (6″ base, 8.5′ canopy, 6″ panel on roof)
  • Approximate Weight
    • 1590lbs Turnstile + Canopy, Base and Panels



INSTALLATION

Above: Tandem Turnstile with ADA Gate and Canopy, Solar and Portable Base with Ramps.
See more photos from this project Here: Harder Mechanical Contractors



Contact TURNSTILES.us for more info and a quote!
*Shipping is estimated and subject to change. We will contact you about your order.



Additional information

Weight 1590 lbs
Dimensions 102 × 60 × 91 in
Selection

SolaTurn Single, SolaTurn Single with Gate, SolaTurn Tandem, SolaTurn Tandem with Gate
