Description
Our High-Security Series units are engineered to meet the most demanding security and control requirements. They can function as stand-alone units or as part of an integrated system, be fitted for any application with leading-edge technology and features, and integrate with most card reader systems and biometrics. All of our full heights include auto-indexing and self-centering rotors and feature our 6500 Control Head – certified to conform to UL standards.
The HS400 models are available in a variety of sizes and can be crafted in your choice of galvanized (“GV” models), or powder-coated carbon steel (“PC” models) or stainless steel (“SS” models)(304 or 316 for extra corrosive resistance) finishes. Our powder-coated units come in a variety of colors.
APPLICATION/USE
- Locate where you may or may not have a guard present
- Can function as stand-alone units or as part of an integrated system
- Use with EntraPASS or existing access control system
- Can be interfaced with biometric readers, card readers, push-button, and wireless remote controls
DIMENSIONS

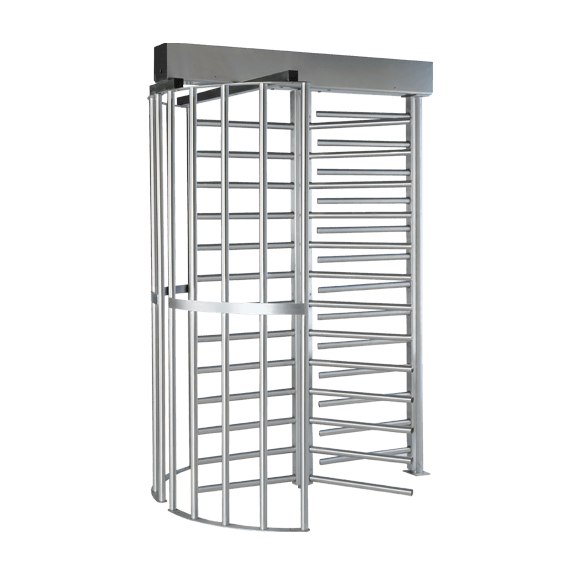

HS430-S Model Dimensions (click to enlarge):
TUBING SIZES
1.5″ TUBING DIAMETER | |
---|---|
HS427-S** | 27″(685.8mm) |
HS430-S** | 30″(762mm) |
1.75″ TUBING DIAMETER | |
---|---|
HS439-S | 39″(990.6mm) |
HS448-S | 48″(1219.2mm) |
*Our recommended clearance is a minimum of 8” above the cover to enable removal and allow access to the control mechanism. For projects with tighter clearances, we recommend using either a split or hinged cover.
**The HS427 and HS430 units are also available with heavy-duty tubing as models HS427-S-HD and HS430-S-HD.
INTERIOR or EXTERIOR
OPTIONS
- Battery Back-Up – 12ah battery kit with 2x 12VDC batteries & 2 amp 24VDC charger
- Bidirectional Key Override Set for Manual or Electric 2-Way Units – Allows the turnstile to be locked independently in each direction with a turn of a key.
- Card Reader Mounting Plate/Enclosure (1 per electronic direction) – For mounting most standard card readers
- Cold Weather Package – Includes 250 Watt Thermostat Controlled Heater and Insulated Mainframe.
- Daylight Visible Indicator Lights – A tri-color (R/G/Y) indicator light. Most models only use R/G.
- End Caps – Colors come in black or safety orange. Rubber caps cover the end of the arm – important for GV or PC units – the end of the arm is an open tube and without a cover, dust or insects could potentially get inside. Stainless steel turnstile arms are already closed on the ends.
- Filler Barrier Partitions – Used to enclose secured area, or as a spacer between units. The standard barrier height is 91”. Standard barrier width is up to 36”.
- Finish Upgrade: Powder Coating Over Galvanizing (Seals steel for corrosive environments)
- Finish Upgrade: 316 Stainless Steel (Heavier-duty overall steel construction)
- Heel Guard/Safety Sleeve Arm Covers – Protective arm sleeve that cushions feet and ankles in event of users kicking the lower bars. Can also be used on upper bars for face and hand protection. Commonly seen is 15 sleeves, 12 upper 3 lower. Color is black.
- Home Position Switch – Additional limit switch provides a SPDT output while at home for security integration
- Lockout Bar (out of service lock) – Prevents rotor from turning (padlock not included)
- One Channel 900 MHz Wireless Receiver (one per direction)
- One or Two Button Wireless Key Fob Transmitter
- Portable Base Plate (galvanized) – For portability of unit; HS427 & HS430 models only
- Proximity Sensor Upgrade – Replaces limit switches with proximity sensors for part longevity
- Single or Double Push Button (installed on-site)
- Full Canopy Roof (Stainless with Box Tubing Frame) – Square covers top of the entire unit
- Yoke Guard (Powder Coated) – Semi-circle that attaches to the unit. Covers passageway only.
- Yoke Guard (Stainless) – Semi-circle that attaches to the unit. Covers passageway only.
FINISH CHOICES

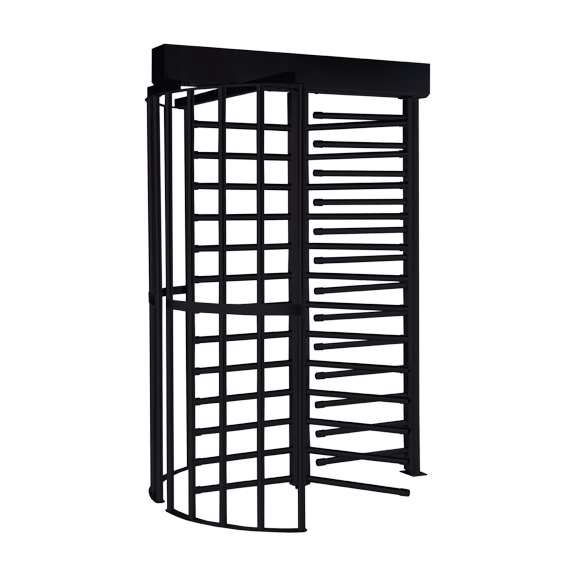

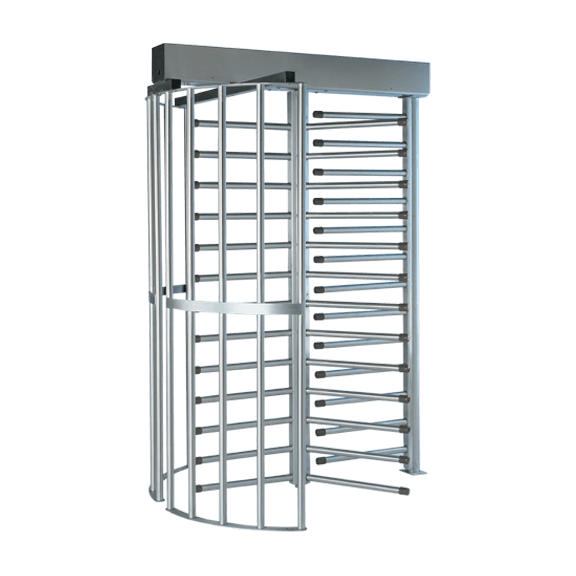

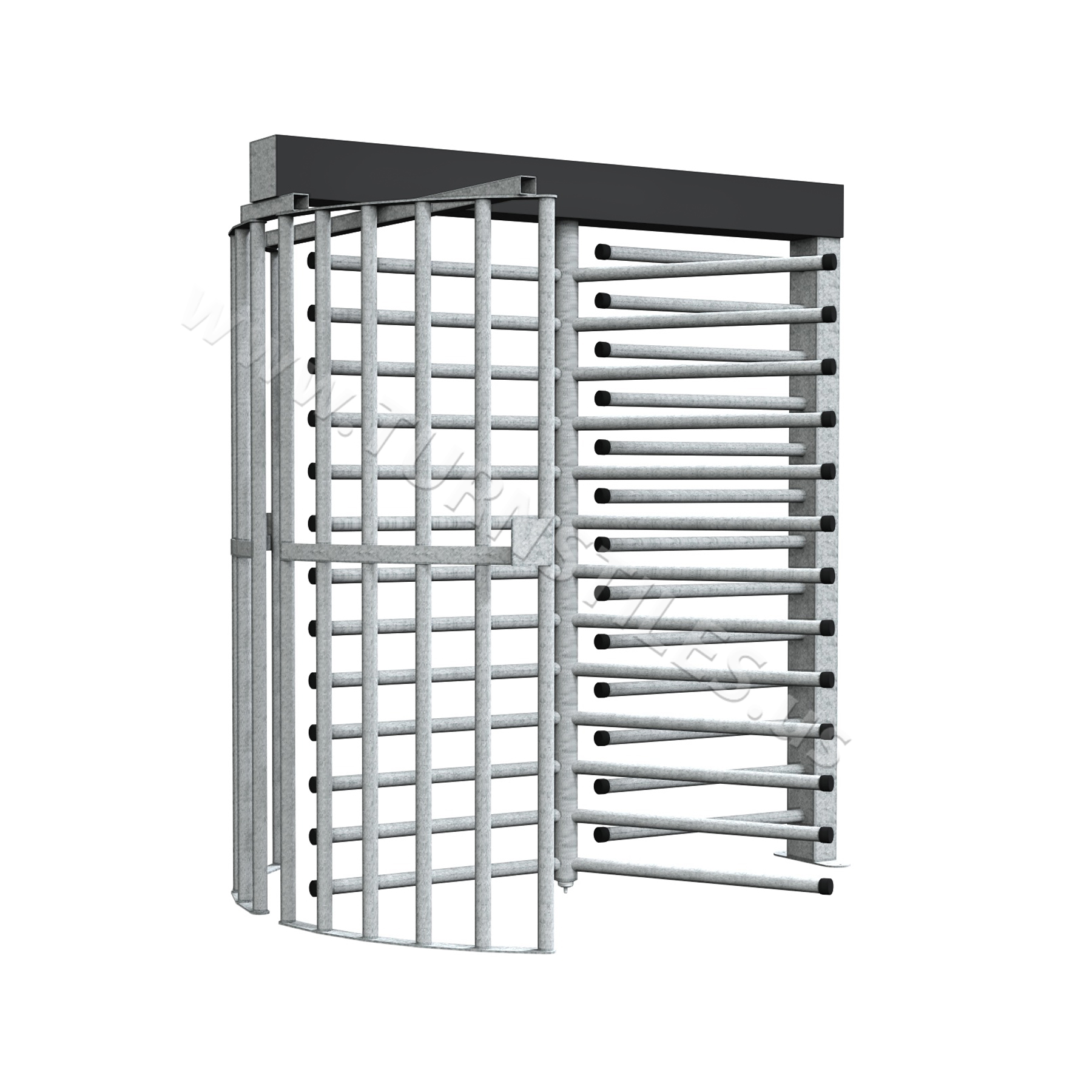

- Carbon Steel – Galvanized (GV)

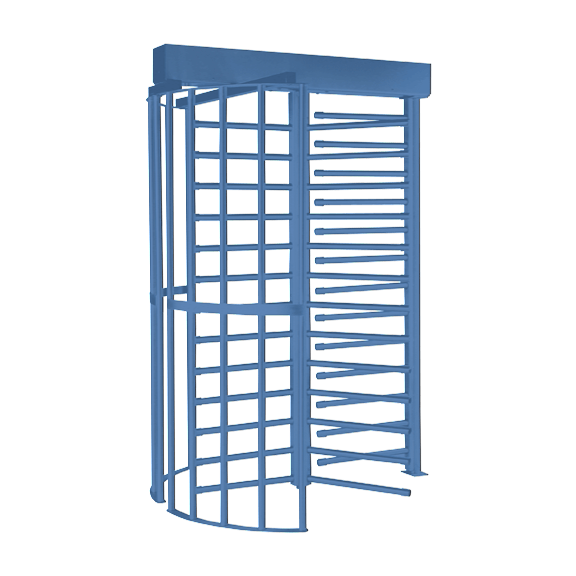

- Carbon Steel – Powder Coated (PC)
- Carbon Steel – PC over GV
- Stainless Steel/Satin Finish (304):
Ideal for food service, manufacturing, hospitality, anywhere that aesthetics are important - Stainless Steel/Satin Finish (316):
Ideal for coastal areas, marine applications, areas exposed to corrosive chemicals and/or chloride (de-icing salts) - Stainless Steel models are also available with Powder Coating, Call to order.
CONTROLS / CONFIGURATION
*Single turnstiles require one Control Head. To add during checkout, select the option for Electronic Controls.
- Manual Both Ways
- Manual One Way / No Passage in Opposite Direction
- Electronic One Way / Free Exit
- Electronic One Way / No Exit
- Electronic Both Ways
*Each electronically controlled direction can be configured as FAIL LOCK (fail-secure) or FAIL OPEN (fail-safe) upon power loss.
SPECS & DOCUMENTATION
Data Sheet – HS400 Series Single
Installation Manual – HS400 Series Single
Correct vs. Incorrect Center Rotation
Production Worksheet for Manufacturing
Turnstile Model | Weight lbs | Model-Specific Documents |
HS427-S-GV-22 | 630 | |
HS427-S-GV-HD-22 | 675 | |
HS427-S-PC-22 | 630 | |
HS427-S-PC-HD-22 | 675 | |
HS427-S-SS-22 | 630 | |
HS427-S-SS-HD-22 | 675 | |
HS430-S-GV-22 | 650 | HS430-S Anchor, Base, Conduit Detail |
HS430-S-GV-HD-22 | 700 | |
HS430-S-PC-22 | 650 | HS430-S Anchor, Base, Conduit Detail |
HS430-S-PC-HD-22 | 700 | |
HS430-S-SS-22 | 650 | |
HS430-S-SS-HD-22 | 700 | |
HS439-S-GV-22 | 850 | |
HS439-S-PC-22 | 850 | |
HS439-S-SS-22 | 850 | |
HS448-S-GV-22 – | 1100 | Dimensions |
HS448-S-PC-22 | 1100 | Dimensions |
HS448-S-SS-22 | 1100 |
INSTALLATIONS
Shown are the HS439 and HS336 ADA Gate.
See our turnstile installation portfolio here.
