Description
The TITAN Full Height Industrial Turnstile is the perfect high-security entrance. It provides a high level of perimeter security and is available in a single or tandem configuration. These units are exported worldwide.
Data Sheet – TITAN Full Height Industrial Turnstiles
APPLICATION
- Suited for applications requiring high volume access and high levels of security
- Used extensively in applications such as mines, factories, warehouses, colleges, building sites and stadiums
- Interior and exterior installations
- Suitable for severe operating conditions
- 3 arm (120º) or 4 arm (90º)

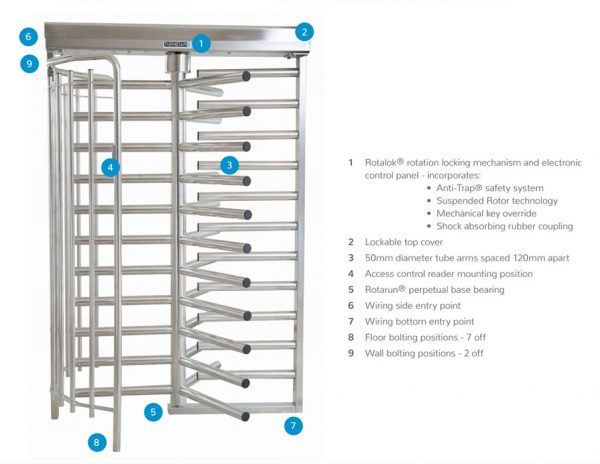

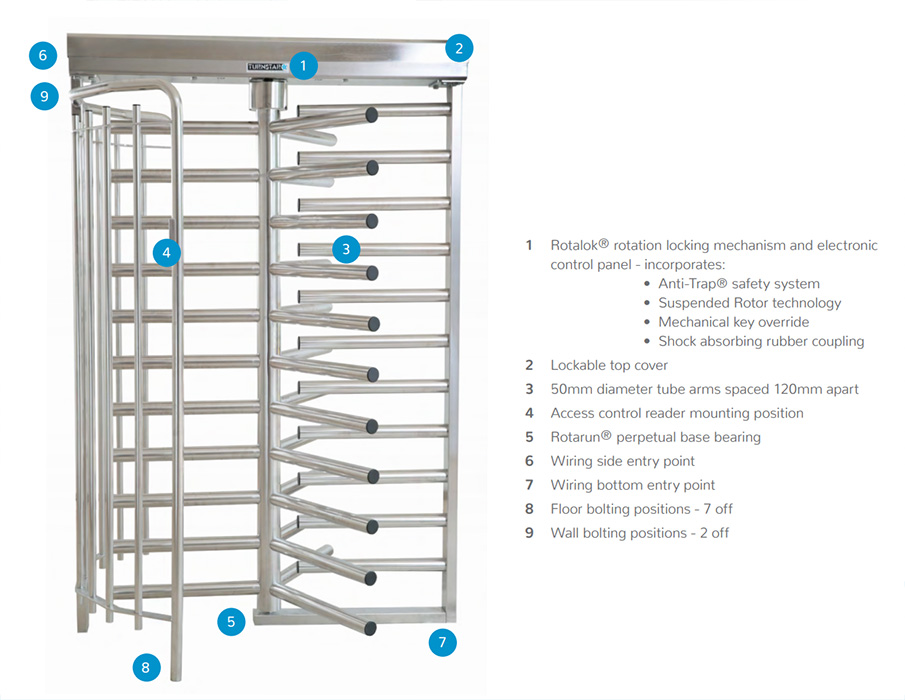

FEATURES

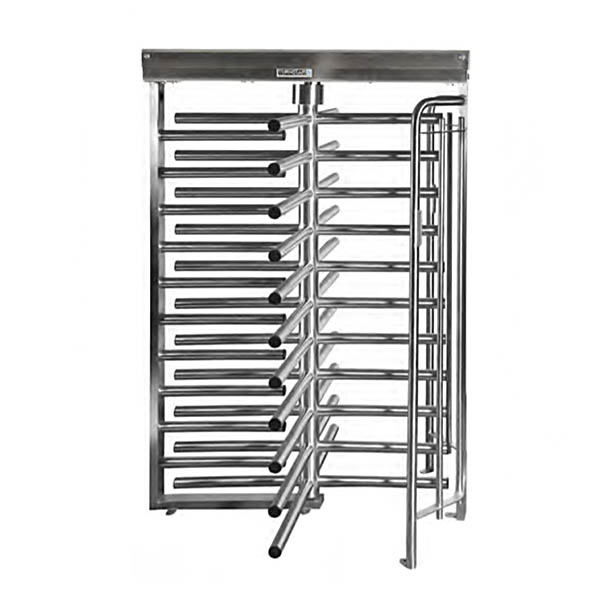

- Full-Height Bidirectional Single Turnstile
- Provides a high level of perimeter security
- Available in a Tandem configuration
- 3 arm (120°) or 4 arms (90°)
- 10-year manufacturer guarantee
- Electric turnstile complete with control panel and logic
- Designed by professional engineers
- Ultra heavy-duty electromechanical rotation locking mechanism
- Suspended rotor technology – eliminating stress on the base bearing
- Self-centering rotation system – rotor returns to starting position after every rotation
- Shock-absorbing rubber coupling system
- Anti-trap safety system – no mid-rotation locking or trapping in the event of a power failure
- Programmable PLC logic with user diagnostic features
- Mechanical key override – clockwise and anticlockwise directions
- Ultra-quiet, buffered solenoids and pawls
- Designed for severe weather conditions
- Integrates with EntraPASS Access Control System
FINISH CHOICES
- Mild steel with UV resistant polyester exterior powder coat finish (charcoal blue)
- Mild steel with hot-dip galvanized finish
- 304 grade brushed stainless steel
- 316 grade brushed stainless steel
- Other colors available upon request

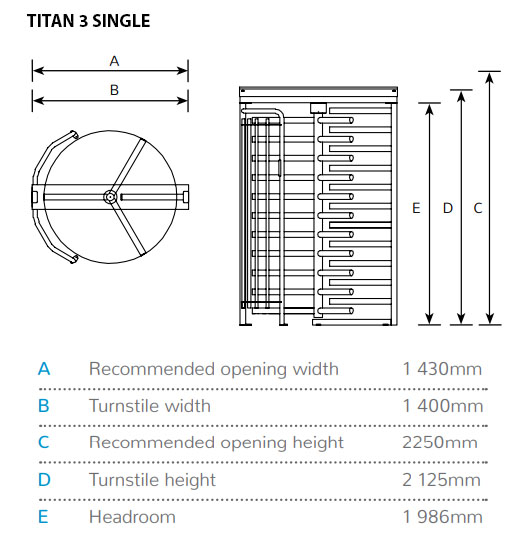

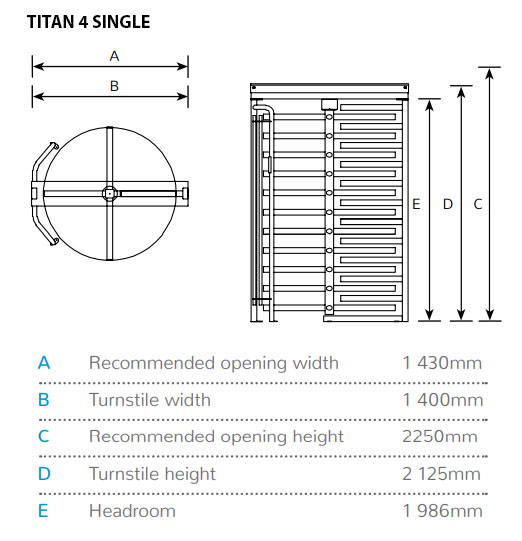

DRAWING & DIMENSIONS
Single Turnstile: 1 400mm wide x 2 125mm high
Recommended minimum opening size: 1 430mm wide x 2 250mm high
Passage Width: 24″ at elbow height, 21.5″ on the ground at mounting
MODEL SPECIFICATIONS
TITAN 4
Electric, bi-directional turnstile complete with control panel and logic
| Single turnstiles | |||
| CODE | DESCRIPTION | ||
| TT4SE | TITAN 4: four arm, full height, bi-directional single turnstile, powder coated | ||
| TT4SGE | TITAN 4: four arm, full height, bi-directional single turnstile, galvanized | ||
| TT4SS304E | TITAN 4: four arm, full height, bi-directional single turnstile, 304 stainless steel | ||
| Double turnstiles | |||
| TT4DE | TITAN 4: four arm, full height, bi-directional double turnstile, powder coated | ||
| TT4DGE | TITAN 4: four arm, full height, bi-directional double turnstile, galvanized | ||
| TT4DS304E | TITAN 4: four arm, full height, bi-directional double turnstile, 304 stainless steel | ||
TITAN 3
Electric, bi-directional turnstile complete with control panel and logic
| Single turnstiles | |||
| CODE | DESCRIPTION | ||
| TT3SE | TITAN 3: three arm, full height, bi-directional single turnstile, powder coated | ||
| TT3SGE | TITAN 3: three arm, full height, bi-directional single turnstile, galvanized | ||
| TT3SS304E | TITAN 3: three arm, full height, bi-directional single turnstile, 304 stainless steel | ||
| Double turnstiles | |||
| TT3DE | TITAN 3: three arm, full height, bi-directional double turnstile, powder coated | ||
| TT3DGE | TITAN 3: three arm, full height, bi-directional double turnstile, galvanized | ||
| TT3DS304E | TITAN 3: three arm, full height, bi-directional double turnstile, 304 stainless steel | ||

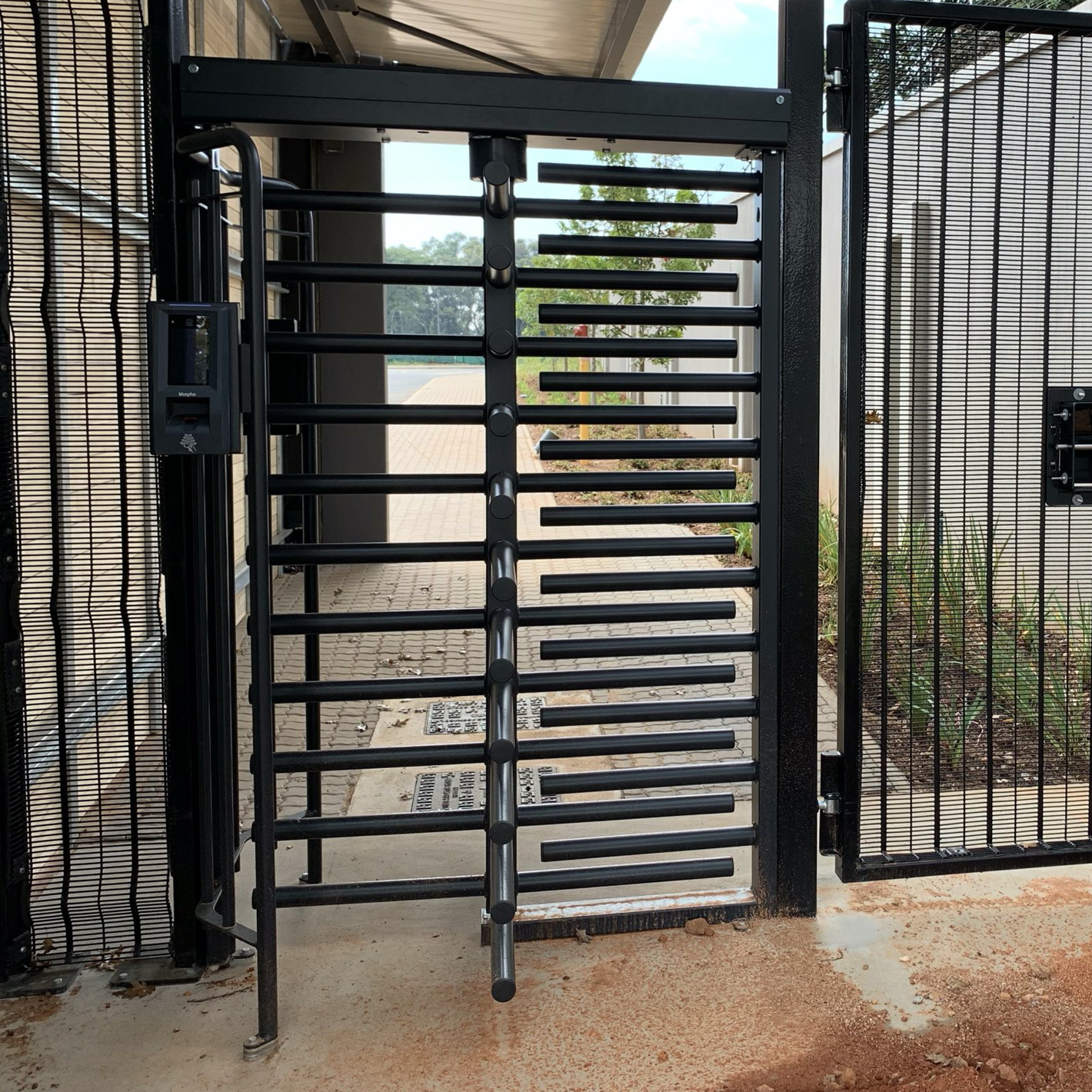

INSTALLATION
Installation is available. See our portfolio of work.
*Note shipping is not included and will be an additional cost. Freight worldwide through FedEx or DHL from TURNSTILES.us Manufacturing South Africa.
