TITAN Full Height Industrial Turnstile Tandem

Please Login for Pricing

The TITAN Full Height Industrial Turnstile is the perfect high-security entrance. It provides a high level of perimeter security and is available in a single or tandem configuration. These units are exported worldwide – contact us for a quote.

Login or Sign Up

Description

The TITAN Full Height Industrial Turnstile is the perfect high-security entrance. It provides a high level of perimeter security and is available in a single or tandem configuration. These units are exported worldwide.

Data Sheet – Full Height Industrial Turnstile

Product Manual

Control Head Mechanism

AutoCAD Equipment Dimensional Detail – TITAN 3 Arm Double (wide)

AutoCAD Conduit Location Detail – TITAN 4 Arm Double



APPLICATION

  • Suited for applications requiring high volume access and high levels of security
  • Used extensively in applications such as mines, factories, warehouses, colleges, building sites and stadiums
  • Interior and exterior installations
  • Suitable for severe operating conditions
  •  3 arm (120º) or 4 arm (90º)



FEATURES

  • Full-Height Bidirectional Double (Tandem) Turnstile
    Also Available in a Single Configuration
  • Provides a high level of perimeter security
  • 3 arm (120°) or 4 arms (90°)
  • 10-year manufacturer guarantee
  • Electric turnstile complete with control panel and logic
  • Designed by professional engineers
  • Ultra heavy-duty electromechanical rotation locking mechanism
  • Suspended rotor technology – eliminating stress on the base bearing
  • Self-centering rotation system – rotor returns to starting position after every rotation
  • Shock-absorbing rubber coupling system
  • Anti-trap safety system – no mid-rotation locking or trapping in the event of a power failure
  • Programmable PLC logic with user diagnostic features
  • Mechanical key override – clockwise and anticlockwise directions
  • Ultra-quiet, buffered solenoids and pawls
  • Designed for severe weather conditions
  • Integrates with EntraPASS Access Control System

FINISH CHOICES

  • Mild steel with UV resistant polyester exterior powder coat finish (charcoal blue)
  • Mild steel with hot-dip galvanized finish
  • 304 grade brushed stainless steel
  • 316 grade brushed stainless steel
  • Other colors available upon request

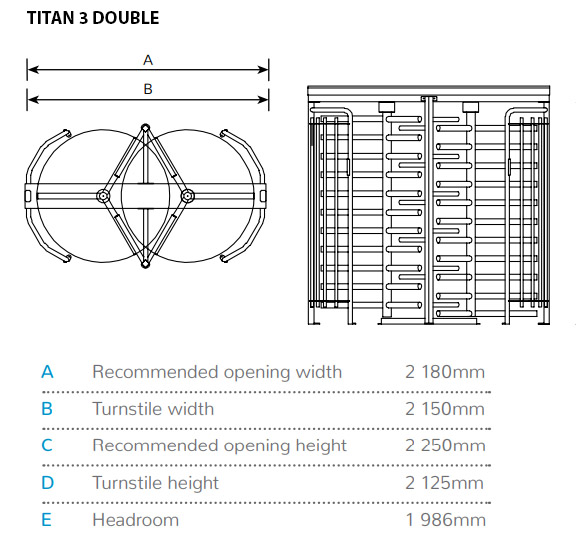

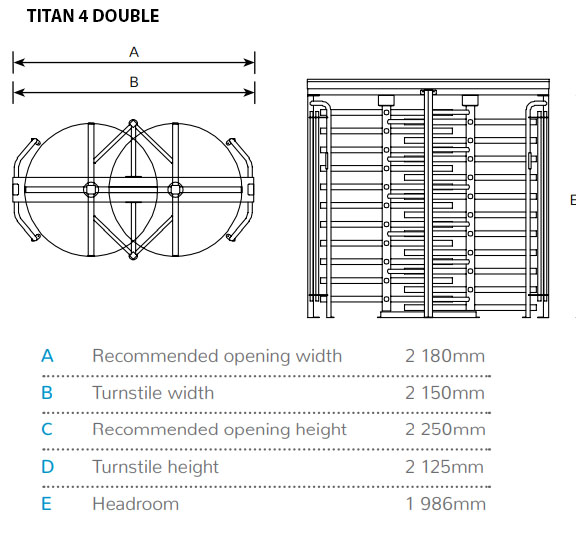

DRAWING & DIMENSIONS

INSTALLATION

Installation is available. See our portfolio of work.

*Ships worldwide

Additional information

Weight 1350 lbs
