Description
Part of the proven TITAN industrial turnstile series, the TQHT Three-Quarter Height Turnstile is a robust industrial access control solution designed for facilities requiring controlled pedestrian flow with reliable operation. With visibility and convenience of a waist-high turnstile, and the durability of industrial-grade construction, it is ideal for applications where high traffic volumes and dependable access control are essential.
Designed for both indoor and outdoor installations, the TQHT features a three-arm rotating barrier and electrically controlled bi-directional operation. Its advanced electromechanical locking system provides smooth, quiet performance while supporting fail-safe or fail-secure operation as required by the application. The self-centering rotor automatically returns to its home position after each passage, while the Anti-Trap safety system prevents mid-rotation locking during power interruptions. The lower height makes the identification of individuals entering and leaving an area easier.
The turnstile integrates easily with card readers, biometric devices, ticketing systems, counters, cameras, EntraPASS software, and other access control platforms. Standard card reader mounting provisions simplify installation while maintaining a clean, professional appearance.
The TQHT is built for long-term reliability in demanding environments. Available in galvanized, stainless steel, or powder-coated finish. Matching ADA swing gates are available for accessible entry compliance.
DOCUMENTATION:
- Data Sheet
- Previous or alternate item numbers: AG-24-TQH, TQH-24
STANDARD FEATURES
- Heavy-Duty 3/4-Height Industrial Turnstile
- 4-Arm rotating barrier design (standard)
- Single or Double/tandem configuration
- Choice of Finish
- Two-Way Electric Controls (standard)
- Mechanical key override in both directions
- Fail-safe or fail-secure configurable locking
- High-speed, ultra-quiet operation
- Rotalok® electromechanical locking mechanism
- Self-centering rotor returns to home position after each passage
- Suspended Rotor Technology for reduced bearing stress
- Anti-Trap® safety system prevents mid-rotation locking
- Shock-absorbing rubber coupling system
- Suitable for indoor and outdoor installations
- Designed for high-volume pedestrian traffic
ADDITIONAL OPTIONS
- Turnstile screen (railing piece in matching finish)
- Reader provision mounting bracket
- Single / double pushbutton in plastic housing
- LED red cross and green arrow indicator light
- Multiple coin acceptor for pay-per-entry systems
- LCD transaction counter with reset key switch
- Random search device
FINISH CHOICES
- Galvanized Steel
- Stainless Steel
- Powder Coated / Powder Coated over Galvanizing
- Standard color is charcoal blue hammer-tone. Custom color by RAL#
APPLICATIONS
- Manufacturing facilities
- Warehouses and distribution centers
- Stadiums and arenas
- Universities and campuses
- Recreation facilities
- Transportation facilities
- Industrial sites
- Employee entrances
- Visitor access control points
SPECS & DIMENSIONS

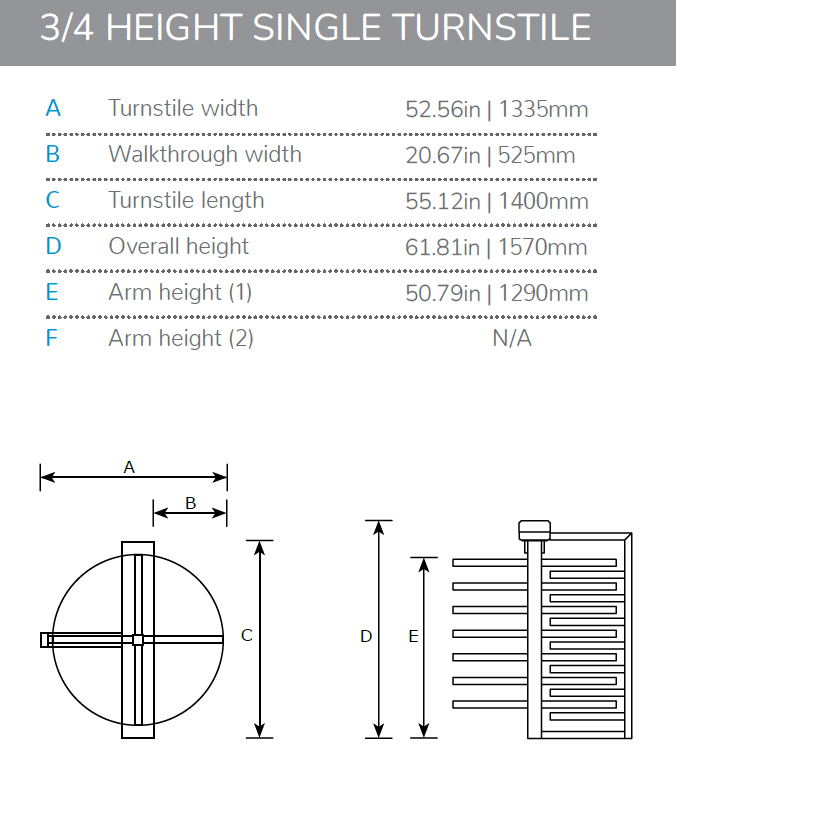

Three-Quarter Height Single Turnstile:
decimal: 52.56″ wide × 55.12″ long × 61.81″ high
fraction: 52 9/16″ wide × 55 1/8″ long × 61 3/4″ high
millimeters: 1335 × 1400 × 1570
weight: 320 lbs.

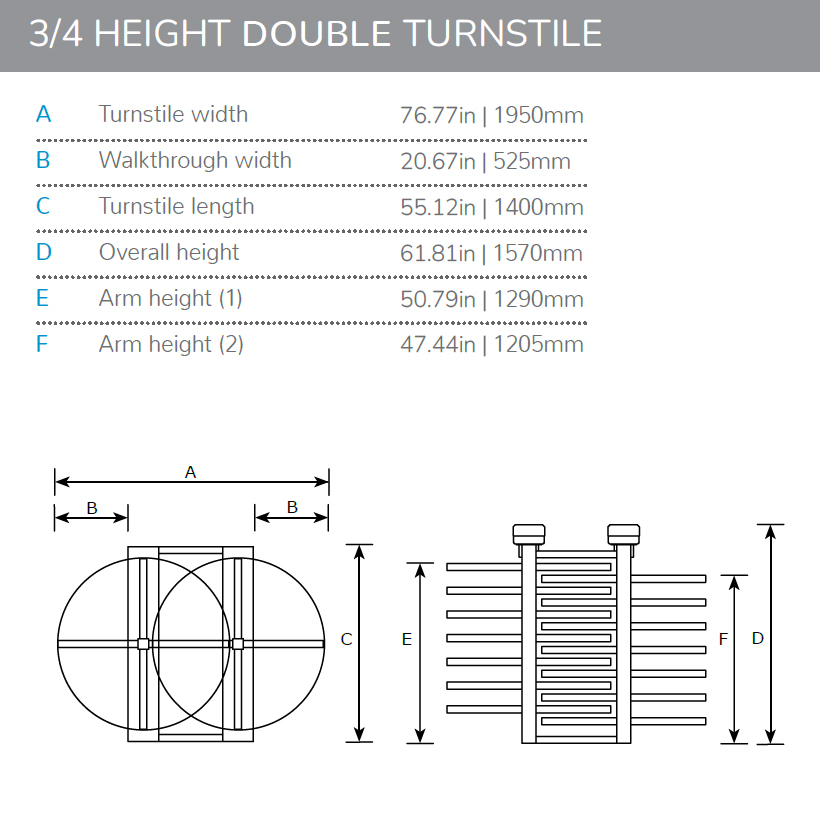

Three-Quarter Height Double Turnstile:
decimal: 76.77″ wide × 55.12″ long × 61.81 high
fraction: 76 3/4″ wide × 55 1/8″ long × 61 3/4″ high
millimeters: 1950 × 1400 × 1570
weight: 508 lbs.
INSTALLATION
Installation Services Available! View our Installation Portfolio or contact us to discuss installation options for your project.
Above: TQHT-3T (three-quarter height, tandem turnstile, 3-arm version). See more photos of this installation for N – Lancaster, SC.
