Description
Part of the proven TITAN industrial turnstile series, the HHT-24 Half-Height Turnstile is a robust industrial access control solution designed for facilities requiring controlled pedestrian flow with reliable operation. Combining the visibility and convenience of a waist-high turnstile with the durability of industrial-grade construction, the HHT-24 is ideal for applications where high traffic volumes and dependable access control are essential.
Designed for both indoor and outdoor installations, the HHT-24 features a three-arm rotating barrier and electrically controlled bi-directional operation. Its advanced electromechanical locking system provides smooth, quiet performance while supporting fail-safe or fail-secure operation as required by the application. The self-centering rotor automatically returns to its home position after each passage, while the Anti-Trap safety system prevents mid-rotation locking during power interruptions. Like its full height counterparts, our half height turnstiles can handle large volumes of traffic on a daily basis. The lower height does make identification of individuals entering and leaving an area easier.
The turnstile integrates easily with card readers, biometric devices, ticketing systems, counters, cameras, EntraPASS software, and other access control platforms. Standard card reader mounting provisions simplify installation while maintaining a clean, professional appearance.
The HHT-24 is built for long-term reliability in demanding environments. Available in galvanized, stainless steel, or powder-coated finish. Matching ADA swing gates are available for accessible entry compliance.
DOCUMENTATION:

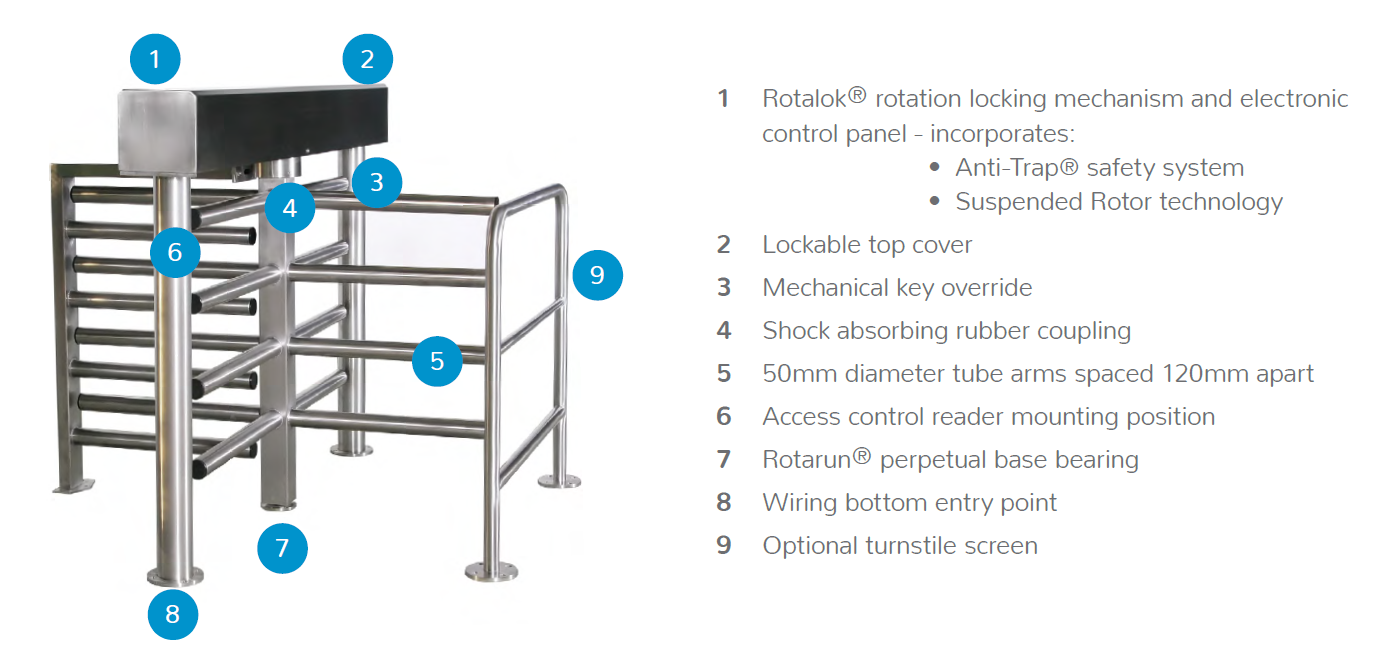

KEY FEATURES
- Heavy-Duty Half-Height Industrial Turnstile
- 4-Arm rotating barrier design (standard)
- Single or Double/tandem configuration
- Choice of Finish
- Two-Way Electric Controls (standard)
- Mechanical key override in both directions
- Fail-safe or fail-secure configurable locking
- High-speed, ultra-quiet operation
- Rotalok® electromechanical locking mechanism
- Self-centering rotor returns to home position after each passage
- Suspended Rotor Technology for reduced bearing stress
- Anti-Trap® safety system prevents mid-rotation locking
- Shock-absorbing rubber coupling system
- Suitable for indoor and outdoor installations
- Designed for high-volume pedestrian traffic
ADDITIONAL OPTIONS
- Turnstile screen (railing piece in matching finish)
- Reader provision mounting bracket
- Single / double pushbutton in plastic housing
- LED red cross and green arrow indicator light
- Multiple coin acceptor for pay-per-entry systems
- LCD transaction counter with reset key switch
- Random search device

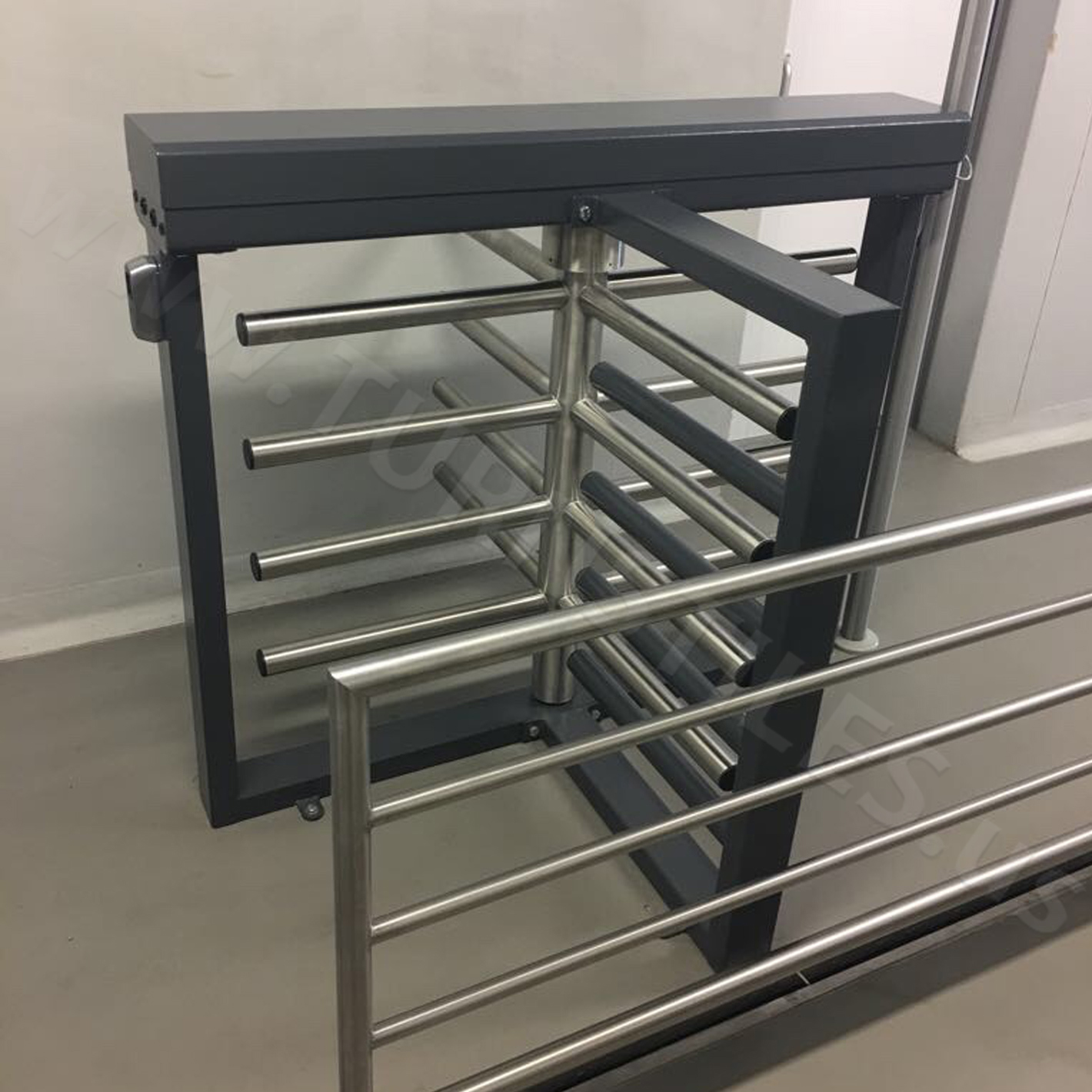

FINISH CHOICES
- Heavy-Duty Galvanized Steel
- Stainless Steel 304
- Powder Coated
- Powder Coated over Galvanizing
- Standard color is charcoal blue hammer-tone. Custom color by RAL#
APPLICATIONS
- Manufacturing facilities
- Warehouses and distribution centers
- Stadiums and arenas
- Universities and campuses
- Recreation facilities
- Transportation facilities
- Industrial sites
- Employee entrances
- Visitor access control points

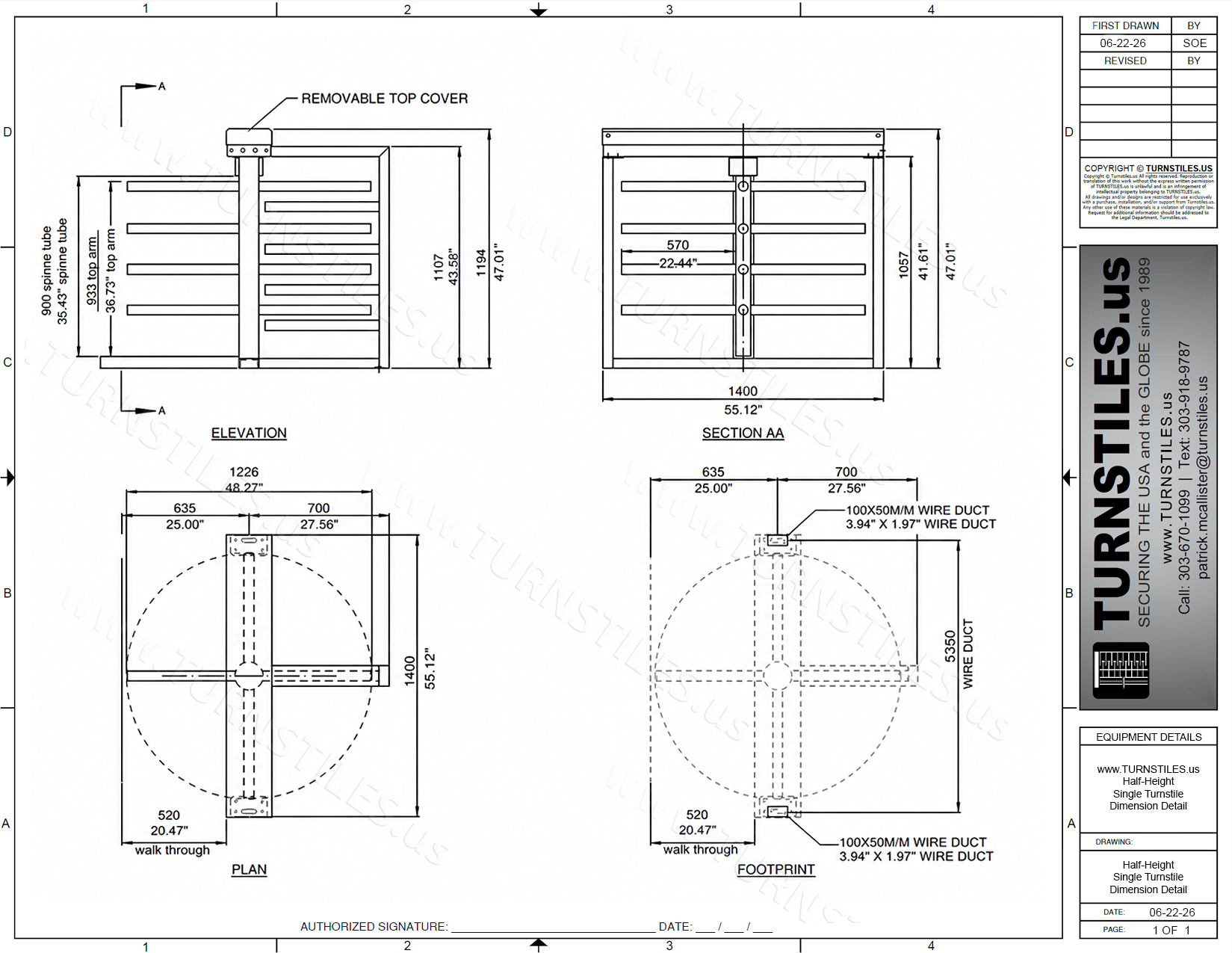

SPECS & DIMENSIONS

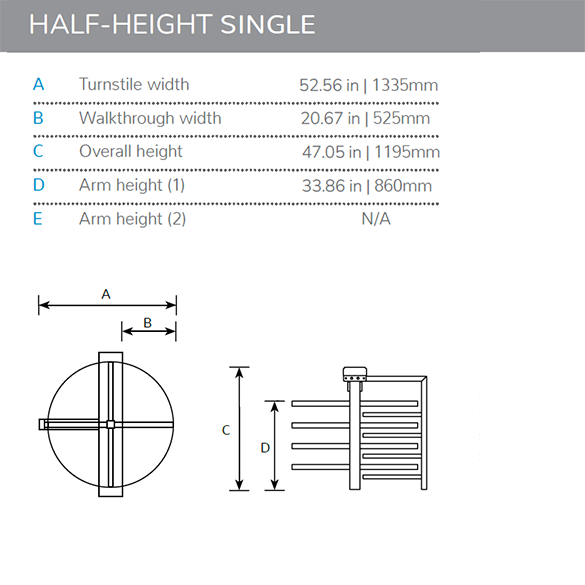

Half-Height Single Turnstile:
decimal: 52.56″ wide × 55.12″ long × 47.05″ high
fraction: 52 9/16″ wide × 55 1/8″ long × 47 1/16″ high
millimeters: 1335 × 1400 × 1195
weight: 286.6 lbs. (130 kg)

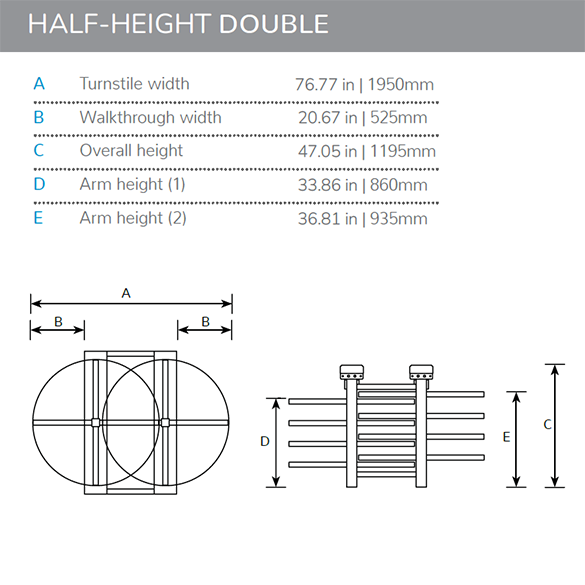

Half-Height Double Turnstile:
decimal: 76.77″ wide × 55.12″ long × 47.05″ high
fraction: 76 3/4″ wide × 55 1/8″ long × 47 1/16″ high
millimeters: 1950 × 1400 × 1195
weight: 463 lbs. (210 kg)
INSTALLATION
Installation Services Available! View our Installation Portfolio or contact us to discuss installation options for your project.
Above: HHTT-24 (Half-Height Tandem version) Installation with ADA Swing Gate. See more photos from this installation: Pfizer – Pearl River, NY.
Website pricing reflects equipment only. Shipping shown at checkout is estimated and may be adjusted at the time of shipment. Any freight amount paid will be applied toward the final shipping cost. Worldwide freight is available via sea, air, or ground transportation. Contact TURNSTILES.us for a personalized quotation.
