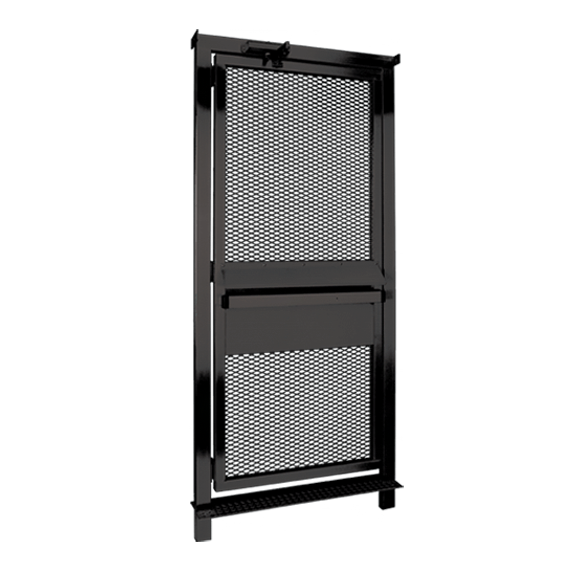

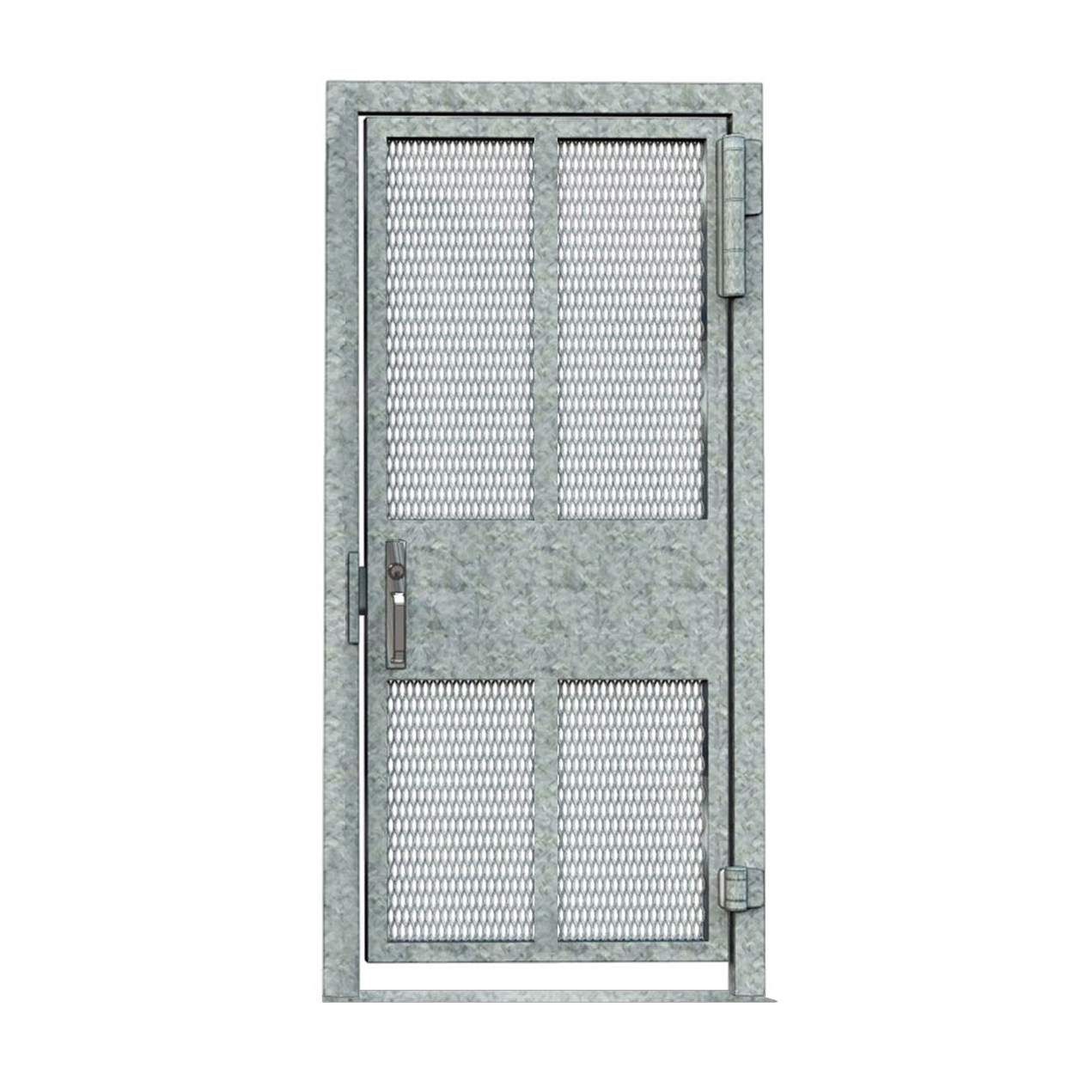

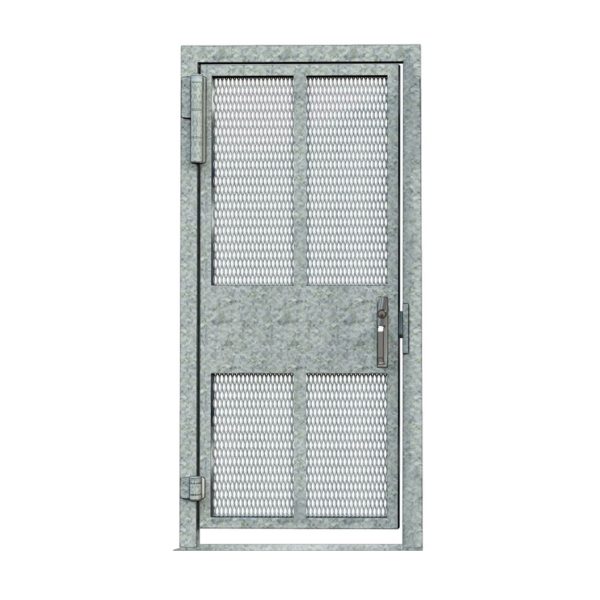

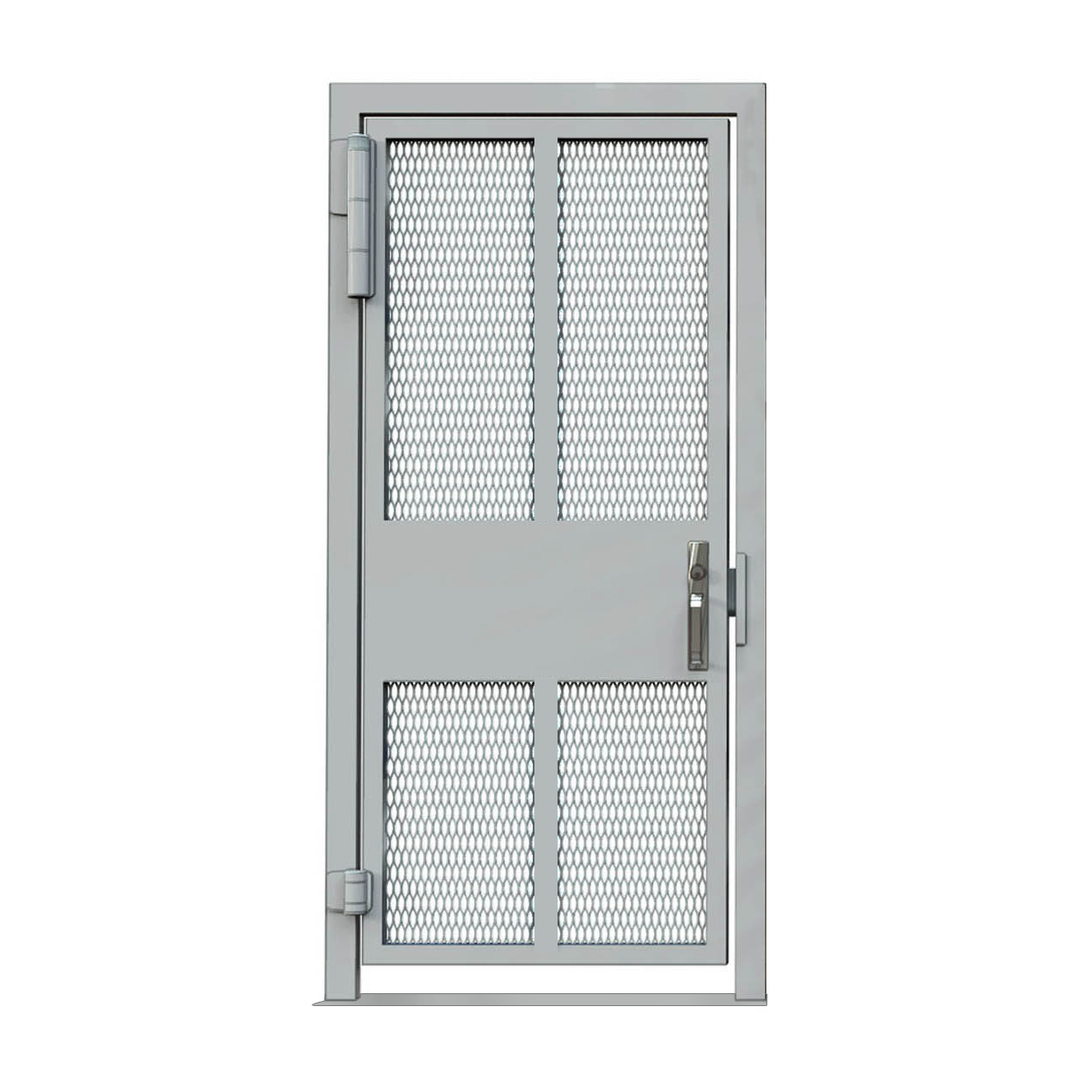

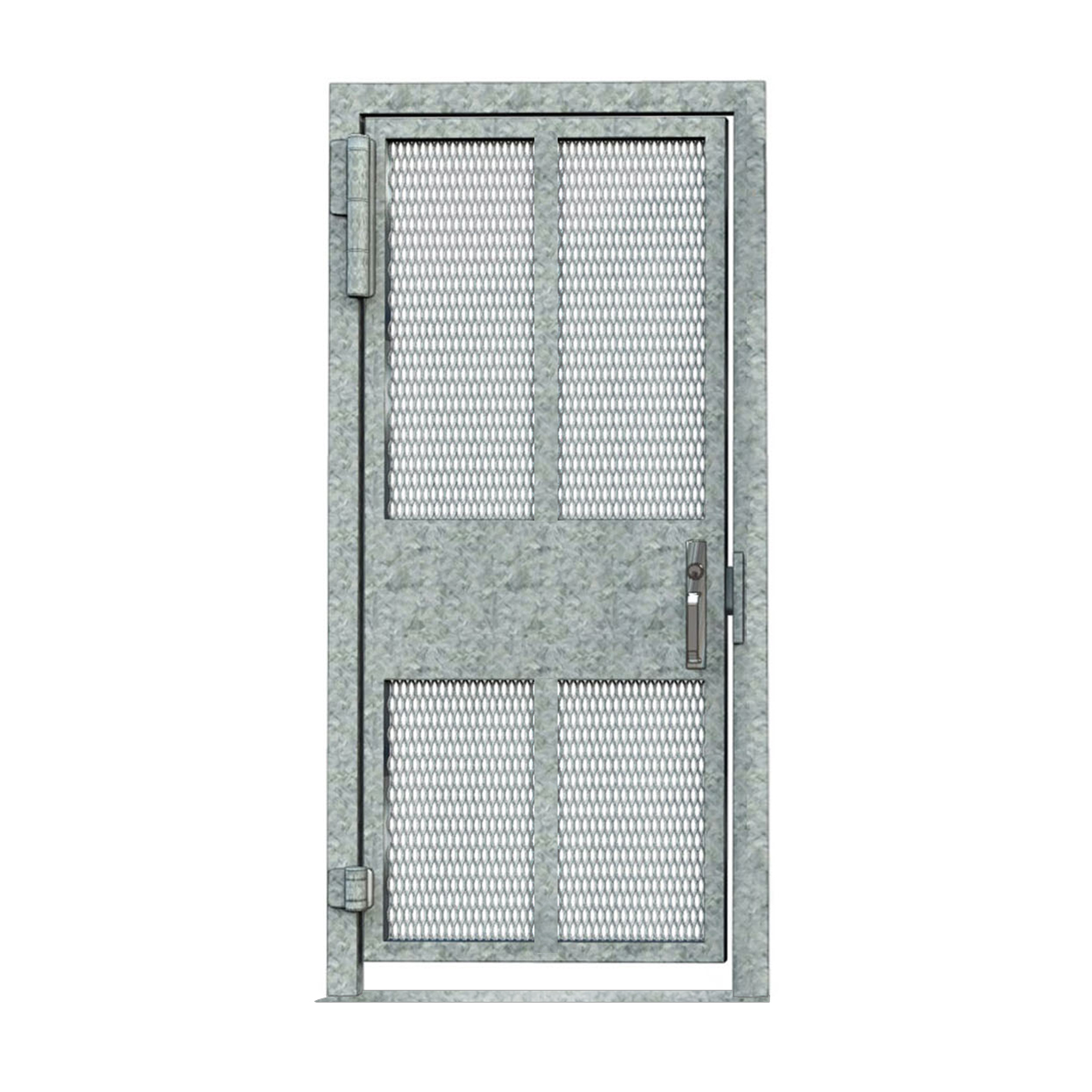

HS336-ADA-MS / HS348-ADA-MS Full Height Steel Gate with Security Mesh

Please Login for Pricing

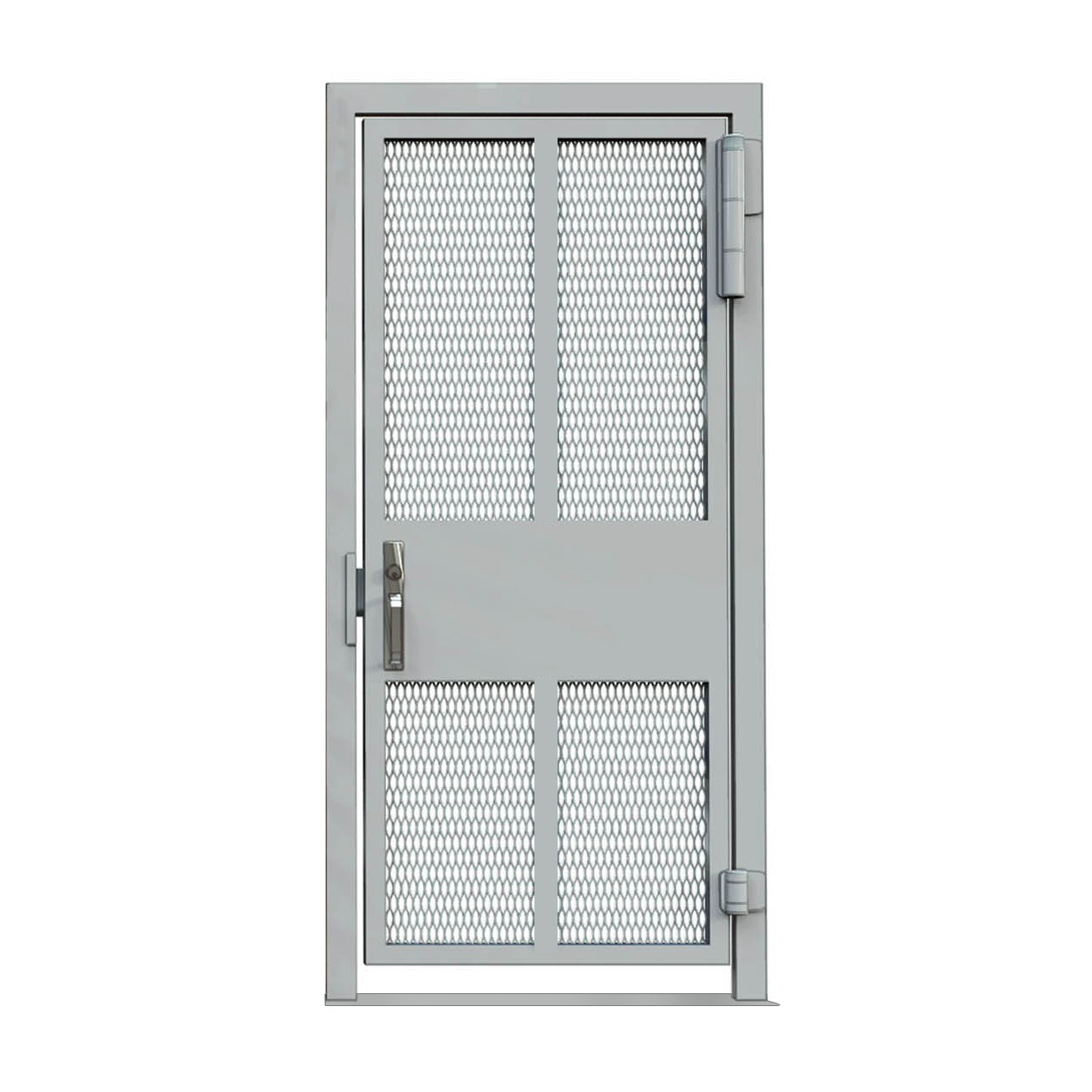

Our Full Height Steel ADA Gate with Mesh is engineered to meet the most demanding security and control requirements. They come in a 36″ or a 48″ passage width for maximum comfort and accessibility. This steel door features an extremely strong woven security mesh that prevents any reach-through. These units are available in your choice of finish (galvanized, powder-coated carbon steel, or stainless steel). Paired with our full height turnstiles, they provide ADA accommodation to any project.



Login or Sign Up

Description

Our Full Height ADA Gate with Mesh is engineered to meet the most demanding security and control requirements. Paired with our HS400 series full-height turnstiles, they provide ADA accommodation to any project. Crafted from tubular steel (for controlled, both direction units) or meshed with a push bar for free-exit projects, the HS336 completes any access control job.

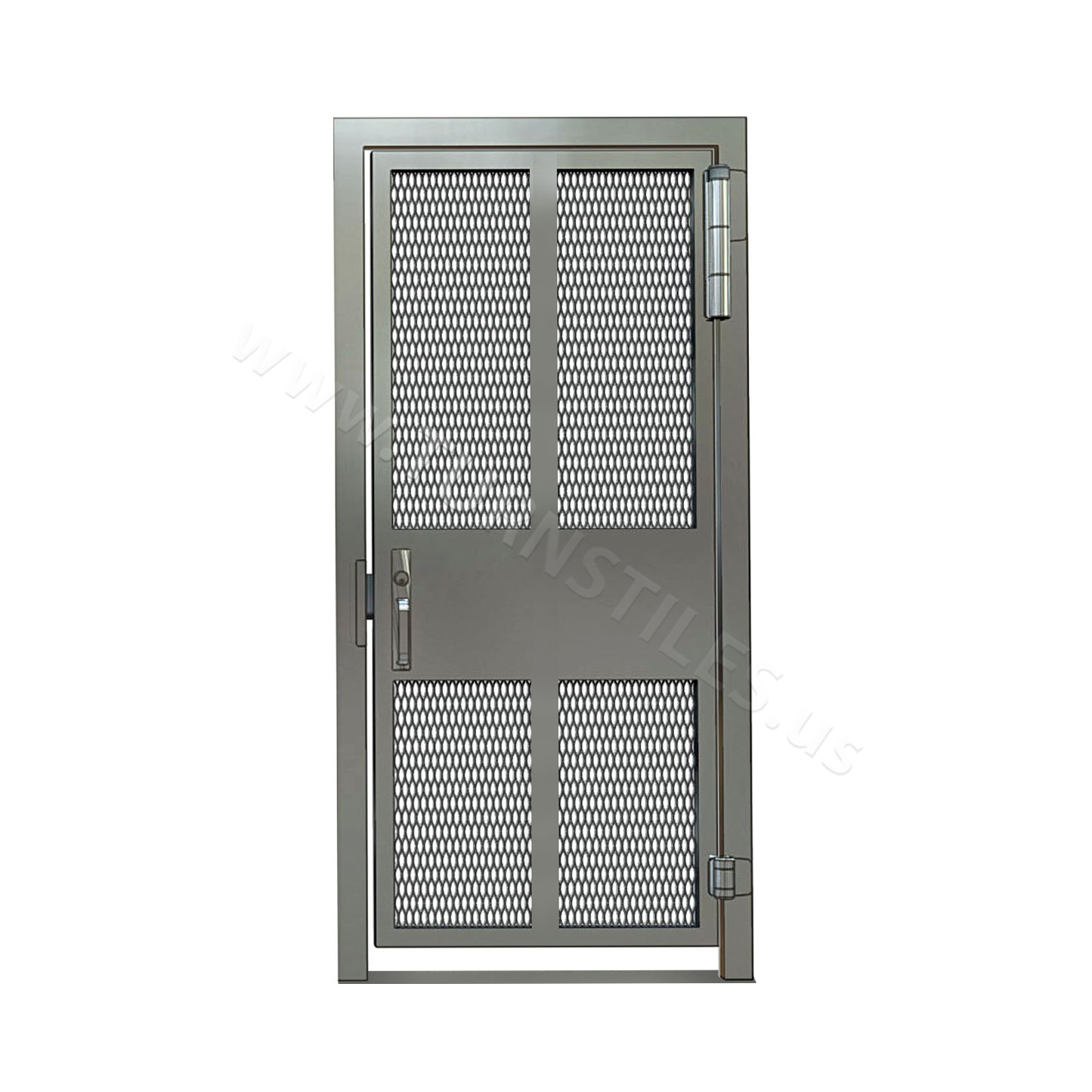

These units are available in your choice of galvanized or powder-coated carbon steel or stainless steel (304 or 316 for extra corrosive resistance) finishes matching your turnstile array.



Data Sheet – HS336 / HS348 ADA Gate
Installation Manual – HS336 / HS348 ADA Gate
Electric Strike for HS336 / HS348 ADA Gate
Production Sheet – ADA Swing Gate

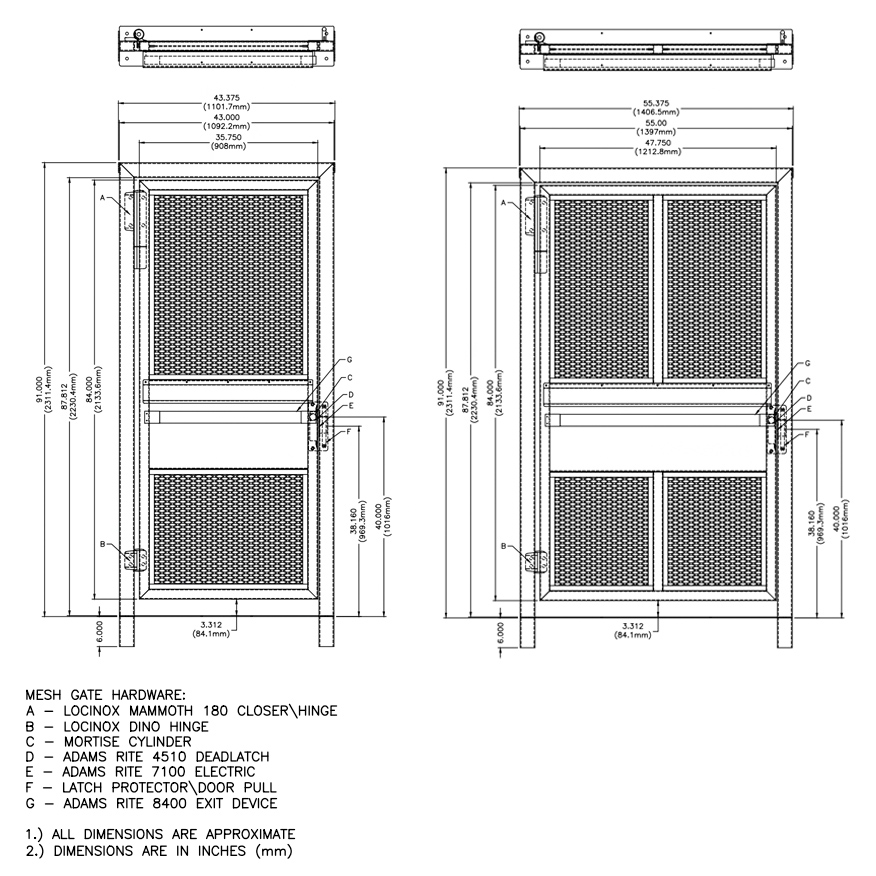

DRAWINGS & DIMENSIONS

FEATURES

Standard Hardware

Mesh: Security Steel Mesh Weave prevents any breach
Door Closer: Locinox Mammoth 180 or Norton 9300 Series
Deadlock: Adams Rite 4510 Series with 31/32″ backset
Strike: Adams Rite 7100 Series electronic strike – 24VDC
Cylinder: Mortise Cylinder

APPLICATION/USE

  • Interior OR Exterior Use
  • HS336-ADA Model: Self-closing heavy duty swing gate provides wheelchair accessible 36” passage (with an overall width of 43.375”)
  • HS348-ADA Model: Self-closing heavy duty swing gate provides wheelchair accessible 48” passage (with an overall width of 55.375”)
  • Reversible electronic strike can be set to lock or open on power failure
  • Gate can also be unlocked with no power by configuring the strike to fail lock by using a key
  • Gate automatically swings closed with a standard hydraulic door closer
  • Voltage for the electronic strike can be taken from a nearby turnstile power supply
  • When the HS400 Series Full Height Security turnstile is “Free Exit”, the HS336-ADA & HS348-ADA swing gate should also be free exit

OPTIONS FOR THE HS336-ADA & HS348-ADA

  • Panic Bar Hardware – Latch Paddle – Adds a latch paddle to the exit side of the gate for free passage (mesh models only)
  • Panic Bar Hardware – Full Panic Bar – Adds a panic bar to the exit side of the gate for free passage (mesh models only)
  • Panic Bar Upgrade – Signal Monitoring Switch – Adds a SPDT switch to mirror panic bar status with wire transfer kit to feed wires from door to frame
  • Panic Bar Upgrade – Battery Powered Alarm
  • Motorized Door Opener – Adds 3” to overall height of door
  • Magnetic Lock – Can replace the strike lock if requested
  • Card Reader Mounting Plate/Enclosure (1 per electronic direction) – For mounting most standard card readers
  • Request to Exit ADA Placard Button with Plastic Surface Mount Enclosure – Rectangular or round
  • Single Push Button (installed on-site)
  • One Channel 900 MHz Wireless Receiver (one per direction) – Must be mounted remotely
  • Wireless Key Fob Transmitter (1 button)
  • 24 Volt Power Supply (if being used electronically and not purchased with a turnstile)
  • Custom Passage Widths – Call for quote
  • Powder Coating Over Galvanizing Upgrade
  • 316 Stainless Steel Upgrade – Standard is 304 Stainless
  • This door is also available with Vertical Steel Bars



FINISH CHOICES

  • Carbon Steel – Galvanized (GALV)

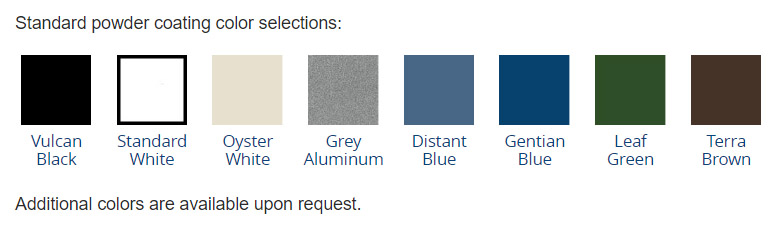

  • Carbon Steel – Powder Coated (PC)
  • Carbon Steel – PC over GALV
  • Stainless Steel/Satin Finish (304):
    Ideal for food service, manufacturing, hospitality, anywhere that aesthetics are important
  • Stainless Steel/Satin Finish (316):
    Ideal for coastal areas, marine applications, areas exposed to corrosive chemicals and/or chloride (de-icing salts)

INSTALLATION

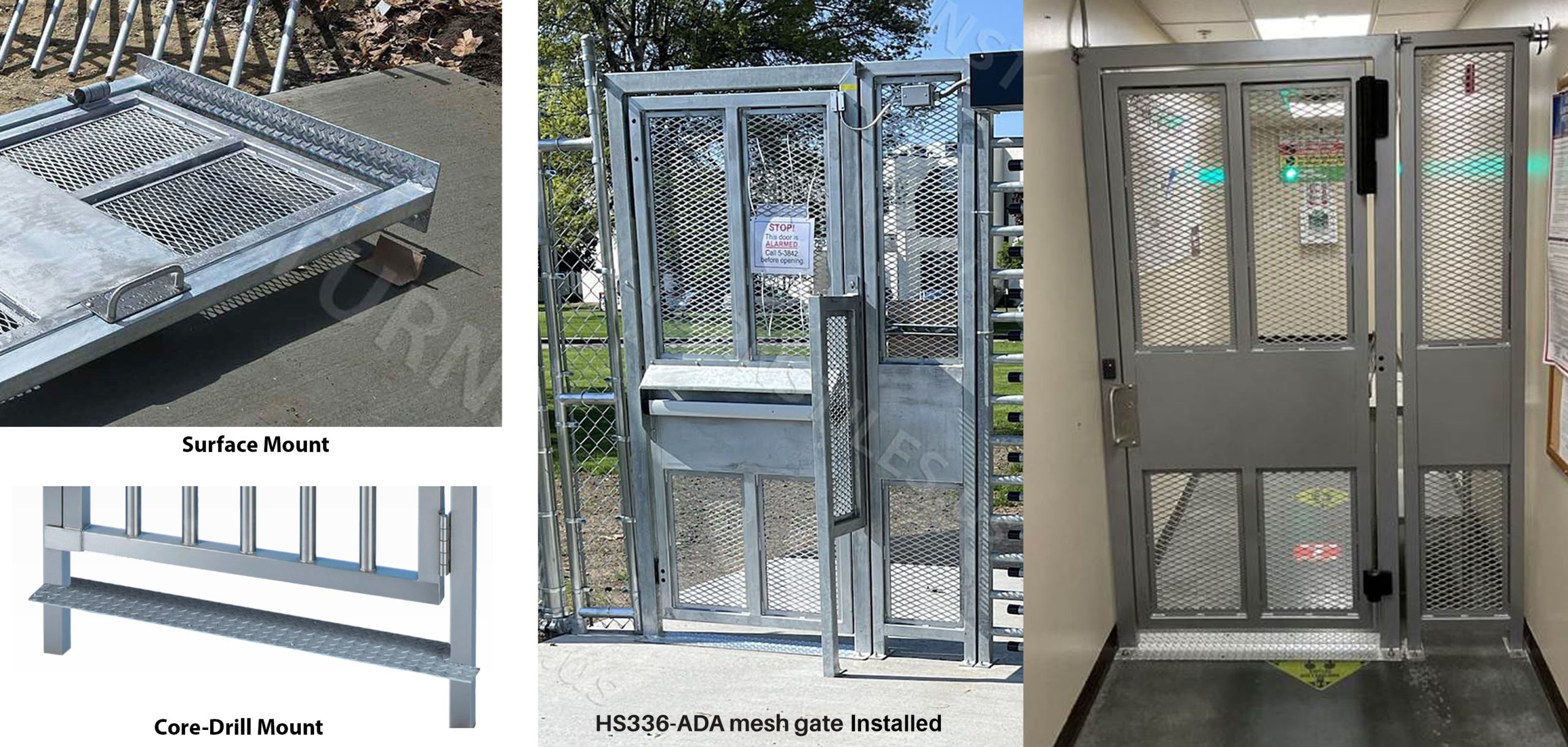

Shown: Security array with Tandem Turnstile, two ADA Gates with Mesh, and Matching Climbover Filler Barriers to fill the space above the turnstile and gate to the ceiling.

*Contact us for a freight quote.

Additional information

Weight 460 lbs
Model

HS336-ADA, HS348-ADA

Finish

Powder Coated, Powder Coated Over Galvanized, Galvanized, Stainless Steel
