Description
This sleek device is designed to assist pedestrian access control at guarded passageways inside of buildings. An optional drop-arm function is available for emergency egress (otherwise fail-open). Examples of use: points of ticket control and access control for passenger traffic, airports/seaports, passages for authorized personnel, directing passenger traffic, points of access control in secured buildings (e.g. state offices such as border crossing points, other services), points of ticket control and fees at museums, theatres, cinemas, exhibitions, fair areas, show facilities, paid toilets, points of ticket control at sports facilities, e.g. swimming pools, stadiums, other sports and show facilities, access and time attendance control points in working places, e.g. offices, dedicated areas in factories.
Data Sheet – TM-BR2AL Tripod Turnstile
Technical Drawings – TM-BR2AL Tripod Turnstile
AutoCAD Dimension Details – BR2 Turnstiles
APPLICATION
- Ideal for hospitals, schools, shops, airports, seaports, travel stations
- Passages for authorized service personnel, directing passenger traffic
- Control points for permission to enter protected buildings (e.g. government offices, border crossings, ministries, other services)
- Ticket sales and control points in museums, sports facilities (e.g. stadiums, swimming pools, etc.) theaters, cinemas,
exhibitions, fairs, entertainment venues, other sports and entertainment facilities, and where applicable, pay toilets - Access control and work time registration in workplaces, e.g. offices, factories, separate zones in workplaces, etc.
FEATURES
- Three-arm arch-shaped turnstile is impressively built and has a strong, modern aesthetic.
- EASY SETUP: A control panel equipped with a display and a multi-function selector allows easy setup of functions and operating modes.
- LED PICTOGRAMS: Led pictograms show active/inactive traffic directions in the passage. The red color shows the inactive/blocked traffic direction (the device blocks the passage). The green color shows an active/unblocked traffic direction.
- WORK MODES: The device has a number of operating modes, e.g. one or bi-directional traffic control.
- PRECISE MEASUREMENT SYSTEM: The device is equipped with an electronic rotor position detection system that allows the control unit to precisely control the locking system as well as smooth motion of the arms (available in the model with an electro-mechanical arm movement booster).
- DROP-ARM (MODEL OPTION): The automatic arm-drop system in case of a power failure is available for models with the drop-arm module.
- ARM MOTION BOOSTER: The device is equipped with an electromechanical arm rotation booster. It consists of a motor drive, safety clutch, and speed transmission. The motion speed can be varied for smooth operation depending on the rotor position.
FINISH CHOICES
- Standard in Stainless Steel
- RAL Powder Coat colors available

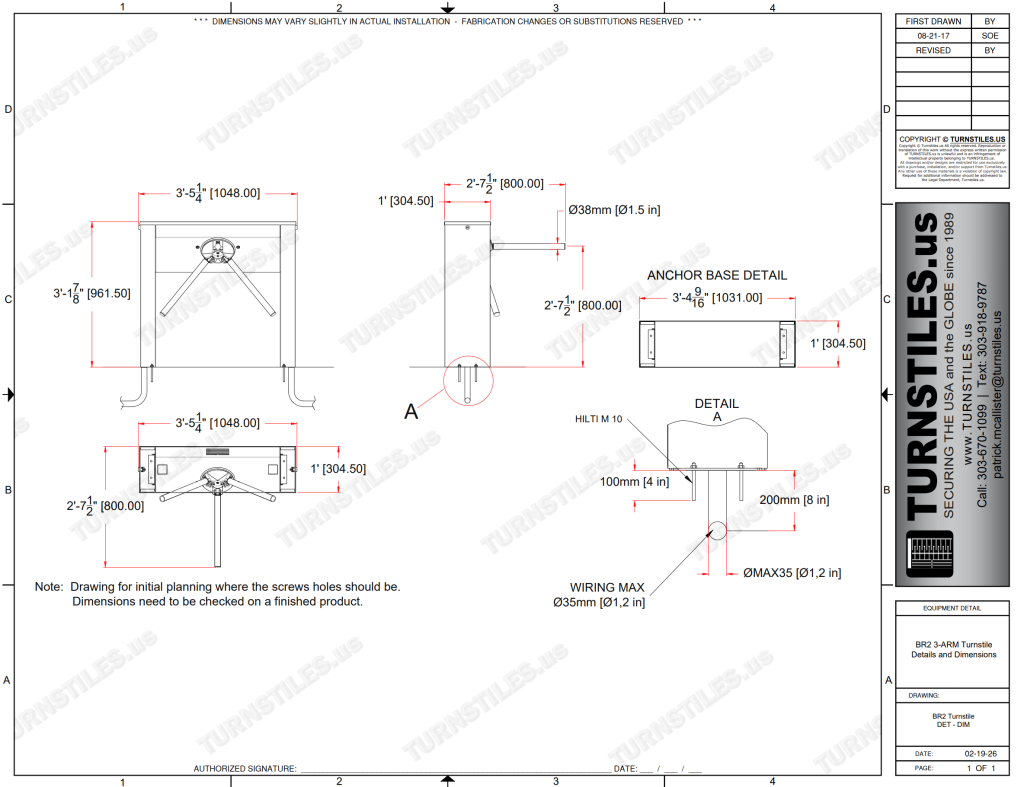

DIMENSIONS

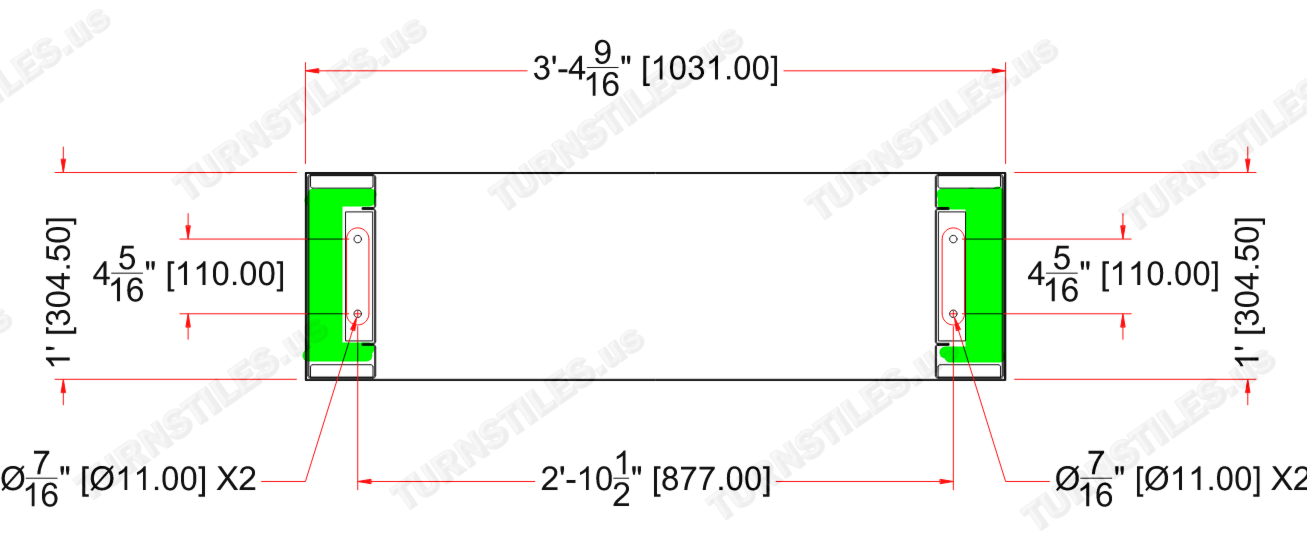

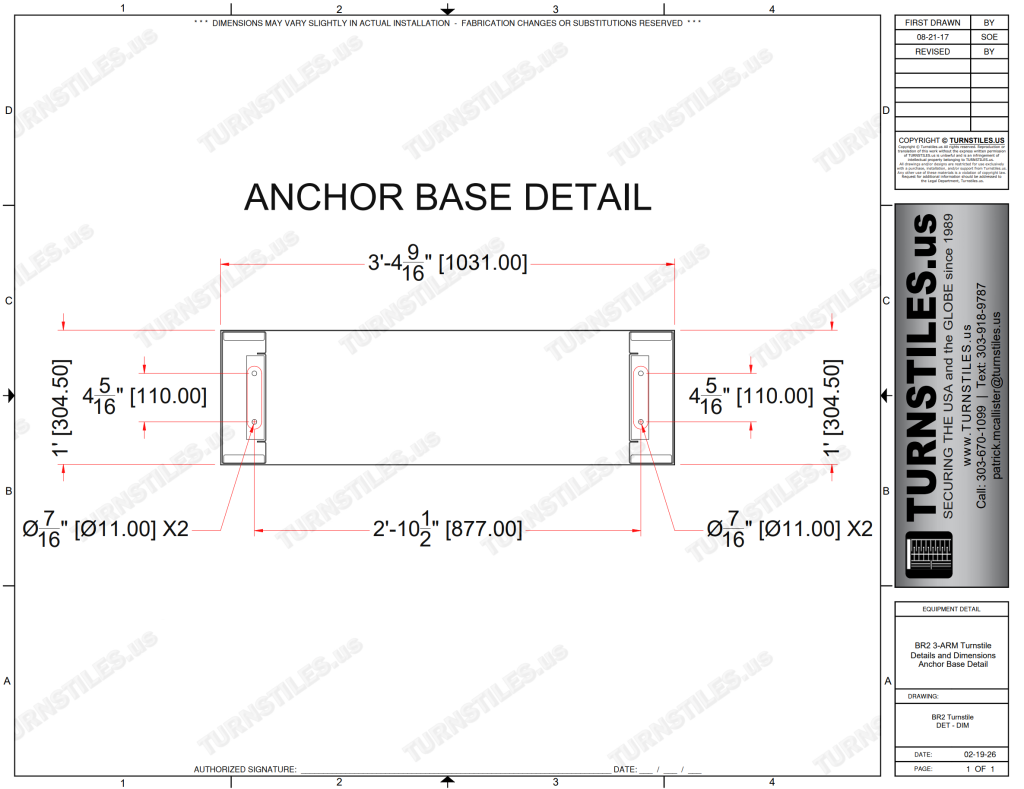

*Green area is open space available for conduit placement:
SPECIFICATIONS
MODEL
TM‑BR2AL
DIMENSIONS
(height/length/width) 960 / 1048 / 306 mm
MECHANISM
Classic mechanism with motor equipped with a brake with a dampening system, which significantly extends the mechanism’s lifespan.
PICTOGRAMS
LED
OPERATING MODES
Pedestrian traffic control for both directions of movement or pedestrian traffic control for any selected direction of movement.
EASY SET UP
Possibility of easy configuration of operating modes and functions using the control panel with a display and a manipulator.
SECURITY SYSTEM
The device can be connected to the intelligent security system in the building.
DROP ARM FUNCTION – OPTION
Automatic arm drop function in case of power failure
*Contact TURNSTILES.us for delivery and freight information.
