Jewelry Store Security Entrance
Man Trap Entrance for Jewelry Store
EQUIPMENT

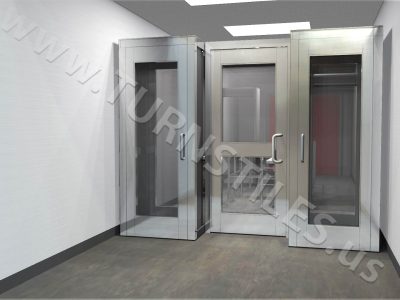

Automatic Man-Trap
35.4″ Wide
12V Battery Backup
Bi-Directional Bank Locking Controller
SERVICES
Installation
Equipment Detail and Dimensions
Wiring Diagram
1. Establish a high security entry and exit for the location while preserving the outer face of the building, as it part of the local Historic District.
2. Add a mantrap cubicle inside using the existing door as the first entry.
3. Modify our standard automatic mantrap cubicle by removing the first door, aligning it with the existing frame, and installing access controls.

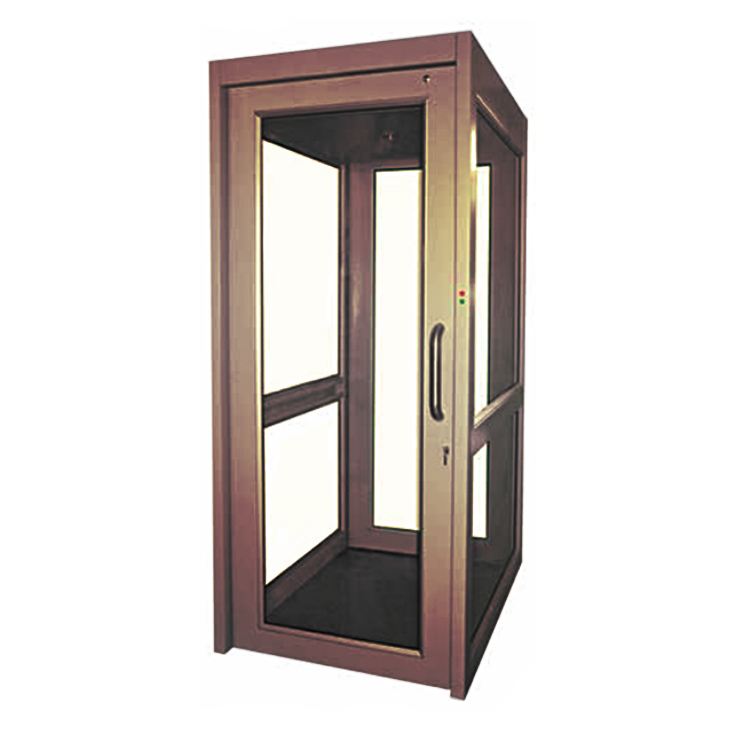

4. Custom bronze color. Perforated Top, ½” Glass, 3M Security Film.
*Note: The standard unit is not ADA-Compliant. This would require a larger cubicle with 5′ interior diameter for a wheelchair to turn around. Let us know if this is a requirement for your location.

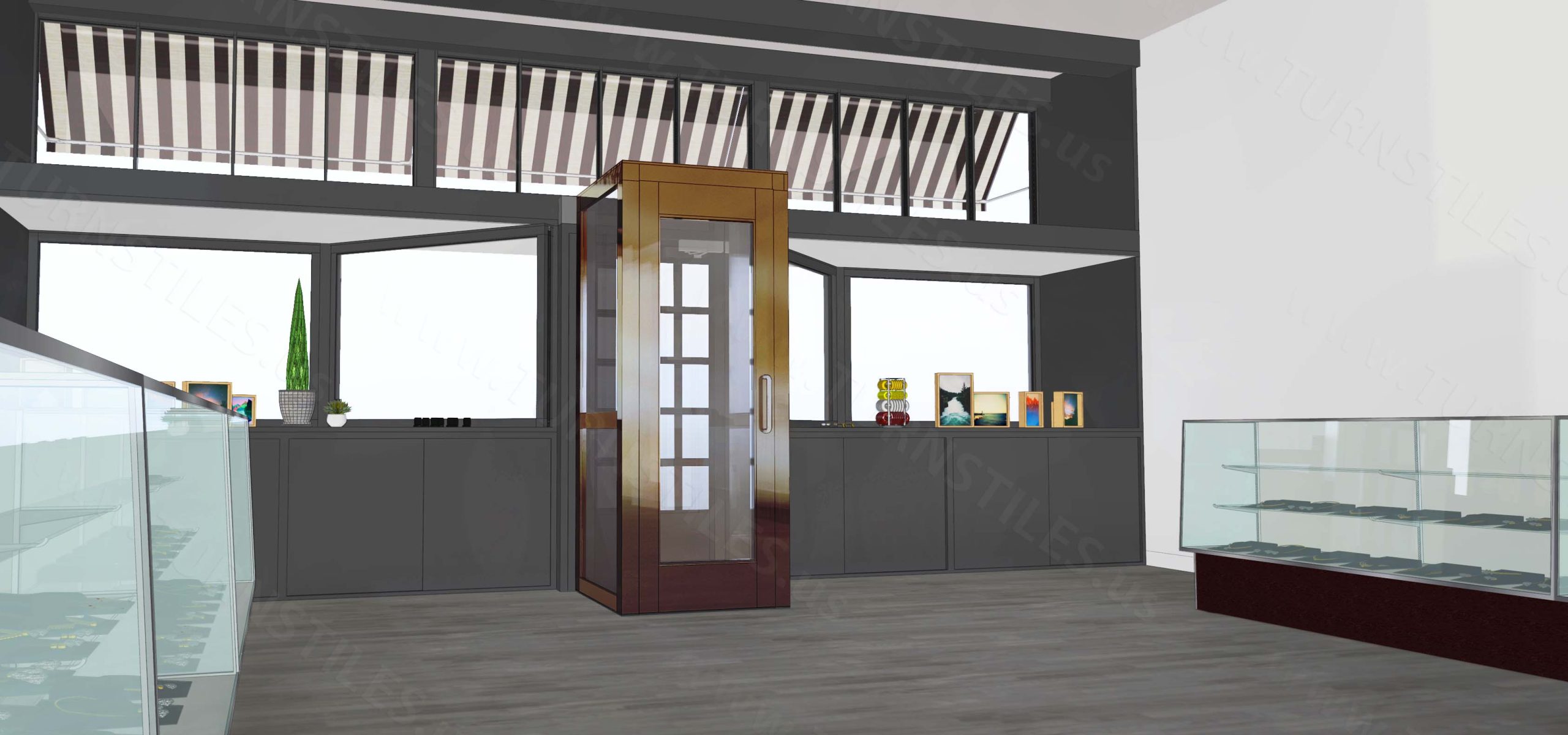

3D Concepts

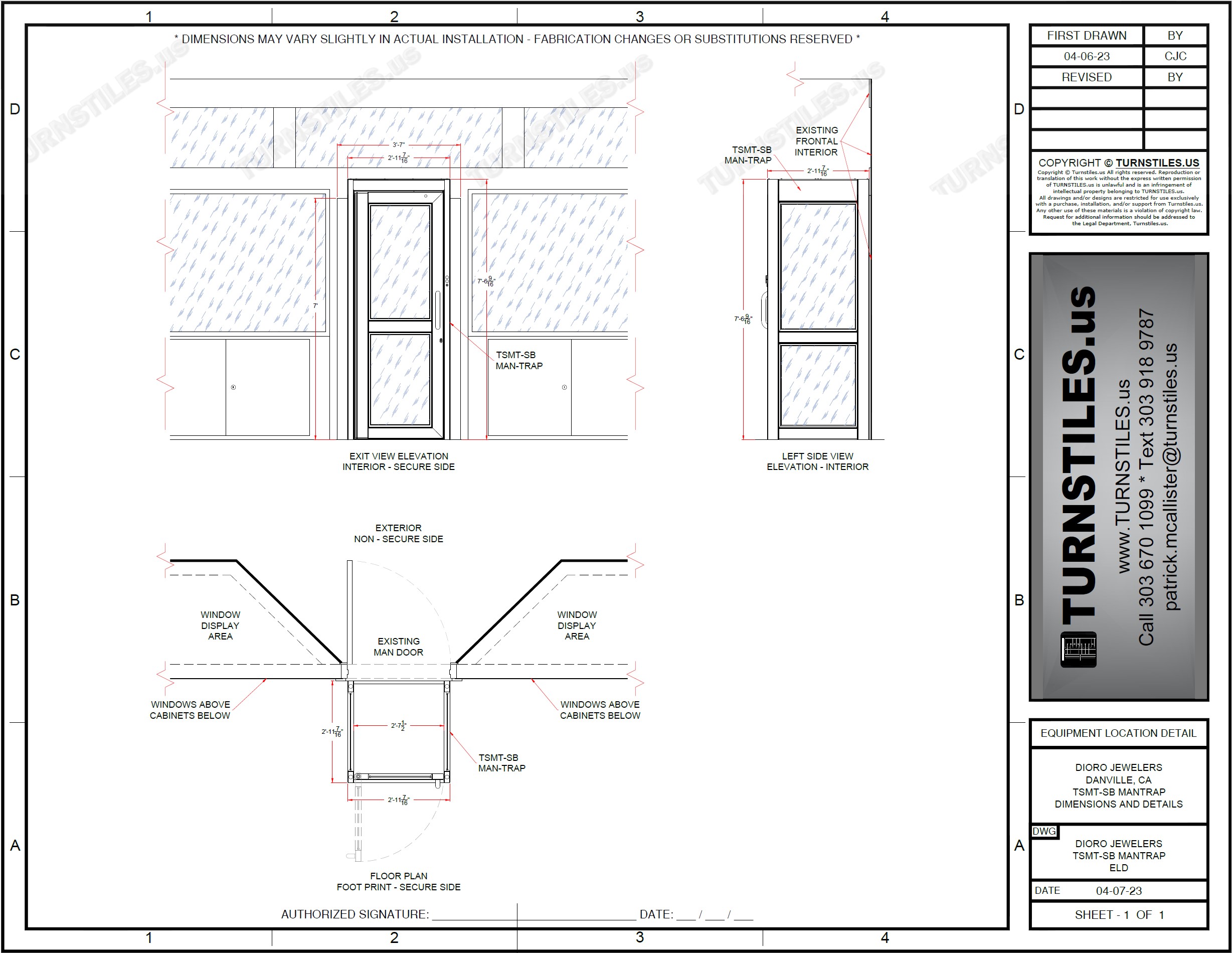

AutoCAD Equipment Location Detail
