Automatic Man-Trap Security Cubicle

Please Login for Pricing

Full Height Automatic Security Booth. A man trap, or a security booth, is a security device that monitors and controls two interlocking doors that cannot be open simultaneously. Either one of the doors can be unlocked and opened, as long as the other door is locked and closed. Between these interlocking doors is a small, secure space, which only admits one person at a time. Ideal for high-security areas.



Login or Sign Up

Description

A man trap, or a security booth, is a security device that monitors and controls two interlocking doors. Interlocking doors are doors that can never be open simultaneously. Either one of the doors can be unlocked and opened, as long as the other door is locked and closed. Between these interlocking doors is a small, secure space, which only admits one person at a time. These access control booths effectively separate a non-secured area from a secured area. Man traps are ideal in high-value or critical security areas, like cash handling depots, sensitive data processing areas, security control rooms, critical research labs, jewelry stores, and vaults.

Motorized automatic cubicles have all the same features as a regular man trap (referred to as manual or semi-automatic) but do not have a hydraulic door closer or a magnetic lock. The door is operated by means of a motor drive system that has built-in safety. The door will not injure a pedestrian. If a pedestrian is encountered, the door reopens/closes and then tries again after a second or two. The doors are fitted with a magnetic bolt lock in the bulkhead. The lock is available in either fail-safe or fail-secure. The average transaction time through an automatic mantrap is 8 seconds. In the event of a power failure, the doors will operate like normal hydraulic door closers, the locks and beam systems can be powered by a battery.



Data Sheet – Man-Trap Cubicle Automatic

Product Manual – Man Trap Cubicle Automatic

Technical Manual – Man Trap Cubicles



APPLICATION

  • Ideal in high value or critical security areas
  • Single and Double configurations
  • Three sizes in consideration of space and comfort (A, B, and C)
  • Provides a durable and aesthetic access control solution
  • Exported worldwide



FEATURES

  • Automatic door operators with built-in safety
  • Monitored strike pin locks
  • 440lb/200kg Magnetic lock
  • Mortice lock for night locking
  • Standard glazing of 6.38mm PVB laminated glass (bullet-resistant glass available on request)
  • Direct pivot design ensures true door alignment and removes the need for clumsy, noisy hinges
  • Steel frame structure and door, preventing sagging and door warping unlike aluminum doors which can warp with use
  • Stainless steel base bearings for longevity and corrosion resistance
  • 304 grade brushed stainless steel pull handle
  • LED indicator lights
  • Low voltage ceiling downlighter
  • Manufactured to last







ADDITIONAL OPTIONS

  • Battery backup
  • Infrared beam, dual occupancy presence sensors
  • Card / proximity reader mounting brackets
  • Biometric / fingerprint reader mounting brackets
  • Single pushbutton mounted in frame of cubicle or in plastic box
  • Random search device
  • Video Intercom
  • Breathalyzer Access Control
  • Matching Glass ADA Door
  • Integrate with EntraPASS Access Control Software System
  • More options are available upon request



FINISH CHOICES

  • Mild steel with UV resistant polyester exterior powder coat finish (Grey, Black, or Specify Other Color)
  • 304 grade brushed stainless steel
  • 316 grade brushed stainless steel



MODEL SPECIFICATIONS

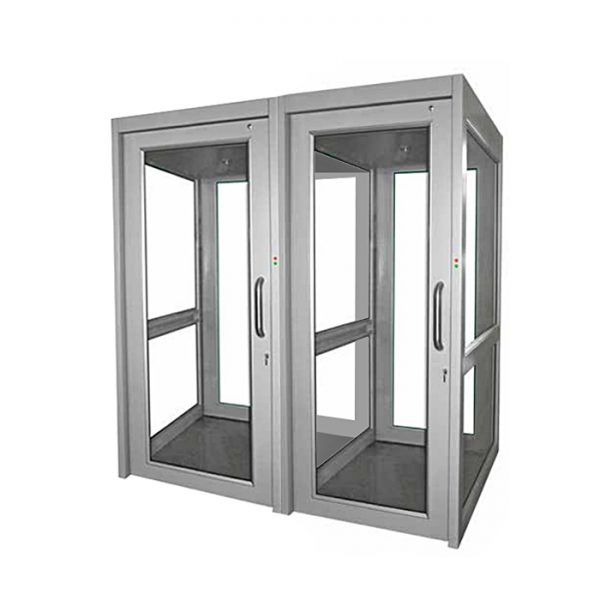

Automatic man-trap cubicle
Single: Fitted with 2 x magnetic locks and 2 x heavy duty door motors – excluding controller.
Double: Fitted with 4 x magnetic locks and 4 x heavy door motors – excluding controller.

A note on double cubicles: The double man-trap cubicle is effectively two single cubicles installed side-by-side. Both cubicles in a double configuration are controlled separately by their own controller. It is also possible that the customer may choose to designate one side for entry only and the other side for exit only. This may be a preferred configuration as it enables higher speed throughput.

MAN TRAP CUBICLE – AUTOMATIC inches millimeters pounds
Single TSMTA-SA 31.5w – 27.5d – 90.5h 800w – 700d – 2300h 617
TSMTA-SB 35.4w – 35.4d – 90.5h 900w – 900d – 2300h 684
TSMTA-SC 39.4w – 55.1d – 90.5h 1000w – 1400d – 2300h 926
Double TSMTA-DA 61.0w – 27.5d – 90.5h 1550w -700d – 2300h 1124
TSMTA-DB 68.9w – 35.4d – 90.5h 1750w-900d – 2300h 1213
TSMTA-DC 76.8w – 55.1d – 90.5h 1950w -1400d – 2300h 1609



Controller Options (Please note: Two controllers required for a double cubicle)

  • CBL01: Bi-directional two reader locking controller c/w internal emergency pushbutton, (excluding presence sensors)
  • CBL02: Bi-directional two reader locking controller c/w presence sensors (excluding internal emergency pushbutton)
  • CBL03: Bi-directional single reader locking controller c/w two external cycle start pushbuttons (excluding presence sensors)
  • CBL04: Bi-directional single reader locking controller c/w two external cycle start pushbuttons and presence sensors
  • CBL05: Uni-directional bank locking controller
  • CBL06: Bi-directional bank locking controller c/w one external pushbutton for exit operation and presence sensors
  • CBL07S: High-security bank locking controller c/w status control panel and presence sensors (single cubicle)
  • CBL07D: High-security bank locking controller c/w status control panel and presence sensors (double cubicle)
  • CBL07T: High-security bank locking controller c/w status control panel and presence sensors (triple cubicle) – pricing on request



Battery backup (Please note: Two batteries are required for a double cubicle)

  • CBL-BBU: Battery Backup 12V 7aH with connection leads

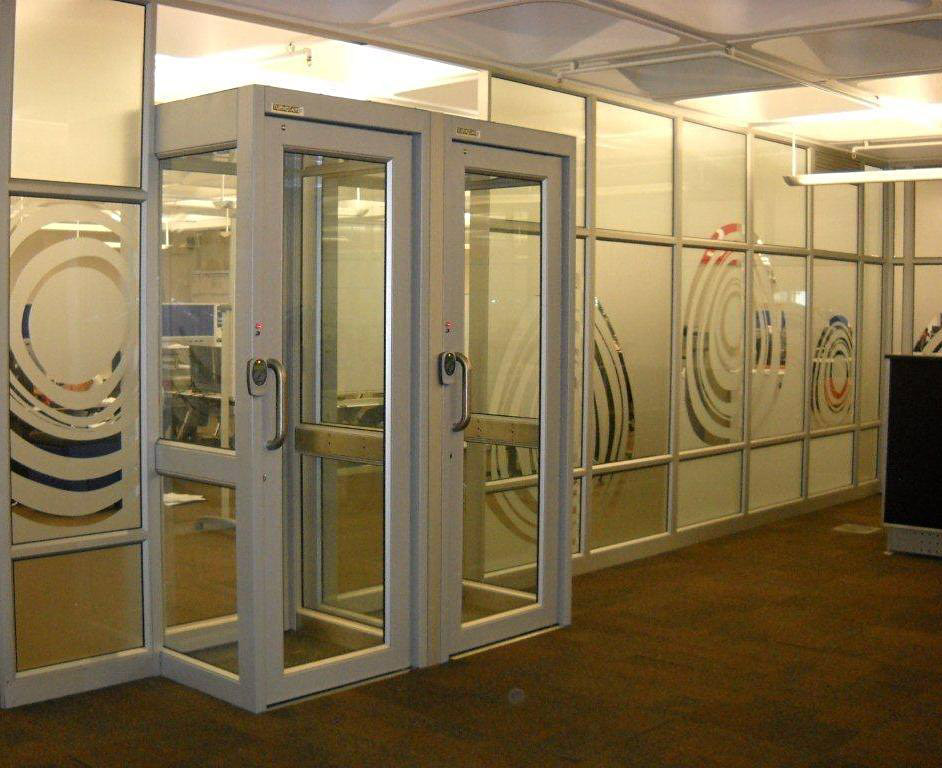

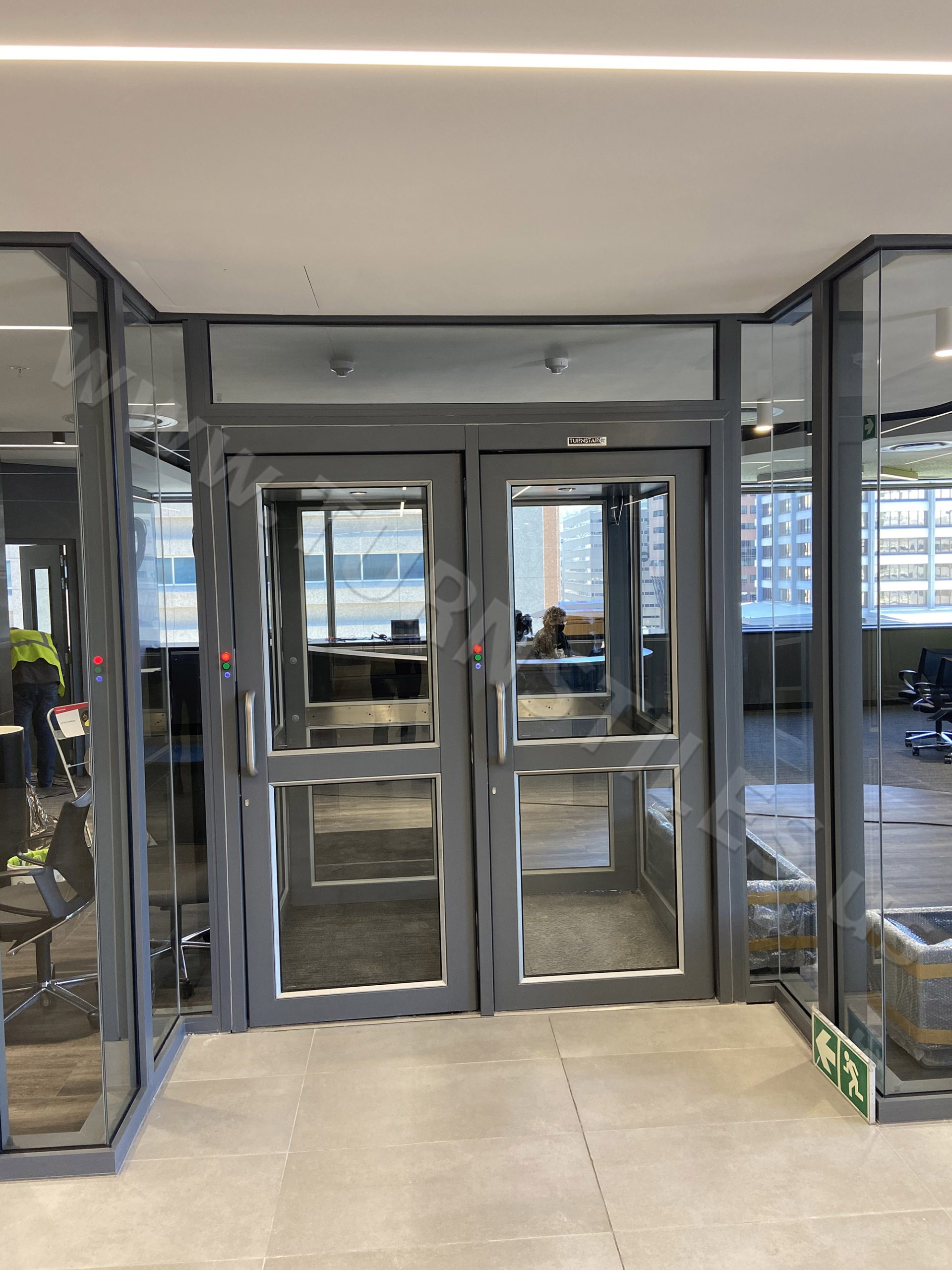

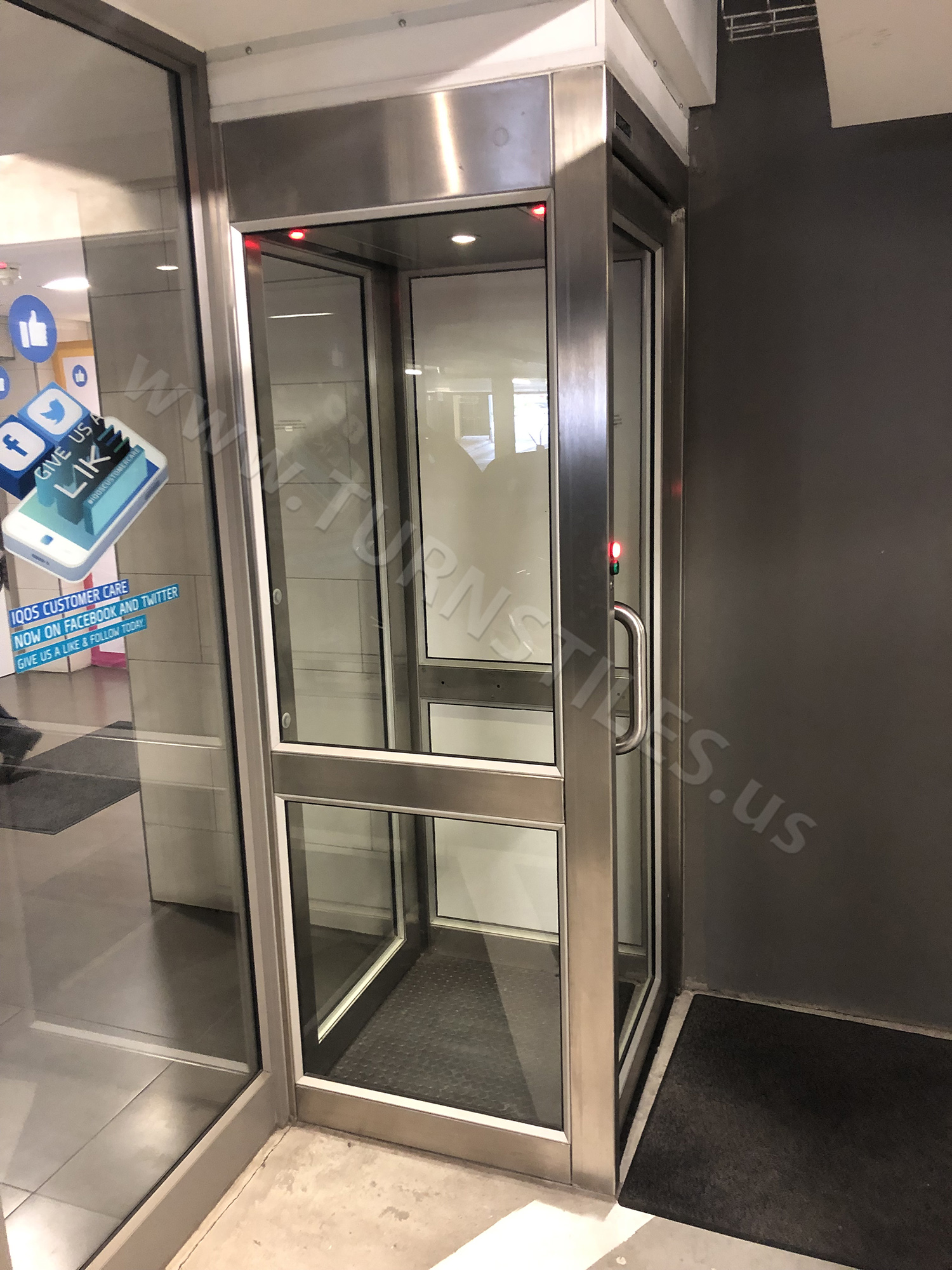

INSTALLATION







Additional information

Weight 1609 lbs
Dimensions 76.8 × 55.1 × 90.5 in
Selection

TSMTA-SA (Single, 31.5" wide), TSMTA-SB (Single, 35.4" wide), TSMTA-SB-304 (Single, 35.4" wide, 304 Stainless Steel), TSMTA-SC (Single, 39.4" wide), TSMTA-DA (Double, 61.0" wide), TSMTA-DB (Double, 68.9" wide), TSMTA-DC (Double, 76.8" wide)
