Description
- Multi-biometric technology combining palm and face authentication
- Modern Aesthetic Design: The build of the Omni30 blends a high-quality metal enclosure with a tempered glass panel. The elegant design fits perfectly into any usage scenario and its sleek design brings a practical and reliable experience to users.
- IP66 Water & Dustproof Protection Rating: Certified IP66 water & dustproof levels represent that the readers can withstand dust, dirt, sand, and are resistant to violent surf impact or strong winds and rain.
- Advanced Security: Secure communication: OSDP(V2.2) over RS485 communication between the OmniAC30 and access control panels. Using AES-128 encryption standards ensures the highest levels of data protection & security.
- Supports Multi-Card Types: Supports 125 kHz and 13.56 MHz frequency credentials. Supports various card types including EM, IC Card, HID Prox, HID iCLASS, DESFire and FeliCa.
- Multi-Factor Authentication Capability: Offering credential options of palm, face, physical cards and QR codes.
*IC Card, Desfire, HID Prox, iClass, SEOS, etc.
*Integrate advanced multiple biometric authentication methods such as palm and face.
*QR code scanning for visitors & employees.
*PIN code option. - Easy Installation – Robust design & form factor makes this device easy to install. PoE option allows for minimal use of cabling and lowers the cost of installation. OmniAC30 supports multiple mount types (Single gang/ European/ Asian box) to meet most scenarios worldwide. Mounting accessories for speedgates are also available.
- Industry-Leading Design and User Experience – The Omni30 provides an improved user experience with a 5“high-resolution touchscreen and intuitive UI design. Using our advanced algorithms, users can get the best verification experience.
Palm authentication distance range: 7″ – 15.7″ (18cm – 40cm) Face authentication distance range: 15.7″- 47.2″ (40cm – 120cm) - Variable Input Voltage – The device is compatible with 12V input voltages.
- Outdoor Rated for Variable Environments – IP66 Weatherproof rating – built to withstand freezing cold winters, heavy rains and dry/hot summers. -20°C to 60°C/ -4°F – 140°F operating temperature enables operation even under the most severe weather conditions.
- Unrivaled Palm and Face Authentication Performance – Multi-Biometric technology combines palm and face authentication with our unique deep learning algorithm to give users an efficient authentication experience. Industry-leading combination of visible and NIR infrared authentication technology provides exceptional authentication accuracy and the industry’s top-notch antispoofing protection.
- Touchless Solution for New Standards of the Post-pandemic World – The Omni30 meets the needs of the contactless world with features like remote user enrollment, palm, mask detection and face authentication for users with or without masks. Our Palm/ Face/ Card/ QR code authentication technology supports contactless authentication.
- Better Images, Faster Authentication – This device supports palm/ face tracking, which can more intelligently capture the user’s biometrics and avoid the user’s biometric from continuing to be compared after verifying. At the same time, the plam/ face AE function enables the device to obtain higher quality images which improves the authentication accuracy.
- Compatible with EntraPASS Access Control Software and more

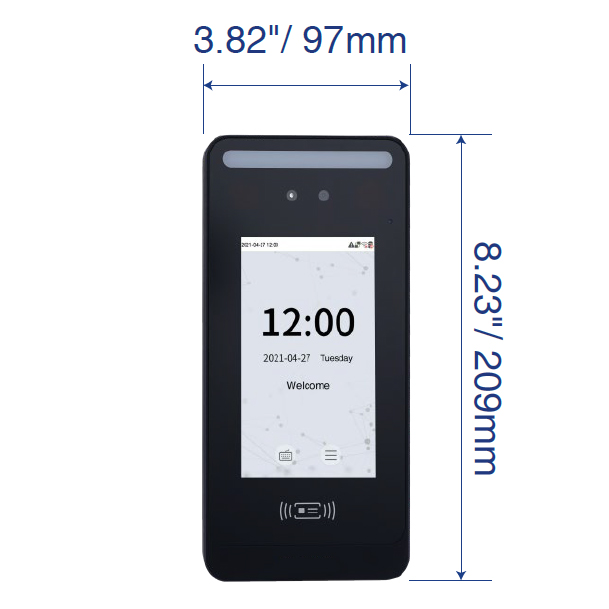

DIMENSIONS
Dimensions: 3.82″ W x 1.112″ D x 8.23″ H (97 x 28.5 x 209mm)
SPECIFICATIONS
- User Capacity: 50,000
- RFID Card Capacity: 50,000 (1:N) / 50,000 (1:1)
- Communication: Wiegand In & Out (up to 64 bits)
- Face Capacity: 10,000 (1:N)/ 50,000 (1:1)
- Palm Capacity: 5,000 (1:N)/ 20,000 (1:1)
- RFID Reading Distance: 13.56MHz & 125kHz: Up to 1.96″/ 50 mm (depending on environment and transponder)
- Face authentication Distance:
Dual Camera Liveness Detection On: 15.7″ – 55.1″ (40cm – 140cm)
Single Camera Liveness Detection On: 15.7″ – 78.7″ (40cm – 200cm) - Palm authentication Distance and Angle Tolerance: 7″ – 15.7″ (18cm – 40cm) / Pitch +/35, Yaw +/- 60, Roll +/-35, Blend +/-30
- Face authentication Speed: 100ms (Field Test Result)
- Live Face Detection (Anti-Spoofing) Support
- Recommend Installation Height:
55″ (140cm) (Using the plate with tilt angle)
59″ (150cm) (Plate with horizontal angle) - Mounting: Suited for mullion-mount door installations or any flat surface mounting.
Supports mounting plate installation (Single gang/ European/ Asian box).

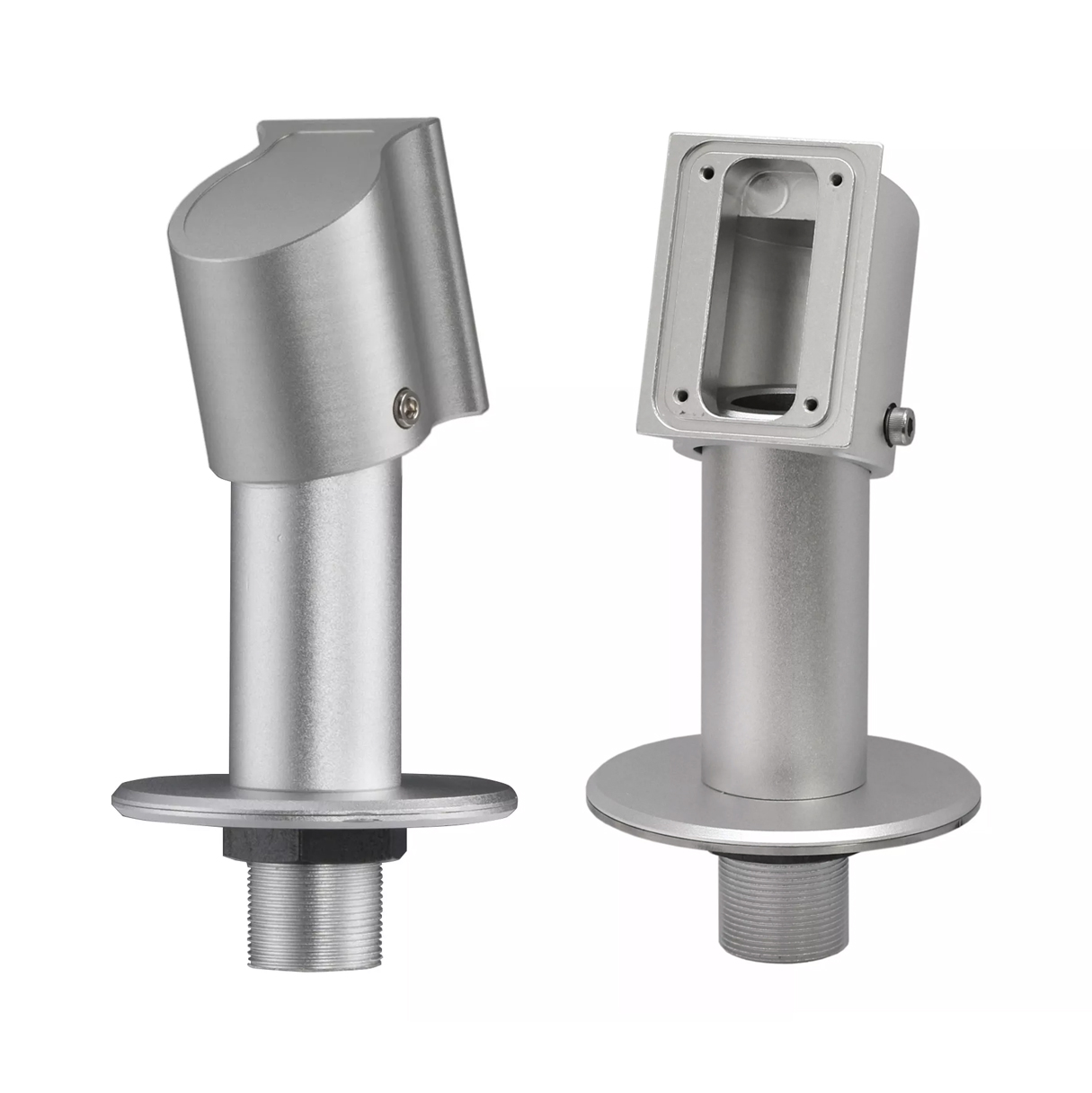

Supports rots-02 bracket. - Housing Material: Aluminium alloy + Tempered glass
- Weight: 1.8lbs/ 835g
- Primary Power 12 VDC (3A min @12V)
- POE Supported
- RS485 connection Port 1: RS485 standard/ OSDP V2.1.7
- CPU 1.2GHZ Quard Core ARM Processor
- NPU 2.4TOPS NPU
- Memory 8 GB Flash + 1 GB RAM
- Camera Face Automatic Exposure | Palm Automatic Exposure | Face tracking | Palm tracking | WDR | HDR | 50Hz to 60Hz Automatic Adaption | Dual Camera | CMOS 2MP (Output image 720P*1280P）
- Primary Host Communication Ethernet: 10/100 Mbps, auto MDI/MDIX | Complies with TLS 1.2 for end to end secure communication channel
- Ethernet network connection Port 1:10/100 Mbps, auto MDI/MDIX
