Description

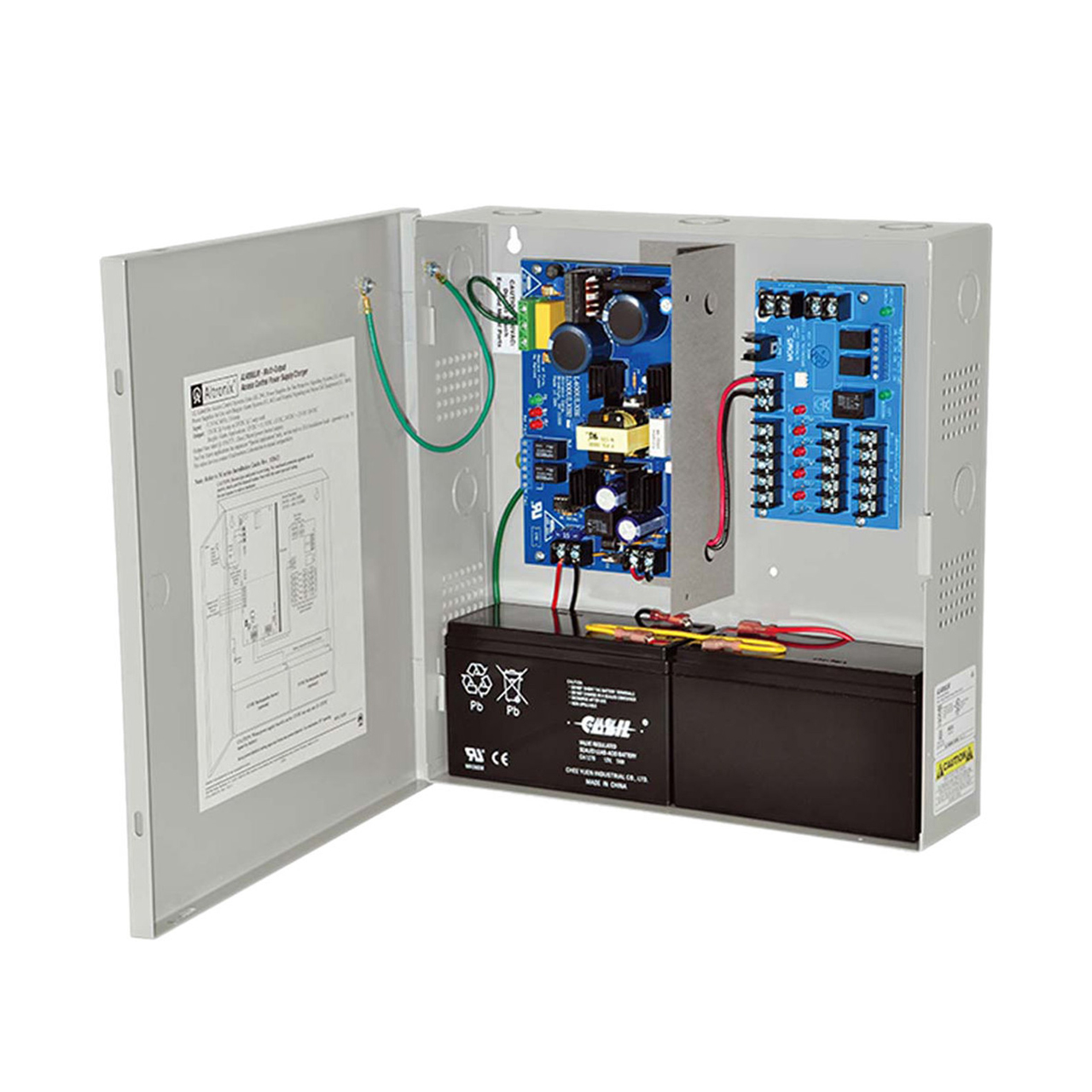

The EntraPASS ADPM115 Power Supply/Charger is specifically designed for use with access control systems and accessories. This unit converts a 115VAC / 60Hz input into five (5) individually protected Class 2 Rated power limited 12VDC or 24VDC outputs (see specifications).
Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form “C” dry output relay enables HVAC Shutdown, Elevator Recall or may be used to trigger auxiliary devices. The unit includes a wall-mount enclosure accommodating up to two 12VDC/7AH Batteries. Combination knockouts are provided for easy installation.
FEATURES
- Access Power Distribution Module Power Supply/Charger
- 12VDC or 24VDC selectable output.
- 12VDC @ 4 amp or 24VDC @ 3 amp supply current.
- Five (5) individual Class 2 Rated power limited outputs rated @ 2.5 amp.
- Current limit is 12VDC or 24VDC @ 2 amp per output.
- Input 115VAC / 60Hz, 1.45 amp.
- Input fuse rated @ 3.5 amp/250V.
- Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C. supervised trigger input and polarity reversal trigger input.
- Output relay energizes when unit is triggered (form “C” contact rated 1 amp @ 28VDC).
- Power fail supervision relay (form “C” contact rated 1 amp @ 28VDC).
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Built-in charger for sealed lead acid or gel type batteries.
- Maximum charge current .7 amp.
- Automatic switch over to stand-by battery when AC fails (zero voltage drop).
- AC fail supervision (form “C” contacts).
- Low battery supervision (form “C” contacts).
- Battery presence supervision (form “C” contacts).
- AC input and DC output LED indicators (power supply board).
- Red LEDs indicate condition of power outputs (multi-output board)
- Power & input trigger LEDs (multi-output board)
- Identified as item #s ADPM115 Certifications AL400ULM
- Ideal for powering access control system devices like a turnstile or gate
- Enclosure:
– Combination knockouts 1/2” and 3/4”
– Accommodates up to two (2) 12VDC/7AH batteries
– Enclosure dimensions: 13″ W x 13.5″ H x 3.25″ D - Weights (approximate):
Product weight: 9.1 lbs.
Shipping weight: 10 lbs.

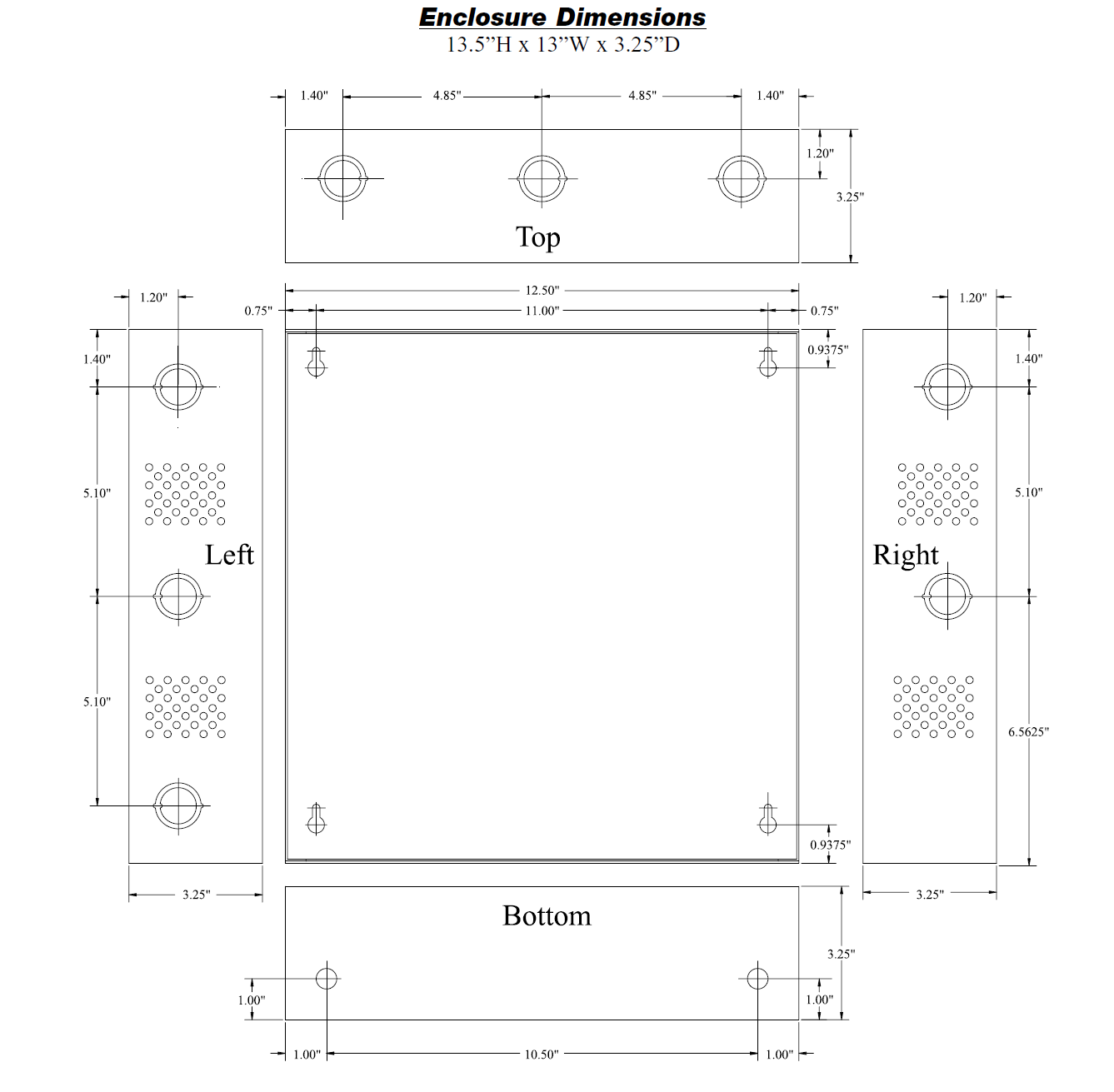

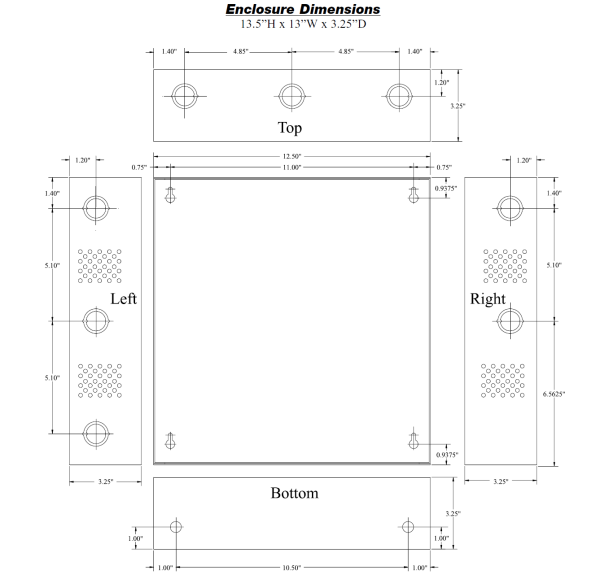

DIMENSIONS
TURNSTILES.us also offers custom drafting of point-to-point schematics for an additional charge, tailored to meet your specific needs.
