Description

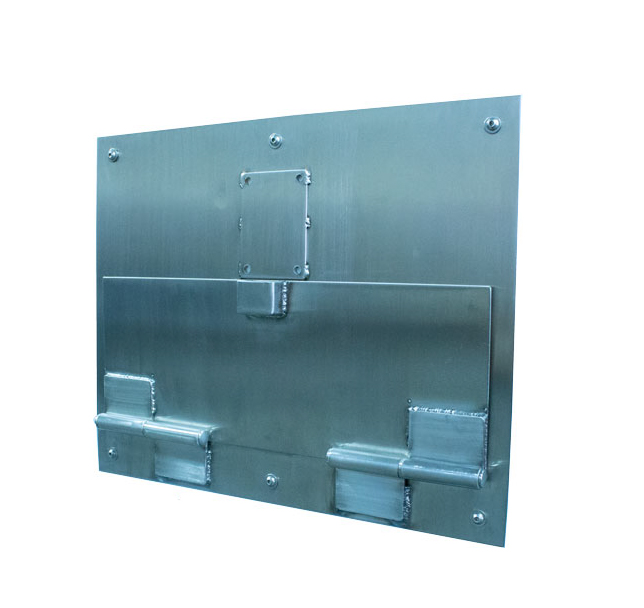

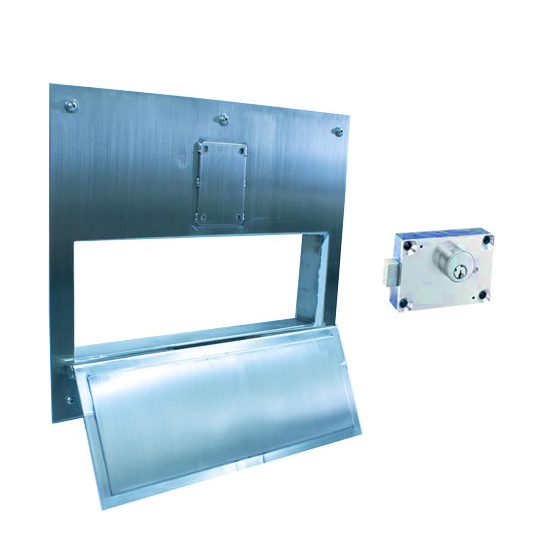

The TUS-PTD Pass-Through Door with Lock is a high-security solution for transferring food trays or other items between secure rooms, such as detention cells or medical containment areas. Designed for durability and daily use, this unit features a brushed stainless steel tray pass with an interior shelf and heavy-duty hinges. Its clean, tamper-resistant profile includes a mechanical panel lock, allowing secure one-sided or two-sided control. The unit mounts flush to the wall with a finished flange and is built to endure intensive environments.
Data Sheet – TUS-PTD Pass-Through Door with Lock
Key Features
- 12 Ga. 304 Brushed Stainless Steel construction
- 20”W x 16”H outer flange; 17.5”W x 6”H pass-through opening
- Integrated interior shelf for safe tray handling
- Heavy-duty stainless steel hinges
- Edges ground smooth for safety

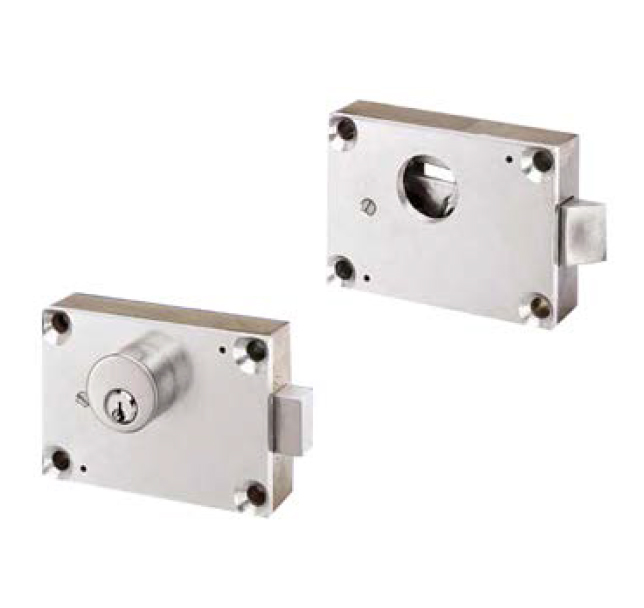

- Deadbolt mechanical panel lock included (keyed access)
• Aluminum bronze lock case.
• Bolt, springs, pins, and screws are stainless steel.
• bolt dimensions Throw: 5/8” (mortise 9/16”) 1/2” projection when bolt is retracted. Bolt width 1”
• Case dimensions: 3” x 4-1/4” x 1-1/4”
• Face plate finish for mortise mountings: Satin Stainless Steel - Clean, tamper-resistant exterior
- Designed for institutional, medical, or correctional use
- Custom size available upon request
- Made in the USA
